display YAMAHA YXZ1000R SS 2017 Owners Manual

4-3
4
EBU34910Parking brake indicator light “(P)”
This indicator light comes on when the park-
ing brake is applied.EBU36450High beam indicator light “ ”
This indicator light comes on when the high
beam of the headlight is switched on.EBU35850Differential gear lock indicator light “DIFF
LOCK”
This indicator light comes on when the front
differential gear is locked.EBU34921Drivetrain icon “ / ”
The drivetrain icon indicates what type of
drive mode is currently selected. When 2WD
is selected, the icon will turn off. When 4WD
is selected, “ ” is displayed. And when 4WD
with differential lock is selected “ ” is dis-
played.
TIP See pages 4-17 and 6-7 for more informa-
tion on selecting the drive mode.
 Due to the synchronizing mechanism in the
differential gear case, the drivetrain icon
may not come on until the vehicle starts
moving.
 When the On-Command drive knob is set
to “DIFF LOCK” or “4WD”, the drivetrain
icon and the differential gear lock indicator
light will flash until the differential gear is
completely locked or unlocked. If the icon
and the indicator light continue to flash, the
differential is not completely locked or un-
locked. In this case, start moving slowly
and/or turn the steering wheel back and
forth to help the differential to lock or un-
lock.
U2HC7ME0.book Page 3 Tuesday, April 19, 2016 10:33 AM

4-5
4
NOTICEECB02040The engine may overheat if the vehicle is
overloaded. If this happens, reduce the
load to specification.
 After restarting, make sure that the
warning light is out. Continuous use
while this warning light is on may cause
damage to the engine. EBU31341Engine trouble warning light “ ”
This warning light comes on or flashes if a
problem is detected in the electrical circuit
monitoring the engine. When this occurs, the
display will indicate an error code (see page
4-16). Have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the vehicle.
EBU33041Electric Power Steering warning light
“EPS”
This warning light comes on when the key is
turned to “ ” (on), and then goes off once
the engine is started. If the warning light re-
mains on or comes on after the engine is
started, the EPS system may not be working
correctly. When this occurs, have a Yamaha
dealer check the EPS system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on, have a
Yamaha dealer check the electrical circuit.
U2HC7ME0.book Page 5 Tuesday, April 19, 2016 10:33 AM

4-7
4
EBU34957Multi-function meter unitThe multi-function meter unit is equipped with
the following:
speedometer 
tachometer
 odometer
 two tripmeters
 clock
 hour meter
 voltage display
 coolant temperature display
 fuel gauge
 transmission gear display
 shift light control mode
 error code display1. Tachometer
2. Transmission gear display
3. Shift timing indicator light
4. Speedometer
5. “SELECT” button
6. “MODE” button
7. “RESET” button
8. Clock/Hour meter/Voltage display/Coolant temperature
display
9. Fuel gauge
10.Odometer/Tripmeter A/Tripmeter B
123456
10 9 8 7
U2HC7ME0.book Page 7 Tuesday, April 19, 2016 10:33 AM

4-8
4
Speedometer
The speedometer shows the vehicle’s travel-
ing speed. The speedometer can be set to
“MPH” or “km/h”. This also changes the
odometer and tripmeter units between miles
and kilometers. To change the display be-
tween “MPH” and “km/h”, turn the key to“ ” (off), then hold the “SELECT” button
pushed and turn the key to “ ” (on). Tachometer
The tachometer shows the engine speed in
crankshaft revolutions per minute (r/min).
When the vehicle is first powered on, the ta-
chometer needle will sweep once across the
r/min range and then return to zero r/min in
order to test the electrical circuit.
NOTICEECB02920Do not operate the engine in the tachome-
ter red zone.
1. Speedometer
1
1. Tachometer
2. Tachometer red zone
1
2
U2HC7ME0.book Page 8 Tuesday, April 19, 2016 10:33 AM

4-9
4
Red zone: 10500 r/min and above Odometer and tripmeters
The odometer shows the total distance trav-
eled by the vehicle. The odometer can be
used for maintenance and service intervals.
The tripmeters show the distance traveled
since they were last reset. The tripmeters can
be used to record the distance traveled on a
single trip, or to estimate the distance that
can be traveled with a full tank of gas, etc.Push the “SELECT” button to switch between
the odometer “ODO” and the tripmeters
“TRIP A” and “TRIP B” in the following order:
ODO
→ TRIP A → TRIP B → ODO
To reset a tripmeter, set the display to the
tripmeter you want to reset, then push the
“RESET” button for three seconds.
TIP The odometer will lock at 99999.
 The tripmeters will reset and continue
counting after 9999.9 is reached.
1. Odometer/Tripmeter A/Tripmeter B
2. “SELECT” button
3. “RESET” button
23
1
U2HC7ME0.book Page 9 Tuesday, April 19, 2016 10:33 AM

4-10
4
Clock, hour meter, voltage display and
coolant temperature display
The clock displays time in 12-hour format.
The hour meter shows the total time the en-
gine has been running.
The voltage display shows the battery volt-
age.
The coolant temperature display shows the
temperature of the coolant.Push the “MODE” button to switch between
the clock “CLOCK”, the hour meter “HOUR”,
the voltage display “VOLTAGE”, and the
coolant temperature display in the following
order:
CLOCK
→ HOUR → VOLTAGE → coolant
temperature → CLOCK
TIPIf the engine overheats, the coolant tempera-
ture warning light will come on, and the cool-
ant temperature display will be automatically
selected. To set the clock1. Set the display to the clock.
2. Push both the “SELECT” button and
“RESET” button for three seconds. The
hour digits will start flashing.
3. Push the “RESET” button to set the hours.
1. Clock/Hour meter/Voltage display/Coolant temperature display
2. “SELECT” button
3. “RESET” button
4. “MODE” button
23
4
1
U2HC7ME0.book Page 10 Tuesday, April 19, 2016 10:33 AM

4-11
4
4. Push the “SELECT” button, and the mi-nute digits will start flashing.
5. Push the “RESET” button to set the minu- tes.
6. Push the “SELECT” button, and then re-
lease it to start the clock.

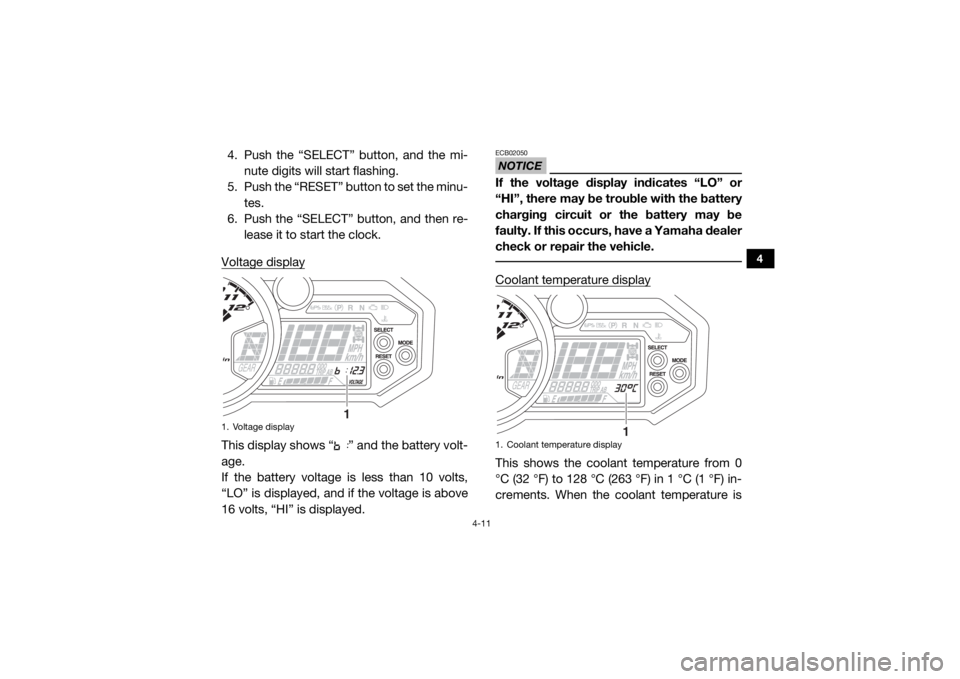

Voltage displayThis display shows “ ” and the battery volt-
age.
If the battery voltage is less than 10 volts,
“LO” is displayed, and if the voltage is above
16 volts, “HI” is displayed.
NOTICEECB02050If the voltage display indicates “LO” or
“HI”, there may be trouble with the battery
charging circuit or the battery may be
faulty. If this occurs, have a Yamaha dealer
check or repair the vehicle. Coolant temperature displayThis shows the coolant temperature from 0
°C (32 °F) to 128 °C (263 °F) in 1 °C (1 °F) in-
crements. When the coolant temperature is
1. Voltage display
1
1. Coolant temperature display
1
U2HC7ME0.book Page 11 Tuesday, April 19, 2016 10:33 AM

4-12
4
below 0 °C (32 °F), “LO” will be displayed.
When the coolant temperature is between
122 °C (252 °F) and 128 °C (263 °F), the cool-
ant temperature display will flash. In this case,
stop the vehicle in a safe place and let it idle
for 10 minutes. If the message “HI” flashes,
stop the engine and let it cool. (See page
8-67.)TIPThe coolant temperature display can be set
to “°C” or “°F”. To switch the temperature
units, turn the key to “ ” (off), then hold
the “RESET” button pushed and turn the
key to “ ” (on).
 The coolant temperature varies with chang-
es in the weather and engine load.
Fuel gauge
The fuel gauge indicates the amount of fuel in
the fuel tank. The display segments of the fuel
gauge disappear from “F” (full) towards “E”
(empty) as the fuel level decreases. When the
last segment on the left disappears and the
fuel level warning indicator flashes, refuel as
soon as possible.1. Fuel level warning indicator
2. Fuel gauge
1
2
U2HC7ME0.book Page 12 Tuesday, April 19, 2016 10:33 AM

4-13
4
TIPThis fuel gauge is equipped with a self-diag-
nosis system. If a problem is detected in an
electrical circuit, all the display segments and
fuel level warning indicator start flashing. If
this occurs, have a Yamaha dealer check the
electrical circuit. Transmission gear displayThis display shows the selected gear. The
neutral position is indicated by “N” and by the
neutral indicator light “N”.
Shift light control mode
The shift timing indicator light has three set-
tings which can be adjusted.

Flashing pattern: this function allows you to
choose whether or not the indicator light
will come on and whether it should flash or
stay on when activated.1. Transmission gear display
2. Neutral indicator light “N”
1
2
1. Shift timing indicator light
2. “RESET” button
3. “MODE” button
1
23
U2HC7ME0.book Page 13 Tuesday, April 19, 2016 10:33 AM

4-14
4
Activation point: this function allows you to
select the engine speed at which the indi-
cator light is activated.
 Deactivation point: this function allows you
to select the engine speed at which the in-
dicator light is deactivated.
To adjust the shift timing indicator light1. Turn the key to “ ” (off).
2. Push and hold the “MODE” button.
3. Turn the key to “ ” (on), and then re- lease the “MODE” button after five sec-
onds. After all segments of the display
disappear and the shift timing indicator
light comes on, the shift timing indicator
light can be adjusted.
To set the flashing pattern1. Push the “RESET” button to select one of the following flashing pattern settings:
On: the indicator light stays on when
activated. (The indicator light will con-
firm this setting by staying on.) 
Flash: the indicator light flashes when
activated. (The indicator light will con-
firm this setting by flashing four times
per second.)
 Off: the indicator light is deactivated; in
other words, it does not come on or
flash. (The indicator light will confirm
this setting by flashing once every two
seconds.)
2. Push the “MODE” button to confirm the selected flashing pattern. The control
mode changes to the activation point set-
ting mode. The shift timing indicator light
remains on and the tachometer shows
the current setting r/min for the activation
point.
To set the shift activation point
TIP The shift timing indicator light activation
point can be set between 7000 r/min and
12000 r/min. The activation point can be set
in increments of 500 r/min.
U2HC7ME0.book Page 14 Tuesday, April 19, 2016 10:33 AM
