engine YAMAHA YXZ1000R SS 2017 Owners Manual

EBU36012
Read this manual carefully before operating this vehicle. This manual should stay with this ve-
hicle if it is sold.
ANSI ROHVA 1 - 2011General Manager
Engineering Division
Recreational Vehicle Business Unit
Vehicle & Solution Business Operations
YAMAHA MOTOR CO., LTD.
18 March, 2016
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
(Make, model)
(If applicable)
and to the other relevant Directives of EEC
2014/30/EU
(Title and/or number and date of issue of the other Directives of EEC)
(If applicable)YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
Signature
Akihiro Tsuzuki
Date of Issue
to which this declaration applies, conforms to the essential health
and safety requirements of Directive 2006/42/EC
To effect correct application of the essential health and safety requirements
stated in the Directives of EEC, the following-standards and/or technical
specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
Authorized Representative
EC Declaration of Conformity
conforming to Directive 2006/42/EC
Manufacturer
YAMAHA MOTOR MANUFACTURING CORPORATION OF AMERICA
1000 GA Highway 34 East, Newnan, Georgia 30265-1320, U.S.A.YXZ1000E (YXZ10YMX) (5Y4AN06W0G0500351–)
YXZ1000ES (YXZ10YMS) (5Y4AN10W0G0500101–)
U2HC7ME0.book Page 1 Tuesday, April 19, 2016 10:33 AM

FOR YOUR SAFETY –
PRE-OPERATION CHECKS .................... 5-1Front and rear brakes ........................... 5-3
Clutch ................................................... 5-3
Fuel ....................................................... 5-4
Engine oil .............................................. 5-5
Transmission ........................................ 5-6
Coolant ................................................. 5-6
Final gear .............................................. 5-6
Differential gear .................................... 5-7
Accelerator pedal ................................. 5-7
Seat belts ............................................. 5-7
Passenger handhold ............................ 5-7
Steering ................................................ 5-7
Shift lever.............................................. 5-8
Fittings and fasteners ........................... 5-8
Instruments, lights and switches .......... 5-8
Control cables ...................................... 5-8
Tires ...................................................... 5-8
OPERATION ............................................ 6-1 Engine break-in .................................... 6-1
Starting the engine ............................... 6-2 Shift lever operation and reverse
driving .................................................6-3
Selecting the drive mode ......................6-7
Parking ..................................................6-9
Loading .................................................6-9
BASIC GUIDE FOR SAFE USE ...............7-1 KNOW YOUR VEHICLE ........................7-1
LEARNING TO OPERATE YOUR VEHICLE ...........................................7-12
PERIODIC MAINTENANCE AND
ADJUSTMENT .........................................8-1 Owner’s manual and tool kit .................8-2
Periodic maintenance chart for the emission control system .....................8-4
General maintenance and lubrication chart ....................................................8-6
Hood ...................................................8-10
Panels .................................................8-10
Engine oil and oil filter.........................8-15
Transmission oil ..................................8-26
Final gear oil .......................................8-29U2HC7ME0.book Page 2 Tuesday, April 19, 2016 10:33 AM

1-9
1
Any part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on
the floorboards,
and keep your
hands on the
handholds.
Do not try to stop a
vehicle tipover
using your arm or
leg.
5B4-K7762-00
WARNING!
WARNING
AVERTISSEMENT
Moving parts can crush
and cut.
Do not operate engine
with guard removed.
2HC-77762-00
Les pièces mobiles
peuvent entrainer des
coupures et des blessures
par écrasement.
Ne pas faire fonctionner le
moteur si le carter de
protection est déposé.
1416 15
U2HC7ME0.book Page 9 Tuesday, April 19, 2016 10:33 AM

1-17
1
YAMAHAB57-F4897-01
WARNING
Load may affect handling and stability.
Do not exceed the maximum load ratings for thecargo bed, or vehicle.
When loaded with cargo: Reduce speed and allow more room to stop.
Turn gradually and slowly.
Avoid hills and rough terrain. Secure cargo so that it will not shift - a loose loadcould change handling unexpectedly or be thrown
forward and strike occupants.
Keep weight in the cargo bed centered side to side and as low as possible. Top-heavy loads increase the risk of a
rollover.
Read Owner’s Manual before loading cargo bed. Improper use of cargo bed or
cage/frame can result
in severe injury or
death from loss of
control, overturn or
other accidents.
Maximum Load in Cargo Bed: 300 lbs (136 kg)
Maximum Vehicle Load: 699 lbs (317 kg) Never carry
passengers
in cargo bed.
Any part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on
the floorboards,
and keep your
hands on the
handholds.
Do not try to stop a
vehicle tipover
using your arm or
leg.
5B4-K7762-00
WARNING!
WARNING
AVERTISSEMENT
Moving parts can crush
and cut.
Do not operate engine
with guard removed.
2HC-77762-00
Les pièces mobiles
peuvent entrainer des
coupures et des blessures
par écrasement.
Ne pas faire fonctionner le
moteur si le carter de
protection est déposé.
78
6
U2HC7ME0.book Page 17 Tuesday, April 19, 2016 10:33 AM

2-6
2
Do not operate the vehicle in fast-flowing water or water deeper than 39 cm (15 in). If you must
cross shallow, slow-moving water, choose your path carefully to avoid sharp drop-offs, large
rocks, or slippery surfaces. Operating this vehi cle through deep or fast-flowing water can lead
to loss of control or overturn. To reduce your risk of drowning or other injuries, use care when
crossing through water.
 When loaded with cargo:
• Drive more slowly than normal and allow more room to stop.
• Avoid hills and rough terrain. Use caution when carrying a load up or downhill.
Avoid carbon monoxide poisoning
All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nausea, confusion, an d eventually death.
Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you do not
see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you
can quickly be overcome and unable to save yourself. Also, deadly leve ls of carbon monoxide
can linger for hours or days in enclosed or poor ly-ventilated areas. If you experience any symp-
toms of carbon monoxide poisoning, leave th e area immediately, get fresh air, and SEEK MED-
ICAL TREATMENT.
 Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open win-
dows and doors, carbon monoxide can rapidly reach dangerous levels.
 Do not run engine in poorly ventilated or partia lly enclosed areas such as barns, garages, or
carports.U2HC7ME0.book Page 6 Tuesday, April 19, 2016 10:33 AM

2-7
2
Do not run engine outdoors where engine exhaus t can be drawn into a building through open-
ings such as windows and doors.
Genuine Yamaha Accessories
Choosing accessories for your YXZ1000R is an important decision. Genuine Yamaha Accesso-
ries, which are available only from a Yamaha dealer, have been designed, tested, and approved
by Yamaha for use on your YXZ1000R.
Many companies with no connection to Yamaha manufacture parts and accessories or offer oth-
er modifications for Yamaha vehicl es. Yamaha is not in a position to test the products that these
aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the
use of accessories not sold by Yamaha or modifications not specifically recommended by
Yamaha, even if sold and installed by a Yamaha dealer.
Aftermarket parts, accessories, and modifications
While you may find aftermarket products similar in design and quality to genuine Yamaha Acces-
sories, recognize that some aftermarket accessories or modifications are not suitable because
of potential safety hazards to yo u or others. Installing aftermarket products or having other mod-
ifications performed to your YXZ1000R that change any of the vehicle’s design or operation char-
acteristics can put you and others at greater risk of serious injury or death. You are responsible
for injuries related to changes in the vehicle.U2HC7ME0.book Page 7 Tuesday, April 19, 2016 10:33 AM

3-1
3
EBU31170
DESCRIPTION

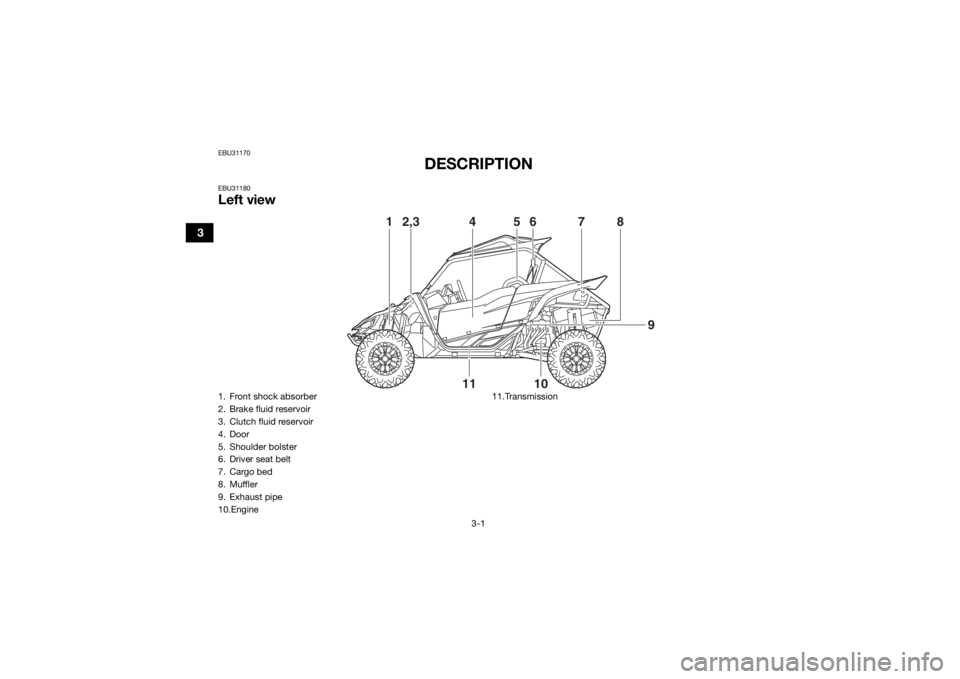

EBU31180Left view
1 2,3 4 5 6
10
1178
9
1. Front shock absorber
2. Brake fluid reservoir
3. Clutch fluid reservoir
4. Door
5. Shoulder bolster
6. Driver seat belt
7. Cargo bed
8. Muffler
9. Exhaust pipe
10.Engine 11.TransmissionU2HC7ME0.book Page 1 Tuesday, April 19, 2016 10:33 AM

3-2
3
EBU31190Right view
12,3 78
4
5,6
9
1. Rear shock absorber
2. Engine oil tank
3. Air filter
4. Passenger seat belt
5. Battery
6. Fuses
7. Coolant reservoir
8. Headlight
9. Fuel tank capU2HC7ME0.book Page 2 Tuesday, April 19, 2016 10:33 AM

4-1
4
EBU31214INSTRUMENT AND CONTROL FUNCTIONSEBU31220Main switchFunctions of the respective switch positions
are as follows:
EBU31230“” (on):
All electrical circuits are supplied with power.
The key cannot be removed.TIPThe helmet indicator light comes on and stays
on while the key is turned to “ ” (on). EBU31240“ ” (off):
All electrical circuits are switched off. The key
can be removed.EBU31250“” (start):
The electric starter is engaged by turning and
holding the key in this position. Release the
key when the engine starts.
1. Main switch
2. “ ” (off)
3. “ ” (on)
4. “ ” (start)
1
2
3
4
U2HC7ME0.book Page 1 Tuesday, April 19, 2016 10:33 AM

4-2
4
EBU31265Indicator lights and warning lights
EBU35450Neutral indicator light “N”
This indicator light comes on when the trans-
mission is in the neutral position.EBU35460Reverse indicator light “R”
This indicator light comes on when the trans-
mission is in the reverse position.
1. Shift timing indicator light
2. Electric Power Steering warning light “EPS”
3. Differential gear lock indicator light “DIFF LOCK”
4. Parking brake indicator light “(P)”
5. Reverse indicator light “R”
6. Neutral indicator light “N”
7. Engine trouble warning light “ ”
8. High beam indicator light “ ”
9. Coolant temperature warning light “ ”
10.Drivetrain icon “ ”/“ ”
1
2
3
45
6
78
10
9
1. Helmet indicator light “ ”
2. Seat belt indicator light “ ”
12
U2HC7ME0.book Page 2 Tuesday, April 19, 2016 10:33 AM
