7-4
7
The YXZ1000R comes with a variety of fea-
tures to help reduce the risk of driver and pas-
senger injury. These features work together,
and when properly used, these features will
help protect the occupants in the event of an
accident. If these features are not used prop-
erly, they can cause injury.
1. Seat belt
2. Shoulder bolster
3. Door
3
21
1
1. Passenger handhold
2. Shoulder bolster
3. Door
3
2
1
UB0F7AE0.book Page 4 Monday, November 6, 2017 2:30 PM
Page 122 of 224

7-5
7
Protective structure
The vehicle cage/frame provides a protective
structure that helps limit intrusions by branch-
es or other objects and may reduce your risk
of injury in accidents. The protective structure
will not protect occupants in all rollovers or
accidents.
Body parts outside of vehicle can be struck
by passing objects or crushed during vehicle
rollover. Do not put your hands or feet outside
of the vehicle for any reason. Do not hold onto
the door, cage/frame or shoulder bolster.
Wear your seat belt and helmet.
If you think or feel that the vehicle may tip or
roll, do not put your hands or feet outside the
vehicle for any reason. You will not be able to
stop the vehicle from tipping over using your
body. Any part of your body (arms, legs, or
head) outside of the vehicle can be crushed
by the vehicle cage/frame. Seat belts
Seat belts should be worn by the driver and
passenger. The driver must be sure that the
passenger is belted before driving.
Be sure the seat belt is not twisted, is close-
fitting across the hips and chest, and is
latched securely.
Do not wear the seat belt across the abdo-
men or stomach.
Do not put the seat belt behind the back.
Failure to use seat belts properly may lead to
an increased likelihood and severity of injury.
An unbelted occupant may strike the interior
of the vehicle, the protective structure, or oth-
er objects in an accident or during operation.
You may also fall completely out or be partial-
ly ejected from the vehicle, which may lead to
being crushed between the ground and the
vehicle. Wearing the seat belt helps you re-
main in the vehicle – the doors and passenger
handhold are not a substitute for using a seat
belt.UB0F7AE0.book Page 5 Monday, November 6, 2017 2:30 PM
Page 123 of 224

7-6
7
A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or death in a crash.
To help make sure your restraint systems are
working properly after a crash, have them in-
spected and any necessary replacements
made as soon as possible.
To wear the seat belt properly, do the follow-
ing:1. Hold the latch plate as you pull the belt
across your lap and chest. Make sure the
belt is not twisted and is not caught on
any portion of the vehi cle, your clothing,
or any equipment you are carrying.
2. If the latch plate is not positioned in the correct location along the seat belt,
squeeze the latch plate ends together
along its long edges in order to more eas-
ily adjust its location up or down along
the length of the belt.1. Seat belt
2. Latch plate
3. Buckle
12
12
3
UB0F7AE0.book Page 6 Monday, November 6, 2017 2:30 PM
Page 124 of 224

7-7
7
3. Push the latch plate into the buckle until itclicks. Pull up on the latch plate to make
sure it is secure.
4. Put the lap portion of the belt low on your hips. Pull up on the shoulder part so the
belt is snug across your hips. Be sure the
seat belt is not caught on the shoulder
bolster or other object. 5. Position the shoulder belt over your
shoulder and across your chest. The
shoulder belt should fit against your
chest. If it is loose, pull the belt out all the
way and then let it retract.
6. Check if the seat belt shoulder position suits the size of the driver and passenger.
To lower the belt, insert the belt into the
seat belt height adjuster slot as shown.
To raise the belt, remove the belt from the
height adjuster slot.1. Buckle
2. Latch plate
3. Release button
1
3
2
1. Seat belt height adjuster
2. Seat belt
3. Slot
1
2
3
UB0F7AE0.book Page 7 Monday, November 6, 2017 2:30 PM
Page 125 of 224

7-8
7
7. To release the buckle, firmly press the re-lease button.
Doors
The doors are designed to reduce the likeli-
hood that you will stick your leg out to stop
the vehicle from tipping over or for any other
reason in a rollover. The doors may also re-
duce intrusion of objects into the occupant
area. Make sure the door is securely latched
before operation. Do not place your arm or
hand on the door during operation. Your hand
or arm may be struck by objects or crushed
against outside objects or the ground during
a rollover. Passenger handhold
The passenger handhold is provided to grip
during operation to maintain proper position
and balance. Holding onto the handhold
helps to reduce the likelihood that the pas-
senger puts a hand outside the vehicle if the
vehicle begins to tip.
The driver should make sure the passenger is
holding onto the handhold with both hands
before operating the vehicle.
UB0F7AE0.book Page 8 Monday, November 6, 2017 2:30 PM
Page 126 of 224

7-9
7

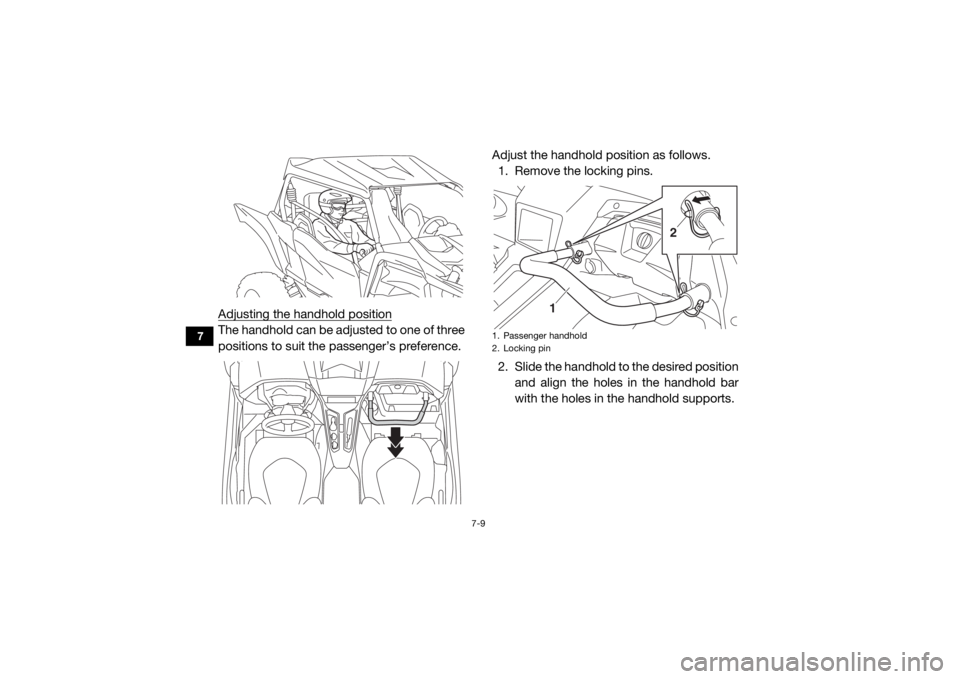

Adjusting the handhold positionThe handhold can be adjusted to one of three
positions to suit the passenger’s preference.Adjust the handhold position as follows.
1. Remove the locking pins.
2. Slide the handhold to the desired position
and align the holes in the handhold bar
with the holes in the handhold supports.
1. Passenger handhold
2. Locking pin
1
2
UB0F7AE0.book Page 9 Monday, November 6, 2017 2:30 PM
Page 127 of 224

7-10
7
3. Insert the pins into the holes and securethem with the wire loops. Make sure that
the handhold is properly secured before
starting off. Seat and shoulder bolsters
The seats and shoulder bolsters are designed
to help keep you in the vehicle. Do not put
your hand or arm on or outside of the shoul-
der bolster during operation. Your hand or
arm may be struck by objects or crushed
against outside objects or the ground during
a rollover.1. Handhold support
2. Handhold bar
2
1
1
1. Wire loop
1
UB0F7AE0.book Page 10 Monday, November 6, 2017 2:30 PM
Page 128 of 224

7-11
7
Floorboard
The floorboard allows you to brace your feet,
which helps you keep your body in the vehicle
in the event of an accident or rollover. Keep
your feet on the floorboard during operation.
Steering wheel
Keep both hands on the steering wheel. Do
not hold the steering wheel with your thumbs
inside the rim. Keep your palms on the out-
side of the steering wheel. Similar to other off-
road vehicles, if the YXZ1000R hits a deep rut
or large obstacle, the steering wheel couldbriefly jerk in one direction or back and forth
as the tires and vehicle respond to the obsta-
cle. This quick motion could injure your
thumbs or wrist if your thumbs or hand(s) are
inside the steering wheel. Grip the steering
wheel so that your thum
bs will not be hit by
the spokes. As an exam ple, see the illustra-
tion.UB0F7AE0.book Page 11 Monday, November 6, 2017 2:30 PM
Page 129 of 224

7-12
7
EBU36753LEARNING TO OPERATE YOUR VEHI-
CLEPersonal protective equipment
The driver and passenger should wear the fol-
lowing to reduce risk of injury in an accident:
Approved motorcycle helmet that fits prop-
erly
CORRECT GRIP EXAMPLE
INCORRECT GRIP EXAMPLE
1. Approved motorcycle helmet
2. Eye protection
3. Long-sleeved shirt or jacket
4. Gloves
5. Long pants
6. Over-the-ankle boots
1 2
3
4
5
6
UB0F7AE0.book Page 12 Monday, November 6, 2017 2:30 PM
Page 130 of 224

7-13
7
Eye protection (goggles, helmet face shield,
or protective eyewear)
Over-the-ankle boots, gloves, long-sleeved
shirt or jacket, and long pants
An approved helmet and other personal pro-
tective equipment can help in a variety of
ways, including:
Reduce the severity of injuries if any part of
you is outside the vehicle or protective
structure during a rollover.
Help protect you if outside objects intrude
inside the vehicle during operation.
Help protect you in the event of impact with
an obstacle or other vehicle.
Wear eye protection when operating or riding
in the vehicle to reduce the risk of a serious
accident or injury. Eye protection, such as a
face shield or goggles, may reduce the risk of
foreign material getting in your eyes and help
prevent loss of vision. Practice for new Yamaha YXZ1000R users
Become familiar with the performance char-
acteristics of the vehicle in a large, flat area
that is free of obstacles and other vehicles.
Practice controlling the accelerator pedal,
brakes, steering, and shift paddles. Drive at
slow speeds with gradual acceleration and
smooth turns. Practice applying the accelera-
tor pedal smoothly. Practice slowing down
before turning. Practice maintaining a steady
amount of throttle (accelerator pedal position)
through the turn. Avoid higher speeds until
you are thoroughly familiar with the operation
and handling of the vehicle. Remember, driv-
ing aggressively or making abrupt maneuvers
even on flat, open areas can cause side roll-
overs.UB0F7AE0.book Page 13 Monday, November 6, 2017 2:30 PM
