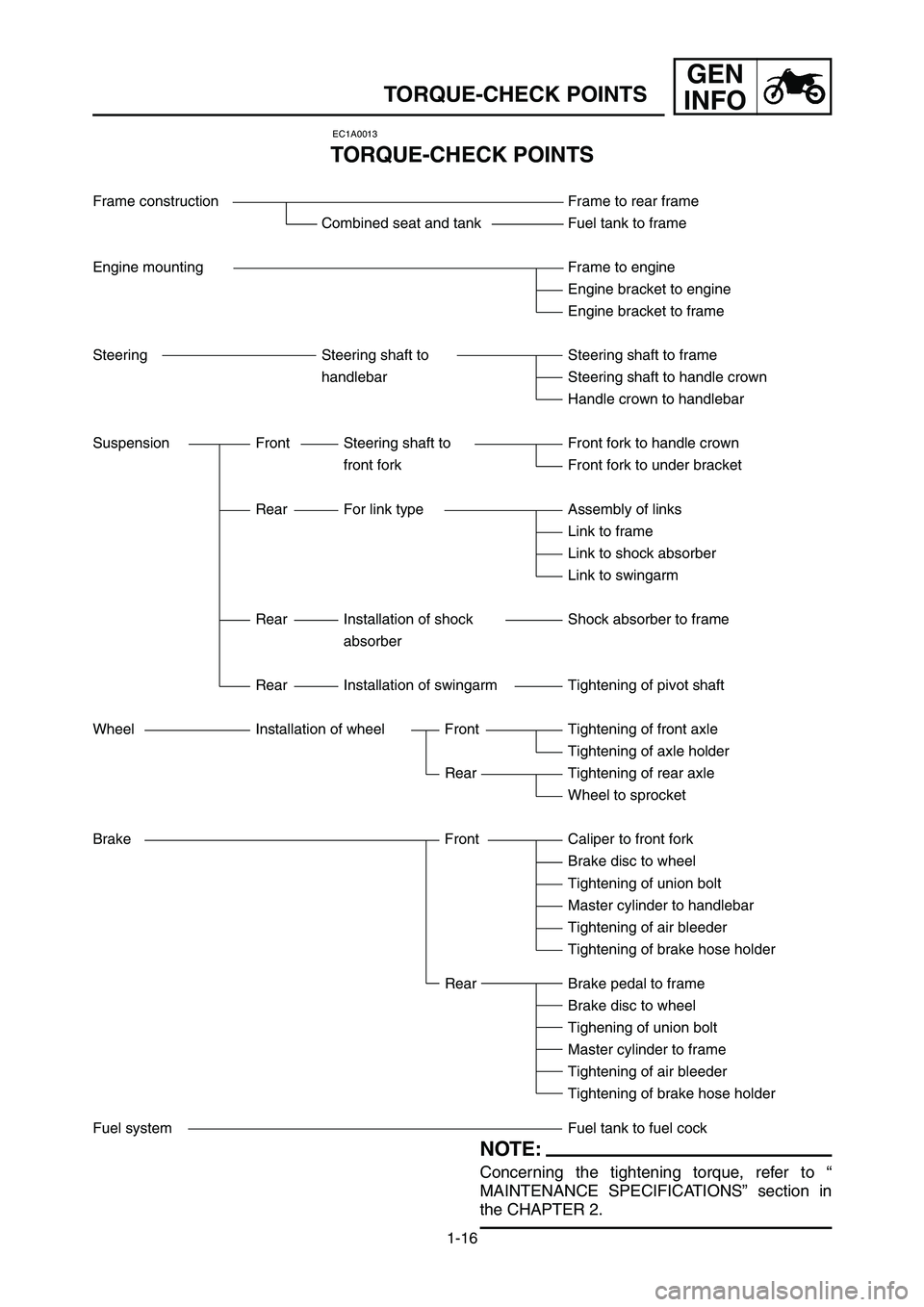

1-16
GEN
INFO
TORQUE-CHECK POINTS
EC1A0013
TORQUE-CHECK POINTS
Frame construction Frame to rear frame
Combined seat and tank Fuel tank to frame
Engine mounting Frame to engine
Engine bracket to engine
Engine bracket to frame
Steering Steering shaft to Steering shaft to frame
handlebar Steering shaft to handle crown
Handle crown to handlebar
Suspension Front Steering shaft to Front fork to handle crown
front fork Front fork to under bracket
Rear For link type Assembly of links
Link to frame
Link to shock absorber
Link to swingarm
Rear Installation of shock Shock absorber to frame
absorber
Rear Installation of swingarm Tightening of pivot shaft
Wheel Installation of wheel Front Tightening of front axle
Tightening of axle holder
Rear Tightening of rear axle
Wheel to sprocket
Brake Front Caliper to front fork
Brake disc to wheel
Tightening of union bolt
Master cylinder to handlebar
Tightening of air bleeder
Tightening of brake hose holder
Rear Brake pedal to frame
Brake disc to wheel
Tighening of union bolt
Master cylinder to frame
Tightening of air bleeder
Tightening of brake hose holder
Fuel system Fuel tank to fuel cock
NOTE:
Concerning the tightening torque, refer to “
MAINTENANCE SPECIFICATIONS” section in
the CHAPTER 2.
1C3-9-31-1B 3/31/05 11:58 AM Page 10

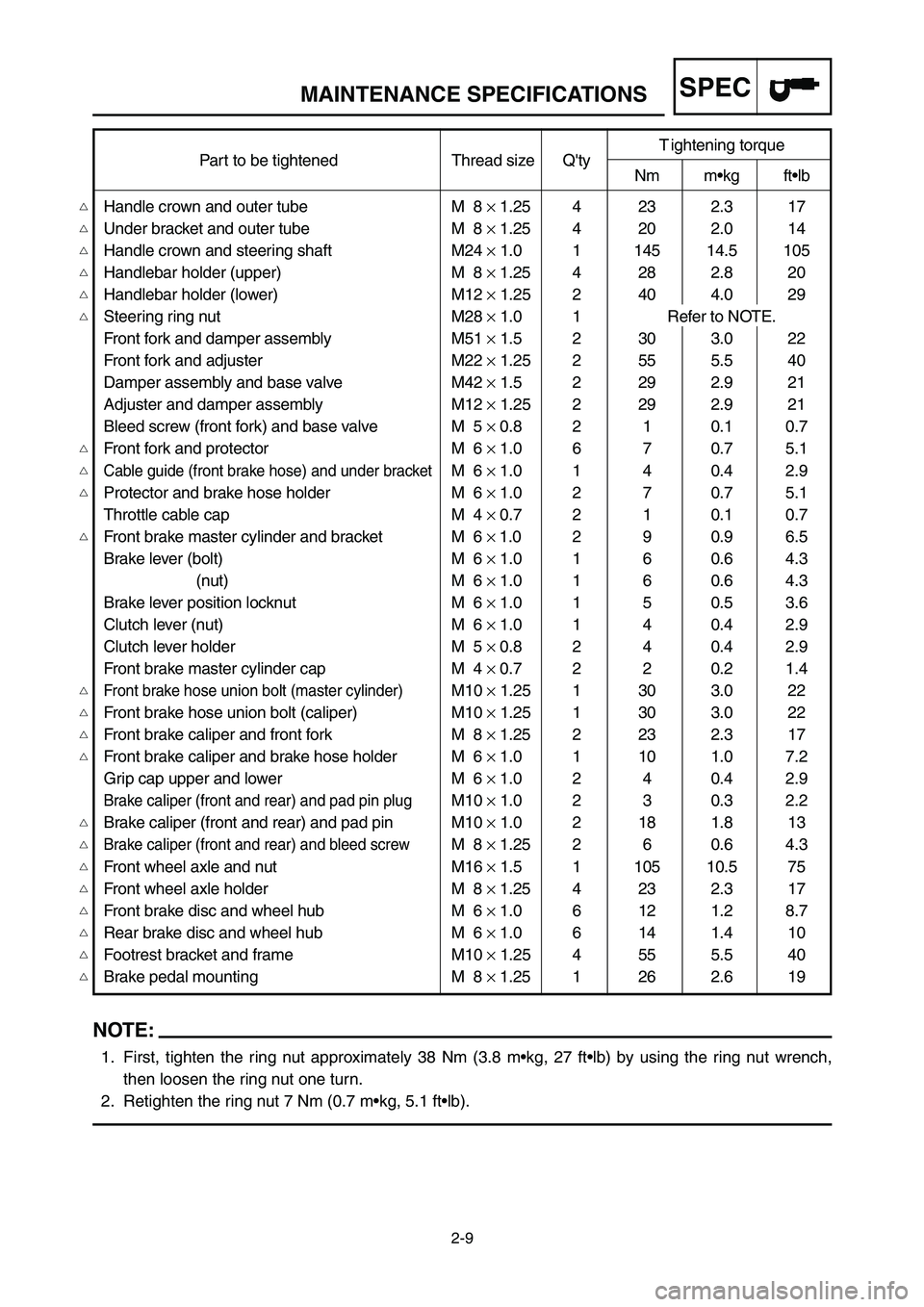

2-9
SPECMAINTENANCE SPECIFICATIONS
NOTE:
1. First, tighten the ring nut approximately 38 Nm (3.8 m•kg, 27 ft•lb) by using the ring nut wrench,
then loosen the ring nut one turn.
2. Retighten the ring nut 7 Nm (0.7 m•kg, 5.1 ft•lb).
Part to be tightened Thread size Q'tyT ightening torqueNm m•kg ft•lb
Handle crown and outer tube M 8 ×1.25 4 23 2.3 17
Under bracket and outer tube M 8 ×1.25 4 20 2.0 14
Handle crown and steering shaft M24 ×1.0 1 145 14.5 105
Handlebar holder (upper) M 8 ×1.25 4 28 2.8 20
Handlebar holder (lower) M12 ×1.25 2 40 4.0 29
Steering ring nut M28 ×1.0 1 Refer to NOTE.
Front fork and damper assembly M51 ×1.5 2 30 3.0 22
Front fork and adjuster M22 ×1.25 2 55 5.5 40
Damper assembly and base valve M42 ×1.5 2 29 2.9 21
Adjuster and damper assembly M12 ×1.25 2 29 2.9 21
Bleed screw (front fork) and base valve M 5 ×0.8 2 1 0.1 0.7
Front fork and protector M 6 ×1.0 6 7 0.7 5.1
Cable guide (front brake hose) and under bracketM 6 ×1.0 1 4 0.4 2.9
Protector and brake hose holder M 6 ×1.0 2 7 0.7 5.1
Throttle cable cap M 4 ×0.7 2 1 0.1 0.7
Front brake master cylinder and bracket M 6 × 1.0 2 9 0.9 6.5
Brake lever (bolt) M 6 ×1.0 1 6 0.6 4.3
(nut) M 6 ×1.0 1 6 0.6 4.3
Brake lever position locknut M 6 ×1.0 1 5 0.5 3.6
Clutch lever (nut) M 6 ×1.0 1 4 0.4 2.9
Clutch lever holder M 5 ×0.8 2 4 0.4 2.9
Front brake master cylinder cap M 4 ×0.7 2 2 0.2 1.4
Front brake hose union bolt (master cylinder)M10 ×1.25 1 30 3.0 22
Front brake hose union bolt (caliper) M10 ×1.25 1 30 3.0 22
Front brake caliper and front fork M 8 ×1.25 2 23 2.3 17
Front brake caliper and brake hose holder M 6 ×1.0 1 10 1.0 7.2
Grip cap upper and lower M 6 ×1.0 2 4 0.4 2.9
Brake caliper (front and rear) and pad pin plugM10 ×1.0 2 3 0.3 2.2
Brake caliper (front and rear) and pad pin M10 ×1.0 2 18 1.8 13
Brake caliper (front and rear) and bleed screwM 8 ×1.25 2 6 0.6 4.3
Front wheel axle and nut M16 ×1.5 1 105 10.5 75
Front wheel axle holder M 8 ×1.25 4 23 2.3 17
Front brake disc and wheel hub M 6 ×1.0 6 12 1.2 8.7
Rear brake disc and wheel hub M 6 ×1.0 6 14 1.4 10
Footrest bracket and frame M10 ×1.25 4 55 5.5 40
Brake pedal mounting M 8 ×1.25 1 26 2.6 19























1C3-9-31-2A 4/30/05 2:37 PM Page 10

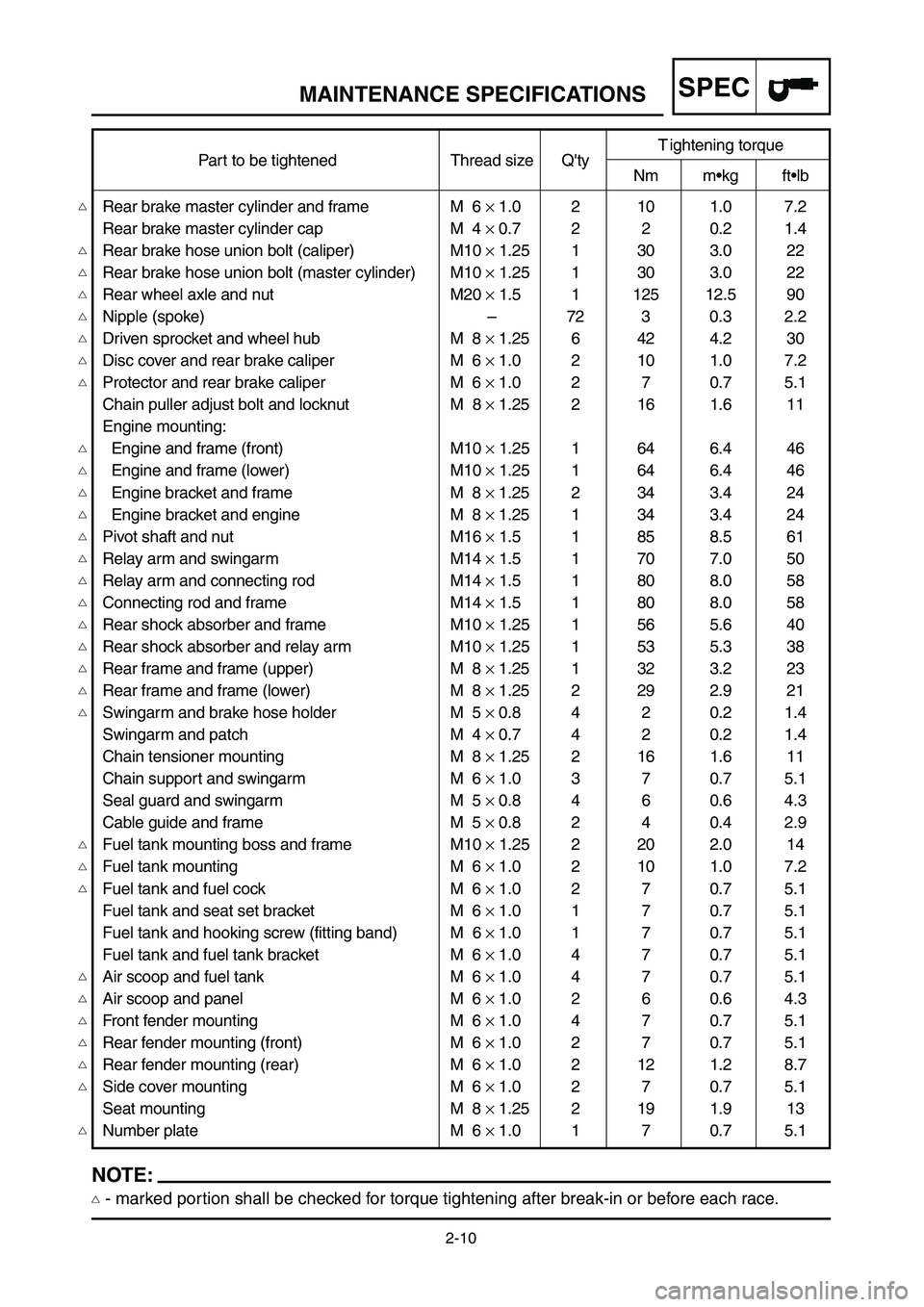

2-10
SPECMAINTENANCE SPECIFICATIONS
Part to be tightened Thread size Q'tyT ightening torqueNm m•kg ft•lb
Rear brake master cylinder and frame M 6 ×1.0 2 10 1.0 7.2
Rear brake master cylinder cap M 4 ×0.7 2 2 0.2 1.4
Rear brake hose union bolt (caliper) M10 ×1.25 1 30 3.0 22
Rear brake hose union bolt (master cylinder) M10 ×1.25 1 30 3.0 22
Rear wheel axle and nut M20 ×1.5 1 125 12.5 90
Nipple (spoke) – 72 3 0.3 2.2
Driven sprocket and wheel hub M 8 ×1.25 6 42 4.2 30
Disc cover and rear brake caliper M 6 ×1.0 2 10 1.0 7.2
Protector and rear brake caliper M 6 ×1.0 2 7 0.7 5.1
Chain puller adjust bolt and locknut M 8 ×1.25 2 16 1.6 11
Engine mounting:
Engine and frame (front) M10 ×1.25 1 64 6.4 46
Engine and frame (lower) M10 ×1.25 1 64 6.4 46
Engine bracket and frame M 8 ×1.25 2 34 3.4 24
Engine bracket and engine M 8 ×1.25 1 34 3.4 24
Pivot shaft and nut M16 ×1.5 1 85 8.5 61
Relay arm and swingarm M14 ×1.5 1 70 7.0 50
Relay arm and connecting rod M14 ×1.5 1 80 8.0 58
Connecting rod and frame M14 ×1.5 1 80 8.0 58
Rear shock absorber and frame M10 ×1.25 1 56 5.6 40
Rear shock absorber and relay arm M10 ×1.25 1 53 5.3 38
Rear frame and frame (upper) M 8 ×1.25 1 32 3.2 23
Rear frame and frame (lower) M 8 ×1.25 2 29 2.9 21
Swingarm and brake hose holder M 5 ×0.8 4 2 0.2 1.4
Swingarm and patch M 4 ×0.7 4 2 0.2 1.4
Chain tensioner mounting M 8 ×1.25 2 16 1.6 11
Chain support and swingarm M 6 ×1.0 3 7 0.7 5.1
Seal guard and swingarm M 5 ×0.8 4 6 0.6 4.3
Cable guide and frame M 5 ×0.8 2 4 0.4 2.9
Fuel tank mounting boss and frame M10 ×1.25 2 20 2.0 14
Fuel tank mounting M 6 ×1.0 2 10 1.0 7.2
Fuel tank and fuel cock M 6 ×1.0 2 7 0.7 5.1
Fuel tank and seat set bracket M 6 ×1.0 1 7 0.7 5.1
Fuel tank and hooking screw (fitting band) M 6 ×1.0 1 7 0.7 5.1
Fuel tank and fuel tank bracket M 6 ×1.0 4 7 0.7 5.1
Air scoop and fuel tank M 6 ×1.0 4 7 0.7 5.1
Air scoop and panel M 6 ×1.0 2 6 0.6 4.3
Front fender mounting M 6 ×1.0 4 7 0.7 5.1
Rear fender mounting (front) M 6 ×1.0 2 7 0.7 5.1
Rear fender mounting (rear) M 6 ×1.0 2 12 1.2 8.7
Side cover mounting M 6 ×1.0 2 7 0.7 5.1
Seat mounting M 8 ×1.25 2 19 1.9 13
Number plate M 6 ×1.0 1 7 0.7 5.1
NOTE:

- marked portion shall be checked for torque tightening after break-in or before each race.
