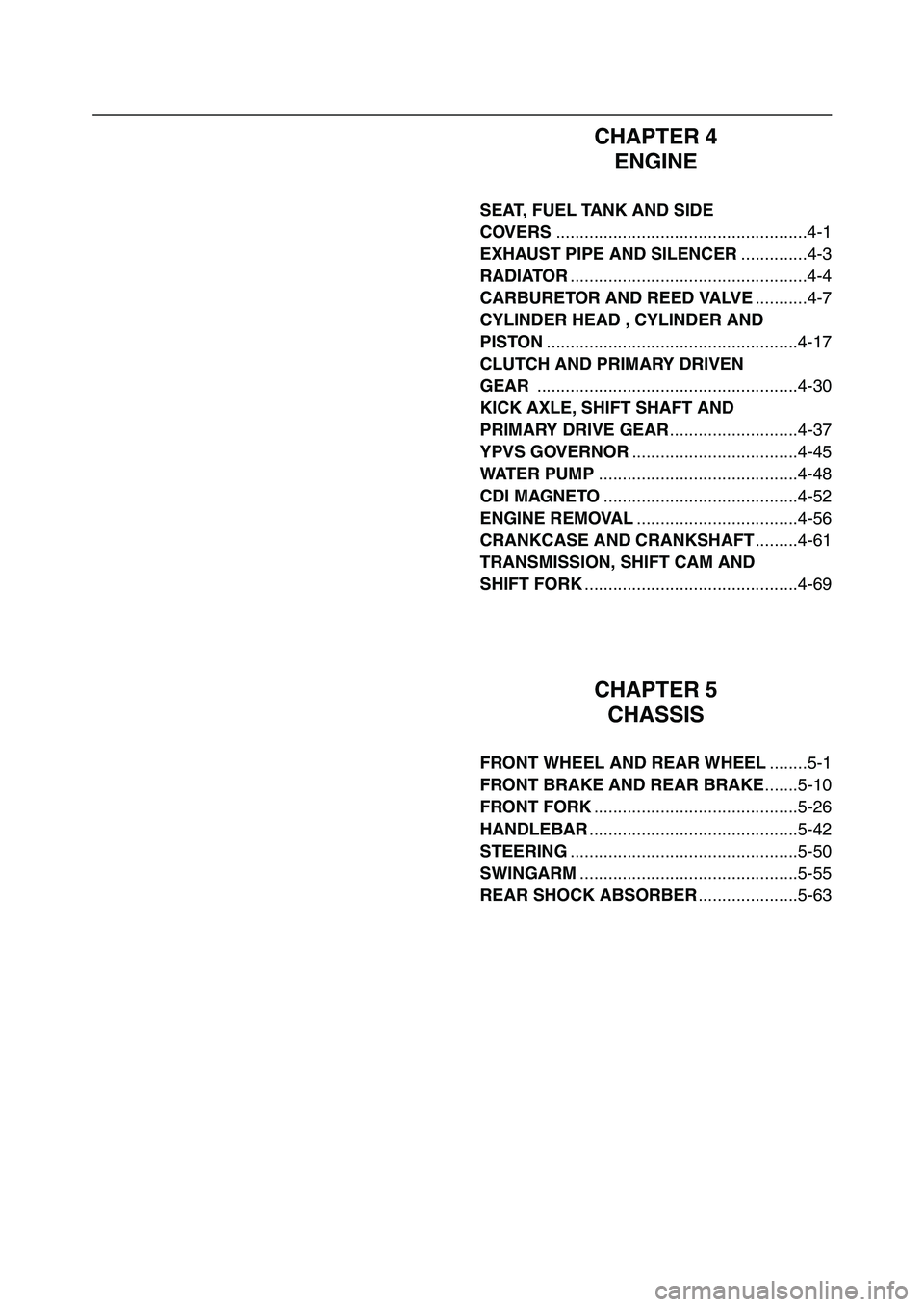

CHAPTER 4
ENGINE
SEAT, FUEL TANK AND SIDE
COVERS.....................................................4-1
EXHAUST PIPE AND SILENCER..............4-3
RADIATOR..................................................4-4
CARBURETOR AND REED VALVE...........4-7
CYLINDER HEAD , CYLINDER AND
PISTON.....................................................4-17
CLUTCH AND PRIMARY DRIVEN
GEAR.......................................................4-30
KICK AXLE, SHIFT SHAFT AND
PRIMARY DRIVE GEAR...........................4-37
YPVS GOVERNOR...................................4-45
WATER PUMP..........................................4-48
CDI MAGNETO.........................................4-52
ENGINE REMOVAL..................................4-56
CRANKCASE AND CRANKSHAFT.........4-61
TRANSMISSION, SHIFT CAM AND
SHIFT FORK.............................................4-69
CHAPTER 5
CHASSIS
FRONT WHEEL AND REAR WHEEL........5-1
FRONT BRAKE AND REAR BRAKE.......5-10
FRONT FORK...........................................5-26
HANDLEBAR............................................5-42
STEERING................................................5-50
SWINGARM..............................................5-55
REAR SHOCK ABSORBER.....................5-63
1C3-9-32-0 4/28/06 9:45 AM Page 20

1-8
GEN
INFO

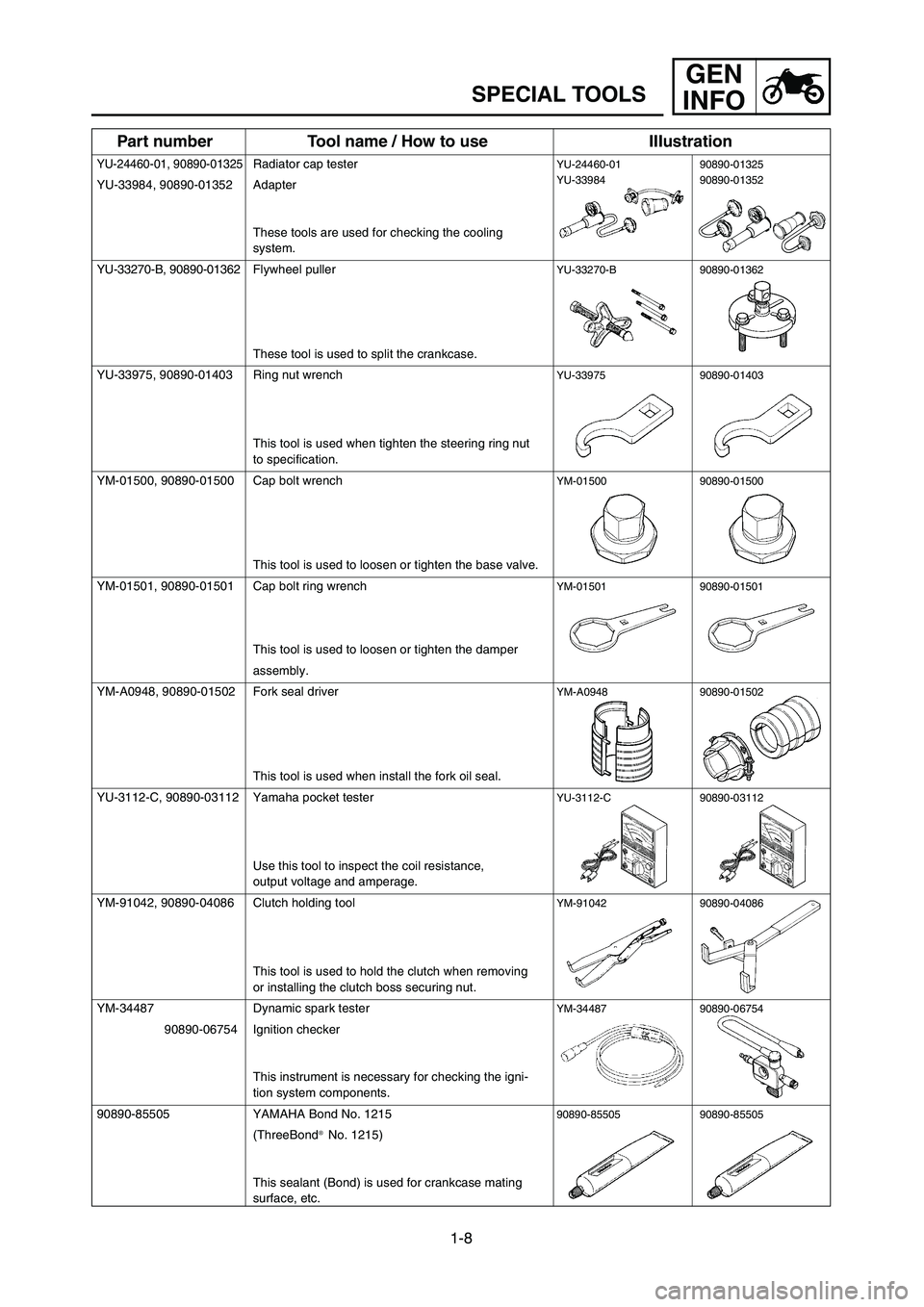

SPECIAL TOOLS
Part number Tool name / How to use IIIustration
YU-24460-01, 90890-01325Radiator cap testerYU-24460-01 90890-01325
YU-33984, 90890-01352 AdapterYU-33984 90890-01352
These tools are used for checking the cooling
system.
YU-33270-B, 90890-01362Flywheel puller
YU-33270-B 90890-01362
These tool is used to split the crankcase.
YU-33975, 90890-01403 Ring nut wrench
YU-33975 90890-01403
This tool is used when tighten the steering ring nut
to specification.
YM-01500, 90890-01500 Cap bolt wrench
YM-01500 90890-01500
This tool is used to loosen or tighten the base valve.
YM-01501, 90890-01501 Cap bolt ring wrench
YM-01501 90890-01501
This tool is used to loosen or tighten the damper
assembly.
YM-A0948, 90890-01502 Fork seal driver
YM-A0948 90890-01502
This tool is used when install the fork oil seal.
YU-3112-C, 90890-03112 Yamaha pocket tester
YU-3112-C 90890-03112
Use this tool to inspect the coil resistance,
output voltage and amperage.
YM-91042, 90890-04086 Clutch holding tool
YM-91042 90890-04086
This tool is used to hold the clutch when removing
or installing the clutch boss securing nut.
YM-34487 Dynamic spark tester
YM-34487 90890-06754
90890-06754 Ignition checker
This instrument is necessary for checking the igni-
tion system components.
90890-85505 YAMAHA Bond No. 1215
90890-85505 90890-85505
(ThreeBond®No. 1215)
This sealant (Bond) is used for crankcase mating
surface, etc.
1C3-9-32-1A 4/12/06 4:38 PM Page 15

1-16
GEN
INFO

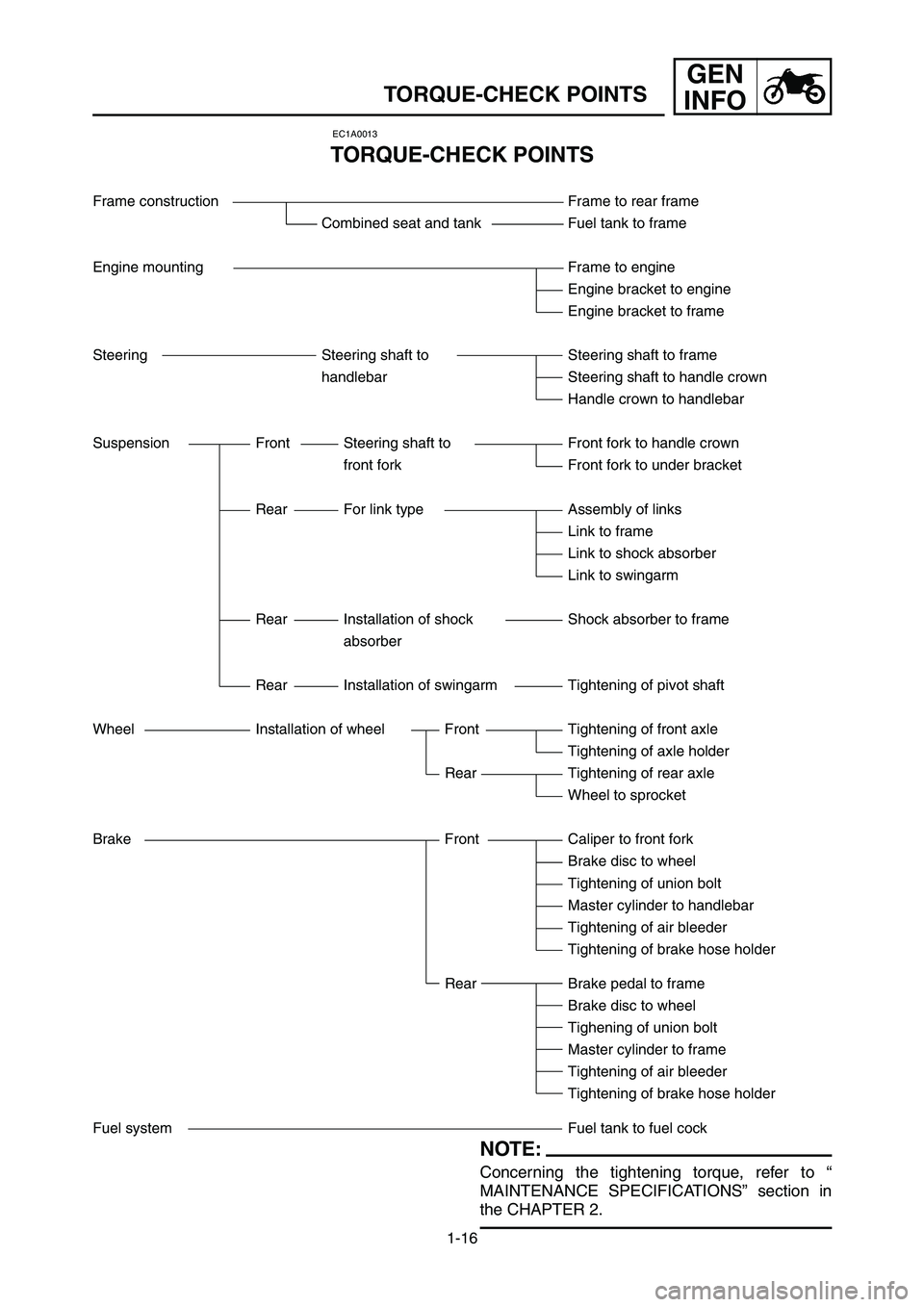

TORQUE-CHECK POINTS
EC1A0013
TORQUE-CHECK POINTS
Frame construction Frame to rear frame
Combined seat and tank Fuel tank to frame
Engine mounting Frame to engine
Engine bracket to engine
Engine bracket to frame
Steering Steering shaft to Steering shaft to frame
handlebar Steering shaft to handle crown
Handle crown to handlebar
Suspension Front Steering shaft to Front fork to handle crown
front fork Front fork to under bracket
Rear For link type Assembly of links
Link to frame
Link to shock absorber
Link to swingarm
Rear Installation of shock Shock absorber to frame
absorber
Rear Installation of swingarm Tightening of pivot shaft
Wheel Installation of wheel Front Tightening of front axle
Tightening of axle holder
Rear Tightening of rear axle
Wheel to sprocket
Brake Front Caliper to front fork
Brake disc to wheel
Tightening of union bolt
Master cylinder to handlebar
Tightening of air bleeder
Tightening of brake hose holder
Rear Brake pedal to frame
Brake disc to wheel
Tighening of union bolt
Master cylinder to frame
Tightening of air bleeder
Tightening of brake hose holder
Fuel system Fuel tank to fuel cock
NOTE:
Concerning the tightening torque, refer to “
MAINTENANCE SPECIFICATIONS” section in
the CHAPTER 2.
1C3-9-32-1B 4/5/06 5:26 PM Page 10

2-9

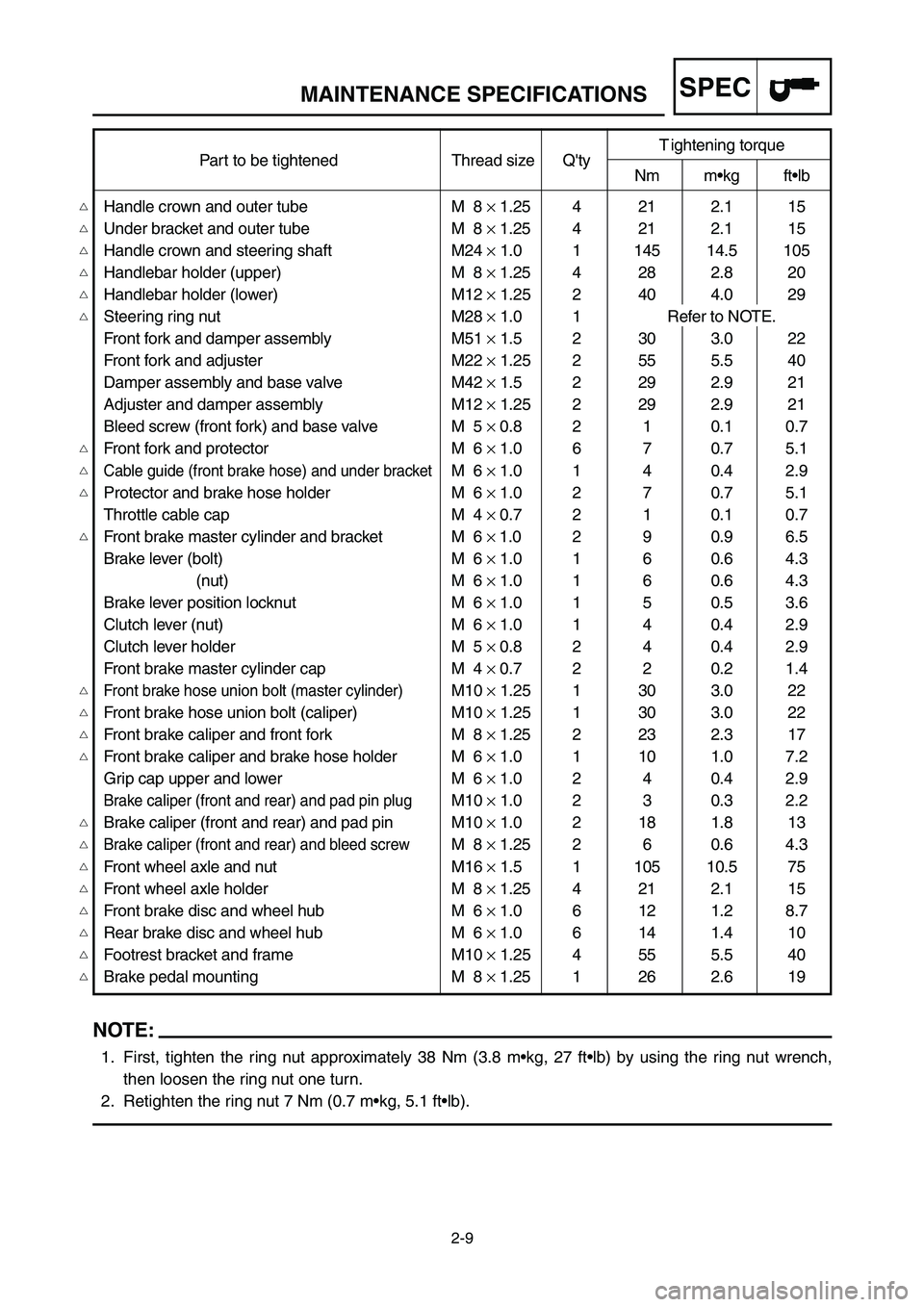

SPECMAINTENANCE SPECIFICATIONS
NOTE:
1. First, tighten the ring nut approximately 38 Nm (3.8 m•kg, 27 ft•lb) by using the ring nut wrench,
then loosen the ring nut one turn.
2. Retighten the ring nut 7 Nm (0.7 m•kg, 5.1 ft•lb).
Part to be tightened Thread size Q'tyT ightening torqueNm m•kg ft•lb
Handle crown and outer tube M 8 ×1.25 4 21 2.1 15
Under bracket and outer tube M 8 ×1.25 4 21 2.1 15
Handle crown and steering shaft M24 ×1.0 1 145 14.5 105
Handlebar holder (upper) M 8 ×1.25 4 28 2.8 20
Handlebar holder (lower) M12 ×1.25 2 40 4.0 29
Steering ring nut M28 ×1.0 1 Refer to NOTE.
Front fork and damper assembly M51 ×1.5 2 30 3.0 22
Front fork and adjuster M22 ×1.25 2 55 5.5 40
Damper assembly and base valve M42 ×1.5 2 29 2.9 21
Adjuster and damper assembly M12 ×1.25 2 29 2.9 21
Bleed screw (front fork) and base valve M 5 ×0.8 2 1 0.1 0.7
Front fork and protector M 6 ×1.0 6 7 0.7 5.1
Cable guide (front brake hose) and under bracketM 6 ×1.0 1 4 0.4 2.9
Protector and brake hose holder M 6 ×1.0 2 7 0.7 5.1
Throttle cable cap M 4 ×0.7 2 1 0.1 0.7
Front brake master cylinder and bracket M 6 × 1.0 2 9 0.9 6.5
Brake lever (bolt) M 6 ×1.0 1 6 0.6 4.3
(nut) M 6 ×1.0 1 6 0.6 4.3
Brake lever position locknut M 6 ×1.0 1 5 0.5 3.6
Clutch lever (nut) M 6 ×1.0 1 4 0.4 2.9
Clutch lever holder M 5 ×0.8 2 4 0.4 2.9
Front brake master cylinder cap M 4 ×0.7 2 2 0.2 1.4
Front brake hose union bolt (master cylinder)M10 ×1.25 1 30 3.0 22
Front brake hose union bolt (caliper) M10 ×1.25 1 30 3.0 22
Front brake caliper and front fork M 8 ×1.25 2 23 2.3 17
Front brake caliper and brake hose holder M 6 ×1.0 1 10 1.0 7.2
Grip cap upper and lower M 6 ×1.0 2 4 0.4 2.9
Brake caliper (front and rear) and pad pin plugM10 ×1.0 2 3 0.3 2.2
Brake caliper (front and rear) and pad pin M10 ×1.0 2 18 1.8 13
Brake caliper (front and rear) and bleed screwM 8 ×1.25 2 6 0.6 4.3
Front wheel axle and nut M16 ×1.5 1 105 10.5 75
Front wheel axle holder M 8 ×1.25 4 21 2.1 15
Front brake disc and wheel hub M 6 ×1.0 6 12 1.2 8.7
Rear brake disc and wheel hub M 6 ×1.0 6 14 1.4 10
Footrest bracket and frame M10 ×1.25 4 55 5.5 40
Brake pedal mounting M 8 ×1.25 1 26 2.6 19























1C3-9-32-2A 4/29/06 10:17 AM Page 10

3-2

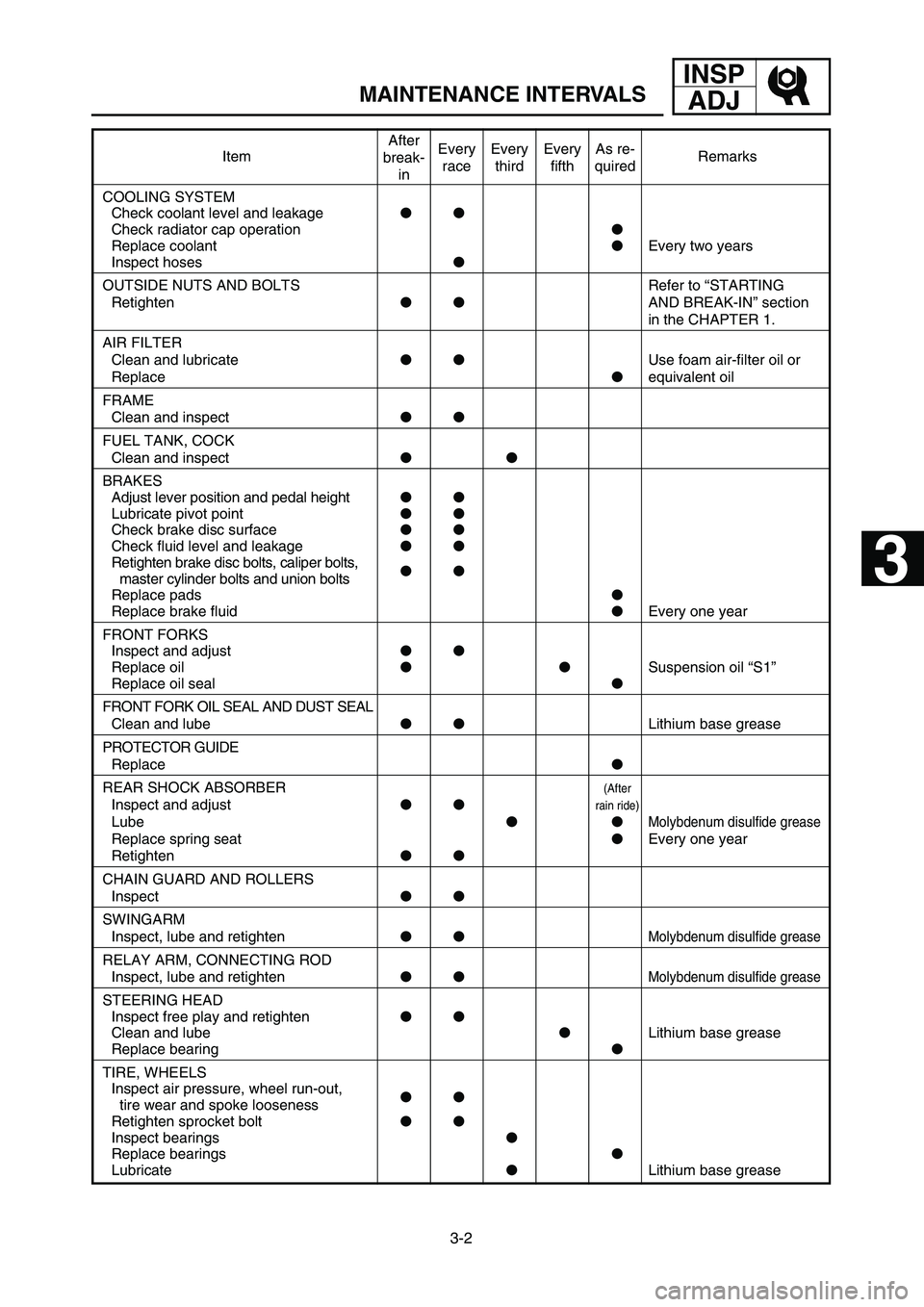

MAINTENANCE INTERVALS
INSP
ADJ
Item Remarks
COOLING SYSTEM
Check coolant level and leakage
Check radiator cap operation
Replace coolantEvery two years
Inspect hoses
OUTSIDE NUTS AND BOLTS Refer to “STARTING
RetightenAND BREAK-IN” section
in the CHAPTER 1.
AIR FILTER
Clean and lubricateUse foam air-filter oil or
Replaceequivalent oil
FRAME
Clean and inspect
FUEL TANK, COCK
Clean and inspect
BRAKES
Adjust lever position and pedal height
Lubricate pivot point
Check brake disc surface
Check fluid level and leakage
Retighten brake disc bolts, caliper bolts,

master cylinder bolts and union bolts
Replace pads
Replace brake fluidEvery one year
FRONT FORKS
Inspect and adjust
Replace oilSuspension oil “S1”
Replace oil seal
FRONT FORK OIL SEAL AND DUST SEAL
Clean and lubeLithium base grease
PROTECTOR GUIDE
Replace
REAR SHOCK ABSORBER
(After
Inspect and adjustrain ride)
Lube Molybdenum disulfide grease
Replace spring seatEvery one year
Retighten
CHAIN GUARD AND ROLLERS
Inspect
SWINGARM
Inspect, lube and retightenMolybdenum disulfide grease
RELAY ARM, CONNECTING ROD
Inspect, lube and retightenMolybdenum disulfide grease
STEERING HEAD
Inspect free play and retighten
Clean and lubeLithium base grease
Replace bearing
TIRE, WHEELS
Inspect air pressure, wheel run-out,

tire wear and spoke looseness
Retighten sprocket bolt
Inspect bearings
Replace bearings
LubricateLithium base grease
After
break-
inEvery
raceEvery
thirdEvery
fifthAs re-
quired
3
1C3-9-32-3A 5/1/06 9:01 AM Page 3

3-4

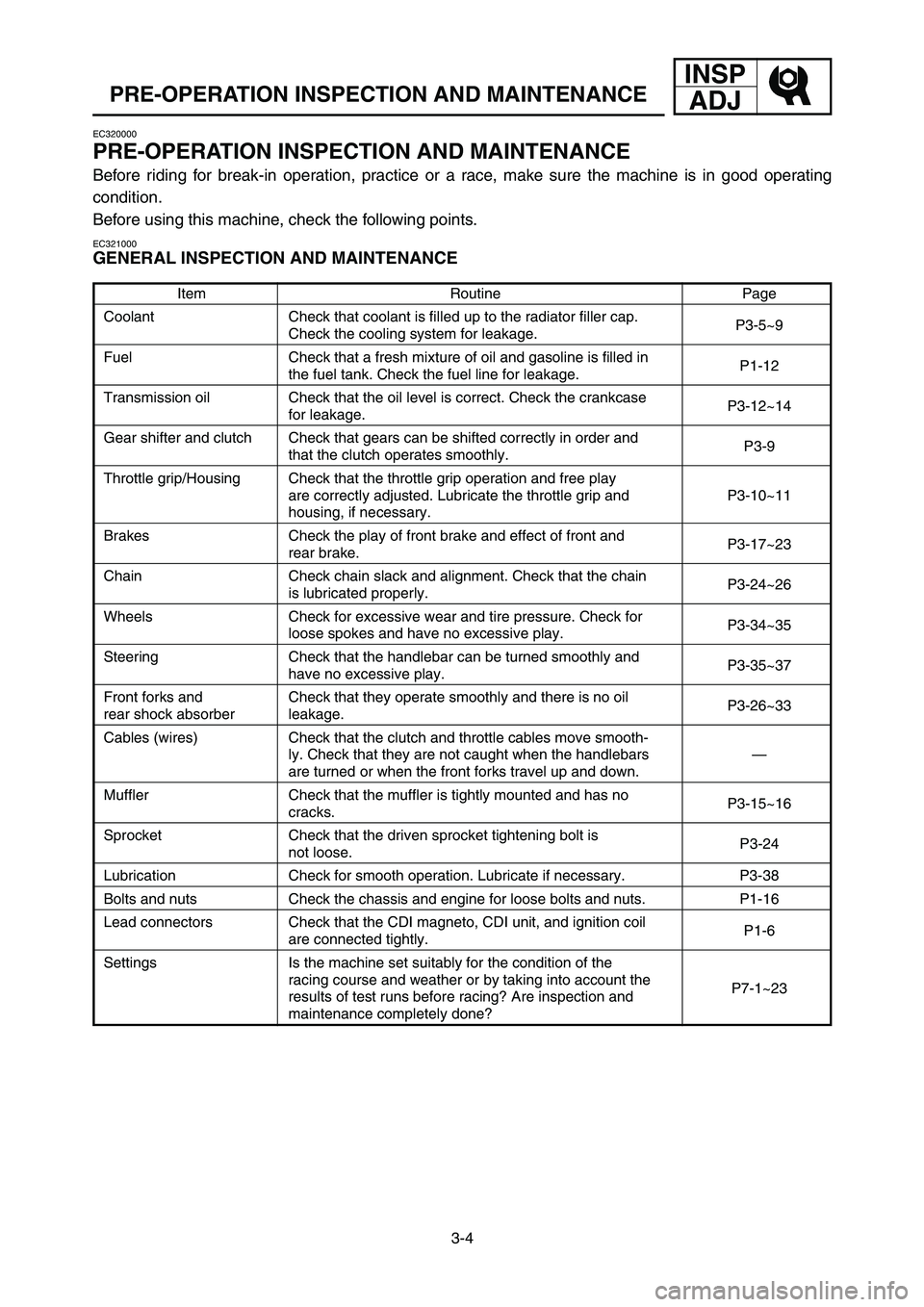

PRE-OPERATION INSPECTION AND MAINTENANCE
INSP
ADJ
EC320000
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation, practice or a race, make sure the machine is in good operating
condition.
Before using this machine, check the following points.
EC321000
GENERAL INSPECTION AND MAINTENANCE
Item Routine Page
Coolant Check that coolant is filled up to the radiator filler cap.
Check the cooling system for leakage.P3-5~9
Fuel Check that a fresh mixture of oil and gasoline is filled in
the fuel tank. Check the fuel line for leakage.P1-12
Transmission oil Check that the oil level is correct. Check the crankcase
for leakage.P3-12~14
Gear shifter and clutch Check that gears can be shifted correctly in order and
that the clutch operates smoothly.P3-9
Throttle grip/Housing Check that the throttle grip operation and free play
are correctly adjusted. Lubricate the throttle grip and P3-10~11
housing, if necessary.
Brakes Check the play of front brake and effect of front and
rear brake.P3-17~23
Chain Check chain slack and alignment. Check that the chain
is lubricated properly.P3-24~26
Wheels Check for excessive wear and tire pressure. Check for
loose spokes and have no excessive play.P3-34~35
Steering Check that the handlebar can be turned smoothly and
have no excessive play.P3-35~37
Front forks and Check that they operate smoothly and there is no oil
rear shock absorber leakage.P3-26~33
Cables (wires) Check that the clutch and throttle cables move smooth-
ly. Check that they are not caught when the handlebars —
are turned or when the front forks travel up and down.
Muffler Check that the muffler is tightly mounted and has no
cracks.P3-15~16
Sprocket Check that the driven sprocket tightening bolt is
not loose.P3-24
Lubrication Check for smooth operation. Lubricate if necessary. P3-38
Bolts and nuts Check the chassis and engine for loose bolts and nuts. P1-16
Lead connectors Check that the CDI magneto, CDI unit, and ignition coil
are connected tightly.P1-6
Settings Is the machine set suitably for the condition of the
racing course and weather or by taking into account the
P7-1~23
results of test runs before racing? Are inspection and
maintenance completely done?
1C3-9-32-3A 5/1/06 9:01 AM Page 14

3-35

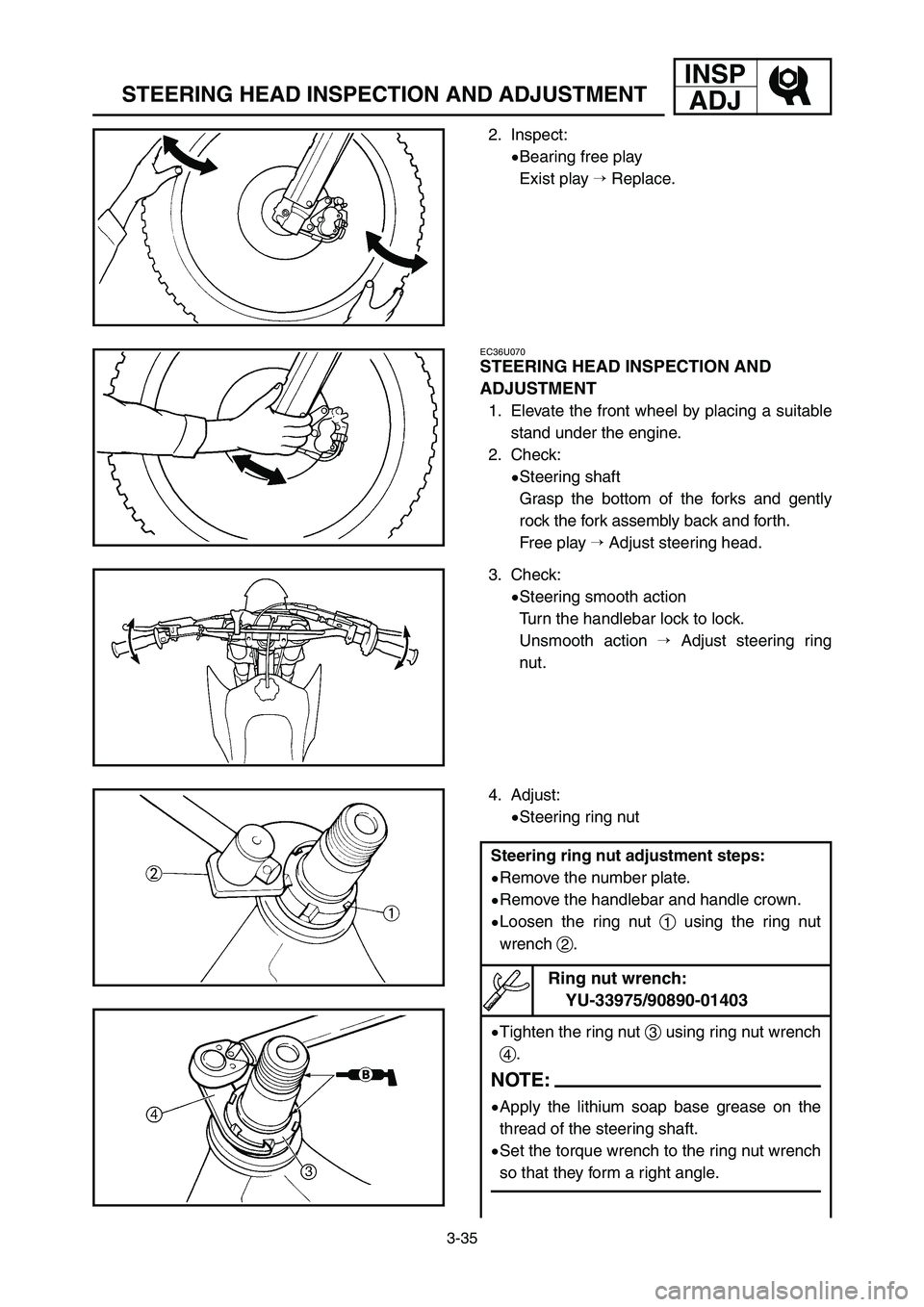

STEERING HEAD INSPECTION AND ADJUSTMENT
INSP
ADJ
2. Inspect:
9Bearing free play
Exist play Replace.
EC36U070
STEERING HEAD INSPECTION AND
ADJUSTMENT
1. Elevate the front wheel by placing a suitable
stand under the engine.
2. Check:
9Steering shaft
Grasp the bottom of the forks and gently
rock the fork assembly back and forth.
Free play Adjust steering head.
3. Check:
9Steering smooth action
Turn the handlebar lock to lock.
Unsmooth action Adjust steering ring
nut.
4. Adjust:
9Steering ring nut
Steering ring nut adjustment steps:
9Remove the number plate.
9Remove the handlebar and handle crown.
9Loosen the ring nut 1using the ring nut
wrench 2.
9Tighten the ring nut 3using ring nut wrench
4.
NOTE:
9Apply the lithium soap base grease on the
thread of the steering shaft.
9Set the torque wrench to the ring nut wrench
so that they form a right angle.
Ring nut wrench:
YU-33975/90890-01403
