3 - 7
INSP
ADJ
RADIATOR CAP INSPECTION
CAUTION:
lDo not mix more than one type of ethyl-
ene glycol antifreeze containing corro-
sion inhibitors for aluminum engine.
lDo not use water containing impurities or
oil.
7. Install:
lRadiator cap
Start the engine and warm it up for a
several minutes.
8. Check:
lCoolant level
Coolant level low ® Add coolant. Handling notes of coolant:
The coolant is harmful so it should be han-
dled with special care.
WARNING
lWhen coolant splashes to your eye.
Thoroughly wash your eye with water
and see your doctor.
lWhen coolant splashes to your clothes.
Quickly wash it away with water and
then with soap.
lWhen coolant is swallowed.
Quickly make him vomit and take him
to a doctor.
EC355000
RADIATOR CAP INSPECTION
1. Inspect:
lSeal (radiator cap) 1
lValve and valve seat 2
Crack/damage ® Replace.
Exist fur deposits 3 ® Clean or
replace.

3 - 10
INSP
ADJ
THROTTLE CABLE ADJUSTMENT
THROTTLE CABLE ADJUSTMENT
1. Check:
lThrottle grip free play a
Out of specification ® Adjust.
Throttle grip free play a:
3 ~ 5 mm (0.12 ~ 0.20 in)
2. Adjust:
lThrottle grip free play
Throttle grip free play adjustment steps:
lRemove the throttle cable cover 1.
NOTE:
lBefore adjusting the throttle cable free
play, the engine idle speed should be
adjusted.
lWhen the motorcycle is accelerating,
throttle cable #1 2 is pulled and throttle
cable #2 3 is pushed.
1st step:
lLoosen the locknuts 4 on throttle cable
#2.
lAdjust the free play by changing their
tightening position.
2nd step:
lLoosen the locknuts 5 on throttle cable
#1.
lAdjust the free play by changing their
tightening position.
lTighten the locknuts.
WARNING
After adjusting, turn the handlebar to
right and left and make sure that the
engine idling does not run faster.
lInstall the throttle cable cover.
T R..
Throttle cable cover:
4 Nm (0.4 m • kg, 2.9 ft • lb)

3 - 16
INSP
ADJ
ENGINE OIL REPLACEMENT
4. Remove:
lOil tank cap 1
lFrame oil drain bolt 2
lCrankcase oil drain bolt 3
lOil filter element drain bolt 4
Drain the crankcase and oil tank
(frame) of its oil.
5. Remove:
lLower engine bracket
lOil hose clamp 1
lBolt (oil hose) 2
lOil hose 3
lOil strainer (frame) 4
6. Inspect:
lOil strainer (frame)
lClogged ® Blow.
7. If the oil filter is to be replaced during this
oil change, remove the following parts
and reinstall them.
Replacement steps:
lRemove the oil filter element cover 1 and
oil filter element 2.
lCheck the O-rings 3, if cracked or dam-
aged, replace them with a new one.
lInstall the oil filter element and oil filter ele-
ment cover.
T R..
Oil filter element cover:
10 Nm (1.0 m • kg, 7.2 ft • lb)

3 - 17
INSP
ADJ
ENGINE OIL REPLACEMENT
8. Install:
lCopper washer 1
lOil strainer (frame) 2
lOil hose 3
lBolt (oil hose) 4
lOil hose clamp 5
lLower engine bracket
9. Install:
lCopper washer
lOil filter element drain bolt
lCrankcase oil drain bolt
lFrame oil drain bolt
10. Fill:
lEngine oil
11. Check:
lOil leakage
12. Install:
lOil tank cap
13. Check:
lEngine oil level
Oil quantity:
Total amount:
1.7 L (1.50 Imp qt, 1.80 US qt)
Periodic oil change:
1.5 L (1.32 Imp qt, 1.59 US qt)
With oil filter replacement:
1.6 L (1.41 Imp qt, 1.69 US qt)
T R..90 Nm (9.0 m · kg, 65 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..2 Nm (0.2 m · kg, 1.4 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..20 Nm (2.0 m · kg, 14 ft · lb)
T R..23 Nm (2.3 m · kg, 17 ft · lb)

3 - 18
INSP
ADJ
OIL PRESSURE INSPECTION
1. Check:
lOil pressure
Checking steps:
lSlightly loosen the oil pressure check bolt
1.
lStart the engine and keep it idling until oil
starts to seep from the oil pressure check
bolt. If no oil comes out after one minute,
turn the engine off so it will not seize.
lCheck oil passages and oil pump for dam-
age or leakage.
lStart the engine after solving the prob-
lem(s) and recheck the oil pressure.
lTighten the oil pressure check bolt.
T R..
Oil pressure check bolt:
18 Nm (1.8 m • kg, 13 ft • lb)
PILOT SCREW ADJUSTMENT
1. Adjust:
lPilot screw 1
Adjustment steps:
NOTE:
To optimize the fuel flow at a smaller throttle
opening, each machine’s pilot screw has
been individually set at the factory. Before
adjusting the pilot screw, turn it in fully and
count the number of turns. Record this num-
ber as the factory-set number of turns out.
lTurn in the pilot screw until it is lightly
seated.
lTurn out the pilot screw by the factory-set
number of turns.
Pilot screw:
1-3/4 turns out (example)
OIL PRESSURE INSPECTION/
PILOT SCREW ADJUSTMENT

3 - 19
INSP
ADJ
ENGINE IDLING SPEED ADJUSTMENT
1. Start the engine and thoroughly warm it
up.
2. Attach:
lInductive tachometer
To spark plug lead.
3. Adjust:
lEngine idling speed
Adjustment steps:
lAdjust the pilot screw.
Refer to “PILOT SCREW ADJUSTMENT”
section.
lTurn the throttle stop screw 1 until the
engine runs at the lowest possible speed.
To increase idle speed ®
Turn the throttle stop screw 1 in a.
To decrease idle speed ®
Turn the throttle stop screw 1 out b.
Inductive tachometer:
YU-08036-B
Engine tachometer:
90890-03113
Engine idling speed:
1,700 ~ 1,900 r/min
VALVE CLEARANCE INSPECTION AND
ADJUSTMENT
NOTE:
lThe valve clearance should be adjusted
when the engine is cool to the touch.
lThe piston must be at Top Dead Center
(T.D.C.) on compression stroke to check or
adjust the valve clearance.
1. Remove:
lSeat
lFuel tank
Refer to “SEAT, FUEL TANK AND
SIDE COVERS” section in the CHAP-
TER 4.
2. Drain:
lCoolant
Refer to “COOLANT REPLACEMENT”
section.
ENGINE IDLING SPEED ADJUSTMENT/
VALVE CLEARANCE INSPECTION AND ADJUSTMENT

3 - 20
INSP
ADJ
VALVE CLEARANCE INSPECTION AND ADJUSTMENT
3. Remove:
lRight radiator
Refer to “RADIATOR” section in the
CHAPTER 4.
lCarburetor
Refer to “CARBURETOR” section in
the CHAPTER 4.
lSpark plug
lUpper engine bracket
lCylinder head cover
Refer to “CAMSHAFTS” section in the
CHAPTER 4.
4. Remove:
lTiming mark accessing screw 1
lCrankshaft end accessing screw 2
lO-ring
5. Check:
lValve clearance
Out of specification ® Adjust.
Valve clearance (cold):
Intake valve:
0.10 ~ 0.15 mm (0.0039 ~ 0.0059 in)
Exhaust valve:
0.17 ~ 0.22 mm (0.0067 ~ 0.0087 in)

3 - 33
INSP
ADJ
DRIVE CHAIN SLACK ADJUSTMENT
5. Install:
lDrive chain 1
lJoint 2
lMaster link clip 3
CAUTION:
Be sure to install the master link clip to the
direction as shown.
aTurning direction
6. Lubricate:
lDrive chain
Drive chain lubricant:
SAE 10W-30 motor oil or suit-
able chain lubricants
EC36A060
DRIVE CHAIN SLACK ADJUSTMENT
1. Elevate the rear wheel by placing the
suitable stand under the engine.
2. Check:
lDrive chain slack a
Above the seal guard installation bolt.
Out of specification ® Adjust.
NOTE:
Before checking and/or adjusting, rotate the
rear wheel through several revolutions and
check the slack several times to find the tight-
est point. Check and/or adjust chain slack with
rear wheel in this “tight chain” position.
Drive chain slack:
40 ~ 50 mm (1.6 ~ 2.0 in)

3 - 43
INSP
ADJ
STEERING HEAD INSPECTION AND ADJUSTMENT
2. Inspect:
lBearing free play
Exist play ® Replace.
EC36U013
STEERING HEAD INSPECTION AND
ADJUSTMENT
1. Elevate the front wheel by placing a suit-
able stand under the engine.
2. Check:
lSteering shaft
Grasp the bottom of the forks and gen-
tly rock the fork assembly back and
forth.
Free play ® Adjust steering head.
3. Check:
lSteering smooth action
Turn the handlebar lock to lock.
Unsmooth action ® Adjust steering ring
nut.
4. Adjust:
lSteering ring nut
Steering ring nut adjustment steps:
lRemove the number plate.
lRemove the handlebar and upper bracket.
lLoosen the steering ring nut 1 using the
steering nut wrench 2.
Steering nut wrench:
YU-33975/90890-01403

3 - 46
INSP
ADJ
ELECTRICAL/SPARK PLUG INSPECTION
EC370000
ELECTRICAL
EC371001

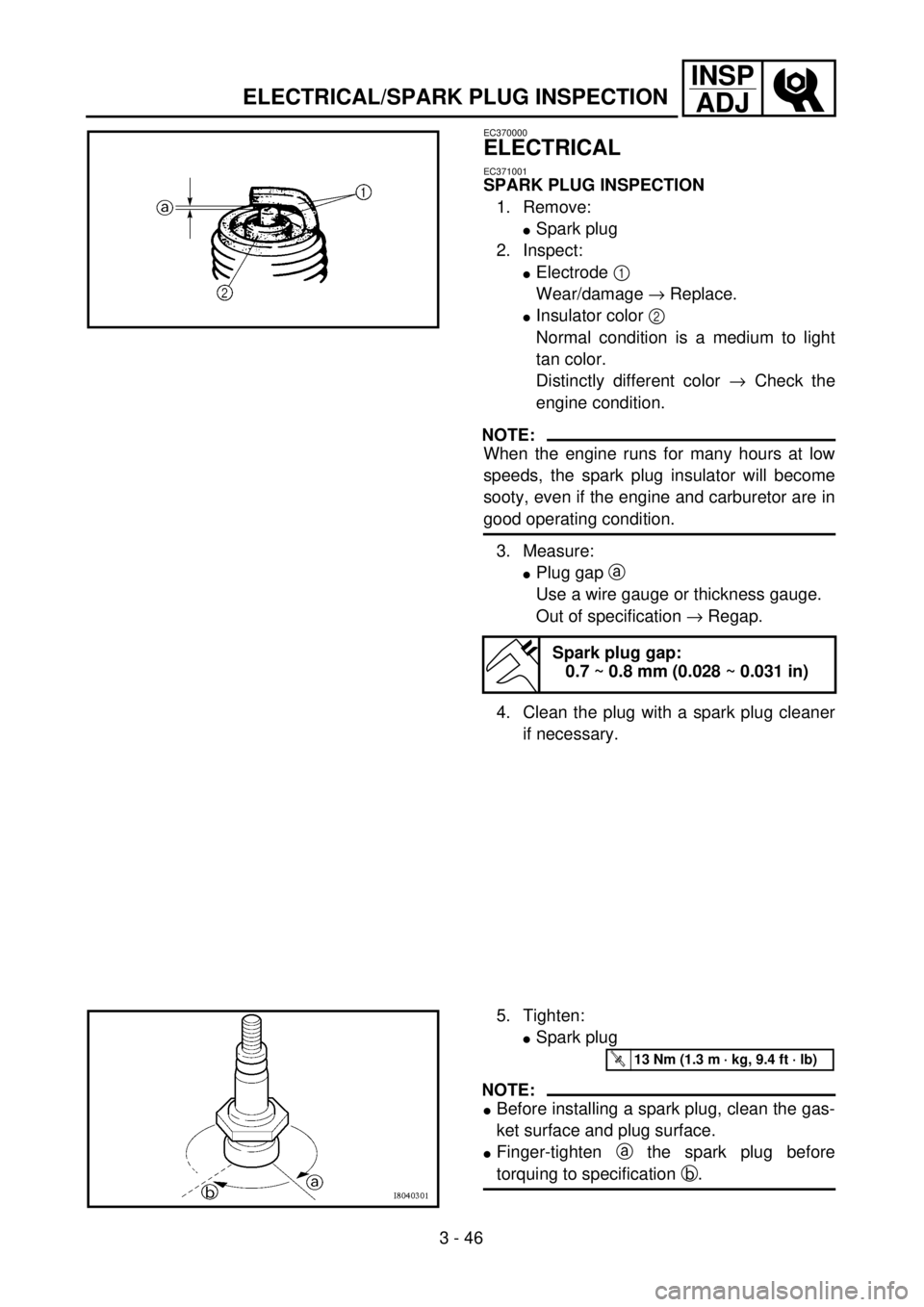

SPARK PLUG INSPECTION
1. Remove:
lSpark plug
2. Inspect:
lElectrode 1
Wear/damage ® Replace.
lInsulator color 2
Normal condition is a medium to light
tan color.
Distinctly different color ® Check the
engine condition.
NOTE:
When the engine runs for many hours at low
speeds, the spark plug insulator will become
sooty, even if the engine and carburetor are in
good operating condition.
3. Measure:
lPlug gap a
Use a wire gauge or thickness gauge.
Out of specification ® Regap.
4. Clean the plug with a spark plug cleaner
if necessary.
Spark plug gap:
0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
5. Tighten:
lSpark plug
NOTE:
lBefore installing a spark plug, clean the gas-
ket surface and plug surface.
lFinger-tighten a the spark plug before
torquing to specification b.
T R..13 Nm (1.3 m · kg, 9.4 ft · lb)
