ENGBALANCER
ASSEMBLY AND INSTALLATION
Balancer shaft, balancer shaft drive gear
and balancer shaft driven gear
1. Install:
Balancer shaft 1
NOTE:
Apply the engine oil on the bearing.
When installing the balancer shaft, align the
center a of the balancer shaft weight along
the line connecting the centers of the crank-
shaft and balancer shaft.
2. Install:
Balancer shaft driven gear 1
NOTE:
Install the balancer shaft driven gear onto the
balancer shaft while aligning the punch mark
a on the balancer shaft driven gear with the
lower spline b on the balancer shaft end.
3. Install:
Balancer shaft drive gear 1
NOTE:
Align the punched mark a on the balancer
shaft drive gear with the punched mark b on
the balancer shaft driven gear 2.
Align the punched mark c on the balancer
shaft drive gear with the lower spline d on
the crankshaft end.
4. Install:
Lock washer 1
Nut (balancer shaft driven gear) 2
Primary drive gear 3
Nut (primary drive gear) 4
NOTE:
Install the primary drive gear with its stepped
side a facing the engine.
Place an aluminum plate b between the
teeth of the balancer shaft drive gear 5 and
driven gear 6.
5. Bend the lock washer tab.
T R..50 Nm (5.0 m · kg, 3.6 ft · lb)
T R..75 Nm (7.5 m · kg, 54 ft · lb)

4 - 69
ENGOIL PUMP

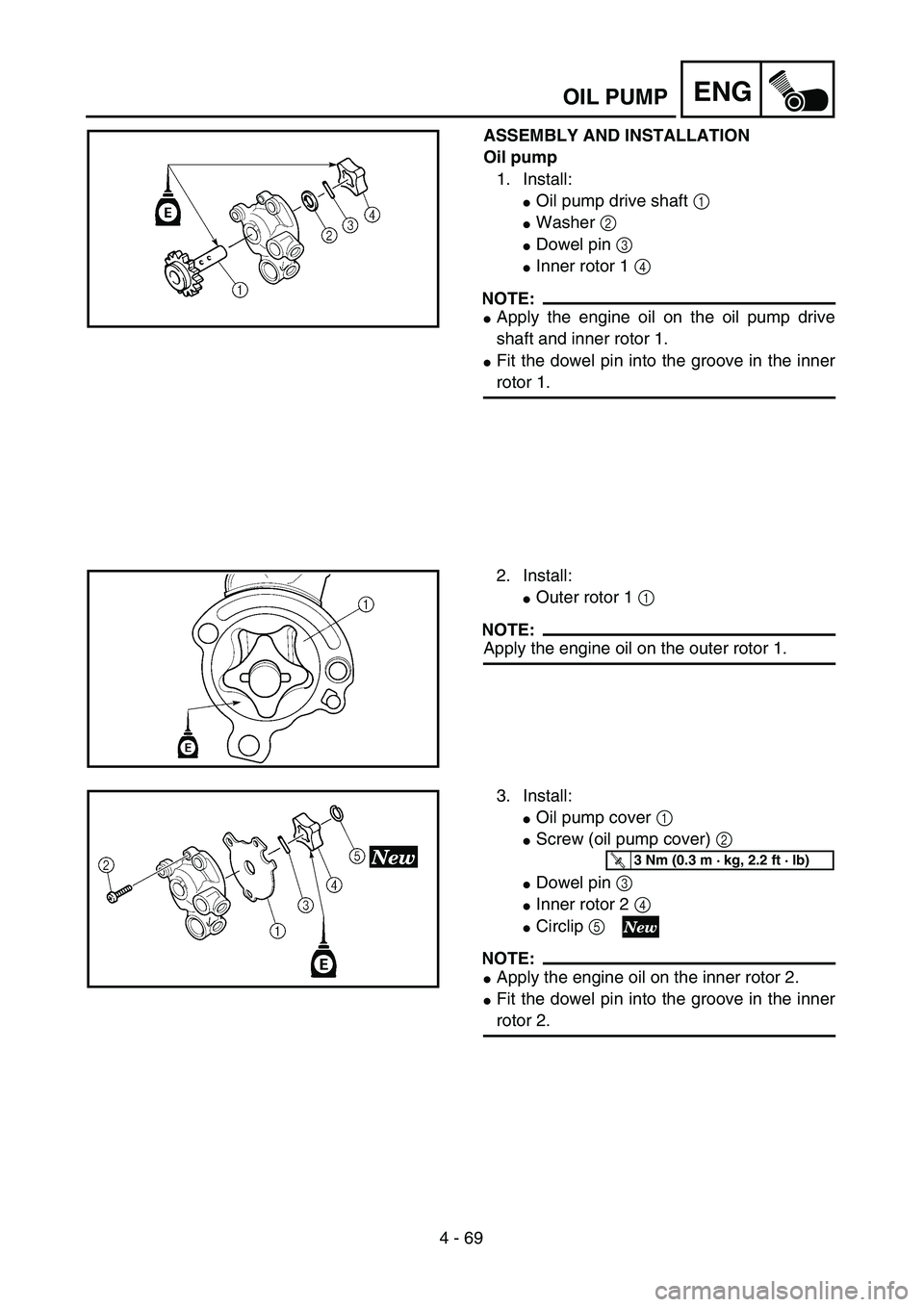

ASSEMBLY AND INSTALLATION
Oil pump
1. Install:
Oil pump drive shaft 1
Washer 2
Dowel pin 3
Inner rotor 1 4
NOTE:
Apply the engine oil on the oil pump drive
shaft and inner rotor 1.
Fit the dowel pin into the groove in the inner
rotor 1.
2. Install:
Outer rotor 1 1
NOTE:
Apply the engine oil on the outer rotor 1.
3. Install:
Oil pump cover 1
Screw (oil pump cover) 2
Dowel pin 3
Inner rotor 2 4
Circlip 5
NOTE:
Apply the engine oil on the inner rotor 2.
Fit the dowel pin into the groove in the inner
rotor 2.
T R..3 Nm (0.3 m · kg, 2.2 ft · lb)

4 - 70
ENG

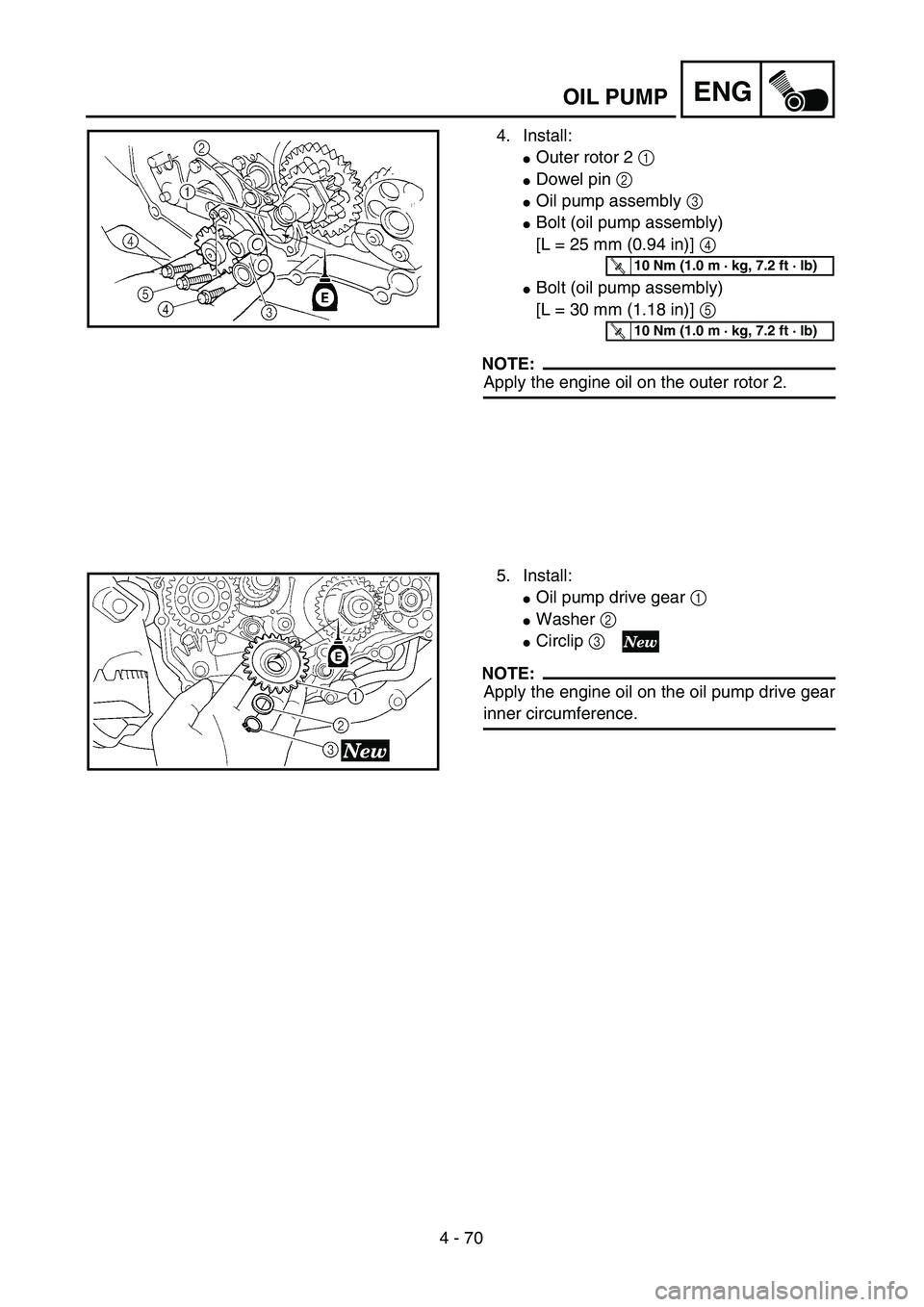

4. Install:
Outer rotor 2 1
Dowel pin 2
Oil pump assembly 3
Bolt (oil pump assembly)
[L = 25 mm (0.94 in)] 4
Bolt (oil pump assembly)
[L = 30 mm (1.18 in)] 5
NOTE:
Apply the engine oil on the outer rotor 2.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
5. Install:
Oil pump drive gear 1
Washer 2
Circlip 3
NOTE:
Apply the engine oil on the oil pump drive gear
inner circumference.
OIL PUMP

4 - 75
ENGKICK SHAFT AND SHIFT SHAFT
EC4B5111

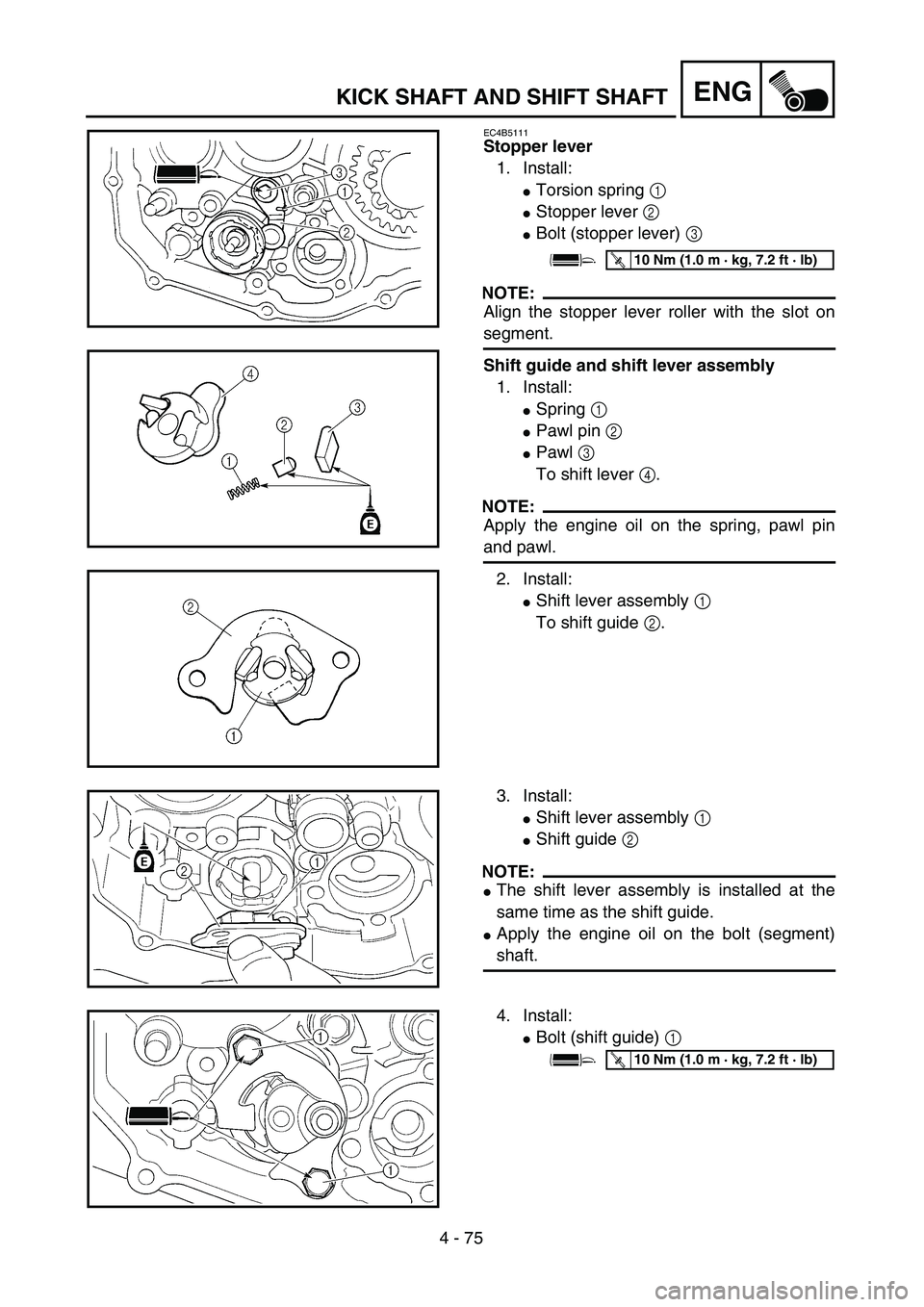

Stopper lever
1. Install:
Torsion spring 1
Stopper lever 2
Bolt (stopper lever) 3
NOTE:
Align the stopper lever roller with the slot on
segment.
Shift guide and shift lever assembly
1. Install:
Spring 1
Pawl pin 2
Pawl 3
To shift lever 4.
NOTE:
Apply the engine oil on the spring, pawl pin
and pawl.
2. Install:
Shift lever assembly 1
To shift guide 2.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
3. Install:
Shift lever assembly 1
Shift guide 2
NOTE:
The shift lever assembly is installed at the
same time as the shift guide.
Apply the engine oil on the bolt (segment)
shaft.
4. Install:
Bolt (shift guide) 1
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)

4 - 76
ENGKICK SHAFT AND SHIFT SHAFT

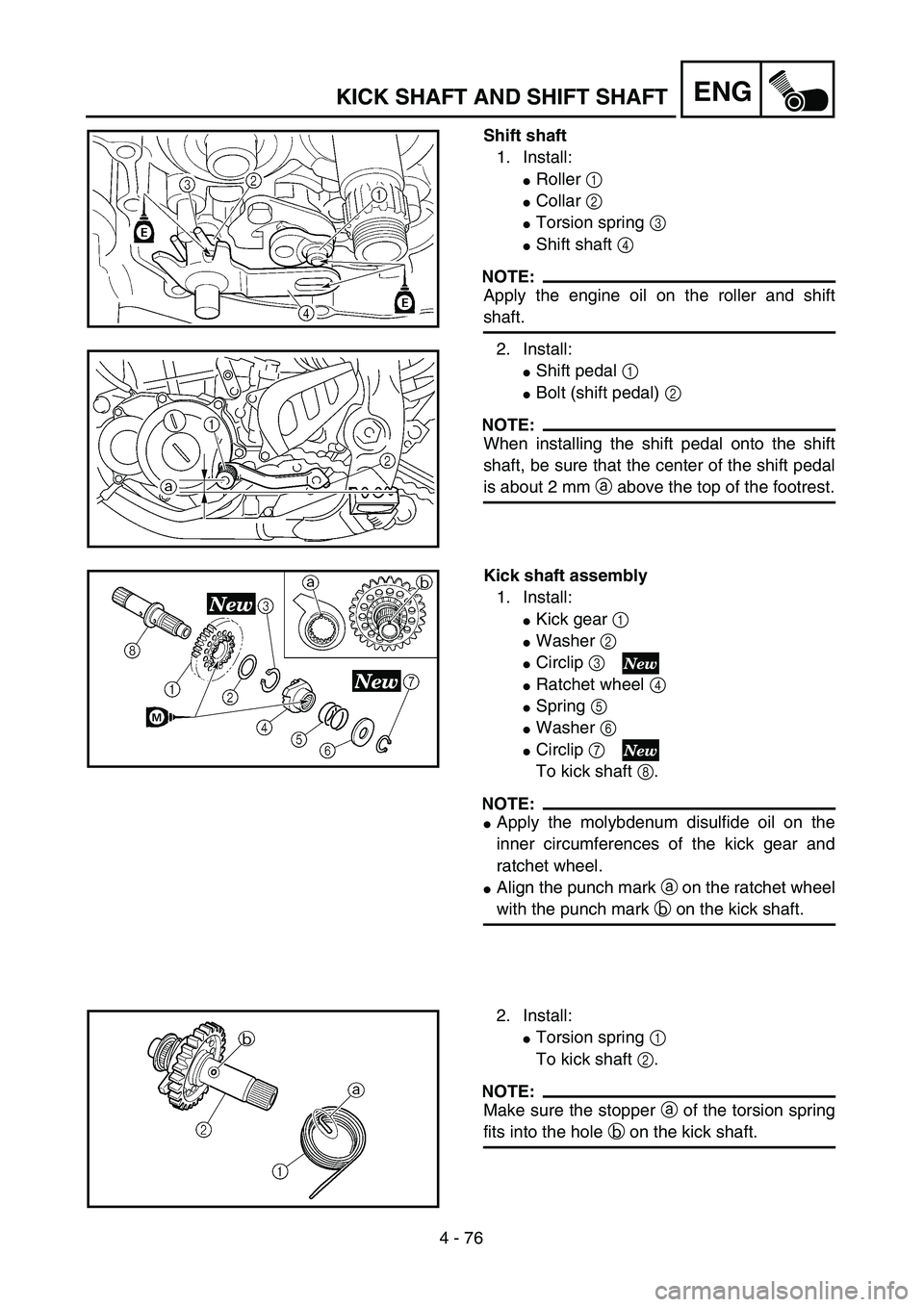

Shift shaft
1. Install:
Roller 1
Collar 2
Torsion spring 3
Shift shaft 4
NOTE:
Apply the engine oil on the roller and shift
shaft.
2. Install:
Shift pedal 1
Bolt (shift pedal) 2
NOTE:
When installing the shift pedal onto the shift
shaft, be sure that the center of the shift pedal
is about 2 mm a above the top of the footrest.
Kick shaft assembly
1. Install:
Kick gear 1
Washer 2
Circlip 3
Ratchet wheel 4
Spring 5
Washer 6
Circlip 7
To kick shaft 8.
NOTE:
Apply the molybdenum disulfide oil on the
inner circumferences of the kick gear and
ratchet wheel.
Align the punch mark a on the ratchet wheel
with the punch mark b on the kick shaft.
2. Install:
Torsion spring 1
To kick shaft 2.
NOTE:
Make sure the stopper a of the torsion spring
fits into the hole b on the kick shaft.

4 - 77
ENGKICK SHAFT AND SHIFT SHAFT
3. Install:
Spring guide 1
NOTE:
Slide the spring guide into the kick shaft, make
sure the groove a in the spring guide fits on
the stopper of the torsion spring.
4. Install:
Kick shaft assembly 1
Washer 2
NOTE:
Apply the molybdenum disulfide grease on
the contacting surfaces of the kick shaft stop-
per a and stopper plate 3.
Apply the engine oil on the kick shaft.
Slide the kick shaft assembly into the crank-
case and make sure the kick shaft stopper a
fits into the stopper plate.
5. Hook:
Torsion spring 1
NOTE:
Turn the torsion spring clockwise and hook
into the proper hole a in the crankcase.
Kick idle gear
1. Install:
Kick idle gear 1
Washer 2
Circlip 3
NOTE:
Apply the engine oil on the kick idle gear
inner circumference.
Install the kick idle gear with its depressed
side a toward you.

4 - 82
ENGENGINE REMOVAL
EC4M0000
ENGINE REMOVAL
Extent of removal Order Part name Q’ty Remarks
ENGINE REMOVAL
Preparation for removal Hold the machine by placing the
suitable stand under the frame.
WARNING
Support the machine securely so there is no
danger of it falling over.
Seat and fuel tank Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
Carburetor Refer to “CARBURETOR” section.
Exhaust pipe and silencer Refer to “EXHAUST PIPE AND
SILENCER” section.
Clutch cable Disconnect at engine side.
Decompression cable and guide Disconnect at engine side.
Radiator Refer to “RADIATOR” section.
Shift pedal Refer to “KICK SHAFT AND SHIFT
SHAFT” section.
Cylinder head breather hose and
oil tank breather hoseRefer to “CAMSHAFTS” section.
Drain the engine oil Refer to “ENGINE OIL REPLACEMENT”
section in the CHAPTER 3.

4 - 83
ENGENGINE REMOVAL

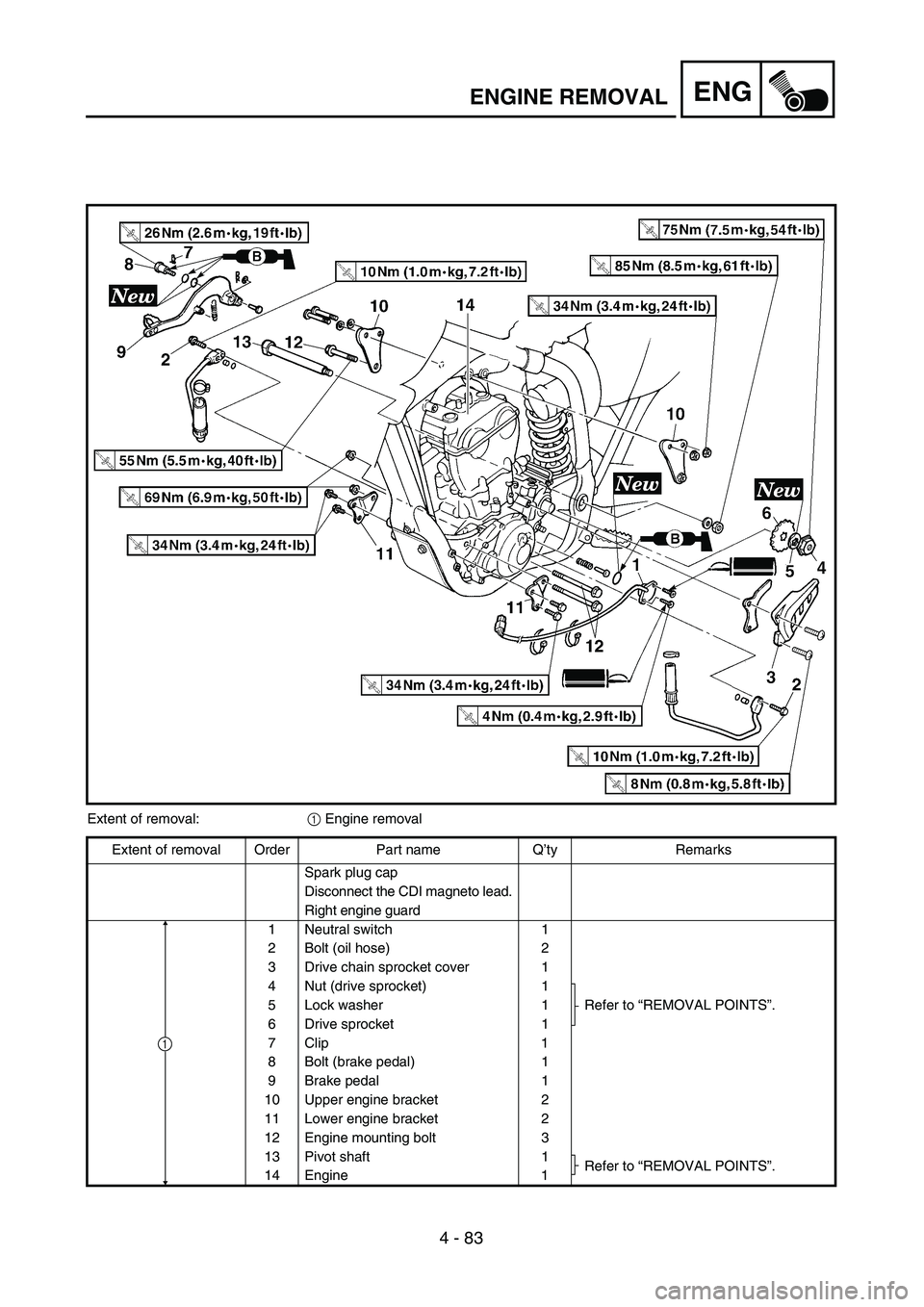

Extent of removal:1 Engine removal
Extent of removal Order Part name Q’ty Remarks
Spark plug cap
Disconnect the CDI magneto lead.
Right engine guard
1 Neutral switch 1
2 Bolt (oil hose) 2
3 Drive chain sprocket cover 1
4 Nut (drive sprocket) 1
Refer to “REMOVAL POINTS”. 5 Lock washer 1
6 Drive sprocket 1
7 Clip 1
8 Bolt (brake pedal) 1
9 Brake pedal 1
10 Upper engine bracket 2
11 Lower engine bracket 2
12 Engine mounting bolt 3
13 Pivot shaft 1
Refer to “REMOVAL POINTS”.
14Engine
1
1

4 - 84
ENGENGINE REMOVAL
EC4M3000

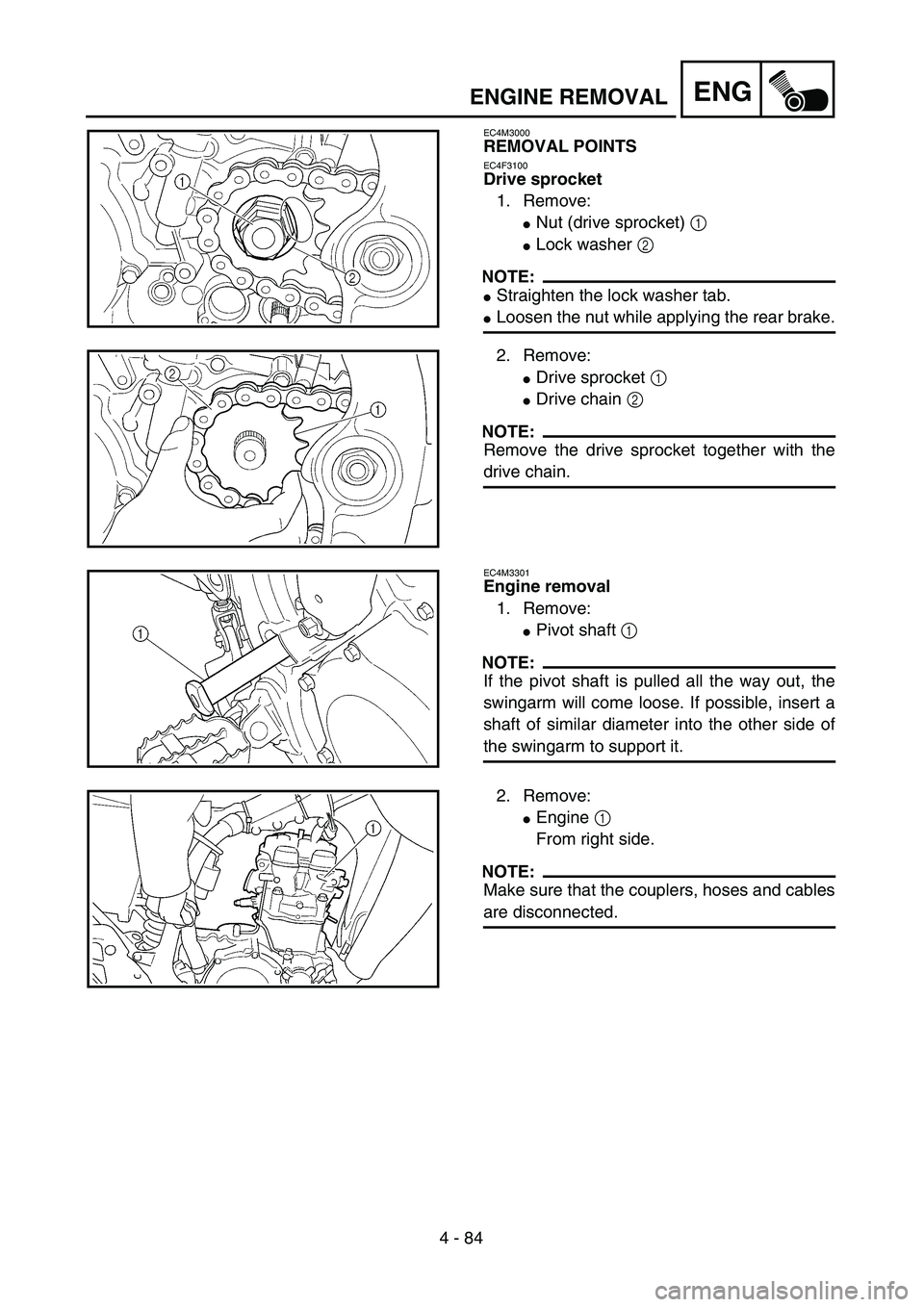

REMOVAL POINTS
EC4F3100
Drive sprocket
1. Remove:
Nut (drive sprocket) 1
Lock washer 2
NOTE:
Straighten the lock washer tab.
Loosen the nut while applying the rear brake.
2. Remove:
Drive sprocket 1
Drive chain 2
NOTE:
Remove the drive sprocket together with the
drive chain.
EC4M3301
Engine removal
1. Remove:
Pivot shaft 1
NOTE:
If the pivot shaft is pulled all the way out, the
swingarm will come loose. If possible, insert a
shaft of similar diameter into the other side of
the swingarm to support it.
2. Remove:
Engine 1
From right side.
NOTE:
Make sure that the couplers, hoses and cables
are disconnected.

4 - 85
ENGENGINE REMOVAL
EC4M5000

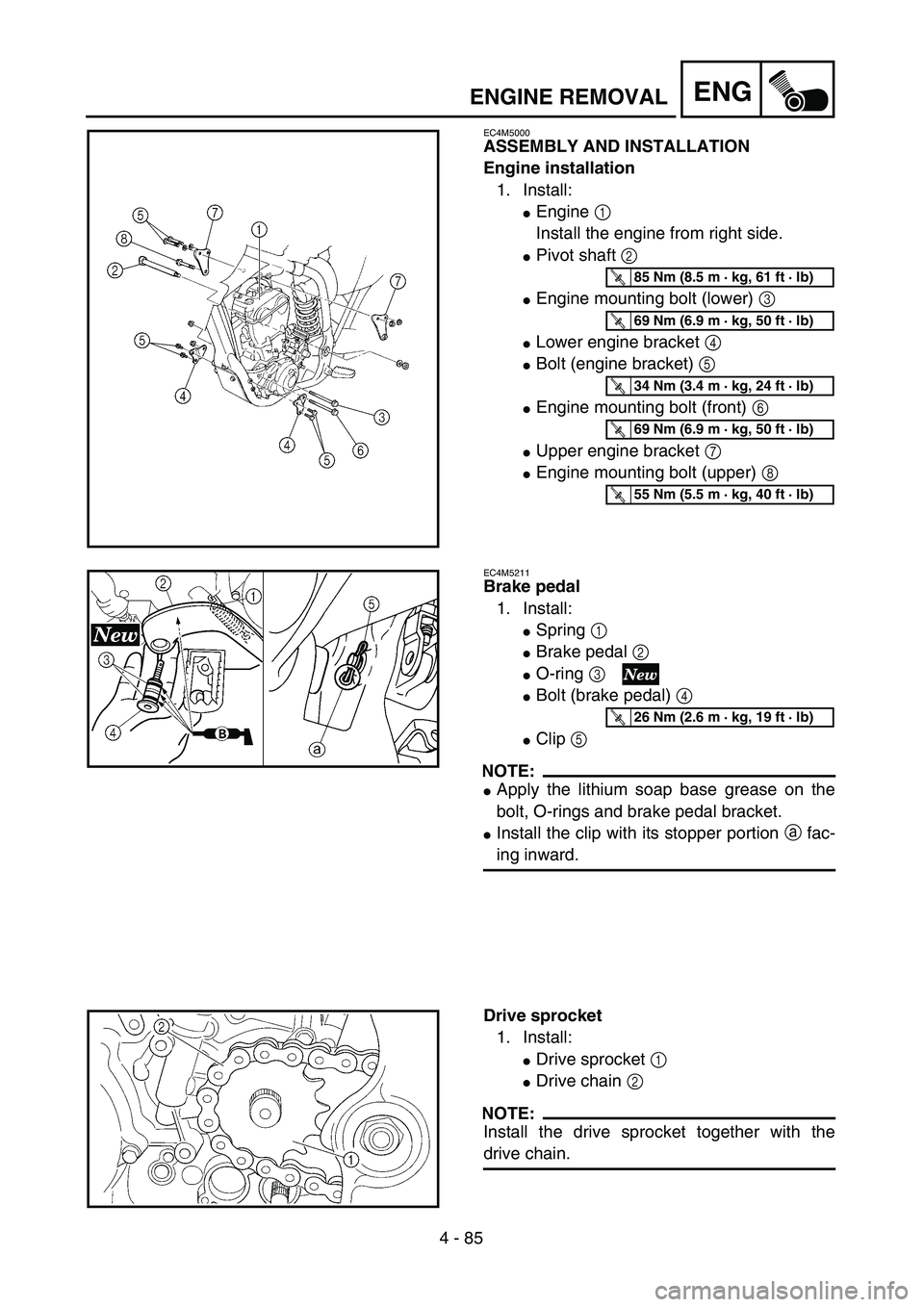

ASSEMBLY AND INSTALLATION
Engine installation
1. Install:
Engine 1
Install the engine from right side.
Pivot shaft 2
Engine mounting bolt (lower) 3
Lower engine bracket 4
Bolt (engine bracket) 5
Engine mounting bolt (front) 6
Upper engine bracket 7
Engine mounting bolt (upper) 8
T R..85 Nm (8.5 m · kg, 61 ft · lb)
T R..69 Nm (6.9 m · kg, 50 ft · lb)
T R..34 Nm (3.4 m · kg, 24 ft · lb)
T R..69 Nm (6.9 m · kg, 50 ft · lb)
T R..55 Nm (5.5 m · kg, 40 ft · lb)
EC4M5211
Brake pedal
1. Install:
Spring 1
Brake pedal 2
O-ring 3
Bolt (brake pedal) 4
Clip 5
NOTE:
Apply the lithium soap base grease on the
bolt, O-rings and brake pedal bracket.
Install the clip with its stopper portion a fac-
ing inward.
T R..26 Nm (2.6 m · kg, 19 ft · lb)
Drive sprocket
1. Install:
Drive sprocket 1
Drive chain 2
NOTE:
Install the drive sprocket together with the
drive chain.
