engine YAMAHA YZ250F 2004 Owners Manual

5 - 45

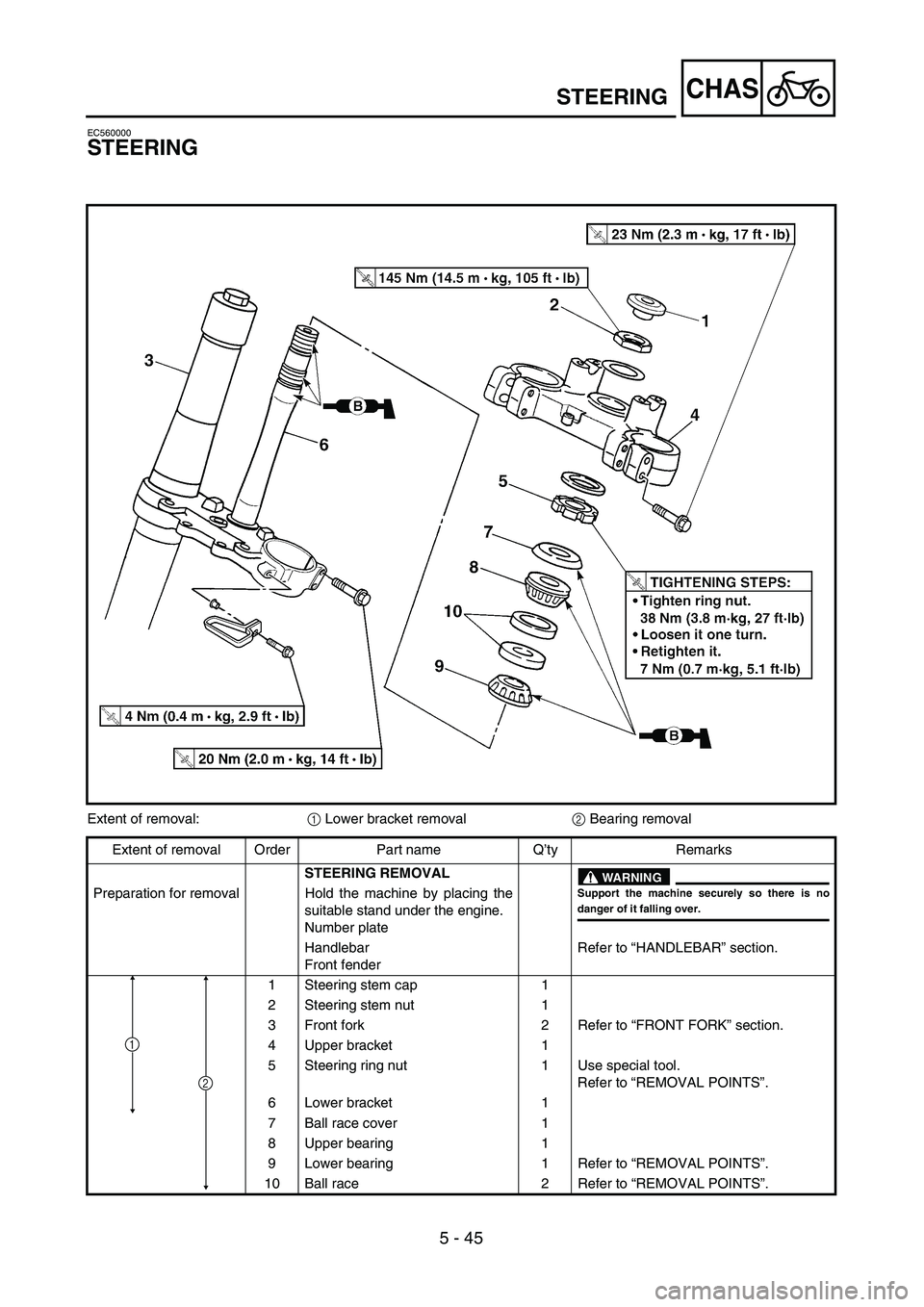

CHAS
EC560000
STEERING
Extent of removal:1 Lower bracket removal2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
STEERING REMOVAL
WARNINGSupport the machine securely so there is nodanger of it falling over.Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Number plate
Handlebar
Front fenderRefer to “HANDLEBAR” section.
1 Steering stem cap 1
2 Steering stem nut 1
3 Front fork 2 Refer to “FRONT FORK” section.
4 Upper bracket 1
5 Steering ring nut 1 Use special tool.
Refer to “REMOVAL POINTS”.
6 Lower bracket 1
7 Ball race cover 1
8 Upper bearing 1
9 Lower bearing 1 Refer to “REMOVAL POINTS”.
10 Ball race 2 Refer to “REMOVAL POINTS”.
2
1
STEERING

5 - 50

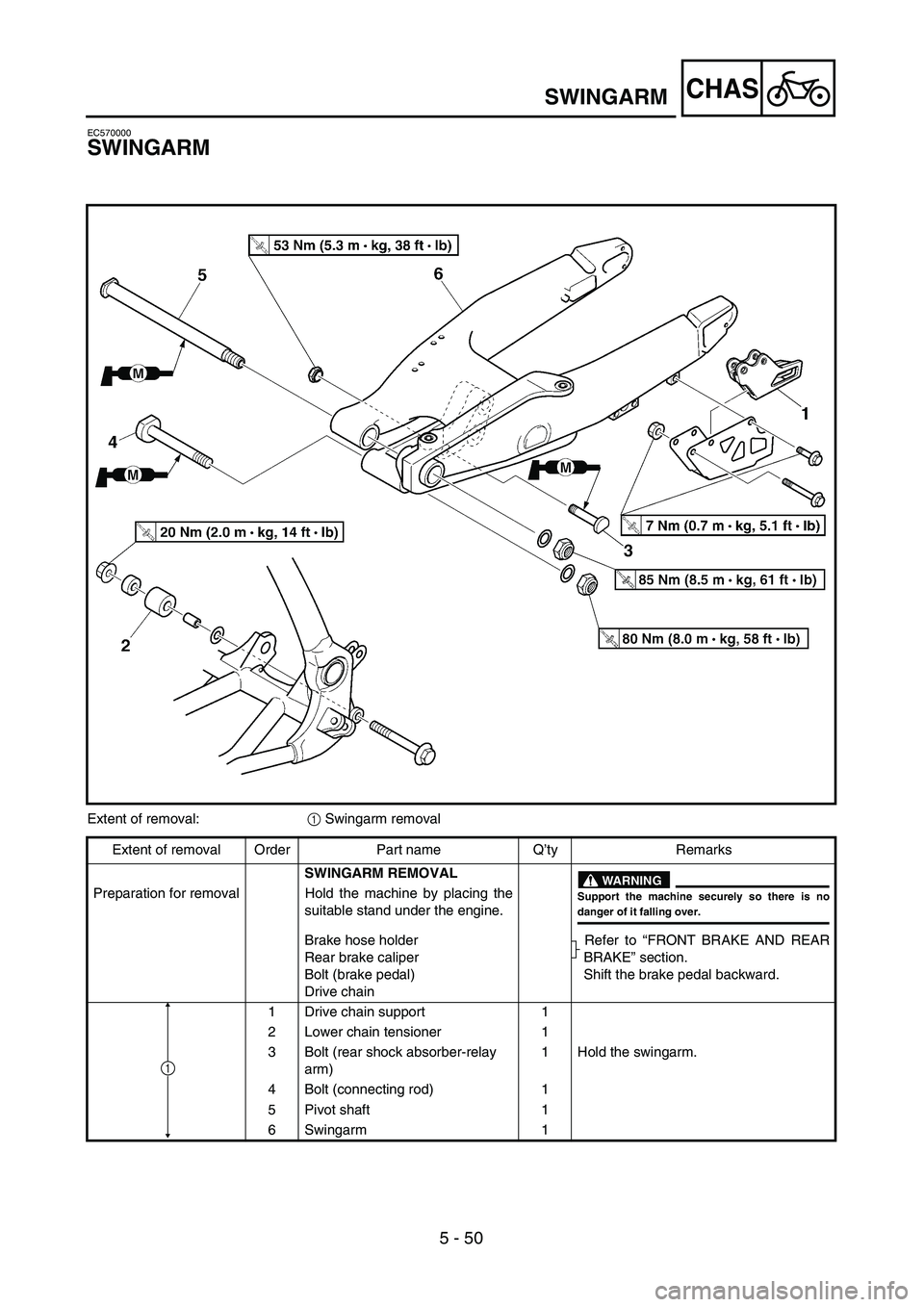

CHASSWINGARM
EC570000
SWINGARM
Extent of removal:1 Swingarm removal
Extent of removal Order Part name Q’ty Remarks
SWINGARM REMOVAL
WARNINGSupport the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Brake hose holder
Rear brake caliper
Bolt (brake pedal)
Drive chainRefer to “FRONT BRAKE AND REAR
BRAKE” section.
Shift the brake pedal backward.
1 Drive chain support 1
2 Lower chain tensioner 1
3 Bolt (rear shock absorber-relay
arm)1 Hold the swingarm.
4 Bolt (connecting rod) 1
5 Pivot shaft 1
6 Swingarm 1
1

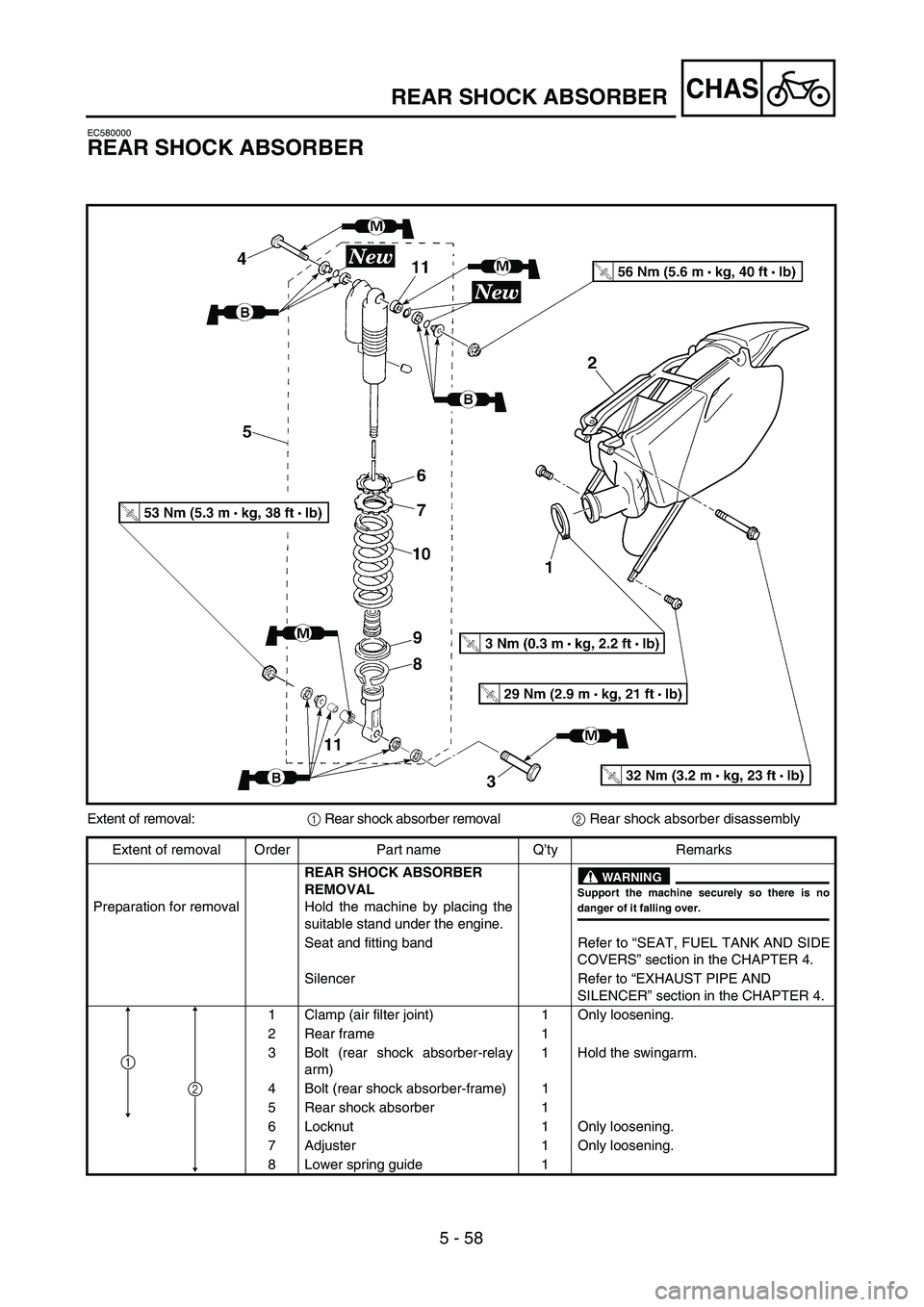

5 - 58
CHASREAR SHOCK ABSORBER
EC580000
REAR SHOCK ABSORBER
Extent of removal:1 Rear shock absorber removal2 Rear shock absorber disassembly
Extent of removal Order Part name Q’ty Remarks
Preparation for removalREAR SHOCK ABSORBER
REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNINGSupport the machine securely so there is nodanger of it falling over.
Seat and fitting band Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section in the CHAPTER 4.
Silencer Refer to “EXHAUST PIPE AND
SILENCER” section in the CHAPTER 4.
1 Clamp (air filter joint) 1 Only loosening.
2 Rear frame 1
3 Bolt (rear shock absorber-relay
arm)1 Hold the swingarm.
4 Bolt (rear shock absorber-frame) 1
5 Rear shock absorber 1
6 Locknut 1 Only loosening.
7 Adjuster 1 Only loosening.
8 Lower spring guide 1
1
2

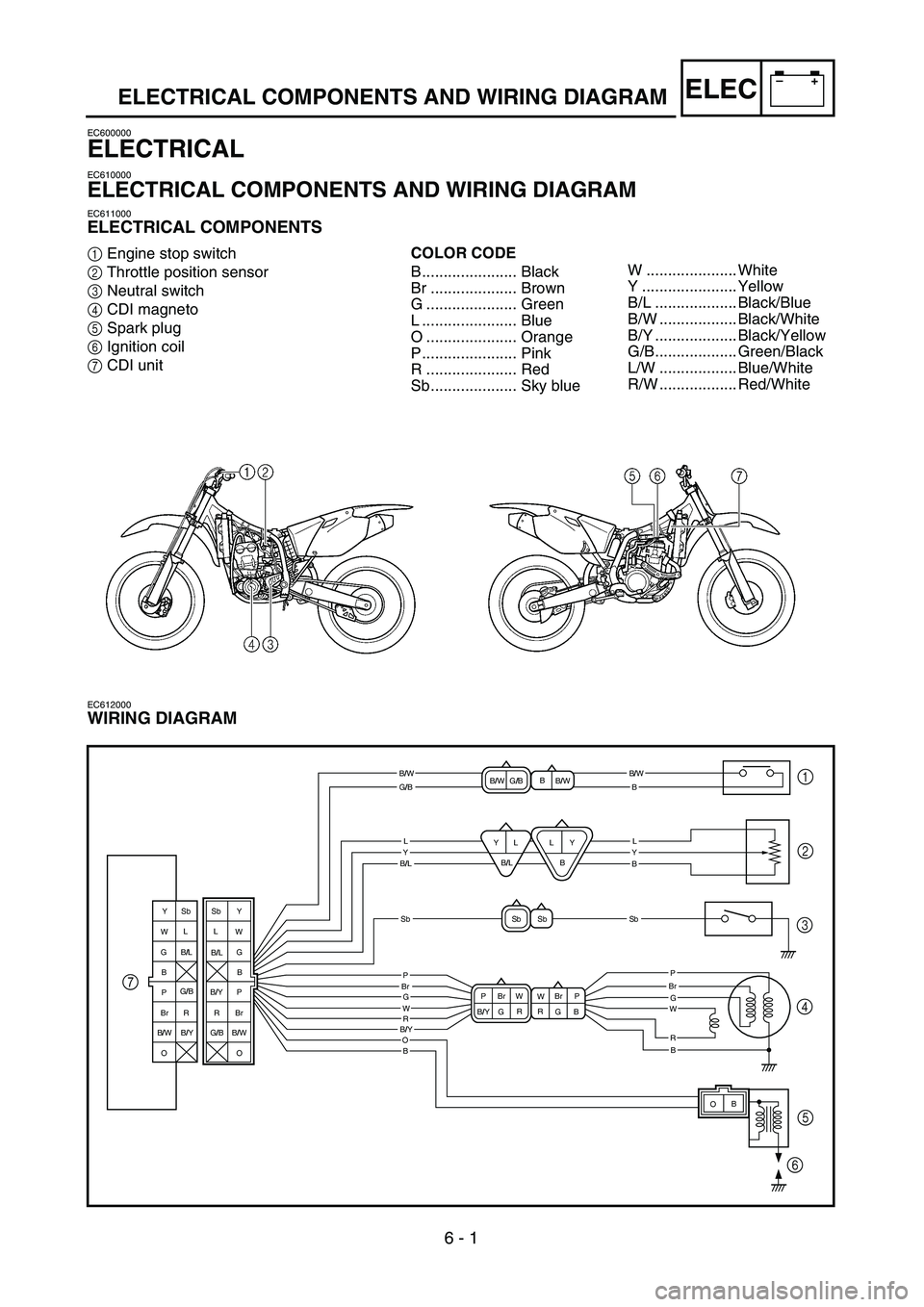

6 - 1
–+ELEC

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1
Engine stop switch
2
Throttle position sensor
3
Neutral switch
4
CDI magneto
5
Spark plug
6
Ignition coil
7
CDI unit
COLOR CODE
B...................... Black
Br .................... Brown
G ..................... Green
L ...................... Blue
O ..................... Orange
P...................... Pink
R ..................... Red
Sb.................... Sky blue
EC612000
WIRING DIAGRAM
71
5
62
3
4
B/WB/W
B/L
B/Y
SbSb
G/B
LYLY
P
B
B
B
B
G
O
WR
P
GW
R PP
B Br W
W
B/YGBr
G RR
OB Sb Sb Y
Y
WY
W
GG
B
PP
Br BrR R
OL
B SbY LL
B/L B/WB/W G/B
B B
B/L L Sb
B/L
G/B G/B
B/Y
B/Y B/W
O B/W
BrBr

W ..................... White
Y ...................... Yellow
B/L ................... Black/Blue
B/W .................. Black/White
B/Y ................... Black/Yellow
G/B................... Green/Black
L/W .................. Blue/White
R/W .................. Red/White

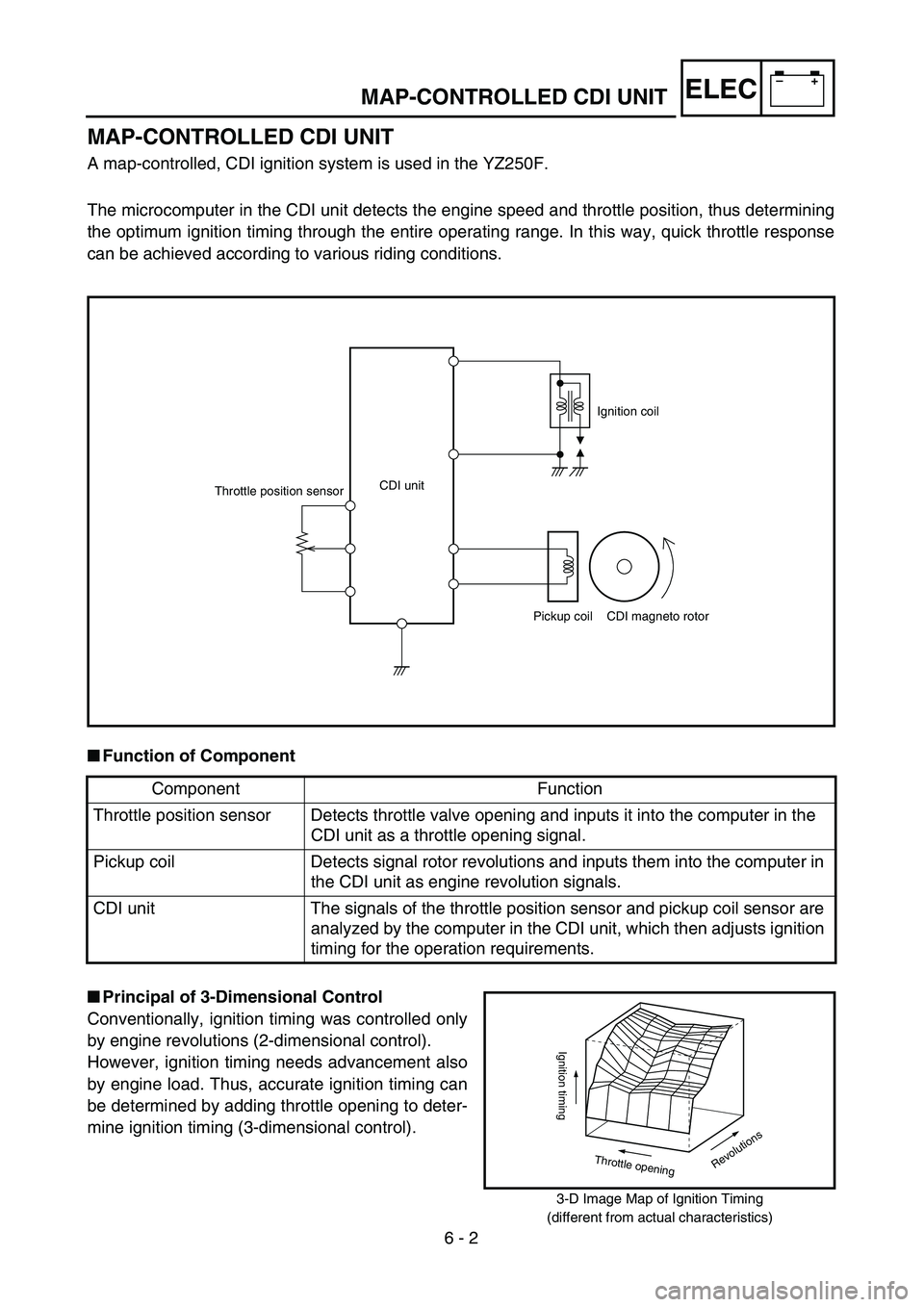

–+ELEC

6 - 2
MAP-CONTROLLED CDI UNIT
MAP-CONTROLLED CDI UNIT
A map-controlled, CDI ignition system is used in the YZ250F.
The microcomputer in the CDI unit detects the engine speed and throttle position, thus determining
the optimum ignition timing through the entire operating range. In this way, quick throttle response
can be achieved according to various riding conditions.
CDI unit
Throttle position sensor
Pickup coil CDI magneto rotorIgnition coil


Function of Component

Component Function
Throttle position sensor Detects throttle valve opening and inputs it into the computer in the
CDI unit as a throttle opening signal.
Pickup coil Detects signal rotor revolutions and inputs them into the computer in
the CDI unit as engine revolution signals.
CDI unit The signals of the throttle position sensor and pickup coil sensor are
analyzed by the computer in the CDI unit, which then adjusts ignition
timing for the operation requirements.

Principal of 3-Dimensional Control
Conventionally, ignition timing was controlled only
by engine revolutions (2-dimensional control).
However, ignition timing needs advancement also
by engine load. Thus, accurate ignition timing can
be determined by adding throttle opening to deter-
mine ignition timing (3-dimensional control).
3-D Image Map of Ignition Timing
(different from actual characteristics)
Revolutions
Ignition timing
Throttle opening

–+ELEC

6 - 3

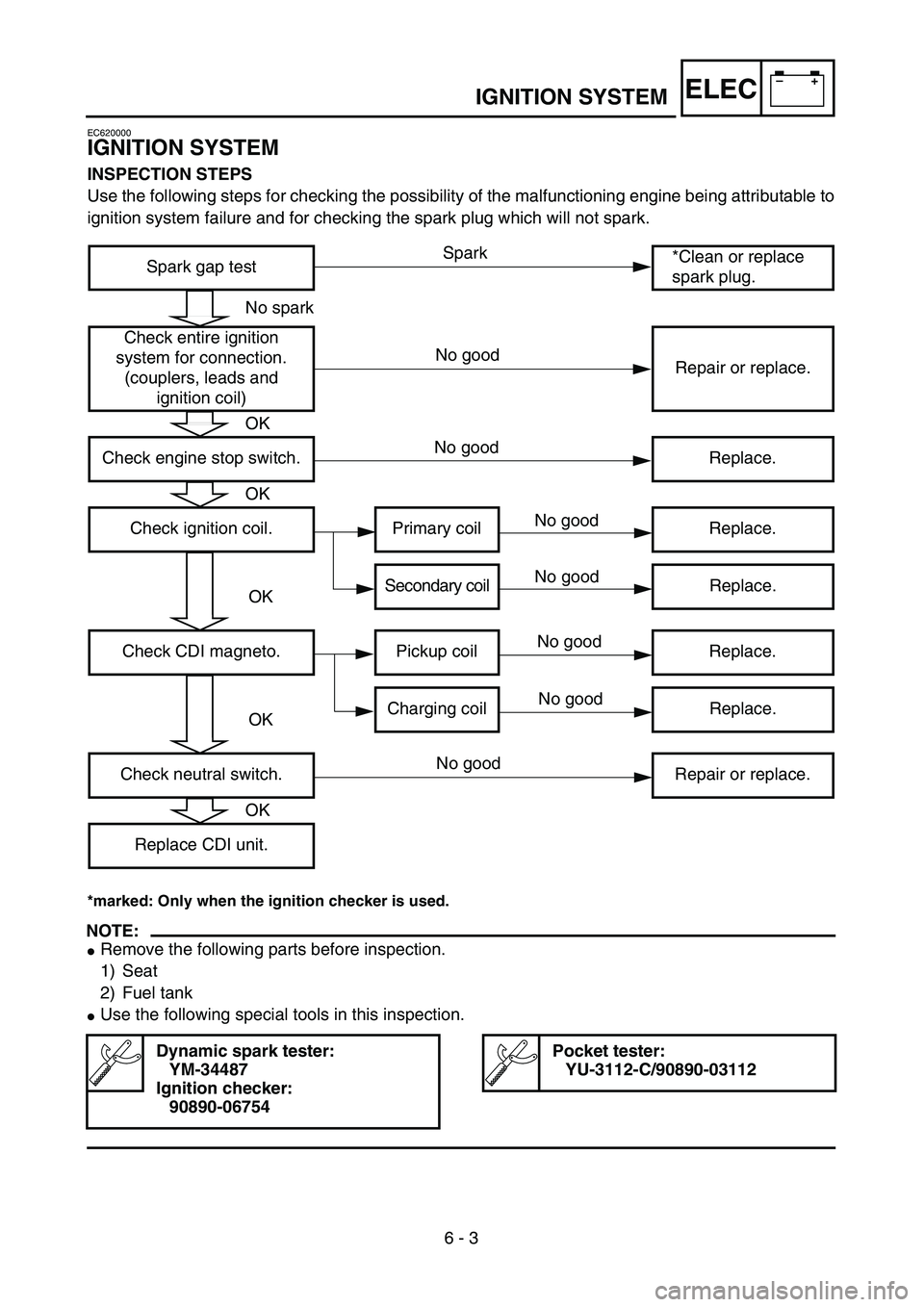

IGNITION SYSTEM
EC620000
IGNITION SYSTEM
INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning engine being attributable to
ignition system failure and for checking the spark plug which will not spark.
*marked: Only when the ignition checker is used.
NOTE:


Remove the following parts before inspection.
1) Seat
2) Fuel tank

Use the following special tools in this inspection.
Dynamic spark tester:
YM-34487
Ignition checker:
90890-06754
Pocket tester:
YU-3112-C/90890-03112
Spark gap test*Clean or replace
spark plug.
Check entire ignition
system for connection.
(couplers, leads and
ignition coil)Repair or replace.
Check engine stop switch. Replace.
Check ignition coil. Primary coil Replace.
Secondary coil Replace.
Check CDI magneto. Pickup coil Replace.
Charging coil Replace.
Check neutral switch. Repair or replace.
Replace CDI unit.
No spark
OK
OK
OK
OK
OK
Spark
No good
No good
No good
No good
No good
No good
No good

6 - 4
–+ELEC

IGNITION SYSTEM

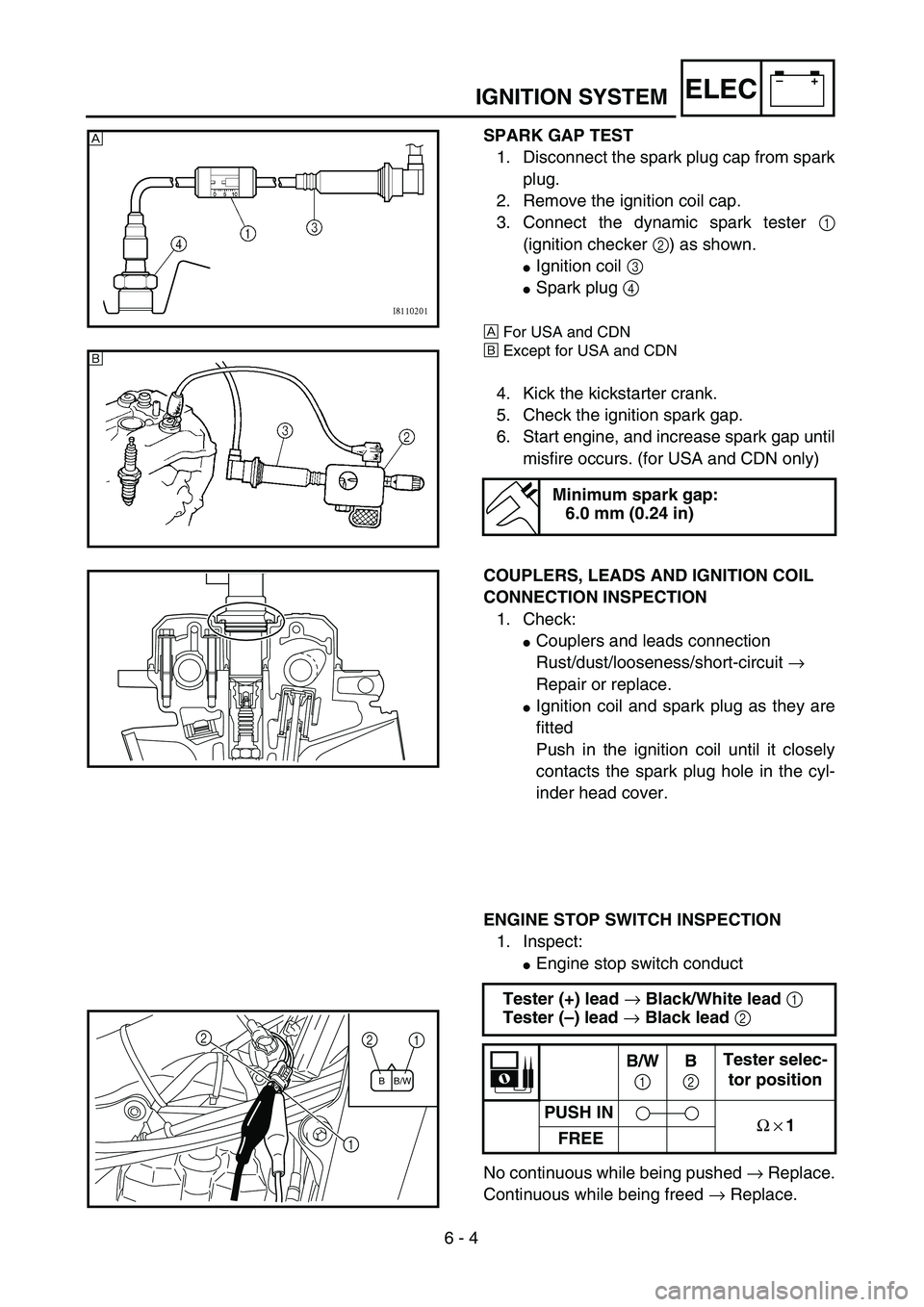

SPARK GAP TEST
1. Disconnect the spark plug cap from spark
plug.
2. Remove the ignition coil cap.
3. Connect the dynamic spark tester
1
(ignition checker
2
) as shown.

Ignition coil
3


Spark plug
4

Å
For USA and CDN
ı
Except for USA and CDN
4. Kick the kickstarter crank.
5. Check the ignition spark gap.
6. Start engine, and increase spark gap until
misfire occurs. (for USA and CDN only)
Minimum spark gap:
6.0 mm (0.24 in)
Å
ı

COUPLERS, LEADS AND IGNITION COIL
CONNECTION INSPECTION
1. Check:

Couplers and leads connection
Rust/dust/looseness/short-circuit
→

Repair or replace.

Ignition coil and spark plug as they are
fitted
Push in the ignition coil until it closely
contacts the spark plug hole in the cyl-
inder head cover.
ENGINE STOP SWITCH INSPECTION
1. Inspect:

Engine stop switch conduct
No continuous while being pushed
→
Replace.
Continuous while being freed
→
Replace.
Tester (+) lead
→
Black/White lead
1

Tester (–) lead
→
Black lead
2

B/W
1
B
2
Tester selec-
tor position
PUSH IN
Ω

×
1
FREE
B/W B
11 2 2

6 - 8
–+ELECTHROTTLE POSITION SENSOR SYSTEM
HANDLING NOTE
CAUTION:
Do not loosen the screws (throttle position
sensor) 1 except when changing the throt-
tle position sensor due to failure because it
will cause a drop in engine performance.
1
EC624000
COUPLERS AND LEADS CONNECTION
INSPECTION
1. Check:
Couplers and leads connection
Rust/dust/looseness/short-circuit →
Repair or replace.
THROTTLE POSITION SENSOR COIL
INSPECTION
1. Inspect:
Throttle position sensor coil resistance
Out of specification → Replace.
Tester (+) lead → Blue lead 1
Tester (–) lead → Black lead 2
Throttle posi-
tion sensor coil
resistanceTester selector
position
4 ~ 6 kΩ at
20 ˚C (68 ˚F)kΩ × 1
2. Loosen:
Throttle stop screw 1
NOTE:
Turn out the throttle stop screw until the throt-
tle shaft is in the full close position.

6 - 10
–+ELECTHROTTLE POSITION SENSOR SYSTEM
4. Install:
Throttle position sensor coupler
5. Adjust:
Engine idling speed
Refer to “ENGINE IDLING SPEED
ADJUSTMENT” section in the CHAP-
TER 3.
6. Insert the thin electric conductors 2
(lead) into the throttle position sensor
coupler 1, as shown, and connect the
tester to them.
CAUTION:
Do not insert the electric conductors
more than required because it may
reduce the waterproof function of the
coupler.
Make sure that a short-circuit does not
develop between the terminals because it
may cause damage to electrical compo-
nents.
7. Start the engine.Tester (+) lead → Yellow lead 3
Tester (–) lead → Black lead 4
8. Adjust:
Throttle position sensor output voltage
Adjustment steps:
Adjust the installation angle of the throttle
position sensor 1 to obtain the specified out-
put voltage.
NOTE:
Measure the output voltage accurately with a
digital electronic voltmeter that gives an easy
reading of a small voltage.
Throttle posi-
tion sensor out-
put voltageTester selector
position
0.58 ~ 0.78 V DCV

6 - 11
–+ELEC
9. Tighten:
Screw (throttle position sensor) 1
NOTE:
Tighten the screws (throttle position sensor)
using the T25 bit.
1
10. Stop the engine.
THROTTLE POSITION SENSOR INPUT
VOLTAGE INSPECTION
1. Disconnect the throttle position sensor
coupler.
2. Start the engine.
3. Inspect:
Throttle position sensor input voltage
Out of specification → Replace the CDI
unit.
Tester (+) lead → Blue lead 1
Tester (–) lead → Black/Blue lead 2
Throttle posi-
tion sensor
input voltageTester selector
position
4 ~ 6 V DCV-20
THROTTLE POSITION SENSOR SYSTEM
