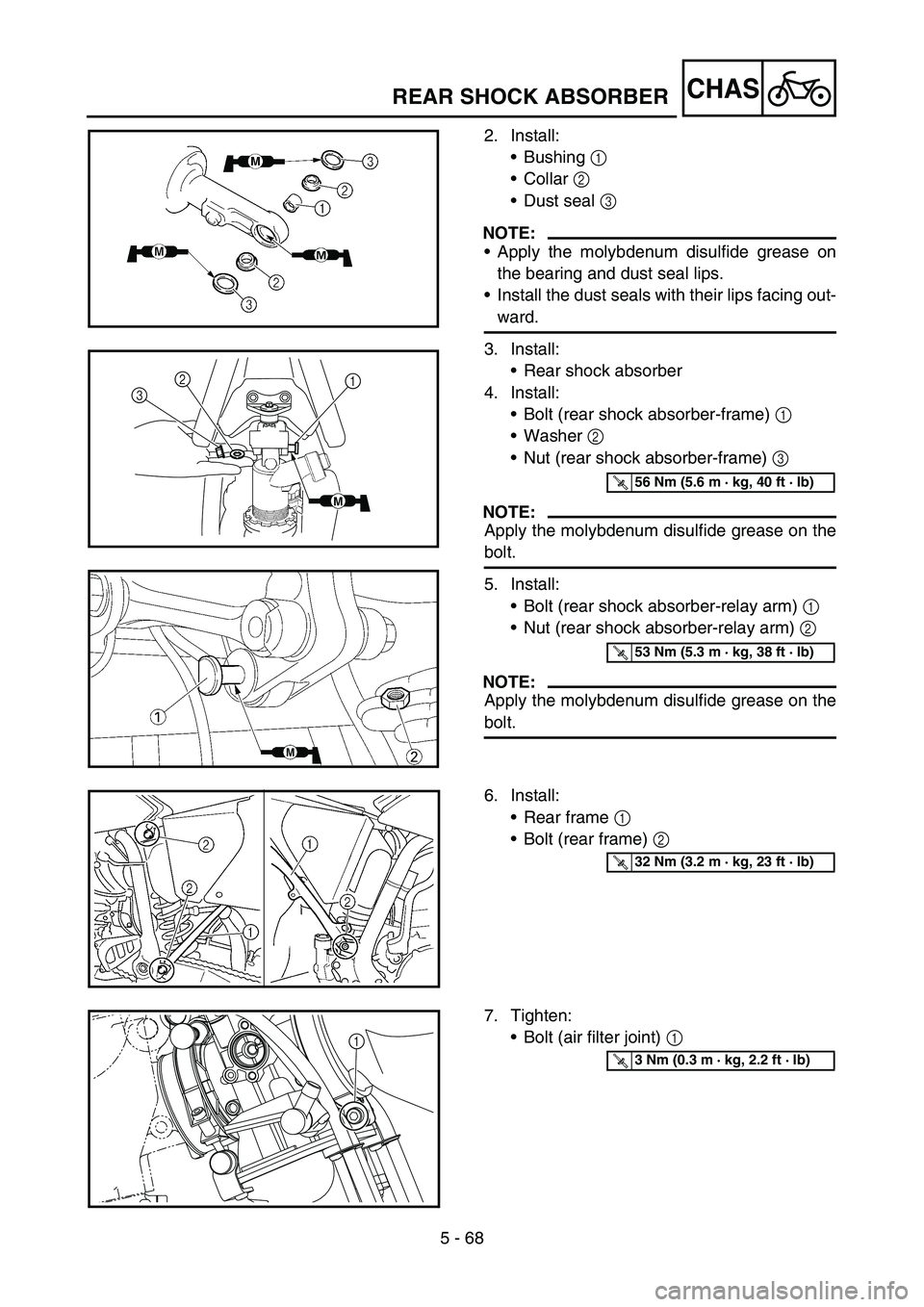

5 - 68
CHASREAR SHOCK ABSORBER
2. Install:
•Bushing 1
•Collar 2
•Dust seal 3
NOTE:
•Apply the molybdenum disulfide grease on
the bearing and dust seal lips.
•Install the dust seals with their lips facing out-
ward.
3. Install:
•Rear shock absorber
4. Install:
•Bolt (rear shock absorber-frame) 1
•Washer 2
•Nut (rear shock absorber-frame) 3
NOTE:
Apply the molybdenum disulfide grease on the
bolt.
5. Install:
•Bolt (rear shock absorber-relay arm) 1
•Nut (rear shock absorber-relay arm) 2
NOTE:
Apply the molybdenum disulfide grease on the
bolt.
1 2
3
M
T R..56 Nm (5.6 m · kg, 40 ft · lb)
T R..53 Nm (5.3 m · kg, 38 ft · lb)
6. Install:
•Rear frame 1
•Bolt (rear frame) 2
T R..32 Nm (3.2 m · kg, 23 ft · lb)
7. Tighten:
•Bolt (air filter joint) 1
1
T R..3 Nm (0.3 m · kg, 2.2 ft · lb)
