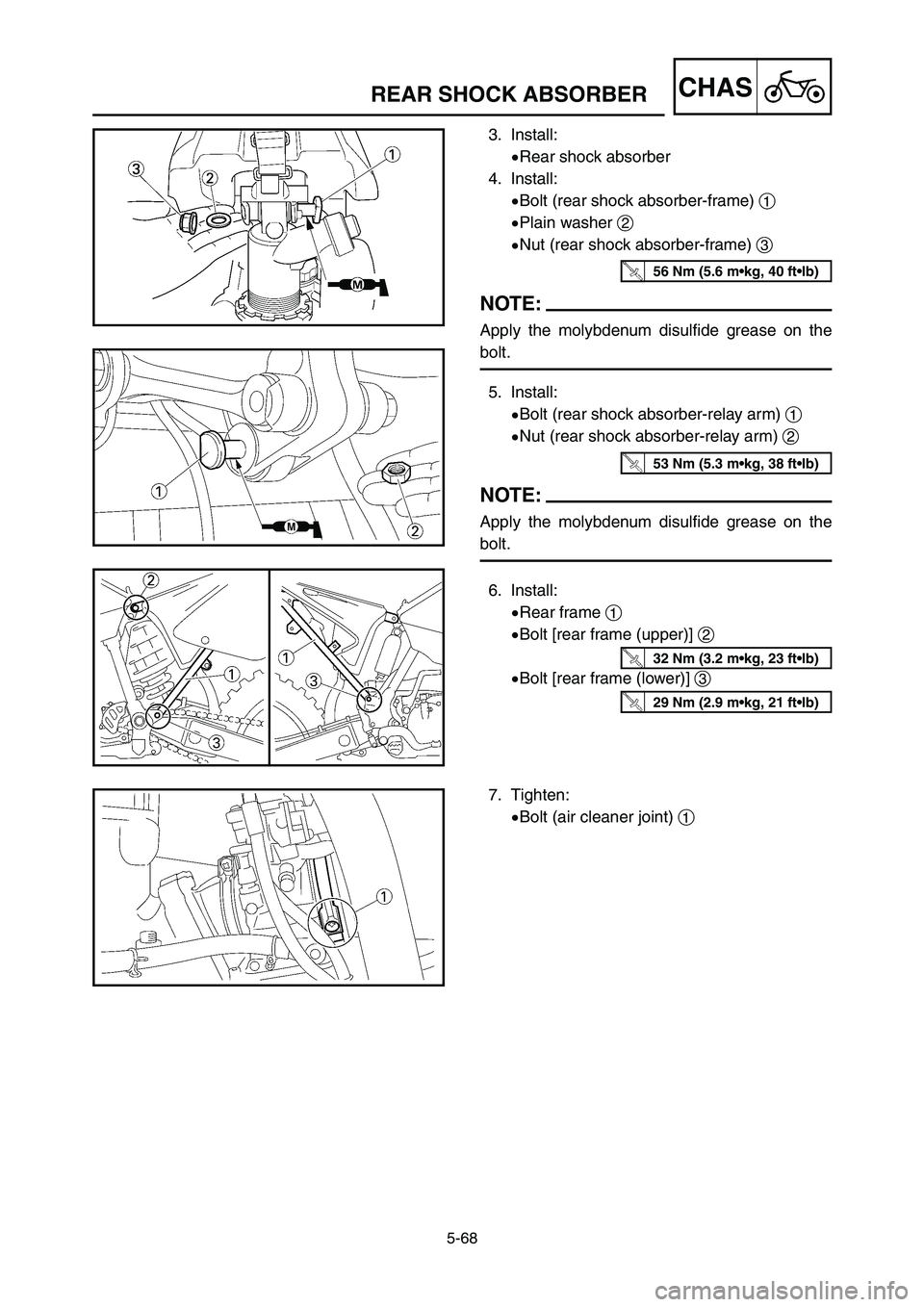

CHASREAR SHOCK ABSORBER
3. Install:
9Rear shock absorber
4. Install:
9Bolt (rear shock absorber-frame) 1
9Plain washer 2
9Nut (rear shock absorber-frame) 3
NOTE:
Apply the molybdenum disulfide grease on the
bolt.
5. Install:
9Bolt (rear shock absorber-relay arm) 1
9Nut (rear shock absorber-relay arm) 2
NOTE:
Apply the molybdenum disulfide grease on the
bolt.
6. Install:
9Rear frame 1
9Bolt [rear frame (upper)] 2
9Bolt [rear frame (lower)] 3
7. Tighten:
9Bolt (air cleaner joint) 1
56 Nm (5.6 m•kg, 40 ft•lb)
53 Nm (5.3 m•kg, 38 ft•lb)
29 Nm (2.9 m•kg, 21 ft•lb)
32 Nm (3.2 m•kg, 23 ft•lb)
