reset YAMAHA YZ250LC 2007 Notices Demploi (in French)

7-21

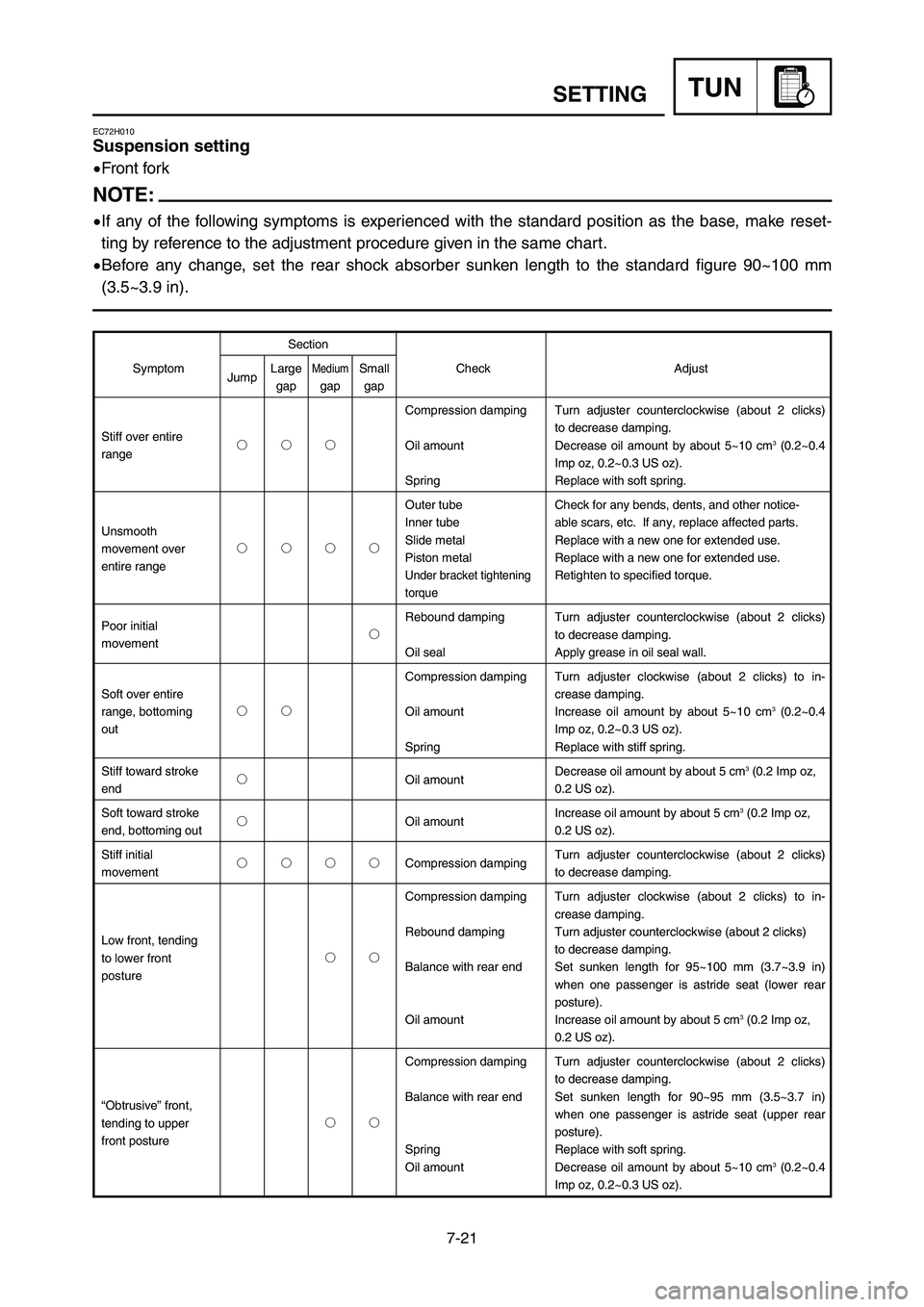

SETTINGTUN
EC72H010
Suspension setting
9Front fork
NOTE:
9If any of the following symptoms is experienced with the standard position as the base, make reset-
ting by reference to the adjustment procedure given in the same chart.
9Before any change, set the rear shock absorber sunken length to the standard figure 90~100 mm
(3.5~3.9 in).
Section
Symptom
JumpLarge
Medium Small Check Adjust
gap gap gap
Compression damping Turn adjuster counterclockwise (about 2 clicks)
Stiff over entire to decrease damping.
range111Oil amount Decrease oil amount by about 5~10 cm
3(0.2~0.4
Imp oz, 0.2~0.3 US oz).
Spring Replace with soft spring.
Outer tube Check for any bends, dents, and other notice-
Unsmooth Inner tube able scars, etc. If any, replace affected parts.
movement over 1111Slide metal Replace with a new one for extended use.
entire rangePiston metal Replace with a new one for extended use.
Under bracket tightening Retighten to specified torque.
torque
Poor initial Rebound damping Turn adjuster counterclockwise (about 2 clicks)
movement1to decrease damping.
Oil seal Apply grease in oil seal wall.
Compression damping Turn adjuster clockwise (about 2 clicks) to in-
Soft over entire crease damping.
range, bottoming 11Oil amount Increase oil amount by about 5~10 cm
3(0.2~0.4
outImp oz, 0.2~0.3 US oz).
Spring Replace with stiff spring.
Stiff toward stroke
1Oil amountDecrease oil amount by about 5 cm
3(0.2 Imp oz,
end0.2 US oz).
Soft toward stroke
1Oil amountIncrease oil amount by about 5 cm
3(0.2 Imp oz,
end, bottoming out 0.2 US oz).
Stiff initial
1111Compression dampingTurn adjuster counterclockwise (about 2 clicks)
movement to decrease damping.
Compression damping Turn adjuster clockwise (about 2 clicks) to in-
crease damping.
Low front, tending Rebound damping Turn adjuster counterclockwise (about 2 clicks)
to lower front 11to decrease damping.
postureBalance with rear end Set sunken length for 95~100 mm (3.7~3.9 in)
when one passenger is astride seat (lower rear
posture).
Oil amount Increase oil amount by about 5 cm
3(0.2 Imp oz,
0.2 US oz).
Compression damping Turn adjuster counterclockwise (about 2 clicks)
to decrease damping.
“Obtrusive” front, Balance with rear end Set sunken length for 90~95 mm (3.5~3.7 in)
tending to upper 11when one passenger is astride seat (upper rear
front postureposture).
Spring Replace with soft spring.
Oil amount Decrease oil amount by about 5~10 cm
3(0.2~0.4
Imp oz, 0.2~0.3 US oz).
1P8-9-32-7 4/28/06 3:48 PM Page 46

7-22

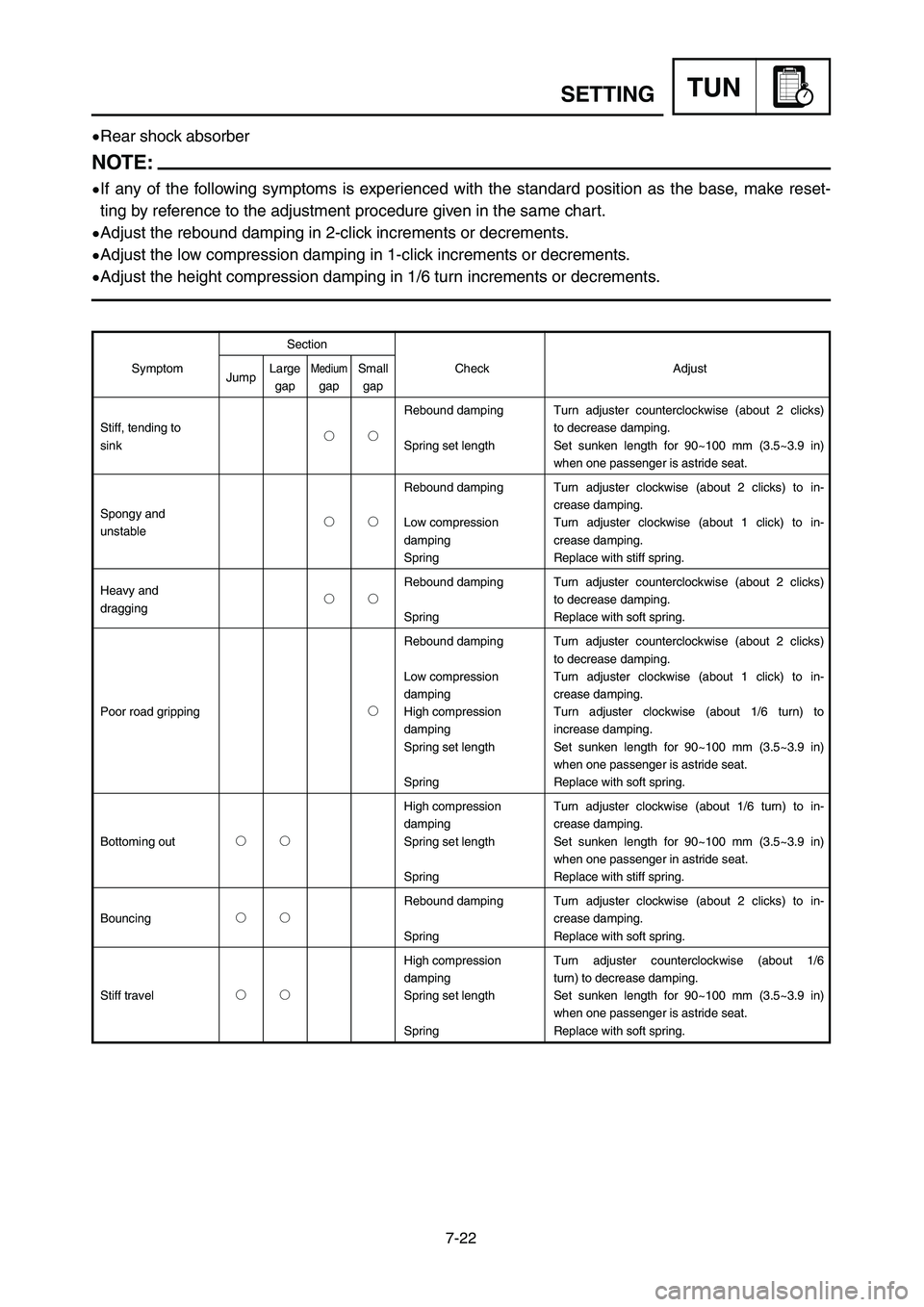

SETTINGTUN
9Rear shock absorber
NOTE:
9If any of the following symptoms is experienced with the standard position as the base, make reset-
ting by reference to the adjustment procedure given in the same chart.
9Adjust the rebound damping in 2-click increments or decrements.
9Adjust the low compression damping in 1-click increments or decrements.
9Adjust the height compression damping in 1/6 turn increments or decrements.
Section
Symptom
JumpLarge
Medium Small Check Adjust
gap gap gap
Rebound damping Turn adjuster counterclockwise (about 2 clicks)
Stiff, tending to
11to decrease damping.
sink Spring set length Set sunken length for 90~100 mm (3.5~3.9 in)
when one passenger is astride seat.
Rebound damping Turn adjuster clockwise (about 2 clicks) to in-
Spongy and crease damping.
unstable11Low compression Turn adjuster clockwise (about 1 click) to in-
damping crease damping.
Spring Replace with stiff spring.
Heavy and Rebound damping Turn adjuster counterclockwise (about 2 clicks)
dragging11to decrease damping.
Spring Replace with soft spring.
Rebound damping Turn adjuster counterclockwise (about 2 clicks)
to decrease damping.
Low compression Turn adjuster clockwise (about 1 click) to in-
damping crease damping.
Poor road gripping1High compression Turn adjuster clockwise (about 1/6 turn) to
damping increase damping.
Spring set length Set sunken length for 90~100 mm (3.5~3.9 in)
when one passenger is astride seat.
Spring Replace with soft spring.
High compression Turn adjuster clockwise (about 1/6 turn) to in-
damping crease damping.
Bottoming out11Spring set length Set sunken length for 90~100 mm (3.5~3.9 in)
when one passenger in astride seat.
Spring Replace with stiff spring.
Rebound damping Turn adjuster clockwise (about 2 clicks) to in-
Bouncing11crease damping.
Spring Replace with soft spring.
High compression Turn adjuster counterclockwise (about 1/6
damping turn) to decrease damping.
Stiff travel11Spring set length Set sunken length for 90~100 mm (3.5~3.9 in)
when one passenger is astride seat.
Spring Replace with soft spring.
1P8-9-32-7 4/28/06 3:48 PM Page 47
