SPEC
2 - 12
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race. Oil strainer (frame) M18 × 1.5 1 90 9.0 65
Crankcase bearing stopper M6 × 1.0 15 10 1.0 7.2
Drive axle oil seal stopper M6 × 1.0 2 10 1.0 7.2
Ratchet wheel guide M6 × 1.0 2 12 1.2 8.7
Kick crank M8 × 1.25 1 33 3.3 24
Primary drive gear M20 × 1.0 1 75 7.5 54
Clutch boss M20 × 1.0 1 75 7.5 54
Clutch spring M6 × 1.0 6 8 0.8 5.8
Balancer driven gear M14 × 1.0 1 50 5.0 36
Balancer weight plate M6 × 1.0 3 10 1.0 7.2
Drive sprocket M20 × 1.0 1 75 7.5 54
Shift guide M6 × 1.0 2 10 1.0 7.2
Stopper lever M6 × 1.0 1 10 1.0 7.2
Segment M8 × 1.25 1 30 3.0 22
Neutral switch M5 × 0.8 2 4 0.4 2.9 Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb

SPEC
2 - 14
MAINTENANCE SPECIFICATIONS
Wheel:
Front wheel type Spoke wheel ----
Rear wheel type Spoke wheel ----
Front rim size/material 21 × 1.60/Aluminum ----
Rear rim size/material 19 × 2.15/Aluminum ----
Rim runout limit:
Radial ---- 2.0 mm (0.08 in)
Lateral ---- 2.0 mm (0.08 in)
Drive chain:
Type/manufacturer DID520DMA2 SDH/DAIDO ----
Number of links 113 links + joint ----
Chain slack 40 ~ 50 mm (1.6 ~ 2.0 in) ----
Chain length (10 links) ----152.5 mm (6.00 in)
Front disc brake:
Disc outside dia. × Thickness 250 × 3.0 mm (9.84 × 0.12 in) 250 × 2.5 mm
(9.84 × 0.10 in)
Pad thickness 4.4 mm (0.17 in) 1 mm (0.04 in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) × 2 ----
Brake fluid type DOT #4 ----
Rear disc brake:
Disc outside dia. × Thickness 245 × 4.0 mm (9.65 × 0.16 in) 245 × 3.5 mm
(9.65 × 0.14 in)
Deflection limit ----0.15 mm (0.006 in)
Pad thickness 6.4 mm (0.25 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 12.7 mm (0.500 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) × 1 ----
Brake fluid type DOT #4 ----
Brake lever and brake pedal:
Brake lever position 95 mm (3.74 in) ----
Brake pedal height
(vertical height below footrest top)5 mm (0.20 in) ----
Clutch lever free play (lever end) 8 ~ 13 mm (0.31 ~ 0.51 in) ----
Throttle grip free play 3 ~ 5 mm (0.12 ~ 0.20 in) ----Item Standard Limit

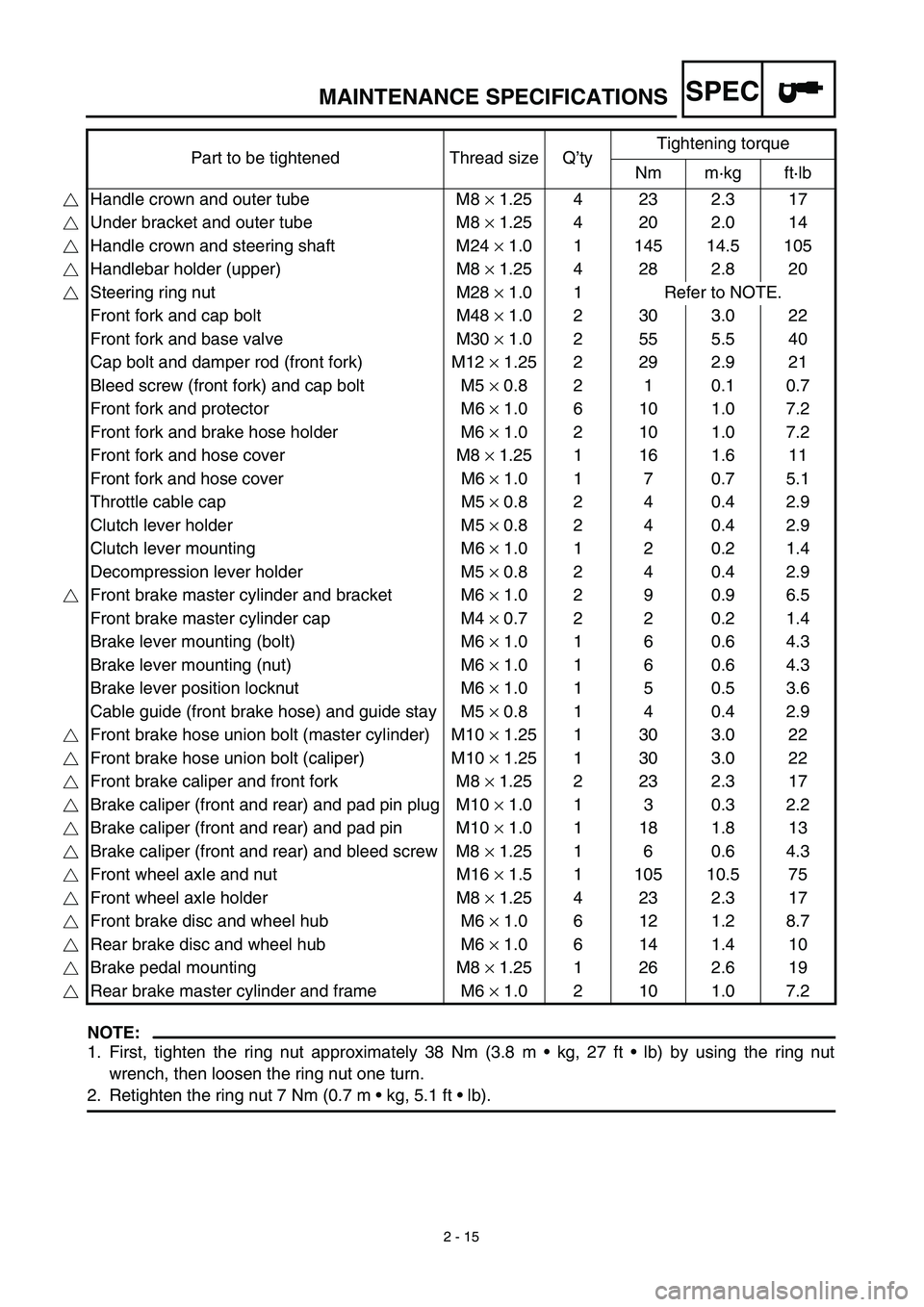

SPEC
2 - 15
MAINTENANCE SPECIFICATIONS
NOTE:
1. First, tighten the ring nut approximately 38 Nm (3.8 m • kg, 27 ft • lb) by using the ring nut
wrench, then loosen the ring nut one turn.
2. Retighten the ring nut 7 Nm (0.7 m • kg, 5.1 ft • lb). Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Handle crown and outer tube M8 × 1.25 4 23 2.3 17
Under bracket and outer tube M8 × 1.25 4 20 2.0 14
Handle crown and steering shaft M24 × 1.0 1 145 14.5 105
Handlebar holder (upper) M8 × 1.25 4 28 2.8 20
Steering ring nut M28 × 1.0 1 Refer to NOTE.
Front fork and cap bolt M48 × 1.0 2 30 3.0 22
Front fork and base valve M30 × 1.0 2 55 5.5 40
Cap bolt and damper rod (front fork) M12 × 1.25 2 29 2.9 21
Bleed screw (front fork) and cap bolt M5 × 0.8 2 1 0.1 0.7
Front fork and protector M6 × 1.0 6 10 1.0 7.2
Front fork and brake hose holder M6 × 1.0 2 10 1.0 7.2
Front fork and hose cover M8 × 1.25 1 16 1.6 11
Front fork and hose cover M6 × 1.0 1 7 0.7 5.1
Throttle cable cap M5 × 0.8 2 4 0.4 2.9
Clutch lever holder M5 × 0.8 2 4 0.4 2.9
Clutch lever mounting M6 × 1.0 1 2 0.2 1.4
Decompression lever holder M5 × 0.8 2 4 0.4 2.9
Front brake master cylinder and bracket M6 × 1.0 2 9 0.9 6.5
Front brake master cylinder cap M4 × 0.7 2 2 0.2 1.4
Brake lever mounting (bolt) M6 × 1.0 1 6 0.6 4.3
Brake lever mounting (nut) M6 × 1.0 1 6 0.6 4.3
Brake lever position locknut M6 × 1.0 1 5 0.5 3.6
Cable guide (front brake hose) and guide stay M5 × 0.8 1 4 0.4 2.9
Front brake hose union bolt (master cylinder) M10 × 1.25 1 30 3.0 22
Front brake hose union bolt (caliper) M10 × 1.25 1 30 3.0 22
Front brake caliper and front fork M8 × 1.25 2 23 2.3 17
Brake caliper (front and rear) and pad pin plug M10 × 1.0 1 3 0.3 2.2
Brake caliper (front and rear) and pad pin M10 × 1.0 1 18 1.8 13
Brake caliper (front and rear) and bleed screw M8 × 1.25 1 6 0.6 4.3
Front wheel axle and nut M16 × 1.5 1 105 10.5 75
Front wheel axle holder M8 × 1.25 4 23 2.3 17
Front brake disc and wheel hub M6 × 1.0 6 12 1.2 8.7
Rear brake disc and wheel hub M6 × 1.0 6 14 1.4 10
Brake pedal mounting M8 × 1.25 1 26 2.6 19
Rear brake master cylinder and frame M6 × 1.0 2 10 1.0 7.2

SPEC
2 - 16
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race.Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Rear brake reservoir tank and frame M6 × 1.0 1 10 1.0 7.2
Rear brake hose union bolt (caliper) M10 × 1.25 1 30 3.0 22
Rear brake hose union bolt (master cylinder) M10 × 1.25 1 30 3.0 22
Rear wheel axle and nut M20 × 1.5 1 125 12.5 90
Driven sprocket and wheel hub M8 × 1.25 6 42 4.2 30
Nipple (spoke)–72 3 0.3 2.2
Disc cover and rear brake caliper M6 × 1.0 2 7 0.7 5.1
Protector and rear brake caliper M6 × 1.0 2 7 0.7 5.1
Engine mounting:
Engine bracket and frame M8 × 1.25 7 34 3.4 24
Engine and frame (front) M10 × 1.25 1 69 6.9 50
Engine and frame (upper) M10 × 1.25 1 55 5.5 40
Engine and frame (lower) M10 × 1.25 1 69 6.9 50
Engine guard (lower) M8 × 1.25 1 23 2.3 17
Pivot shaft and nut M16 × 1.5 1 85 8.5 61
Relay arm and swingarm M14 × 1.5 1 80 8.0 58
Relay arm and connecting rod M14 × 1.5 1 80 8.0 58
Connecting rod and frame M14 × 1.5 1 80 8.0 58
Rear shock absorber and frame M10 × 1.25 1 56 5.6 40
Rear shock absorber and relay arm M10 × 1.25 1 53 5.3 38
Rear frame and frame M8 × 1.25 3 29 2.9 21
Swingarm and brake hose holder M5 × 0.8 4 1 0.1 0.7
Swingarm and patch M4 × 0.7 4 2 0.2 1.4
Drive chain tensioner mounting (upper) M8 × 1.25 1 19 1.9 13
Drive chain tensioner mounting (lower) M8 × 1.25 1 20 2.0 14
Chain support and swingarm M6 × 1.0 3 7 0.7 5.1
Seal guard and swingarm M5 × 0.8 4 6 0.6 4.3
Fuel tank mounting M6 × 1.0 2 10 1.0 7.2
Fuel tank and fuel cock M6 × 1.0 2 7 0.7 5.1
Fuel tank and seat set bracket M6 × 1.0 1 7 0.7 5.1
Fuel tank and hooking screw (fitting band) M6 × 1.0 1 7 0.7 5.1
Fuel tank and fuel tank bracket M6 × 1.0 4 7 0.7 5.1
Seat mounting M8 × 1.25 2 23 2.3 17
Side cover mounting M6 × 1.0 2 7 0.7 5.1
Air scoop and fuel tank M6 × 1.0 4 4 0.4 2.9
Air scoop and radiator panel (lower) M6 × 1.0 2 4 0.4 2.9
Front fender mounting M6 × 1.0 4 7 0.7 5.1
Rear fender mounting M6 × 1.0 4 7 0.7 5.1
Number plate M6 × 1.0 1 7 0.7 5.1
