5 - 64

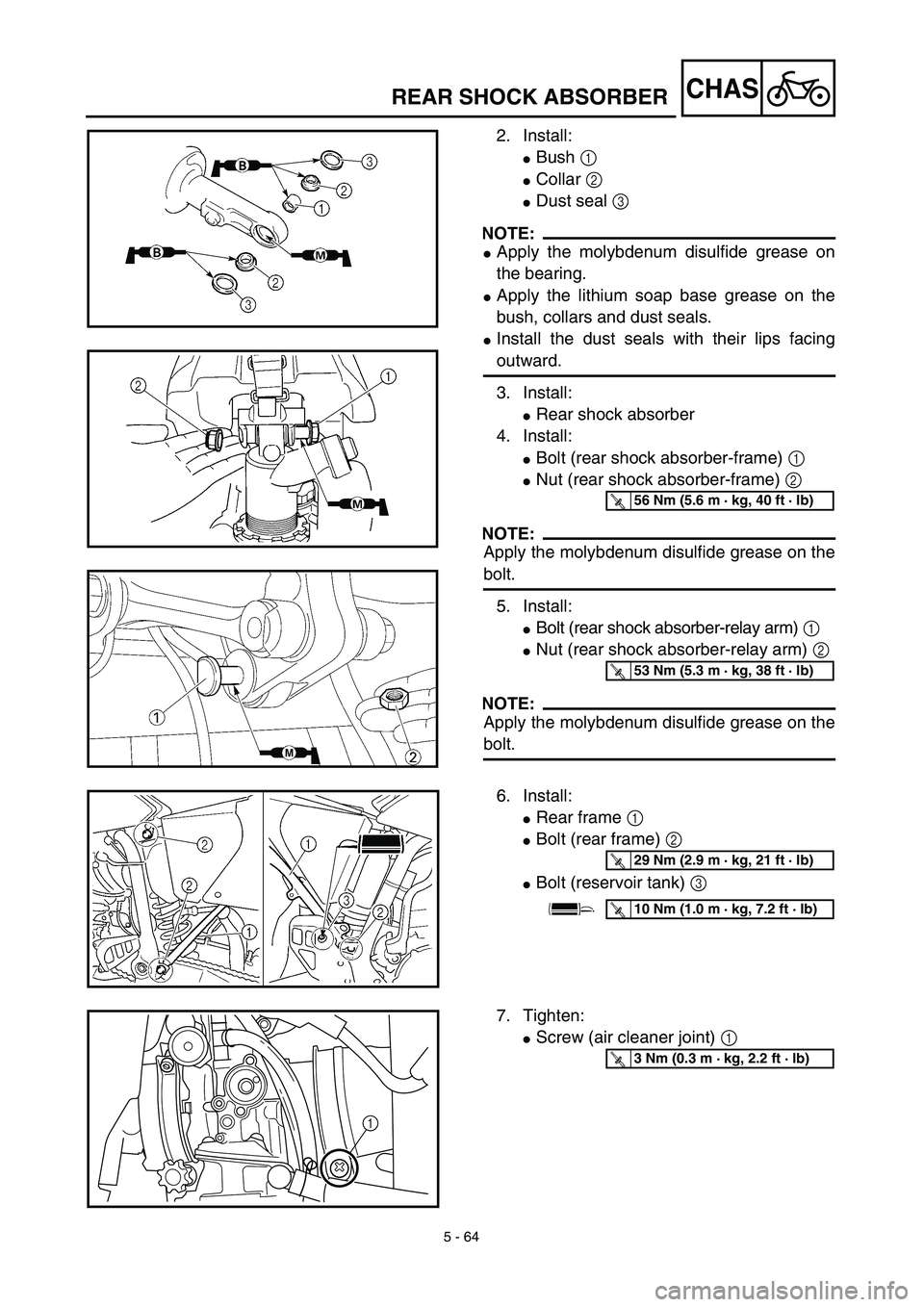

CHASREAR SHOCK ABSORBER
2. Install:
Bush 1
Collar 2
Dust seal 3
NOTE:
Apply the molybdenum disulfide grease on
the bearing.
Apply the lithium soap base grease on the
bush, collars and dust seals.
Install the dust seals with their lips facing
outward.
3. Install:
Rear shock absorber
4. Install:
Bolt (rear shock absorber-frame) 1
Nut (rear shock absorber-frame) 2
NOTE:
Apply the molybdenum disulfide grease on the
bolt.
5. Install:
Bolt (rear shock absorber-relay arm) 1
Nut (rear shock absorber-relay arm) 2
NOTE:
Apply the molybdenum disulfide grease on the
bolt.
T R..56 Nm (5.6 m · kg, 40 ft · lb)
T R..53 Nm (5.3 m · kg, 38 ft · lb)
6. Install:
Rear frame 1
Bolt (rear frame) 2
Bolt (reservoir tank) 3
T R..29 Nm (2.9 m · kg, 21 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
7. Tighten:
Screw (air cleaner joint) 1
1
T R..3 Nm (0.3 m · kg, 2.2 ft · lb)
