Page 22 of 644
CHAPTER 4
ENGINE
SEAT, FUEL TANK
AND SIDE COVERS
..................................4-1
EXHAUST PIPE AND SILENCER
.............4-3
RADIATOR
................................................4-5
CARBURETOR
..........................................4-8
CAMSHAFTS
...........................................4-21
CYLINDER HEAD
....................................4-29
VALVES AND VALVE SPRINGS
............4-33
CYLINDER AND PISTON
........................4-42
CLUTCH
...................................................4-48
OIL FILTER, WATER PUMP
AND CRANKCASE COVER (RIGHT)
.....4-55
BALANCER
.............................................4-62
OIL PUMP
................................................4-65
KICK AXLE AND SHIFT SHAFT
.............4-69
CDI MAGNETO
........................................4-76
ENGINE REMOVAL
.................................4-80
CRANKCASE AND CRANKSHAFT
........4-85
TRANSMISSION, SHIFT CAM
AND SHIFT FORK
...................................4-94
CHAPTER 5
CHASSIS
FRONT WHEEL AND REAR WHEEL
.......5-1
FRONT BRAKE AND REAR BRAKE
.....5-10
FRONT FORK
..........................................5-26
HANDLEBAR
...........................................5-39
STEERING
...............................................5-45
SWINGARM
.............................................5-50
REAR SHOCK ABSORBER
....................5-58
Page 27 of 644
GEN
INFO
DESCRIPTION
FAHRZEUGBESCHREIBUNG
ALLGEMEINE ANGABEN
FAHRZEUGBESCHREIBUNG
1
Kupplungshebel
2
Heißstarter-Hebel
3
Handbremshebel
4
Gasdrehgriff
5
Kühlerverschlußdeckel
6
Kraftstoffankverschluß
7
Motorstoppschalter “ENGINE STOP”
8
Kickstarter
9
Kraftstofftank
0
Kühler
A
Kühlmittel-Ablaßschraube
B
Fußbremshebel
C
Auslaufschutzventil
D
Kraftstoffhahn
E
Kaltstarterknopf
F
Antriebskette
G
Luftfilter
H
Schalthebel
I
Ölmeßstab
J
Teleskopgabel
HINWEIS:
Leichte Modell-Abweichungen möglich.
Änderungen an Design und technischen Daten
jederzeit vorbehalten.
RENSEIGNEMENTS
GENERAUX
DESCRIPTION
1
Levier d’embrayage
2
Levier de démarreur à chaud
3
Levier de frein avant
4
Poignée d’accélérateur
5
Bouchon de radiateur
6
Bouchon de réservoir à essence
7
Bouton du coupe-circuit de sécurité “ENGINE STOP”
8
Démarreur au pied
9
Réservoir de carburant
0
Radiateur
A
Boulon de vidange du liquide de refroidissement
B
Pédale de frein arrière
C
Joint de robinet
D
Robinet à essence
E
Bouton de démarrage à froid
F
Chaîne de transmission
G
Filtre à air
H
Pédale de sélecteur
I
Jauge de niveau d’huile
J
Fourche avant
N.B.:
Votre machine diffère peut-être partiellement de
celles montrées sur ces photos.
La conception et les caractéristiques peuvent
êtres changées sans préavis.
1 - 1
1
Page 48 of 644
1 - 10
GEN
INFO
CONTROL FUNCTIONS
EC150000
CONTROL FUNCTIONS
EC151000
“ENGINE STOP” BUTTON
The “ENGINE STOP” button 1 is located on
the left handlebar. Continue pushing the
“ENGINE STOP” button till the engine comes
to a stop.
EC152000
CLUTCH LEVER
The clutch lever 1 is located on the left han-
dlebar; it disengages or engages the clutch.
Pull the clutch lever to the handlebar to disen-
gage the clutch, and release the lever to
engage the clutch. The lever should be pulled
rapidly and released slowly for smooth starts.
EC153000
SHIFT PEDAL
The gear ratios of the constant-mesh 4 speed
transmission are ideally spaced. The gears
can be shifted by using the shift pedal 1 on
the left side of the engine.
EC154000
KICK STARTER
Rotate the kick starter 1 away from the
engine. Push the starter down lightly with your
foot until the gears engage, then kick smoothly
and forcefully to start the engine. This model
has a primary kick starter so the engine can be
started in any gear if the clutch is disengaged.
In normal practices, however, shift to neutral
before starting.
1
EC155001
THROTTLE GRIP
The throttle grip 1 is located on the right han-
dlebar; it accelerates or decelerates the
engine. For acceleration, turn the grip toward
you; for deceleration, turn it away from you.
Page 64 of 644
1 - 18
GEN
INFO
STARTING AND BREAK-IN
STARTING AND BREAK-IN
WARNING
Never start or run the engine in a closed
area. The exhaust fumes are poisonous;
they can cause loss of consciousness and
death in a very short time. Always operate
the machine in a well-ventilated area.
CAUTION:
The carburetor on this motorcycle has a
built-in accelerator pump. Therefore,
when starting the engine, do not operate
the throttle or the spark plug will foul.
Unlike a two-stroke engine, this engine
cannot be kick started when the throttle is
open because the kick starter may kick
back. Also, if the throttle is open the air/
fuel mixture may be too lean for the
engine to start.
Before starting the machine, perform the
checks in the pre-operation check list.
STARTING A COLD ENGINE
1. Inspect the coolant level.
2. Turn the fuel cock to “ON”.
3. Shift the transmission into neutral.
4. Fully open the cold starter knob 1.
5. Kick the kick starter.
WARNING
Do not open the throttle while kicking the
kick starter. Otherwise, the kick starter may
kick back.
Page 76 of 644
1 - 23
GEN
INFO
CLEANING AND STORAGE
EC1B0000
CLEANING AND STORAGE
EC1B1000
CLEANING
Frequent cleaning of your machine will
enhance its appearance, maintain good overall
performance, and extend the life of many com-
ponents.
1. Before washing the machine, block off
the end of the exhaust pipe to prevent
water from entering. A plastic bag
secured with a rubber band may be used
for this purpose.
2. If the engine is excessively greasy, apply
some degreaser to it with a paint brush.
Do not apply degreaser to the chain,
sprockets, or wheel axles.
3. Rinse the dirt and degreaser off with a
garden hose; use only enough pressure
to do the job.
CAUTION:
Excessive hose pressure may cause water
seepage and contamination of wheel bear-
ings, front forks, brakes and transmission
seals. Many expensive repair bills have
resulted from improper high pressure
detergent applications such as those avail-
able in coin-operated car washers.
4. After the majority of the dirt has been
hosed off, wash all surfaces with warm
water and a mild detergent. Use an old
toothbrush to clean hard-to-reach places.
5. Rinse the machine off immediately with
clean water, and dry all surfaces with a
soft towel or cloth.
6. Immediately after washing, remove
excess water from the chain with a paper
towel and lubricate the chain to prevent
rust.
7. Clean the seat with a vinyl upholstery
cleaner to keep the cover pliable and
glossy.
Page 77 of 644
GEN

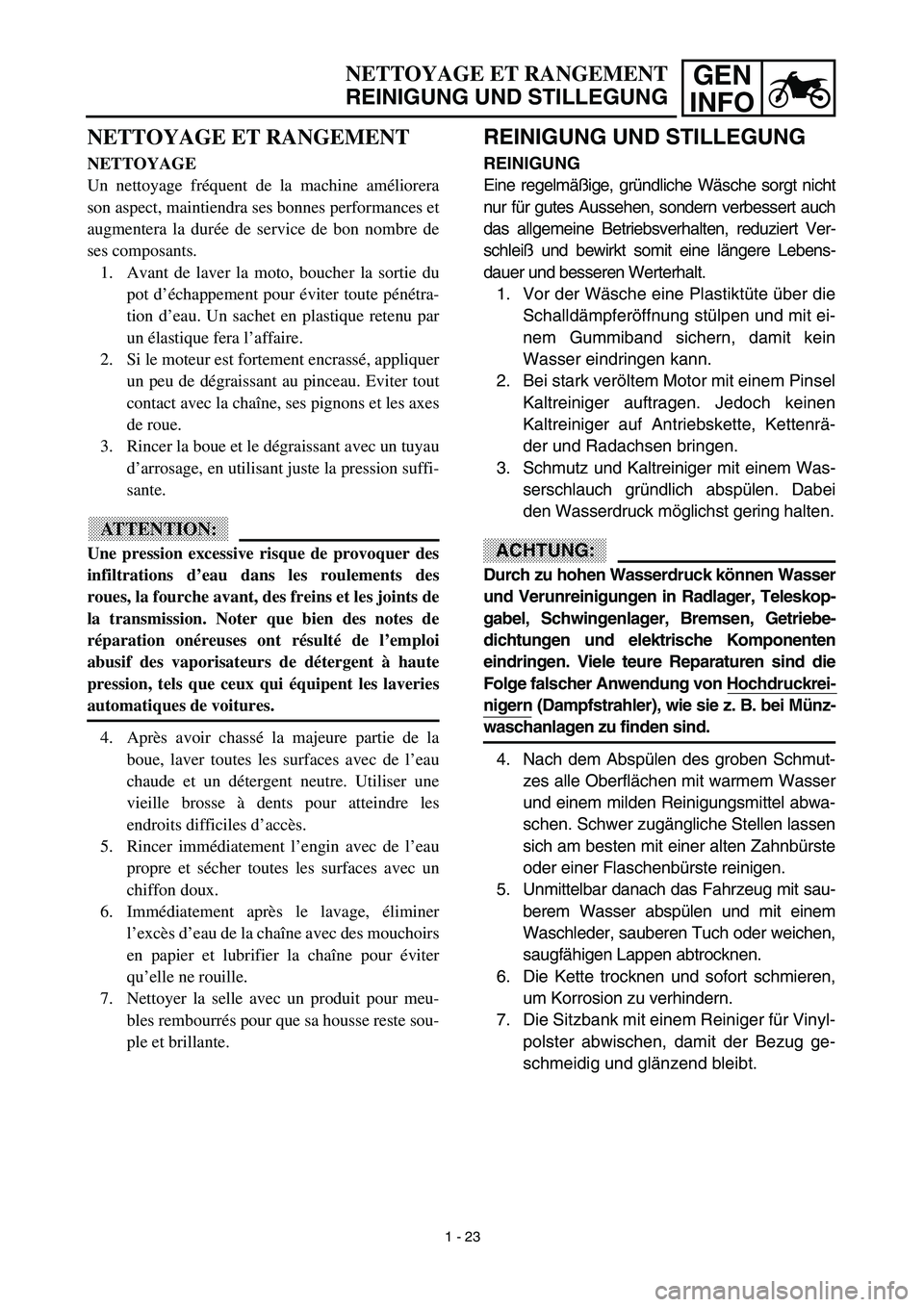

INFONETTOYAGE ET RANGEMENT
REINIGUNG UND STILLEGUNG
REINIGUNG UND STILLEGUNG
REINIGUNG
Eine regelmäßige, gründliche Wäsche sorgt nicht
nur für gutes Aussehen, sondern verbessert auch
das allgemeine Betriebsverhalten, reduziert Ver-
schleiß und bewirkt somit eine längere Lebens-
dauer und besseren Werterhalt.
1. Vor der Wäsche eine Plastiktüte über die
Schalldämpferöffnung stülpen und mit ei-
nem Gummiband sichern, damit kein
Wasser eindringen kann.
2. Bei stark veröltem Motor mit einem Pinsel
Kaltreiniger auftragen. Jedoch keinen
Kaltreiniger auf Antriebskette, Kettenrä-
der und Radachsen bringen.
3. Schmutz und Kaltreiniger mit einem Was-
serschlauch gründlich abspülen. Dabei
den Wasserdruck möglichst gering halten.
ACHTUNG:
Durch zu hohen Wasserdruck können Wasser
und Verunreinigungen in Radlager, Teleskop-
gabel, Schwingenlager, Bremsen, Getriebe-
dichtungen und elektrische Komponenten
eindringen. Viele teure Reparaturen sind die
Folge falscher Anwendung von Hochdruckrei-
nigern (Dampfstrahler), wie sie z. B. bei Münz-
waschanlagen zu finden sind.
4. Nach dem Abspülen des groben Schmut-
zes alle Oberflächen mit warmem Wasser
und einem milden Reinigungsmittel abwa-
schen. Schwer zugängliche Stellen lassen
sich am besten mit einer alten Zahnbürste
oder einer Flaschenbürste reinigen.
5. Unmittelbar danach das Fahrzeug mit sau-
berem Wasser abspülen und mit einem
Waschleder, sauberen Tuch oder weichen,
saugfähigen Lappen abtrocknen.
6. Die Kette trocknen und sofort schmieren,
um Korrosion zu verhindern.
7. Die Sitzbank mit einem Reiniger für Vinyl-
polster abwischen, damit der Bezug ge-
schmeidig und glänzend bleibt.
NETTOYAGE ET RANGEMENT
NETTOYAGE
Un nettoyage fréquent de la machine améliorera
son aspect, maintiendra ses bonnes performances et
augmentera la durée de service de bon nombre de
ses composants.
1. Avant de laver la moto, boucher la sortie du
pot d’échappement pour éviter toute pénétra-
tion d’eau. Un sachet en plastique retenu par
un élastique fera l’affaire.
2. Si le moteur est fortement encrassé, appliquer
un peu de dégraissant au pinceau. Eviter tout
contact avec la chaîne, ses pignons et les axes
de roue.
3. Rincer la boue et le dégraissant avec un tuyau
d’arrosage, en utilisant juste la pression suffi-
sante.
ATTENTION:
Une pression excessive risque de provoquer des
infiltrations d’eau dans les roulements des
roues, la fourche avant, des freins et les joints de
la transmission. Noter que bien des notes de
réparation onéreuses ont résulté de l’emploi
abusif des vaporisateurs de détergent à haute
pression, tels que ceux qui équipent les laveries
automatiques de voitures.
4. Après avoir chassé la majeure partie de la
boue, laver toutes les surfaces avec de l’eau
chaude et un détergent neutre. Utiliser une
vieille brosse à dents pour atteindre les
endroits difficiles d’accès.
5. Rincer immédiatement l’engin avec de l’eau
propre et sécher toutes les surfaces avec un
chiffon doux.
6. Immédiatement après le lavage, éliminer
l’excès d’eau de la chaîne avec des mouchoirs
en papier et lubrifier la chaîne pour éviter
qu’elle ne rouille.
7. Nettoyer la selle avec un produit pour meu-
bles rembourrés pour que sa housse reste sou-
ple et brillante.
1 - 23
Page 81 of 644
SPEC
2 - 2

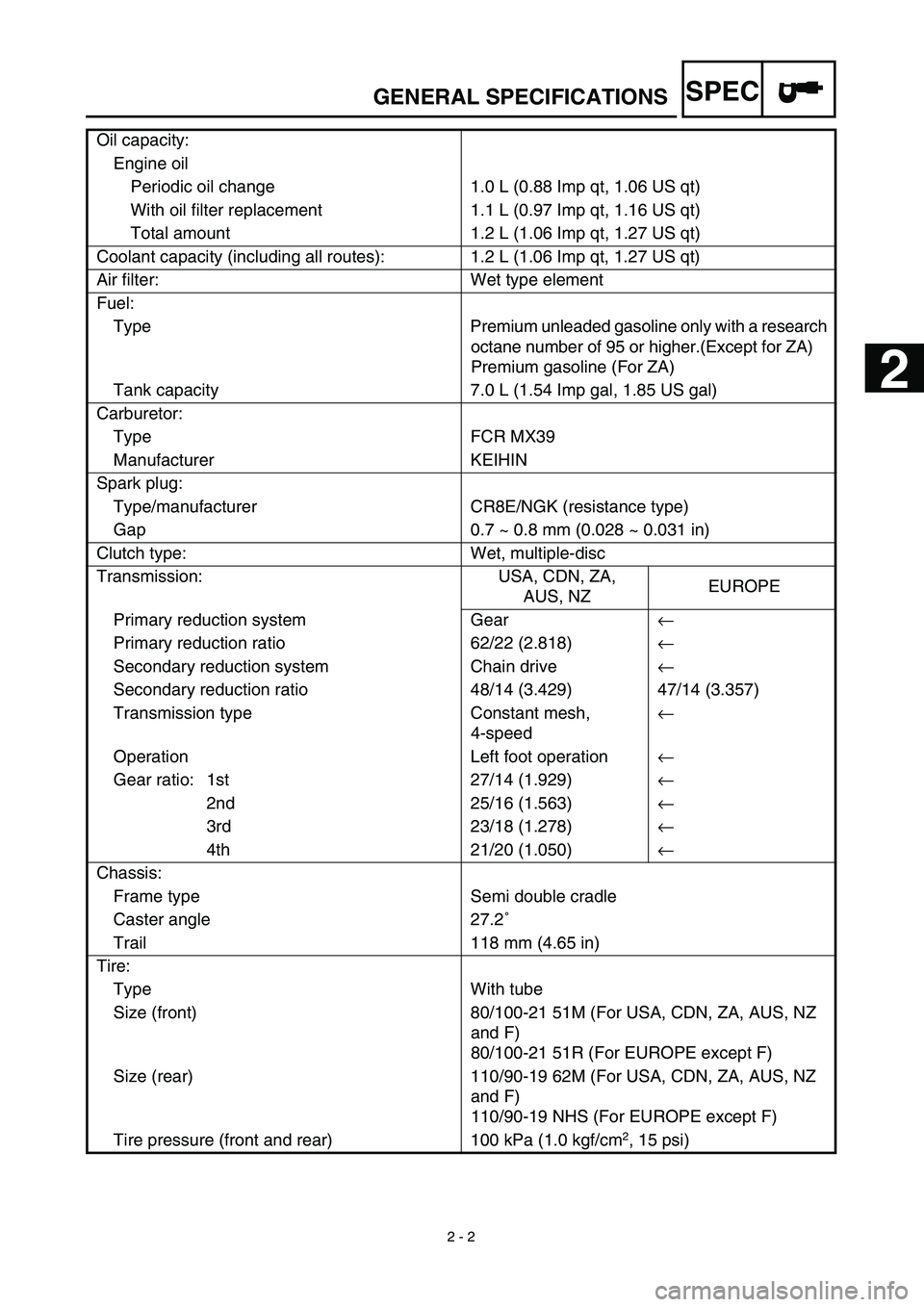

GENERAL SPECIFICATIONS
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
With oil filter replacement 1.1 L (0.97 Imp qt, 1.16 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Coolant capacity (including all routes): 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
Fuel:
Type Premium unleaded gasoline only with a research
octane number of 95 or higher.(Except for ZA)
Premium gasoline (For ZA)
Tank capacity 7.0 L (1.54 Imp gal, 1.85 US gal)
Carburetor:
Type FCR MX39
Manufacturer KEIHIN
Spark plug:
Type/manufacturer CR8E/NGK (resistance type)
Gap 0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
Clutch type: Wet, multiple-disc
Transmission: USA, CDN, ZA,
AUS, NZEUROPE
Primary reduction system Gear
←
Primary reduction ratio 62/22 (2.818)
←
Secondary reduction system Chain drive
←
Secondary reduction ratio 48/14 (3.429) 47/14 (3.357)
Transmission type Constant mesh,
4-speed
←
Operation Left foot operation
←
Gear ratio: 1st 27/14 (1.929)
←
2nd 25/16 (1.563)
←
3rd 23/18 (1.278)
←
4th 21/20 (1.050)
←
Chassis:
Frame type Semi double cradle
Caster angle 27.2˚
Trail 118 mm (4.65 in)
Tire:
Type With tube
Size (front) 80/100-21 51M (For USA, CDN, ZA, AUS, NZ
and F)
80/100-21 51R (For EUROPE except F)
Size (rear) 110/90-19 62M (For USA, CDN, ZA, AUS, NZ
and F)
110/90-19 NHS (For EUROPE except F)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2
, 15 psi)
2
Page 89 of 644
SPEC
2 - 10
MAINTENANCE SPECIFICATIONS
Item Standard
Lubrication chart:
Pressure feed
Splashed scavenge
Oil strainer
Oil pan Oil pump rotor 2
Oil pump rotor 1
Oil tank
Oil filter
Check ball
Cylinder head
Crank pinPiston pinPiston
Drive axleMain axleTransmission gears
Camshaft
Valve lifter
Page 99 of 644
2 - 2
CARACTERISTIQUES GENERALES
SPEC
Quantité d’huile:
Huile de moteur
Vidange périodique 1,0 L (0,88 Imp qt, 1,06 US qt)
Avec remplacement du filtre à huile 1,1 L (0,97 Imp qt, 1,16 US qt)
Quantité totale 1,2 L (1,06 Imp qt, 1,27 US qt)
Capacité de liquide de refroidissement (toutes les
tuyauteries comprises):1,2 L (1,06 Imp qt, 1,27 US qt)
Filtre à air: Elément type humide
Essence:
Type Essence super sans plomb d’un indice d’octane de
recherche de 95 ou plus. (Excepté pour ZA)
Essence super (Pour ZA)
Capacité du réservoir 7,0 L (1,54 Imp gal, 1,85 US gal)
Carburateur:
Type FCR MX39
Fabricant KEIHIN
Bougie:
Type / fabricant CR8E / NGK (type de résistance)
Ecartement des électrodes 0,7 à 0,8 mm (0,028 à 0,031 in)
Type d’embrayage: Humide, multi-disques
Transmission: E.-U., Canada, ZA,
AUS, NZEurope
Système de réduction primaire Engrenage
←
Taux de réduction primaire 62/22 (2,818)
←
Système de réduction secondaire Entraînement par chaîne
←
Taux de réduction secondaire 48/14 (3,429) 47/14 (3,357)
Type de boîte de vitesse Prise constante, 4 rap-
ports
←
Commande Au pied gauche
←
Taux de réduction: 1ère 27/14 (1,929)
←
2ème 25/16 (1,563)
←
3ème 23/18 (1,278)
←
4ème 21/20 (1,050)
←
Partie cycle:
Type de cadre Simple berceau dédoublé
Angle de chasse 27,2˚
Chasse 118 mm (4,65 in)
Pneu:
Type de pneu Avec chambre à air
Taille de pneu (avant)80/100-21 51M (Pour E.-U., Canada, ZA, AUS, NZ et F)
80/100-21 51R (Pour Europe excepté pour F)
Taille de pneu (arrière) 110/90-19 62M (Pour E.-U., Canada, ZA, AUS, NZ et F)
110/90-19 NHS (Pour Europe excepté pour F)
Pression de pneu (avant et arrière) 100 kPa (1,0 kgf/cm
2
, 15 psi)
Page 101 of 644
2 - 4
CARACTERISTIQUES D’ENTRETIEN
SPEC
CARACTERISTIQUES D’ENTRETIEN
MOTEUR
Article Standard Limite
Culasse:
Limite de déformation ---- 0,05 mm
(0,002 in)
Cylindre:
Alésage 95,00 à 95,01 mm
(3,7402 à 3,7406 in)----
Limite d’ovalisation ---- 0,05 mm
(0,002 in)
Arbre à cames:
Méthode d’entraînement Transmission par chaîne (gauche) ----
Diamètre intérieur de chapeau d’arbre à cames 22,000 à 22,021 mm
(0,8661 à 0,8670 in)----
Diamètre de roulement d’arbre à cames 21,967 à 21,980 mm
(0,8648 à 0,8654 in)----
Jeu entre arbre à cames et chapeau 0,020 à 0,054 mm
(0,0008 à 0,0021 in)0,08 mm
(0,003 in)
Dimensions de came
Admission“A”31,200 à 31,300 mm
(1,2283 à 1,2323 in)31,100 mm
(1,2244 in)
“B”22,550 à 22,650 mm
(0,8878 à 0,8917 in)22,450 mm
(0,8839 in)
Echappement“A”30,950 à 31,050 mm
(1,2185 à 1,2224 in)30,850 mm
(1,2146 in)
“B”22,494 à 22,594 mm
(0,8856 à 0,8895 in)22,394 mm
(0,8817 in)
Limite de voile d’arbre à cames ---- 0,03 mm
(0,0012 in)
A
B
