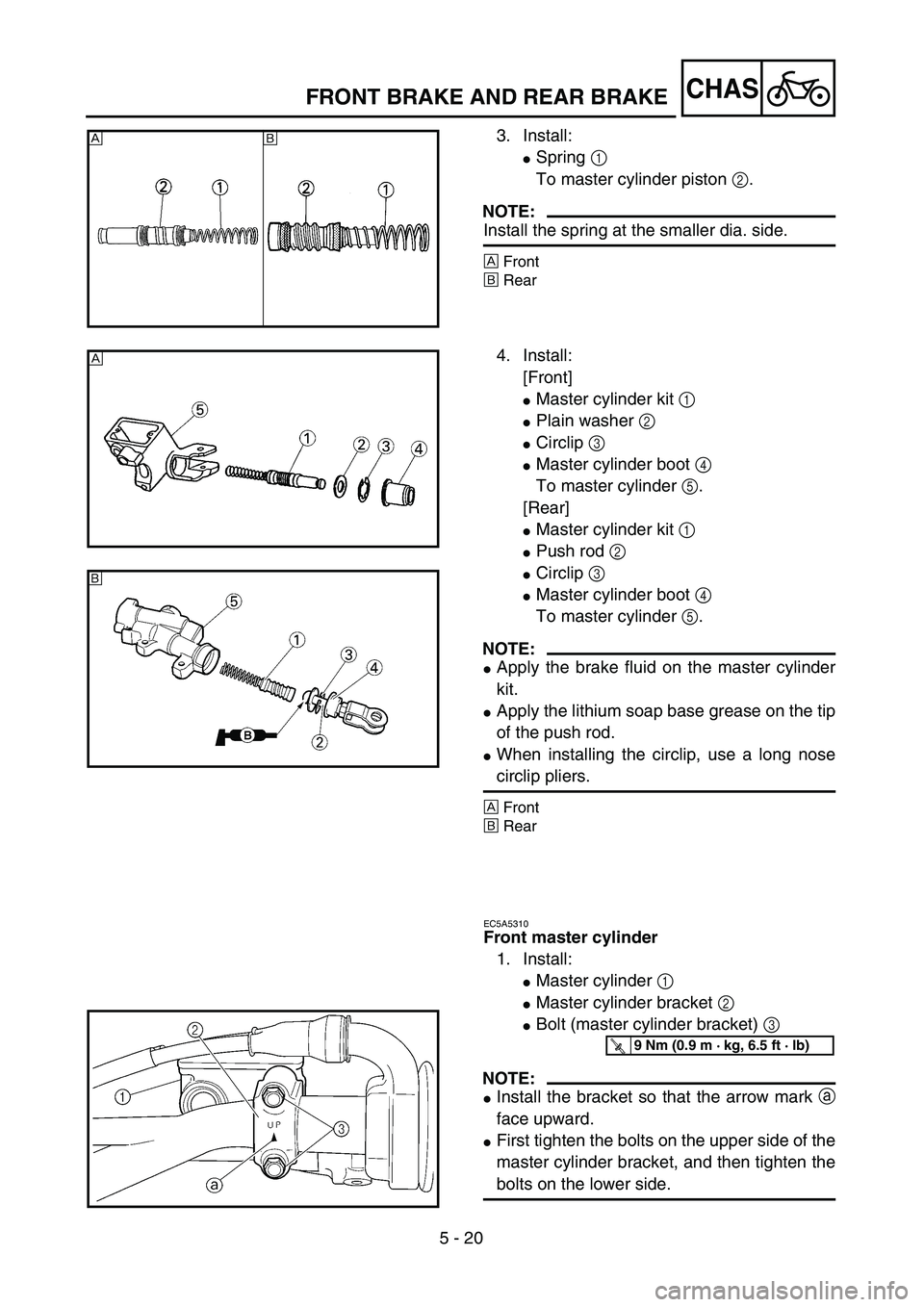

CHASFRONT BRAKE AND REAR BRAKE
3. Install:
Spring 1
To master cylinder piston 2.
NOTE:
Install the spring at the smaller dia. side.
ÅFront
ıRear
Åı
4. Install:
[Front]
Master cylinder kit 1
Plain washer 2
Circlip 3
Master cylinder boot 4
To master cylinder 5.
[Rear]
Master cylinder kit 1
Push rod 2
Circlip 3
Master cylinder boot 4
To master cylinder 5.
NOTE:
Apply the brake fluid on the master cylinder
kit.
Apply the lithium soap base grease on the tip
of the push rod.
When installing the circlip, use a long nose
circlip pliers.
ÅFront
ıRear
EC5A5310
Front master cylinder
1. Install:
Master cylinder 1
Master cylinder bracket 2
Bolt (master cylinder bracket) 3
NOTE:
Install the bracket so that the arrow mark a
face upward.
First tighten the bolts on the upper side of the
master cylinder bracket, and then tighten the
bolts on the lower side.
Å
ı
T R..9 Nm (0.9 m · kg, 6.5 ft · lb)
