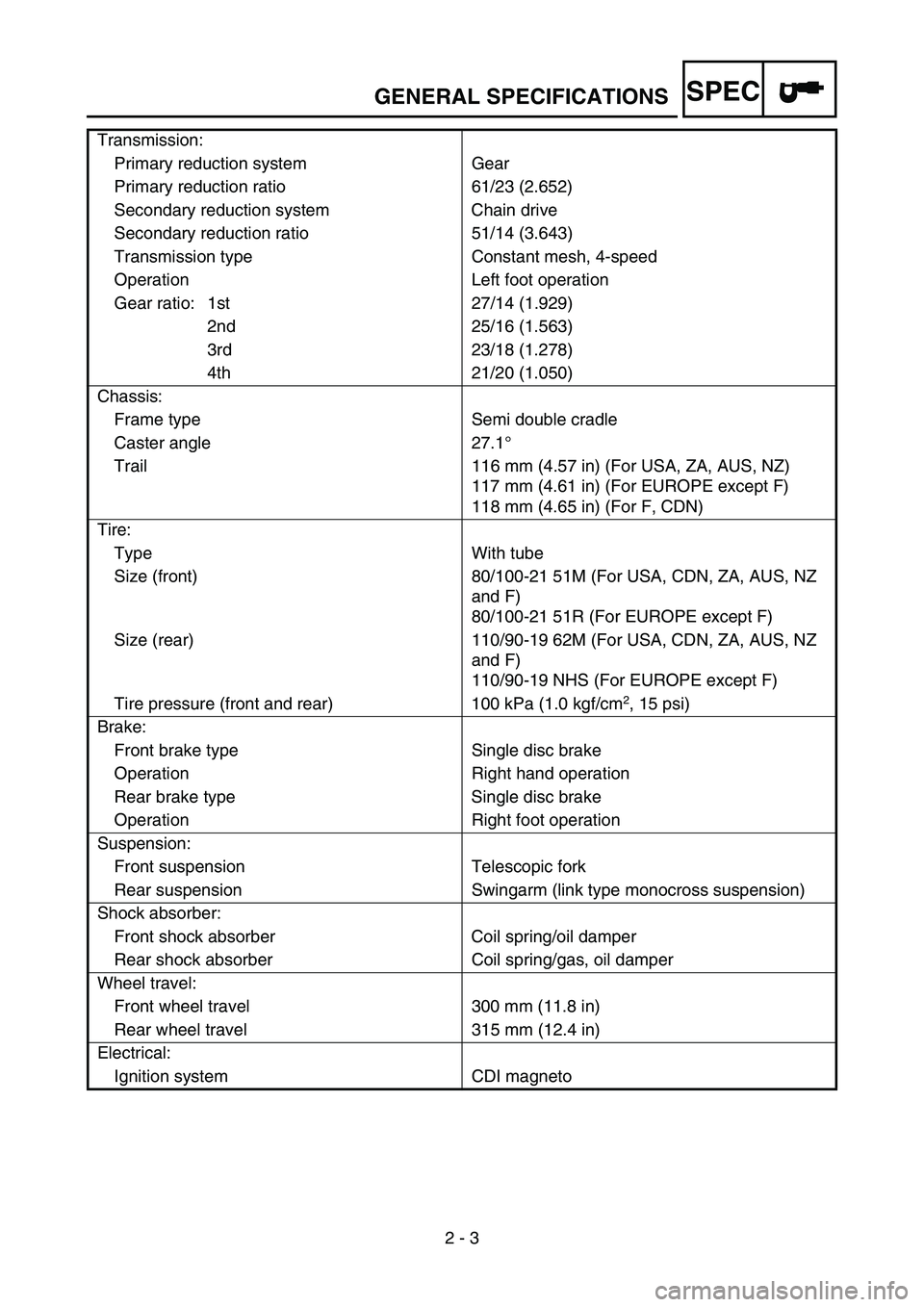

SPEC
2 - 3 Transmission:
Primary reduction system Gear
Primary reduction ratio 61/23 (2.652)
Secondary reduction system Chain drive
Secondary reduction ratio 51/14 (3.643)
Transmission type Constant mesh, 4-speed
Operation Left foot operation
Gear ratio: 1st 27/14 (1.929)
2nd 25/16 (1.563)
3rd 23/18 (1.278)
4th 21/20 (1.050)
Chassis:
Frame type Semi double cradle
Caster angle 27.1°
Trail 116 mm (4.57 in) (For USA, ZA, AUS, NZ)
117 mm (4.61 in) (For EUROPE except F)
118 mm (4.65 in) (For F, CDN)
Tire:
Type With tube
Size (front) 80/100-21 51M (For USA, CDN, ZA, AUS, NZ
and F)
80/100-21 51R (For EUROPE except F)
Size (rear) 110/90-19 62M (For USA, CDN, ZA, AUS, NZ
and F)
110/90-19 NHS (For EUROPE except F)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2, 15 psi)
Brake:
Front brake type Single disc brake
Operation Right hand operation
Rear brake type Single disc brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 300 mm (11.8 in)
Rear wheel travel 315 mm (12.4 in)
Electrical:
Ignition system CDI magneto
GENERAL SPECIFICATIONS
7 - 12
TUNSETTING
EC72N000
Drive and driven sprockets setting parts
Part name Size Part number
Drive sprocket
1
(STD) 14T 9383E-14215
Driven sprocket
2
(STD)47T
48T
49T
50T
51T
52T1C3-25447-00
1C3-25448-00
1C3-25449-00
1C3-25450-00
1C3-25451-00
1C3-25452-00
EC721002
Tire pressure
Tire pressure should be adjust to suit the road
surface condition of the circuit.
Under a rainy, muddy, sandy, or slippery
condition, the tire pressure should be lower
for a larger area of contact with the road sur-
face.
Under a stony or hard road condition, the tire
pressure should be higher to prevent a flat
tire.
Standard tire pressure:
100 kPa (1.0 kgf/cm2, 15 psi)
Extent of adjustment:
60 ~ 80 kPa
(0.6 ~ 0.8 kgf/cm
2, 9.0 ~ 12 psi)
Extent of adjustment:
100 ~ 120 kPa
(1.0 ~ 1.2 kgf/cm
2, 15 ~ 18 psi)
