EINFAHRVORSCHRIFTEN
1. Vor dem Starten voll tanken.
2. Die “Routinekontrolle vor Fahrtbeginn” aus-
führen.
3. Den Motor anlassen und einige Minuten
lang betreiben. Die Leerlaufdrehzahl und
die Funktion der Bedienelemente ein-
schließlich des Motorstoppschalters
“ENGINE STOP” kontrollieren. Den Motor
erneut anlassen und innerhalb 5 Minuten
dessen Funktion kontrollieren.
4. Die Maschine 5–8 Minuten lang mit mäßi-
gem Gas im unteren Gangbereich betrei-
ben.
5. Den Motorbetrieb bei 1/4 bis 1/2 geöffne-
tem Gasdrehgriff (niedriger bis mäßiger
Geschwindigkeit) etwa eine Stunde lang
überwachen.
6. Den Motor erneut starten und den gesam-
ten Betriebsbereich kontrollieren. Den
Motor erneut starten und weiter 10–15
Minuten lang betreiben. Die Maschine ist
nun rennfertig.
ACHTUNG:
Entsprechend dem Abschnitt “ANZUGS-
DREHMOMENTE KONTROLLIEREN”,
nach dem Einfahren sowie vor jedem
Rennen sämtliche Befestigungselemente
kontrollieren.
Befestigungselemente ggf. vorschrifts-
mäßig festziehen.
Folgende Bauteile müssen nach dem
Auswechseln eingefahren werden.
ZYLINDER UND KURBELWELLE:
Eine einstündige Einfahrzeit einlegen.
KOLBEN, KOLBENRINGE, VENTILE,
NOCKLENWELLEN UND RITZEL:
Eine halbstündige Einfahrzeit mit maxi-
mal halb geöffnetem Gasdrehgriff einle-
gen. Den Motorbetrieb gründlich
überwachen.
MISE EN MARCHE ET RODAGE
STARTEN UND EINFAHREN
PROCEDURE DE RODAGE
1. Avant de démarrer le moteur, faire le plein du
réservoir de carburant.
2. Effectuer les contrôles avant utilisation.
3. Mettre le moteur en marche et le laisser chauf-
fer. Contrôler le régime de ralenti et le bon
fonctionnement des commandes et du bouton
“ENGINE STOP”. Redémarrer ensuite le
moteur et contrôler son fonctionnement dans
les 5 minutes maximum qui suivent son redé-
marrage.
4. Rouler pendant cinq à huit minutes sur les rap-
ports inférieurs et à régime modéré.
5. Contrôler le fonctionnement du moteur lorsque
la moto est utilisée pendant une heure environ
aux régimes bas à moyens (ouverture des gaz
1/4 à 1/2).
6. Remettre le moteur en marche et vérifier le
fonctionnement de la moto à toutes les vitesses.
Redémarrer la moto et rouler pendant 10 à 15
minutes environ. La moto est maintenant prête
pour la course.
ATTENTION:
Après le rodage ou avant chaque course, il est
indispensable de contrôler le bon serrage des
raccords et des fixations conformément aux
instructions de la section “POINTS DE VERI-
FICATION DES COUPLES DE SERRAGE”.
Resserrer au couple requis tout élément des-
serré.
Si l’une quelconque des pièces suivantes a été
remplacée, un nouveau rodage est nécessaire.
CYLINDRE ET VILEBREQUIN:
Roder pendant environ une heure.
PISTON, SEGMENT, SOUPAPES, ARBRES
A CAMES ET PIGNONS:
Ces pièces nécessitent un rodage d’environ 30
minutes à une ouverture des gaz de 1/2 au
maximum. Surveiller attentivement l’état du
moteur pendant le rodage.
1 - 17

GEN
INFO
1 - 18

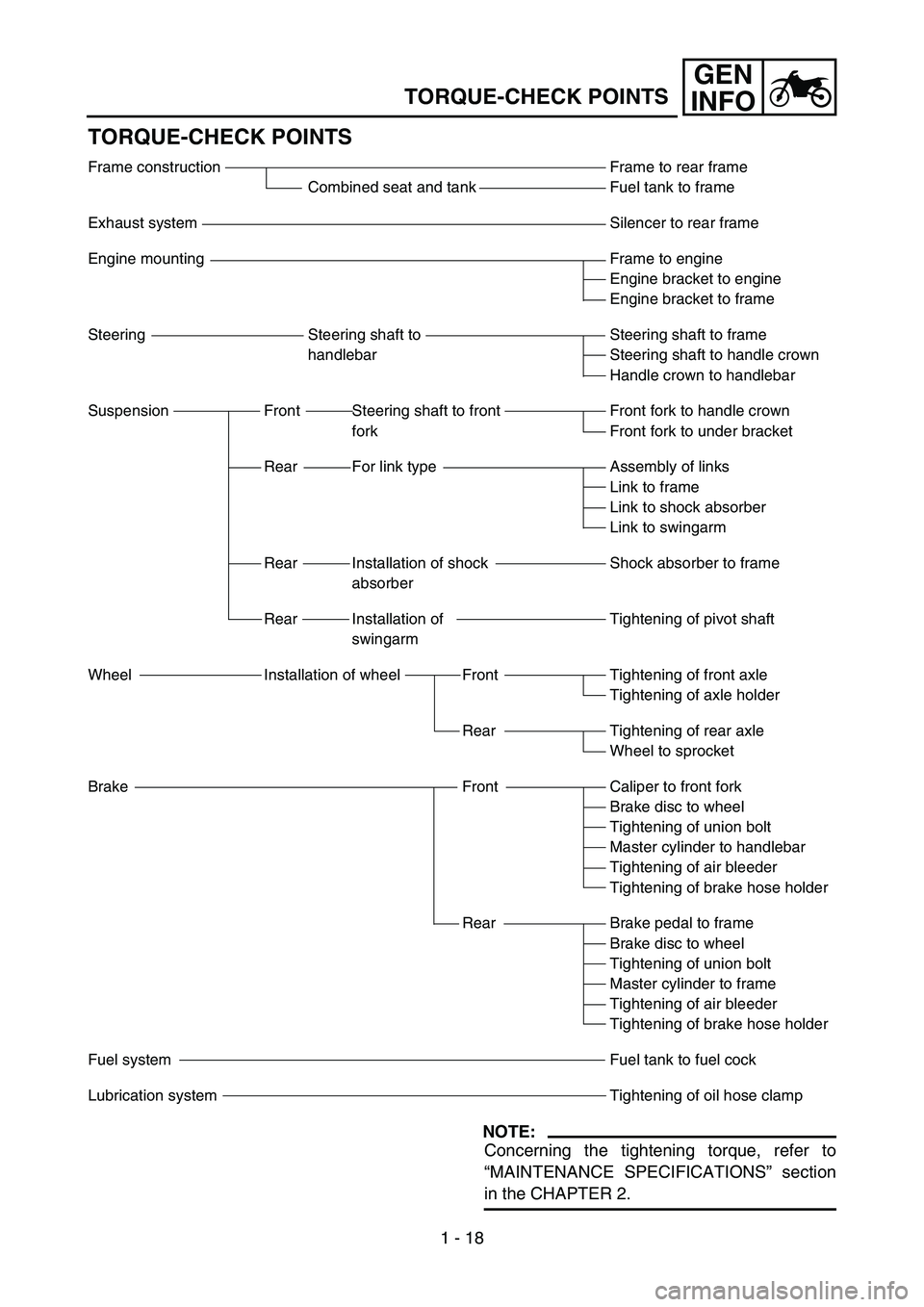

TORQUE-CHECK POINTS
TORQUE-CHECK POINTS
NOTE:
Concerning the tightening torque, refer to
“MAINTENANCE SPECIFICATIONS” section
in the CHAPTER 2.
Frame to rear frame
Fuel tank to frame
Silencer to rear frame
Frame to engine
Engine bracket to engine
Engine bracket to frame
Steering shaft to frame
Steering shaft to handle crown
Handle crown to handlebar
Front fork to handle crown
Front fork to under bracket
Assembly of links
Link to frame
Link to shock absorber
Link to swingarm
Shock absorber to frame
Tightening of pivot shaft
Tightening of front axle
Tightening of axle holder
Tightening of rear axle
Wheel to sprocket
Caliper to front fork
Brake disc to wheel
Tightening of union bolt
Master cylinder to handlebar
Tightening of air bleeder
Tightening of brake hose holder
Brake pedal to frame
Brake disc to wheel
Tightening of union bolt
Master cylinder to frame
Tightening of air bleeder
Tightening of brake hose holder
Fuel tank to fuel cock
Tightening of oil hose clamp Frame construction
Combined seat and tank
Exhaust system
Engine mounting
Steering Steering shaft to
handlebar
Suspension Front Steering shaft to front
fork
Rear For link type
Rear Installation of shock
absorber
Rear Installation of
swingarm
Wheel Installation of wheel Front
Rear
Brake Front
Rear
Fuel system
Lubrication system

1 - 19
GEN
INFO
CLEANING AND STORAGE
EC1B0000
CLEANING AND STORAGE
EC1B1000

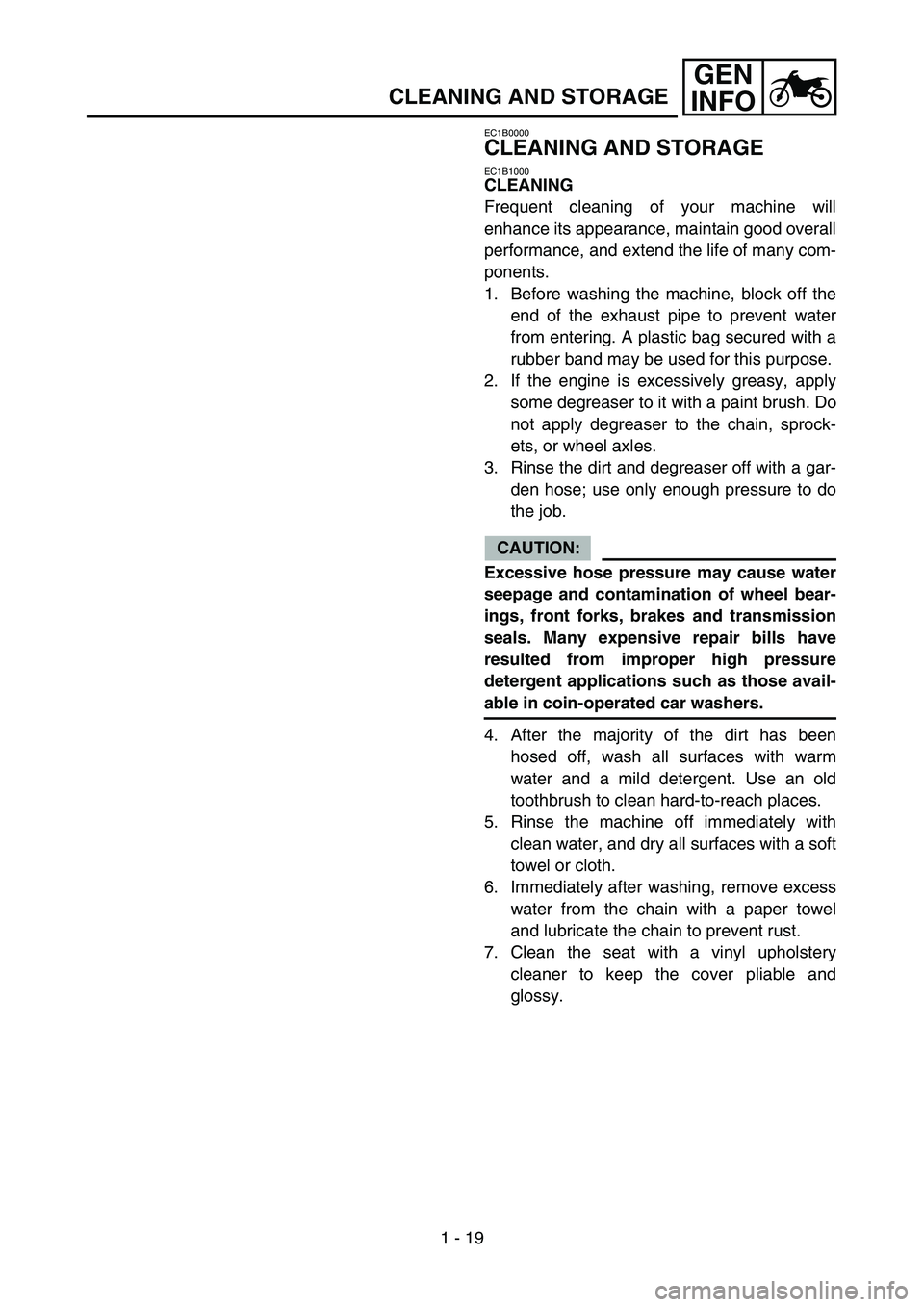

CLEANING
Frequent cleaning of your machine will
enhance its appearance, maintain good overall
performance, and extend the life of many com-
ponents.
1. Before washing the machine, block off the
end of the exhaust pipe to prevent water
from entering. A plastic bag secured with a
rubber band may be used for this purpose.
2. If the engine is excessively greasy, apply
some degreaser to it with a paint brush. Do
not apply degreaser to the chain, sprock-
ets, or wheel axles.
3. Rinse the dirt and degreaser off with a gar-
den hose; use only enough pressure to do
the job.
CAUTION:
Excessive hose pressure may cause water
seepage and contamination of wheel bear-
ings, front forks, brakes and transmission
seals. Many expensive repair bills have
resulted from improper high pressure
detergent applications such as those avail-
able in coin-operated car washers.
4. After the majority of the dirt has been
hosed off, wash all surfaces with warm
water and a mild detergent. Use an old
toothbrush to clean hard-to-reach places.
5. Rinse the machine off immediately with
clean water, and dry all surfaces with a soft
towel or cloth.
6. Immediately after washing, remove excess
water from the chain with a paper towel
and lubricate the chain to prevent rust.
7. Clean the seat with a vinyl upholstery
cleaner to keep the cover pliable and
glossy.

1 - 20
GEN
INFO
CLEANING AND STORAGE
8. Automotive wax may be applied to all
painted or chromed surfaces. Avoid combi-
nation cleaner-waxes, as they may contain
abrasives.
9. After completing the above, start the
engine and allow it to idle for several min-
utes.
EC1B2001
STORAGE
If your machine is to be stored for 60 days or
more, some preventive measures must be
taken to avoid deterioration. After cleaning the
machine thoroughly, prepare it for storage as
follows:
1. Drain the fuel tank, fuel lines, and the car-
buretor float bowl.
2. Remove the spark plug, pour a tablespoon
of SAE 10W-30 motor oil in the spark plug
hole, and reinstall the plug. With the engine
stop switch pushed in, kick the engine over
several times to coat the cylinder walls with
oil.
3. Remove the drive chain, clean it thoroughly
with solvent, and lubricate it. Reinstall the
chain or store it in a plastic bag tied to the
frame.
4. Lubricate all control cables.
5. Block the frame up to raise the wheels off
the ground.
6. Tie a plastic bag over the exhaust pipe out-
let to prevent moisture from entering.
7. If the machine is to be stored in a humid or
salt-air environment, coat all exposed
metal surfaces with a film of light oil. Do not
apply oil to rubber parts or the seat cover.
NOTE:
Make any necessary repairs before the
machine is stored.

SPEC
2 - 1
EC200000
SPECIFICATIONS
EC211000
GENERAL SPECIFICATIONS
Model name: YZ450FW (USA, CDN, AUS, NZ)
YZ450F (EUROPE, ZA)
Model code number: 2S27 (USA, CDN)
2S28 (EUROPE)
2S2A (AUS, NZ, ZA)
Dimensions: USA, CDN,
ZA, AUS, NZEUR
(Except for F)F
Overall length 2,191 mm
(86.26 in)2,196 mm
(86.48 in)2,197 mm
(86.50 in)
Overall width 825 mm
(32.48 in)← ←
Overall height 1,306 mm
(51.42 in)1,308 mm
(51.50 in)1,309 mm
(51.54 in)
Seat height 989 mm
(38.94 in)1,002 mm
(39.45 in)←
Wheelbase 1,494 mm
(58.82 in)← ←
Minimum ground clearance 373 mm
(14.69 in)376 mm
(14.80 in)←
Dry weight:
Without oil and fuel 99.8 kg (220 lb)
Engine:
Engine type Liquid cooled 4-stroke, DOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 449 cm
3 (15.8 Imp oz, 15.2 US oz)
Bore × stroke 95.0 × 63.4 mm (3.74 × 2.50 in)
Compression ratio 12.3 : 1
Starting system Kick starter
Lubrication system: Dry sump
GENERAL SPECIFICATIONS

SPEC

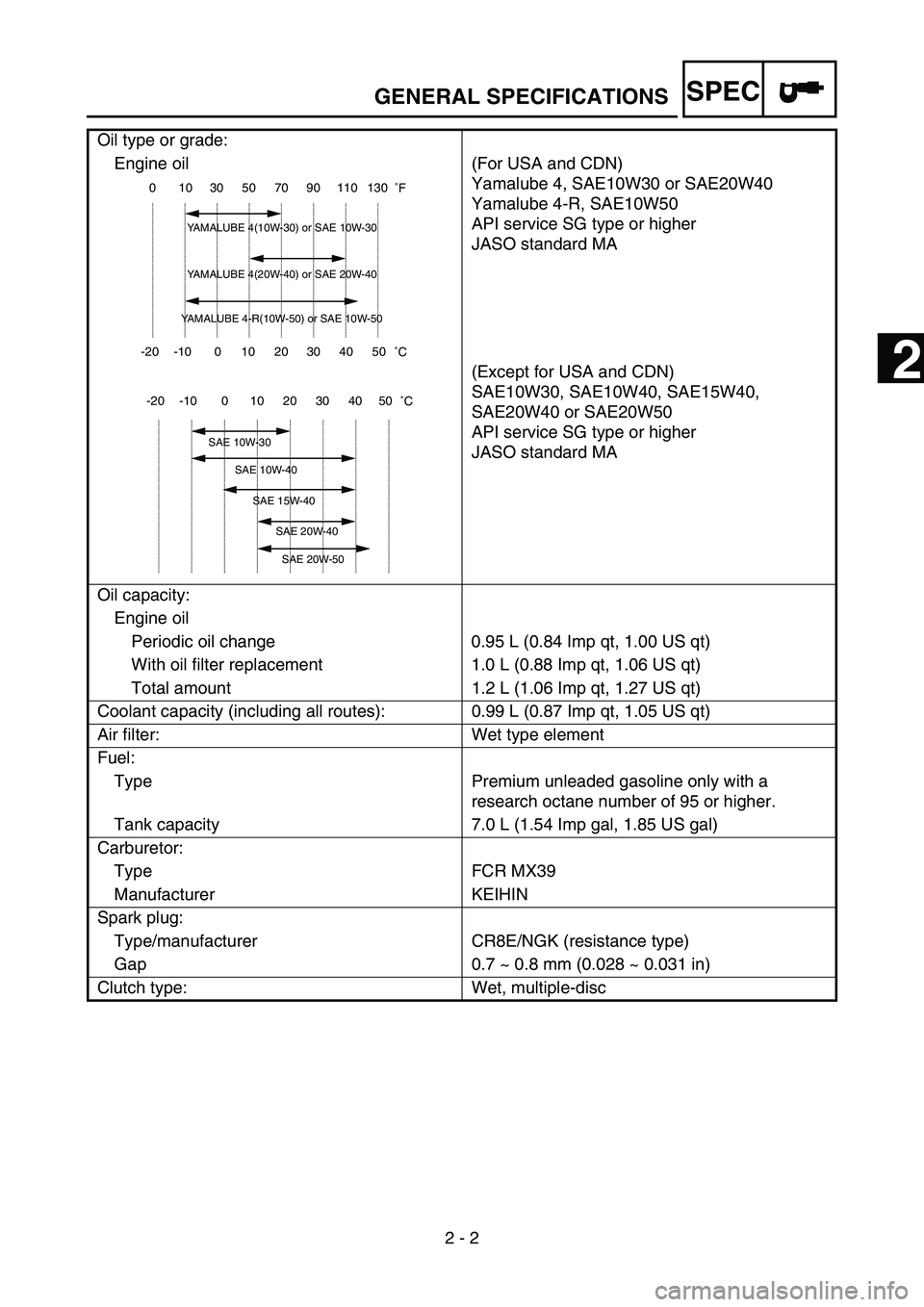

2 - 2 Oil type or grade:
Engine oil (For USA and CDN)
Yamalube 4, SAE10W30 or SAE20W40
Yamalube 4-R, SAE10W50
API service SG type or higher
JASO standard MA
(Except for USA and CDN)
SAE10W30, SAE10W40, SAE15W40,
SAE20W40 or SAE20W50
API service SG type or higher
JASO standard MA
Oil capacity:
Engine oil
Periodic oil change 0.95 L (0.84 Imp qt, 1.00 US qt)
With oil filter replacement 1.0 L (0.88 Imp qt, 1.06 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Coolant capacity (including all routes): 0.99 L (0.87 Imp qt, 1.05 US qt)
Air filter: Wet type element
Fuel:
Type Premium unleaded gasoline only with a
research octane number of 95 or higher.
Tank capacity 7.0 L (1.54 Imp gal, 1.85 US gal)
Carburetor:
Type FCR MX39
Manufacturer KEIHIN
Spark plug:
Type/manufacturer CR8E/NGK (resistance type)
Gap 0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
Clutch type: Wet, multiple-disc
-20 -10 0 10 20 30 40 50
˚C 0 10 30 50 70 90 110 130
˚F
YAMALUBE 4(10W-30) or SAE 10W-30
YAMALUBE 4(20W-40) or SAE 20W-40
YAMALUBE 4-R(10W-50) or SAE 10W-50
-20 -10 0 10 20 30 40 50
˚C
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40
SAE 20W-50
GENERAL SPECIFICATIONS
2

SPEC
2 - 4
MAINTENANCE SPECIFICATIONS
ENGINE
Item Standard Limit
Cylinder head:
Warp limit ---- 0.05 mm
(0.002 in)
Cylinder:
Bore size 95.00 ~ 95.01 mm
(3.7402 ~ 3.7406 in)----
Out of round limit ---- 0.05 mm
(0.002 in)
Camshaft:
Drive method Chain drive (Left) ----
Camshaft cap inside diameter 22.000 ~ 22.021 mm
(0.8661 ~ 0.8670 in)----
Camshaft journal diameter 21.959 ~ 21.972 mm
(0.8645 ~ 0.8650 in)----
Shaft-to-cap clearance 0.028 ~ 0.062 mm
(0.0011 ~ 0.0024 in)0.08 mm
(0.003 in)
Cam dimensions
Intake“A”31.200 ~ 31.300 mm
(1.2283 ~ 1.2323 in)31.100 mm
(1.2244 in)
“B”22.550 ~ 22.650 mm
(0.8878 ~ 0.8917 in)22.450 mm
(0.8839 in)
Exhaust“A”30.950 ~ 31.050 mm
(1.2185 ~ 1.2224 in)30.850 mm
(1.2146 in)
“B”22.494 ~ 22.594 mm
(0.8856 ~ 0.8895 in)22.394 mm
(0.8817 in)
Camshaft runout limit ---- 0.03 mm
(0.0012 in)
A
B
MAINTENANCE SPECIFICATIONS

SPEC

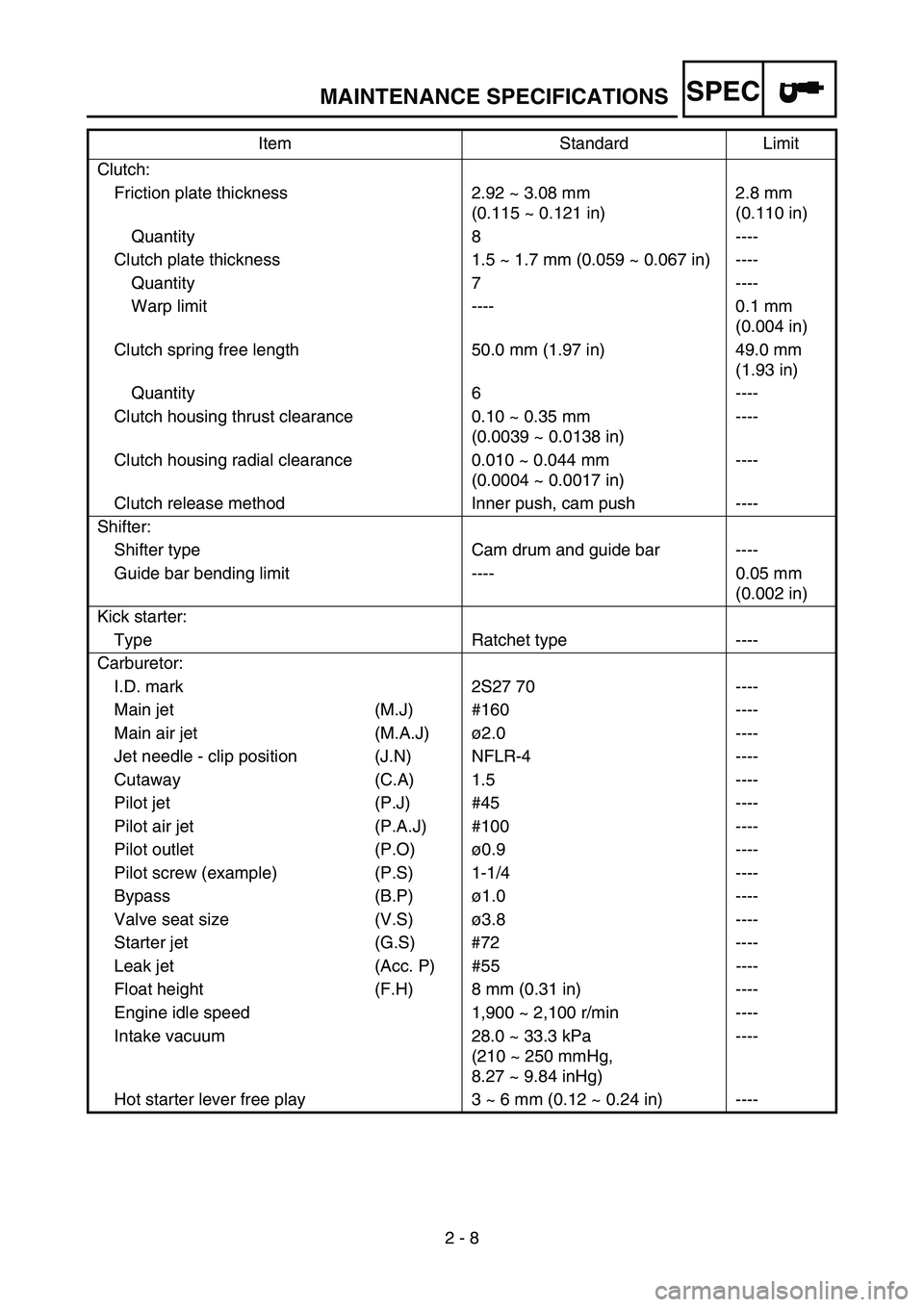

2 - 8 Clutch:
Friction plate thickness 2.92 ~ 3.08 mm
(0.115 ~ 0.121 in)2.8 mm
(0.110 in)
Quantity 8 ----
Clutch plate thickness 1.5 ~ 1.7 mm (0.059 ~ 0.067 in) ----
Quantity 7 ----
Warp limit ---- 0.1 mm
(0.004 in)
Clutch spring free length 50.0 mm (1.97 in) 49.0 mm
(1.93 in)
Quantity 6 ----
Clutch housing thrust clearance 0.10 ~ 0.35 mm
(0.0039 ~ 0.0138 in)----
Clutch housing radial clearance 0.010 ~ 0.044 mm
(0.0004 ~ 0.0017 in)----
Clutch release method Inner push, cam push ----
Shifter:
Shifter type Cam drum and guide bar ----
Guide bar bending limit ---- 0.05 mm
(0.002 in)
Kick starter:
Type Ratchet type ----
Carburetor:
I.D. mark 2S27 70 ----
Main jet (M.J) #160 ----
Main air jet (M.A.J)ø2.0 ----
Jet needle - clip position (J.N) NFLR-4 ----
Cutaway (C.A) 1.5 ----
Pilot jet (P.J) #45 ----
Pilot air jet (P.A.J) #100 ----
Pilot outlet (P.O)ø0.9 ----
Pilot screw (example) (P.S) 1-1/4 ----
Bypass (B.P)ø1.0 ----
Valve seat size (V.S)ø3.8 ----
Starter jet (G.S) #72 ----
Leak jet (Acc. P) #55 ----
Float height (F.H) 8 mm (0.31 in) ----
Engine idle speed 1,900 ~ 2,100 r/min ----
Intake vacuum 28.0 ~ 33.3 kPa
(210 ~ 250 mmHg,
8.27 ~ 9.84 inHg)----
Hot starter lever free play 3 ~ 6 mm (0.12 ~ 0.24 in) ----Item Standard Limit
MAINTENANCE SPECIFICATIONS

SPEC

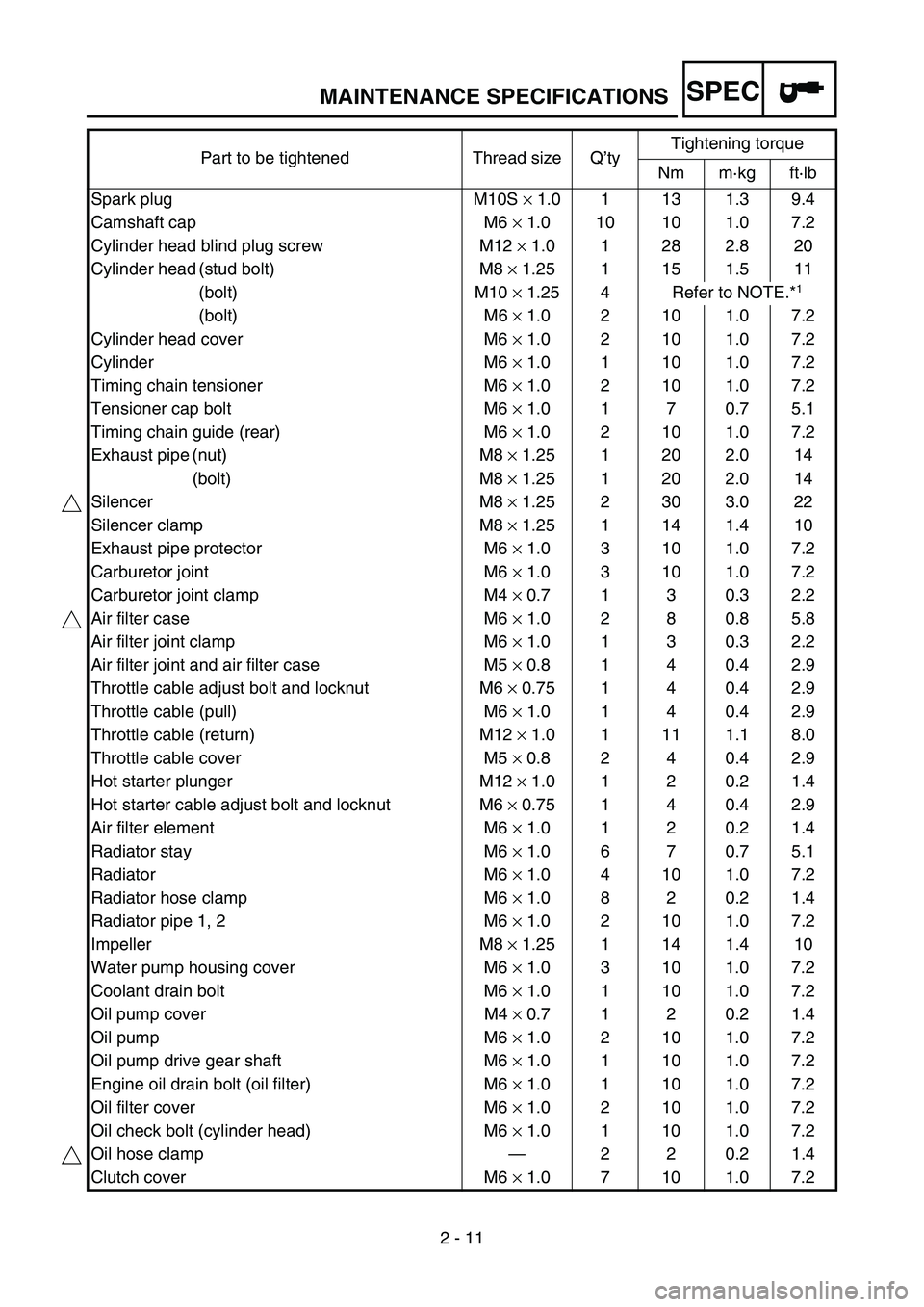

2 - 11 Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Spark plug M10S × 1.0 1 13 1.3 9.4
Camshaft cap M6 × 1.0 10 10 1.0 7.2
Cylinder head blind plug screw M12 × 1.0 1 28 2.8 20
Cylinder head (stud bolt) M8 × 1.25 1 15 1.5 11
(bolt) M10 × 1.25 4 Refer to NOTE.*
1
(bolt) M6 × 1.0 2 10 1.0 7.2
Cylinder head cover M6 × 1.0 2 10 1.0 7.2
Cylinder M6 × 1.0 1 10 1.0 7.2
Timing chain tensioner M6 × 1.0 2 10 1.0 7.2
Tensioner cap bolt M6 × 1.0 1 7 0.7 5.1
Timing chain guide (rear) M6 × 1.0 2 10 1.0 7.2
Exhaust pipe (nut) M8 × 1.25 1 20 2.0 14
(bolt) M8 × 1.25 1 20 2.0 14
Silencer M8 × 1.25 2 30 3.0 22
Silencer clamp M8 × 1.25 1 14 1.4 10
Exhaust pipe protector M6 × 1.0 3 10 1.0 7.2
Carburetor joint M6 × 1.0 3 10 1.0 7.2
Carburetor joint clamp M4 × 0.7 1 3 0.3 2.2
Air filter case M6 × 1.0 2 8 0.8 5.8
Air filter joint clamp M6 × 1.0 1 3 0.3 2.2
Air filter joint and air filter case M5 × 0.8 1 4 0.4 2.9
Throttle cable adjust bolt and locknut M6 × 0.75 1 4 0.4 2.9
Throttle cable (pull) M6 × 1.0 1 4 0.4 2.9
Throttle cable (return) M12 × 1.0 1 11 1.1 8.0
Throttle cable cover M5 × 0.8 2 4 0.4 2.9
Hot starter plunger M12 × 1.0 1 2 0.2 1.4
Hot starter cable adjust bolt and locknut M6 × 0.75 1 4 0.4 2.9
Air filter element M6 × 1.0 1 2 0.2 1.4
Radiator stay M6 × 1.0 6 7 0.7 5.1
Radiator M6 × 1.0 4 10 1.0 7.2
Radiator hose clamp M6 × 1.0 8 2 0.2 1.4
Radiator pipe 1, 2 M6 × 1.0 2 10 1.0 7.2
Impeller M8 × 1.25 1 14 1.4 10
Water pump housing cover M6 × 1.0 3 10 1.0 7.2
Coolant drain bolt M6 × 1.0 1 10 1.0 7.2
Oil pump cover M4 × 0.7 1 2 0.2 1.4
Oil pump M6 × 1.0 2 10 1.0 7.2
Oil pump drive gear shaft M6 × 1.0 1 10 1.0 7.2
Engine oil drain bolt (oil filter) M6 × 1.0 1 10 1.0 7.2
Oil filter cover M6 × 1.0 2 10 1.0 7.2
Oil check bolt (cylinder head) M6 × 1.0 1 10 1.0 7.2
Oil hose clamp—220.21.4
Clutch cover M6 × 1.0 7 10 1.0 7.2
MAINTENANCE SPECIFICATIONS

SPEC
2 - 16
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race.Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Rear wheel axle and nut M20 × 1.5 1 125 12.5 90
Driven sprocket and wheel hub M8 × 1.25 6 42 4.2 30
Nipple (spoke)—72 3 0.3 2.2
Disc cover and rear brake caliper M6 × 1.0 2 10 1.0 7.2
Protector and rear brake caliper M6 × 1.0 2 7 0.7 5.1
Chain puller adjust bolt and locknut M8 × 1.25 2 19 1.9 13
Engine mounting:
Engine upper bracket and frame M10 × 1.25 4 55 5.5 40
Engine lower bracket and frame M8 × 1.25 4 34 3.4 24
Engine and engine bracket (front) M10 × 1.25 1 53 5.3 38
Engine and engine bracket (upper) M10 × 1.25 1 55 5.5 40
Engine and frame (lower) M10 × 1.25 1 53 5.3 38
Engine guard M6 × 1.0 1 10 1.0 7.2
Engine skid plate mounting M6 × 1.0 3 10 1.0 7.2
CDI unit bracket mounting M6 × 1.0 2 7 0.7 5.1
Cable guide and CDI unit bracket M5 × 0.8 2 4 0.4 2.9
Cable guide and frame M5 × 0.8 1 5 0.5 3.6
Pivot shaft and nut M16 × 1.5 1 85 8.5 61
Relay arm and swingarm M14 × 1.5 1 70 7.0 50
Relay arm and connecting rod M14 × 1.5 1 80 8.0 58
Connecting rod and frame M14 × 1.5 1 80 8.0 58
Rear shock absorber and frame M10 × 1.25 1 56 5.6 40
Rear shock absorber and relay arm M10 × 1.25 1 53 5.3 38
Rear frame and frame (upper) M8 × 1.25 1 32 3.2 23
Rear frame and frame (lower) M8 × 1.25 2 32 3.2 23
Swingarm and brake hose holder M5 × 0.8 4 2 0.2 1.4
Swingarm and patch M4 × 0.7 4 2 0.2 1.4
Drive chain tensioner mounting (upper) M8 × 1.25 1 16 1.6 11
Drive chain tensioner mounting (lower) M8 × 1.25 1 16 1.6 11
Chain support and swingarm M6 × 1.0 3 7 0.7 5.1
Seal guard and swingarm M5 × 0.8 4 6 0.6 4.3
Fuel tank mounting boss and frame M10 × 1.25 1 20 2.0 14
Fuel tank mounting M6 × 1.0 2 9 0.9 6.5
Fuel tank and fuel cock M6 × 1.0 2 4 0.4 2.9
Fuel tank and seat set bracket M6 × 1.0 1 7 0.7 5.1
Fuel tank and fuel tank bracket M6 × 1.0 4 7 0.7 5.1
Seat mounting M8 × 1.25 2 23 2.3 17
Side cover mounting M6 × 1.0 2 7 0.7 5.1
Air scoop and fuel tank M6 × 1.0 6 7 0.7 5.1
Air scoop and radiator panel (lower) M6 × 1.0 2 7 0.7 5.1
Front fender mounting M6 × 1.0 4 7 0.7 5.1
Rear fender mounting (front) M6 × 1.0 2 7 0.7 5.1
Rear fender mounting (rear) M6 × 1.0 2 16 1.6 11
Number plate M6 × 1.0 1 7 0.7 5.1
MAINTENANCE SPECIFICATIONS
