display YAMAHA YZ450F 2010 Owner's Manual

7-28
FUEL INJECTION SYSTEM
Fault code No. 39
Symptom Injection system circuit signal is not received properly.
Fail-safe system Unable to start
Unable to drive
Diagnostic code No. D36
FI diagnostic tool display Actuates the injector for five times every second.
The "WARNING" LED on the FI diagnostic tool comes on each time the fuel injector is ac-
tuated.
Checking method Check the operating sound of the injector five times.
Item Item/components and probable cause Check or maintenance job Checking method
1 Check the connection and locking condition of
the fuel injector coupler.
Disconnect the coupler and check the pins.
(bent or broken terminals and locking condition
of the pins)Poor connection → Properly con-
nect, repair, or replace.Start the engine and let it
idle for approximately 5
seconds.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item
2.
2 Faulty injector Defective → Replace.
Refer to "CHECKING THE FUEL
INJECTORS"Start the engine and let it
idle for approximately 5
seconds.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item
3.
3 Check the connection and locking condition of
the wire harness ECU coupler.
Disconnect the coupler and check the pins.
(bent or broken terminals and locking condition
of the pins)Poor connection → Properly con-
nect, repair, or replace.Start the engine and let it
idle for approximately 5
seconds.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item
4.

7-29
FUEL INJECTION SYSTEM
4 Continuity of harness Open or short circuit → Replace.
Between injector coupler and ECU
coupler.
(Red–Red)
(Red/Black–Red/Black)Start the engine and let it
idle for approximately 5
seconds.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item
5.
5 Malfunction in ECU. Replace the ECU.
Fault code No. 41
Symptom Lean angle sensor malfunction. (the sensor is built into the ECU)
Fail-safe system Unable to start
Unable to drive
Diagnostic code No. D08
FI diagnostic tool display Lean angle sensor
• 1.0 V (Upright)
• 4.0 V (Overturned)
Checking method Remove the ECU and incline it 45 ° or more.
Item Item/components and probable cause Check or maintenance job Checking method
1 Malfunction in ECU. Replace the ECU. Fault code No. 39
Symptom Injection system circuit signal is not received properly.
Fail-safe system Unable to start
Unable to drive
Diagnostic code No. D36
FI diagnostic tool display Actuates the injector for five times every second.
The "WARNING" LED on the FI diagnostic tool comes on each time the fuel injector is ac-
tuated.
Checking method Check the operating sound of the injector five times.
Item Item/components and probable cause Check or maintenance job Checking method

7-30
FUEL INJECTION SYSTEM
Fault code No. 44
Symptom Error is detected while reading or writing on EEPROM.
Fail-safe system Able to start engine (depending on circumstances)
Able to drive vehicle (depending on circumstances)
Diagnostic code No. D60
FI diagnostic tool display 00: No fault
01: CO adjustment valve
07: Power Tuner adjustment values 0–8 for fuel injection amount or ignition timing
Checking method —
Item Item/components and probable cause Check or maintenance job Checking method
1 Determine the area of the problem Execute the diagnostic mode (di-
agnostic code No. D60).
00 is displayed: Refer to item 4.
01 is displayed: Refer to item 2.
07 is displayed: Refer to item 3.Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Repeat item 1.
If the fault code number
is still displayed, refer to
item 3.
2 EEPROM data error (CO adjustment value) Change the CO density and write
the changed setting on EEPROM.Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Repeat item 1.
If the fault code number
is still displayed, refer to
item 4.
3 EEPROM data error (Power Tuner adjustment
values for fuel injection amount or ignition tim-
ing)Erase the setting map in the diag-
nostic mode (diagnostic code No.
D65).Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 1.
4 Malfunction in ECU. Replace the ECU.

7-31
FUEL INJECTION SYSTEM
Fault code No. 46
Symptom Power supply to the ECU is not normal.
Fail-safe system Able to start (depending on circumstances)
Able to drive vehicle (depending on circumstances)
Diagnostic code No. —
FI diagnostic tool display —
Checking method —
Item Item/components and probable cause Check or maintenance job Checking method
1 Check the connection and locking condition of
the ECU coupler.
Disconnect the coupler and check the pins.
(bent or broken terminals and locking condition
of the pins)Poor connection → Properly con-
nect, repair, or replace.Start the engine, set the
switch on the FI diagnostic
tool sub-wire harness to
"OFF" while the engine is
idling, and let the engine
continue to idle for 5 sec-
onds or more.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 2.
2 Continuity of harness Open or short circuit → Replace.
Between Rectifier/regulator and
the ECU
(Red–Red/White)
Between Rectifier/regulator and
the condenser.
(Red–Red)Start the engine, set the
switch on the FI diagnostic
tool sub-wire harness to
"OFF" while the engine is
idling, and let the engine
continue to idle for 5 sec-
onds or more.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 3.
3 Malfunction of the rectifier/regulator. Defective → Replace.
Refer to "CHECKING THE RECTI-
FIER/REGULATOR" section.Start the engine, set the
switch on the FI diagnostic
tool sub-wire harness to
"OFF" while the engine is
idling, and let the engine
continue to idle for 5 sec-
onds or more.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 4.

7-32
FUEL INJECTION SYSTEM
4 Defective AC magneto. Defective → Replace.
Refer to "CHECKING THE AC
MAGNETO" section.Start the engine, set the
switch on the FI diagnostic
tool sub-wire harness to
"OFF" while the engine is
idling, and let the engine
continue to idle for 5 sec-
onds or more.
After completing the above
operation, check whether a
fault code number is dis-
played.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 5.
5 Malfunction in ECU. Replace the ECU.
Fault code No. 50
Symptom ECU internal malfunction
Fail-safe system Unable to start
Unable to drive
Diagnostic code No. —
FI diagnostic tool display —
Checking method —
Item Item/components and probable cause Check or maintenance job Checking method
1 Malfunction in ECU. Replace the ECU. Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is fin-
ished. Fault code No. 46
Symptom Power supply to the ECU is not normal.
Fail-safe system Able to start (depending on circumstances)
Able to drive vehicle (depending on circumstances)
Diagnostic code No. —
FI diagnostic tool display —
Checking method —
Item Item/components and probable cause Check or maintenance job Checking method

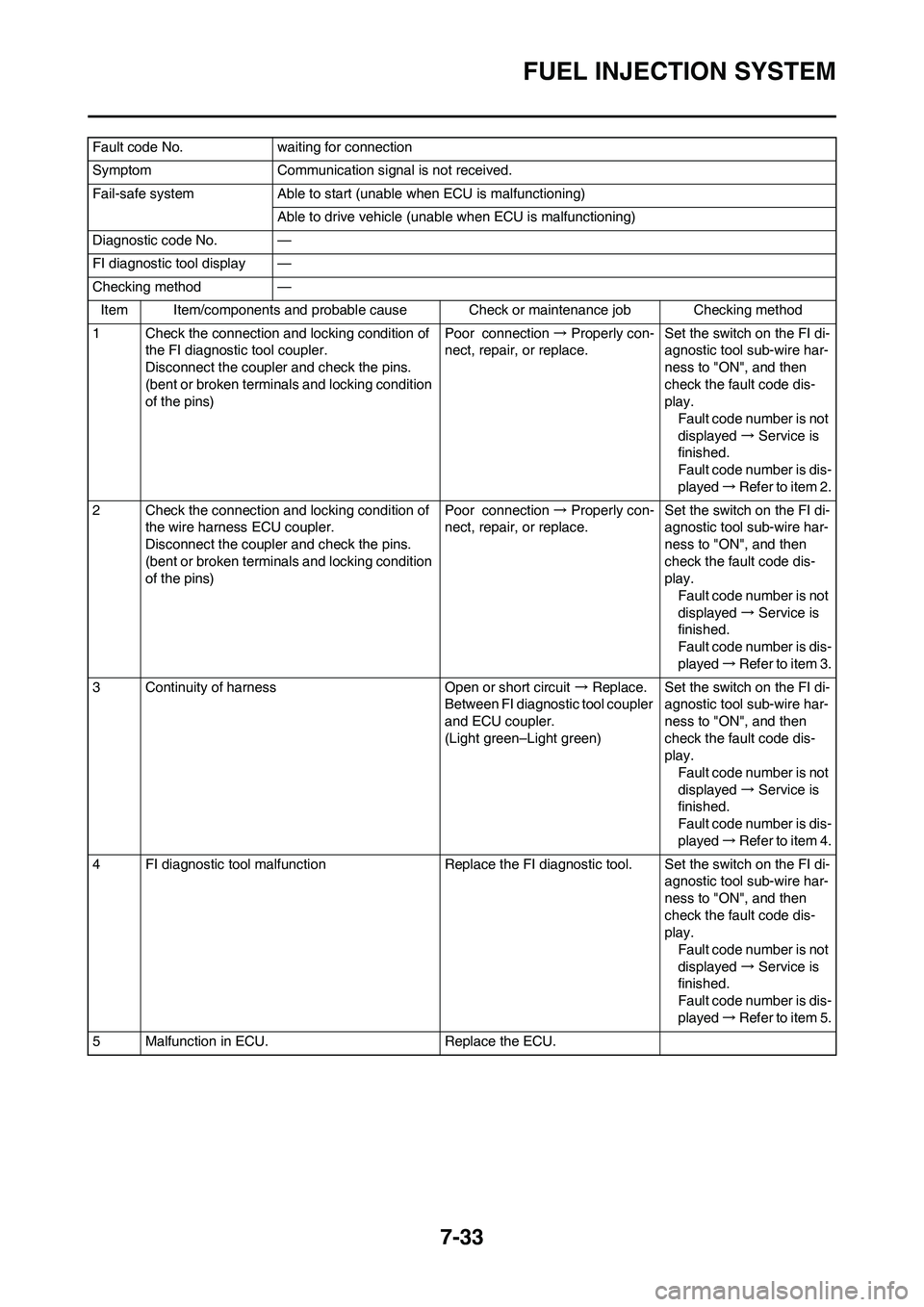

7-33
FUEL INJECTION SYSTEM
Fault code No. waiting for connection
Symptom Communication signal is not received.
Fail-safe system Able to start (unable when ECU is malfunctioning)
Able to drive vehicle (unable when ECU is malfunctioning)
Diagnostic code No. —
FI diagnostic tool display —
Checking method —
Item Item/components and probable cause Check or maintenance job Checking method
1 Check the connection and locking condition of
the FI diagnostic tool coupler.
Disconnect the coupler and check the pins.
(bent or broken terminals and locking condition
of the pins)Poor connection → Properly con-
nect, repair, or replace.Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 2.
2 Check the connection and locking condition of
the wire harness ECU coupler.
Disconnect the coupler and check the pins.
(bent or broken terminals and locking condition
of the pins)Poor connection → Properly con-
nect, repair, or replace.Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 3.
3 Continuity of harness Open or short circuit → Replace.
Between FI diagnostic tool coupler
and ECU coupler.
(Light green–Light green)Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 4.
4 FI diagnostic tool malfunction Replace the FI diagnostic tool. Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 5.
5 Malfunction in ECU. Replace the ECU.

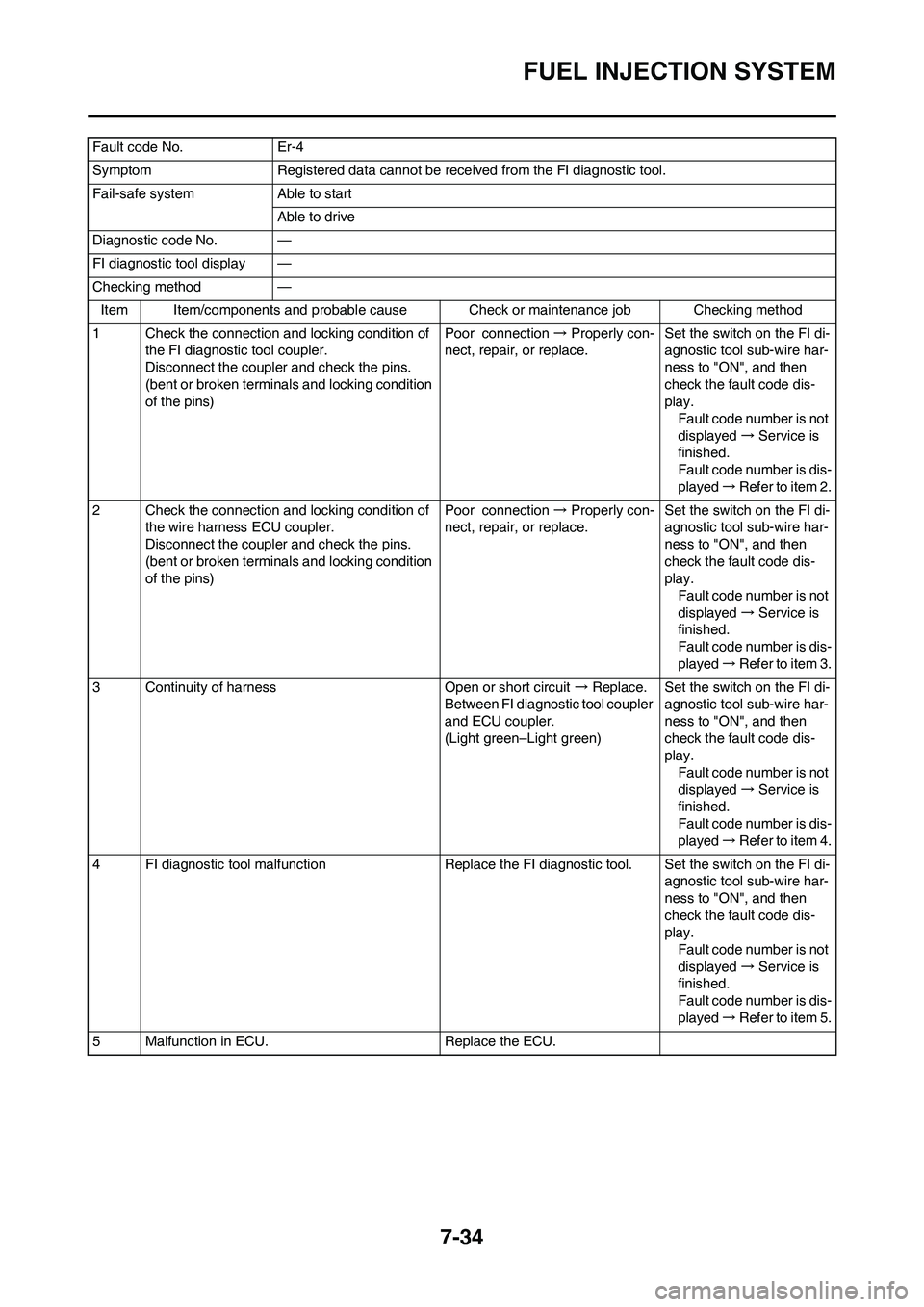

7-34
FUEL INJECTION SYSTEM
Fault code No. Er-4
Symptom Registered data cannot be received from the FI diagnostic tool.
Fail-safe system Able to start
Able to drive
Diagnostic code No. —
FI diagnostic tool display —
Checking method —
Item Item/components and probable cause Check or maintenance job Checking method
1 Check the connection and locking condition of
the FI diagnostic tool coupler.
Disconnect the coupler and check the pins.
(bent or broken terminals and locking condition
of the pins)Poor connection → Properly con-
nect, repair, or replace.Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 2.
2 Check the connection and locking condition of
the wire harness ECU coupler.
Disconnect the coupler and check the pins.
(bent or broken terminals and locking condition
of the pins)Poor connection → Properly con-
nect, repair, or replace.Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 3.
3 Continuity of harness Open or short circuit → Replace.
Between FI diagnostic tool coupler
and ECU coupler.
(Light green–Light green)Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 4.
4 FI diagnostic tool malfunction Replace the FI diagnostic tool. Set the switch on the FI di-
agnostic tool sub-wire har-
ness to "ON", and then
check the fault code dis-
play.
Fault code number is not
displayed → Service is
finished.
Fault code number is dis-
played → Refer to item 5.
5 Malfunction in ECU. Replace the ECU.
