CABLE ROUTING DIAGRAM

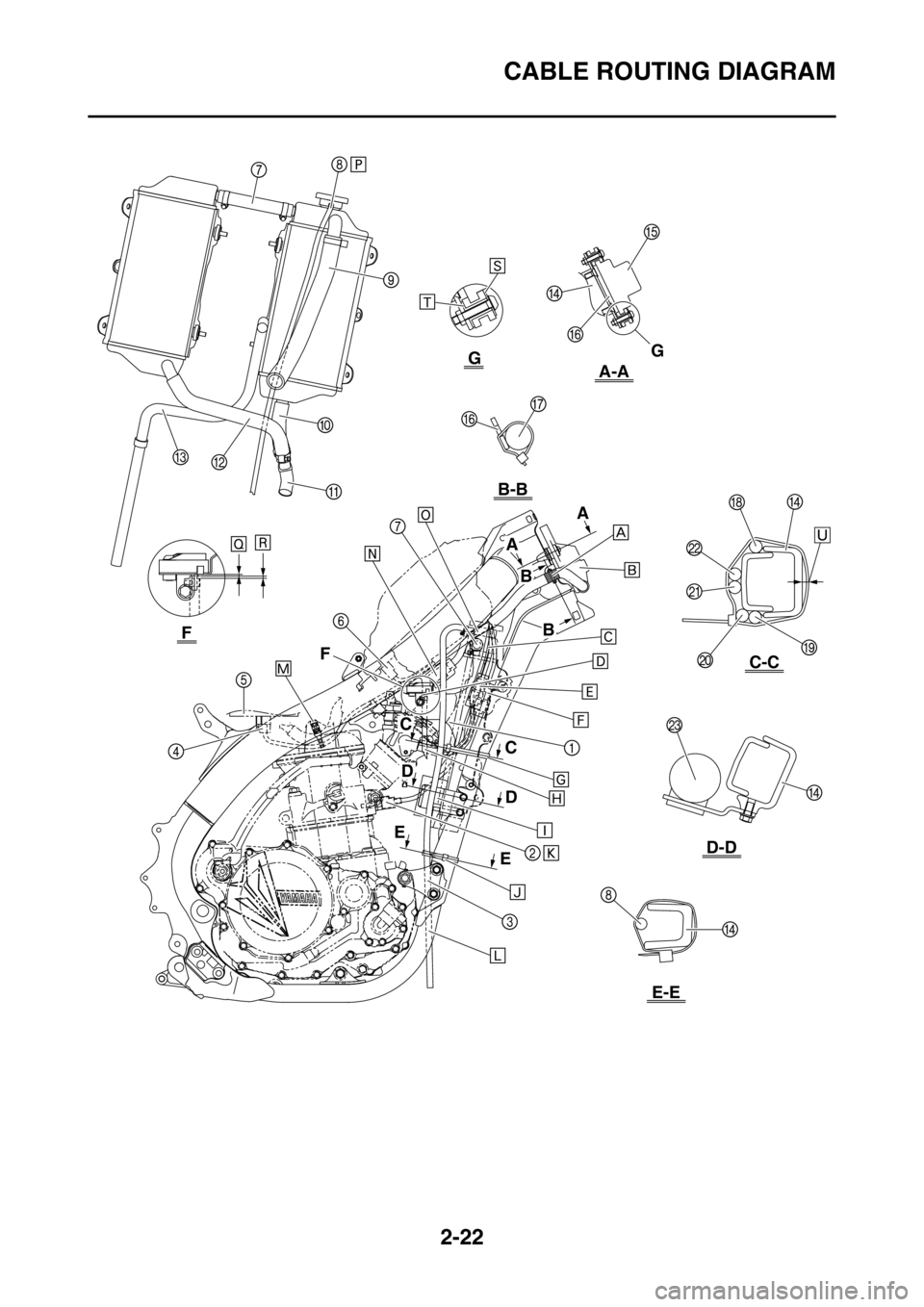

1. Clutch cable
2. Throttle cable (return)
3. Throttle cable (pull)
4. Cable holder
5. Clamp
6. Rectifier/regulator
7. Ignition coil
8. Ignition coil coupler
9. AC magneto coupler
10. Radiator hose 2
11. Ground lead terminal
12. Plug cap
13. Ignition coil bracket
14. Clamp (lock)
15. Clamp (clip)
16. AC magneto lead
17. ECU bracket
18. Cylinder head cover installing
boltA. Pass the clutch cable, throttle
cables, and engine stop switch
lead through the cable holder.
Pass the clutch cable through
the lower guide only.
B. Route the engine stop switch
lead to the inside of the clip.
C. Fasten the rectifier/regulator
lead and engine stop switch lead
(wire harness end).
D. Insert the projection on the en-
gine stop switch coupler into the
hole in the bracket.
E. Insert the projection on the recti-
fier/regulator coupler into the
hole in the bracket.
F. Position the ignition coil bracket
to the outside of the ignition coil,
and insert the bolts from the igni-
tion coil side.
G. Fasten the AC magneto lead to
the ignition coil bracket with a
plastic locking tie, making sure
to position the tie above the low-
er mounting portion of the brack-
et. Face the buckle of the plastic
locking tie forward, and then cut
off the excess end of the tie.
H. Route the ignition coil lead be-
tween the condenser and the ig-
nition coil.
I. Fit the clip portion of the clamp
into the ignition coil bracket and
fasten the clutch cable with the
locking portion of the clamp.
J. Route the clutch cable to the
outside of the AC magneto lead.
K. Route the throttle cables under
radiator hose 2, making sure not
to twist the cables.
L. Route the AC magneto lead to
the inside of the throttle cables
and clutch cable.
M. Install the ground lead terminal
between the ECU bracket and
the cable holder, making sure to
position the terminal between
the stoppers.
N. Push in the spark plug cap com-
pletely, making sure that there is
no gap between the cylinder
head cover and the cap.
O. Pass the high tension cord so
that it may not go right over the
cylinder head cover installing
bolt when viewed directly from
above.
P. Apply sealant to the slit and in-
ner surface of the grommet, and
then install the grommet at the
position shown.

2-22
CABLE ROUTING DIAGRAM
B
B
FG
A-A
C-C
D-D
E-E
B-B
G
F
C
C
D
D
E
E
A
A

2-23
CABLE ROUTING DIAGRAM
1. Tension pipe
2. Coolant temperature sensor
coupler
3. Front engine bracket
4. Fuel pump coupler
5. Fuel pump
6. Intake air temperature sensor
coupler
7. Radiator hose 2
8. Radiator breather hose
9. Radiator hose 1
10. Radiator hose 4
11. Radiator pipe 2
12. Radiator hose 3
13. Cylinder head breather hose
14. Frame
15. ECU (electronic control unit)
16. ECU bracket
17. Main harness
18. AC magneto lead
19. Throttle position sensor lead
20. Condenser lead
21. Coolant temperature sensor
lead
22. Ignition coil lead
23. CondenserA. Fasten the wire harness at the
positioning tape to the ECU
bracket with a plastic locking tie.
Face the buckle of the plastic
locking tie downward, and then
cut off the excess end of the tie.
B. Install the cover onto the wire
harness coupler.
C. Route the condenser lead, throt-
tle position sensor lead, coolant
temperature sensor lead, igni-
tion coil lead, and AC magneto
lead under radiator hose 2.
D. Connect the vacuum hose to the
atmospheric pressure sensor,
and then fasten the hose with
the clamp. Make sure to face the
moving part of the sensor rear-
ward.
E. After connecting the condenser
coupler, install the coupler cover
onto the coupler.
F. After connecting the throttle po-
sition sensor coupler, install the
coupler cover onto the coupler.
G. Fasten the AC magneto lead,
condenser lead, throttle position
sensor lead, coolant tempera-
ture sensor lead, and ignition
coil lead to the frame with the
plastic band, making sure to po-
sition the band between the igni-
tion coil bracket and the tension
pipe. Face the buckle of the
plastic band to the right with the
end pointing rearward.
H. Point the end of the vacuum
hose rearward.
I. Fit the bracket into the hole in
the rubber portion of the con-
denser.
J. Fasten the radiator breather
hose to the frame with the plas-
tic band, making sure to position
the band above the front engine
bracket. Face the buckle of the
plastic band outward with the
end pointing rearward.
K. After connecting the coolant
temperature sensor coupler, in-
stall the coupler cover onto the
coupler.L. Route the radiator breather hose
between the down tubes.
M. Fasten the fuel hose and fuel
pump lead with the plastic band,
making sure to position the band
between the bend in the fuel
hose protector and the end of
the protector. Point the end of
the plastic band upward.
N. Insert the projection on the joint
coupler into the hole in the
bracket, and then install the cou-
pler cover onto the coupler.
O. Route the atmospheric pressure
sensor lead, intake air pressure
sensor lead, intake air tempera-
ture sensor lead, fuel injector
lead, and fuel pump lead above
radiator hose 2. Position the
joint coupler above radiator
hose 2.
P. Route the radiator breather hose
to the inside of radiator hose 1
and the front engine bracket.
Q. Hose installation position (1.3–
3.3 mm, 0.05–0.13 in)
R. Clip installation position (0–2.0
mm, 0–0.08 in)
S. Install the washer so that it con-
tacts the bolt head.
T. Install the collar so that the
flange on the collar contacts the
ECU bracket.
U. 6 mm (0.24 in) or less

2-24
CABLE ROUTING DIAGRAM

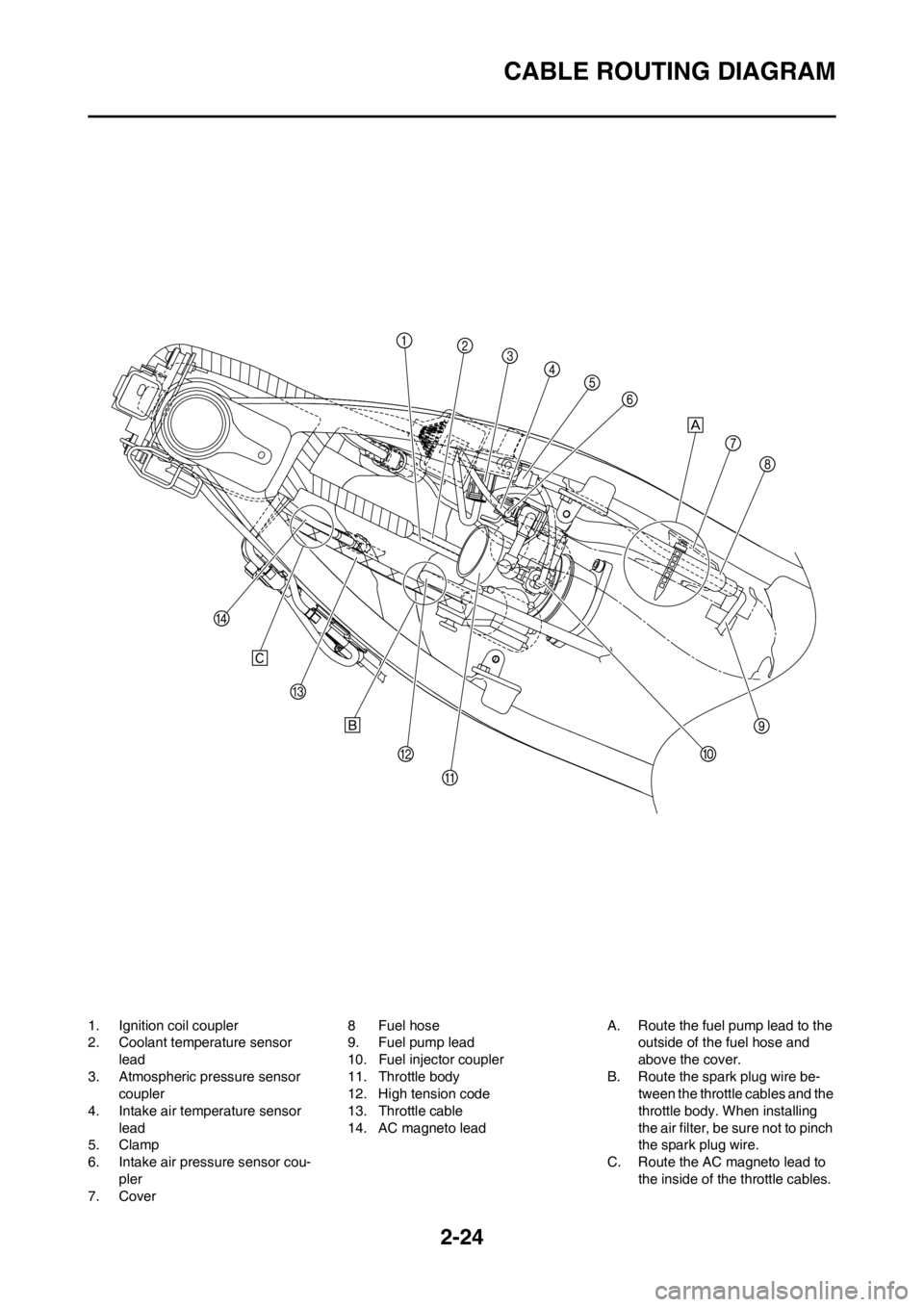

1. Ignition coil coupler
2. Coolant temperature sensor
lead
3. Atmospheric pressure sensor
coupler
4. Intake air temperature sensor
lead
5. Clamp
6. Intake air pressure sensor cou-
pler
7. Cover8Fuel hose
9. Fuel pump lead
10. Fuel injector coupler
11. Throttle body
12. High tension code
13. Throttle cable
14. AC magneto leadA. Route the fuel pump lead to the
outside of the fuel hose and
above the cover.
B. Route the spark plug wire be-
tween the throttle cables and the
throttle body. When installing
the air filter, be sure not to pinch
the spark plug wire.
C. Route the AC magneto lead to
the inside of the throttle cables.

2-25
CABLE ROUTING DIAGRAM

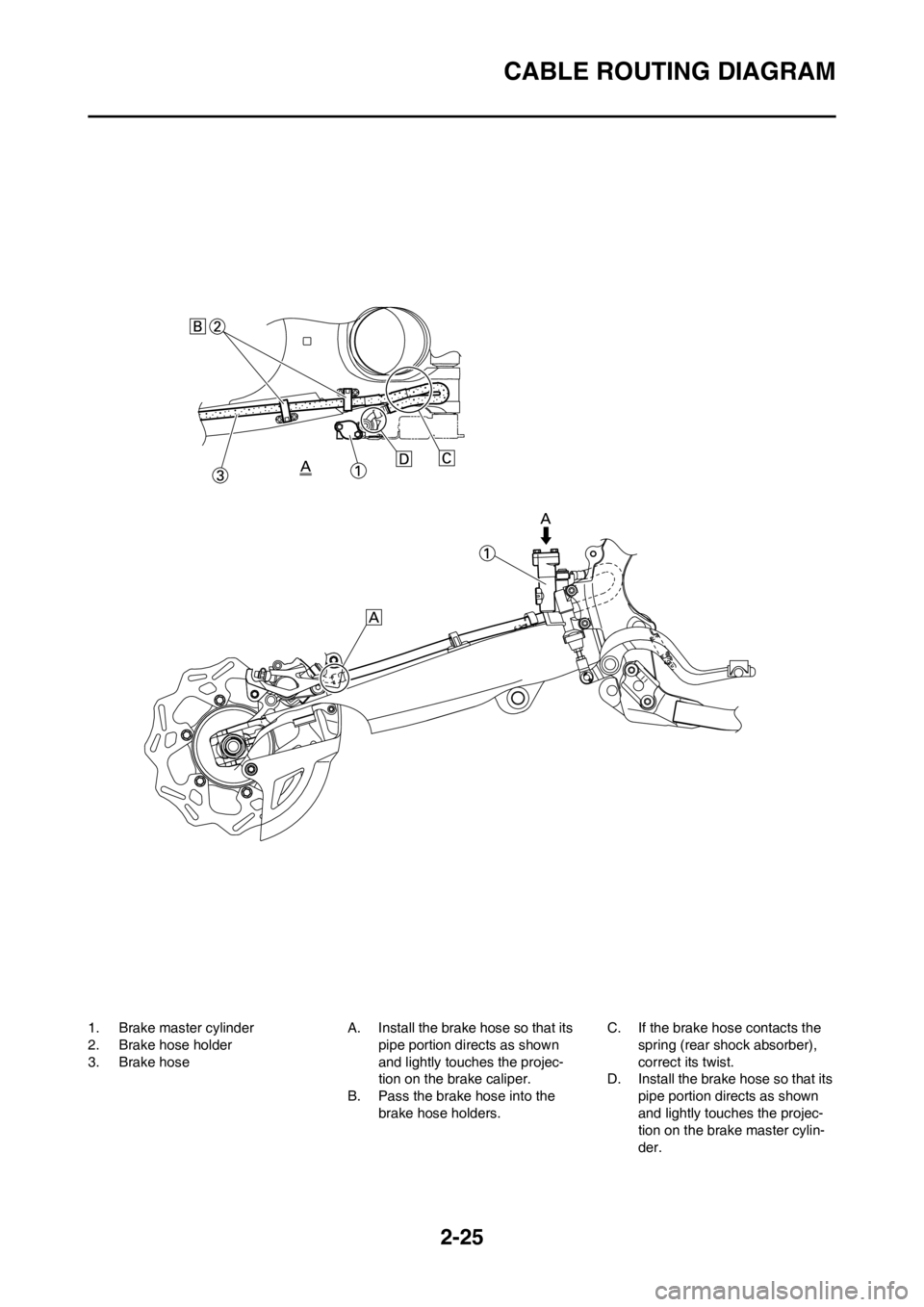

1. Brake master cylinder
2. Brake hose holder
3. Brake hoseA. Install the brake hose so that its
pipe portion directs as shown
and lightly touches the projec-
tion on the brake caliper.
B. Pass the brake hose into the
brake hose holders.C. If the brake hose contacts the
spring (rear shock absorber),
correct its twist.
D. Install the brake hose so that its
pipe portion directs as shown
and lightly touches the projec-
tion on the brake master cylin-
der.

2-26
CABLE ROUTING DIAGRAM

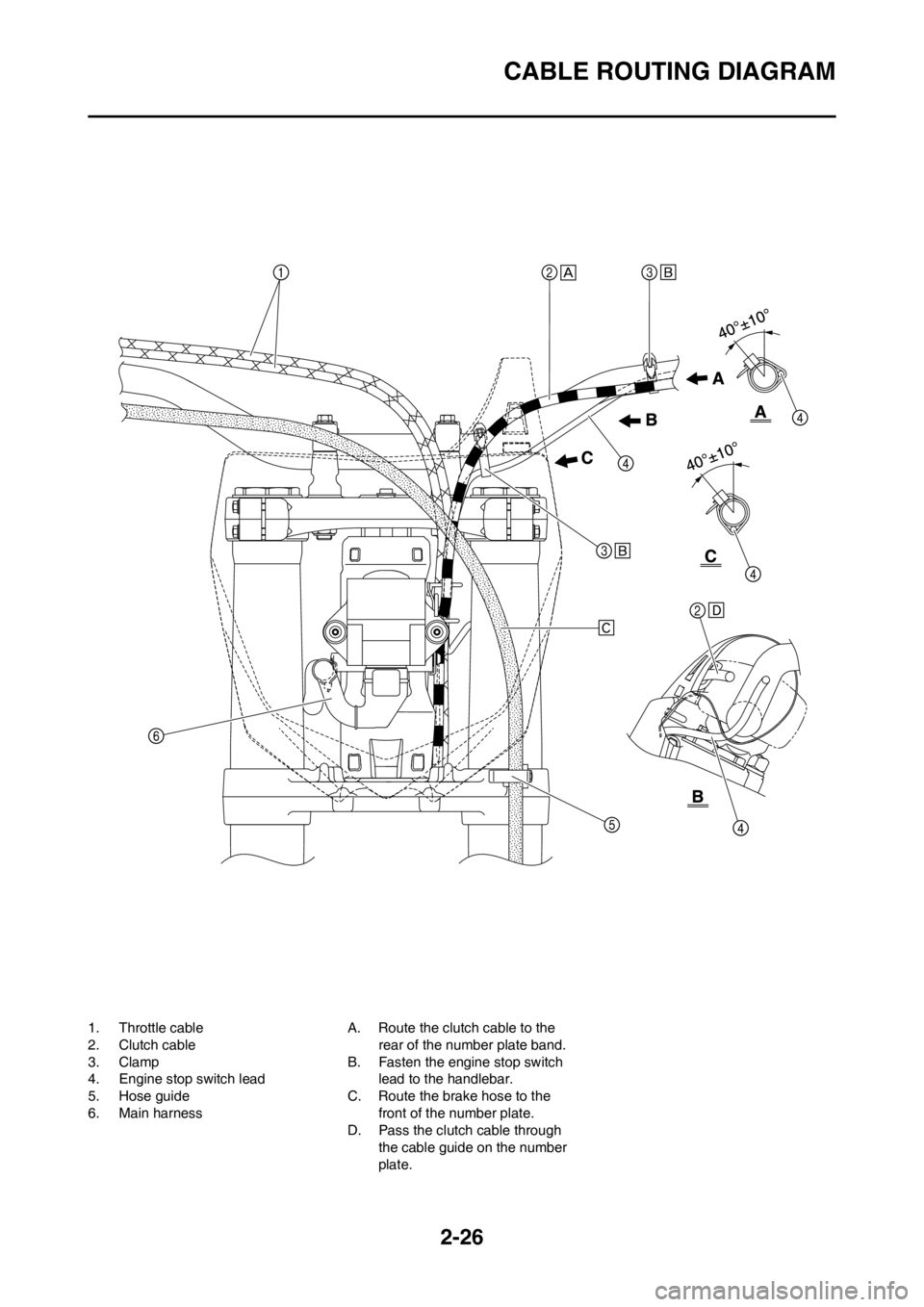

1. Throttle cable
2. Clutch cable
3. Clamp
4. Engine stop switch lead
5. Hose guide
6. Main harnessA. Route the clutch cable to the
rear of the number plate band.
B. Fasten the engine stop switch
lead to the handlebar.
C. Route the brake hose to the
front of the number plate.
D. Pass the clutch cable through
the cable guide on the number
plate.

3-1
MAINTENANCE INTERVALS
REGULAR INSPECTION AND ADJUSTMENTS
MAINTENANCE INTERVALS
• The following schedule is intended as a general guide to maintenance and lubrication. Bear in mind that such factors as
weather, terrain, geographical location, and individual usage will alter the required maintenance and lubrication intervals.
If you are a doubt as to what intervals to follow in maintaining and lubricating your machine, consult your Yamaha dealer.
• Periodic inspection is essential in making full use of the machine performance. The service life of the parts varies sub-
stantially according to the environment in which the machine runs (e.g., rain, dirt, etc.). Therefore, earlier inspection is
required by reference to the list below..
ItemAfter
break-
inEvery
race
(about
2.5
hours)
Every
third
(about
7.5
hours)Every
fifth
(about
12.5
hours)
As re-
quiredRemarks
ENGINE OIL
Replace●●
VALVES
Check the valve clearances●●The engine must be cold.
Inspect●Check the valve seats and valve
stems for wear.
Replace●
VALVE SPRINGS
Inspect●Check the free length and the tilt.
Replace●
VALVE LIFTERS
Inspect●Check for scratches and wear.
Replace●
CAMSHAFTS Inspect the camshaft surface.
Inspect●Inspect the decompression system.
Replace●
CAMSHAFT SPROCKETS
Inspect●Check for wear on the teeth and for
damage.
Replace●
PISTON
Inspect●Inspect crack.
Clean●Inspect carbon deposits and eliminate
them.
Replace●●Replace the piston, piston pin, piston
pin clip, and piston ring all as a set.
PISTON RING
Inspect●Check ring end gap.
Replace●●Replace the piston, piston pin, piston
pin clip, and piston ring all as a set.
PISTON PIN
Inspect●
Replace●●Replace the piston, piston pin, piston
pin clip, and piston ring all as a set.
3

3-2
MAINTENANCE INTERVALS
CYLINDER HEADInspect carbon deposits and eliminate
them.
Inspect and clean ●Change gasket.
CYLINDER Inspect and clean ●Inspect score marks.
Replace ●Inspect wear.
CLUTCH Inspect and adjust ●● Inspect housing, friction plate, clutch
plate and spring.
Replace ●
TRANSMISSION Inspect ●
Replace bearing ●
SHIFT FORK, SHIFT CAM,
GUIDE BAR Inspect ●Inspect wear.
ROTOR NUT Retighten ●●
EXHAUST PIPE, SILENCER,
PROTECTOR Inspect and retighten ●●
Clean ●
Replace fiver ●●* * When the exhaust sound becomes
louder or when a performance drop is
felt.
CRANK Inspect and clean ●●
THROTTLE BODY Inspect ●
SPARK PLUG Inspect and clean ●●
Replace ●
DRIVE CHAIN Use chain lube.
Lubricate, slack, alignment ●● Chain slack: 50–60 mm (2.0–2.4 in)
Replace ●
COOLING SYSTEM Check coolant level and leakage ●●
Check radiator cap operation ●
Replace coolant ●Every two years
Inspect hoses ●
OUTSIDE NUTS AND BOLTS Retighten ●● Refer to "STARTING AND BREAK-
IN" section in the CHAPTER 1.
Item
After
break- in Every
race
(about 2.5
hours)
Every third
(about 7.5
hours) Every
fifth
(about 12.5
hours)
As re-
quired Remarks

3-3
MAINTENANCE INTERVALS
AIR FILTER
Clean and lubricate●●Use foam air-filter oil or equivalent oil.
Replace●
OIL FILTER
Replace●●
ENGINE GUARD
Replace●Breakage
FRAME
Clean and inspect●●
FUEL TANK, FUEL PUMP
inspect●●
FUEL HOSE
Inspect●
Replace●Every four years
BRAKES
Adjust lever position and pedal
height●●
Lubricate pivot point●●
Check brake disc surface●●
Check fluid level and leakage●●
Retighten brake disc bolts, cali-
per bolts, master cylinder bolts
and union bolts●●
Replace pads●
Replace brake fluid●Every one year
FRONT FORKS
Inspect and adjust●●
Replace oil●●Suspension oil "S1"
Replace oil seal●
FRONT FORK OIL SEAL AND
DUST SEAL
Clean and lube●●Lithium base grease
PROTECTOR GUIDE
Replace●
REAR SHOCK ABSORBER
Inspect and adjust●●
Lube●(After
rain
ride)●Molybdenum disulfide grease
Retighten●●
DRIVE CHAIN GUIDE AND
ROLLERS
Inspect●● ItemAfter
break-
inEvery
race
(about
2.5
hours)
Every
third
(about
7.5
hours)Every
fifth
(about
12.5
hours)
As re-
quiredRemarks

3-4
MAINTENANCE INTERVALS
SWINGARM
Inspect, lube and retighten●●Molybdenum disulfide grease
RELAY ARM, CONNECTING
ROD
Inspect, lube and retighten●●Molybdenum disulfide grease
STEERING HEAD
Inspect free play and retighten●●
Clean and lube●Lithium base grease
Replace bearing●
TIRE, WHEELS
Inspect air pressure, wheel run-
out, tire wear and spoke loose-
ness●●
Retighten sprocket bolt●●
Inspect bearings●
Replace bearings●
Lubricate●Lithium base grease
THROTTLE, CONTROL CABLE
Check routing and connection●●Yamaha cable lube or SAE 10W-40
motor oil
Lubricate●● ItemAfter
break-
inEvery
race
(about
2.5
hours)
Every
third
(about
7.5
hours)Every
fifth
(about
12.5
hours)
As re-
quiredRemarks
