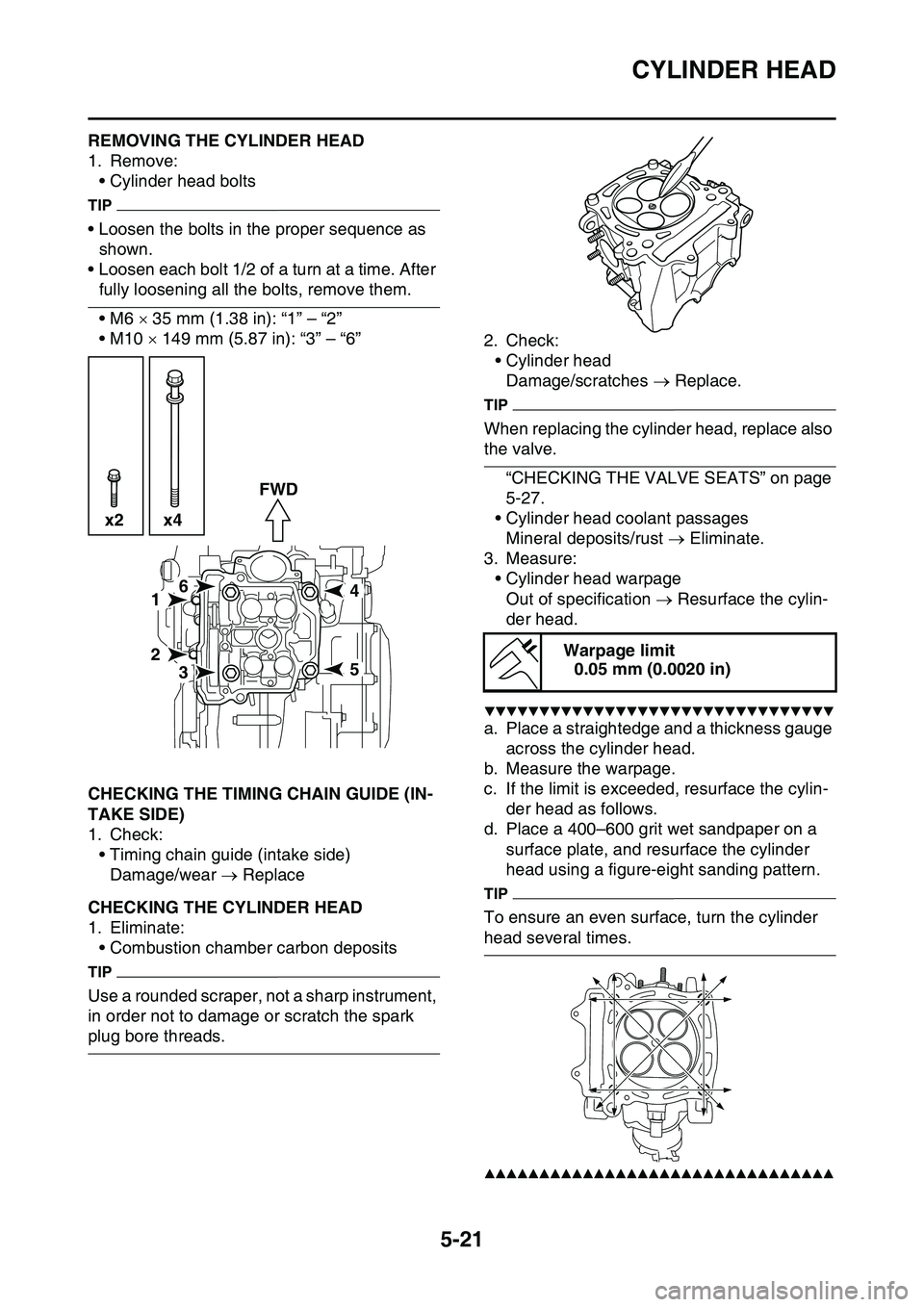

CYLINDER HEAD
5-21
EAS1SL1215REMOVING THE CYLINDER HEAD
1. Remove:
• Cylinder head bolts
TIP
• Loosen the bolts in the proper sequence as
shown.
• Loosen each bolt 1/2 of a turn at a time. After
fully loosening all the bolts, remove them.
•M6  35 mm (1.38 in): “1” – “2”
• M10  149 mm (5.87 in): “3” – “6”
EAS1SL1216CHECKING THE TIMING CHAIN GUIDE (IN-
TAKE SIDE)
1. Check:
• Timing chain guide (intake side)
Damage/wear  Replace
EAS1SL1217CHECKING THE CYLINDER HEAD
1. Eliminate:
• Combustion chamber carbon deposits
TIP
Use a rounded scraper, not a sharp instrument,
in order not to damage or scratch the spark
plug bore threads.
2. Check:
• Cylinder head
Damage/scratches  Replace.
TIP
When replacing the cylinder head, replace also
the valve.
“CHECKING THE VALVE SEATS” on page
5-27.
• Cylinder head coolant passages
Mineral deposits/rust  Eliminate.
3. Measure:
• Cylinder head warpage
Out of specification  Resurface the cylin-
der head.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Place a straightedge and a thickness gauge
across the cylinder head.
b. Measure the warpage.
c. If the limit is exceeded, resurface the cylin-
der head as follows.
d. Place a 400–600 grit wet sandpaper on a
surface plate, and resurface the cylinder
head using a figure-eight sanding pattern.
TIP
To ensure an even surface, turn the cylinder
head several times.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
61
2
35
4 x2 x4FWD
Warpage limit
0.05 mm (0.0020 in)
