IMPORTANT INFORMATION ........................................................................ 1-10
PREPARATION FOR REMOVAL A ND DISASSEMBLY.......................... 1-10
REPLACEMENT PARTS.......................................................................... 1-10
GASKETS, OIL SEALS AND O-RINGS ................................................... 1-11
LOCK WASHERS/PLATES AND COTTER PINS .................................... 1-11
BEARINGS AND OIL SEALS ................................................................... 1-11
CIRCLIPS ................................................................................................. 1-11
BASIC SERVICE INFORMATION .................................................................. 1-12
ELECTRICAL SYSTEM.......... .................................................................. 1-12
SPECIAL TOOLS ........................................................................................... 1-15
CONTROL FUNCTIONS ................................................................................ 1-20
ENGINE STOP SWITCH .......................................................................... 1-20
CLUTCH LEVER ................................................................................... ... 1-20
SHIFT PEDAL .......................................................................................... 1-20
KICKSTARTER LEVER.......... .................................................................. 1-20
THROTTLE GRIP ..................................................................................... 1-20
FRONT BRAKE LEVER ........................................................................... 1-20
REAR BRAKE PEDAL.............................................................................. 1-21
STARTER KNOB/IDLE SCREW .............................................................. 1-21
FUEL TANK CAP ..................................................................................... 1-21

DESCRIPTION
1-4
EAS1SL1009
DESCRIPTION
TIP
Designs and specifications of the vehicle are subject to change without notice. Therefore, please
note that the descriptions in this manual may be different from those for the vehicle you have pur
-
chased.
1. Clutch lever10. Coolant drain bolt
2. Front brake lever11. Rear brake pedal
3. Throttle grip12. Air filter
4. Radiator cap13. Drive chain
5. Fuel tank cap14. Shift pedal
6. Engine stop switch15. Oil level check window
7. Fuel tank16. Starter knob/idle screw
8. Kickstarter lever17. Front fork
9. Radiator
2 1
6
78 954 3
11 10 17 16 15 14 1312

CONTROL FUNCTIONS
1-20
EAS1SL1032
CONTROL FUNCTIONS
EAS1SL1033ENGINE STOP SWITCH
The engine stop switch “1” is located on the left
handlebar. Continue pushing the engine stop
switch till the engine comes to a stop.
EAS1SL1034CLUTCH LEVER
The clutch lever “1” is located on the left han-
dlebar. The clutch lever disengages or engag-
es the clutch.
Pull the clutch lever toward the handlebar to
disengage the clutch, and release the lever to
engage the clutch.
EAS1SL1035SHIFT PEDAL
The shift pedal “1” has adopted a method of 1
down & 4 ups (press-down & kick-ups).
Press it down for N (neutral) to 1st, and kick it
up for 2nd to 5th.
EAS1SL1036
KICKSTARTER LEVER
The kickstarter lever “1” is in the right of the
chassis.
To start the engine, pull out and push down the
kickstarter lever with your foot.
EAS1SL1037THROTTLE GRIP
The throttle grip “1” is located on the right han-
dlebar. The throttle grip accelerates or deceler-
ates the engine. For acceleration, turn the grip
toward you; for deceleration, turn it away from
you.
EAS1SL1038FRONT BRAKE LEVER
The front brake lever “1” is located on the right
handlebar. Pull it toward the handlebar to acti
-
vate the front brake.
EAS1SL1039
1
1

STARTING AND BREAK-IN
1-22
EAS1SL1041
STARTING AND BREAK-IN
EAS1SL1042FUEL
Always use the recommended fuel as stated
below. Also, be sure to use new gasoline the
day of a race.
JCA
NOTICE
Use only unleaded gasoline. The use of
leaded gasoline will cause severe damage
to the engine internal parts such as valves,
piston rings, and exhaust system, etc.
TIP
Your Yamaha engine has been designed to use
premium unleaded gasoline with a pump oc
-
tane number [(R+M)/2] of 91 or higher, or a re-
search octane number of 95 or higher. If
knocking (or pinging) occurs, use a gasoline of
a different brand.
JWA
WARNING
• For refueling, be sure to stop the engine
and use enough care not to spill any fuel.
Also be sure to avoid refueling close to a
fire.
• Refuel after the engine, exhaust pipe, etc.
have cooled off.
Gasohol (For USA and Canada)
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if the
ethanol content does not exceed 10%. Gasohol
containing methanol is not recommended by
Yamaha because it can cause damage to the
fuel system or vehicle performance problems.
EAS1SL1043STARTING A COLD ENGINE
1. Press the shift pedal to neutral.
2. Pull the starter knob/idle screw “1” to its full
length.
TIP
When the ambient temperature is 15°C (59°F)
or below, use the starter knob/idle screw.
3. Push down the kickstarter lever lightly until
resistance is felt.
4. Fully close the throttle, and push down the
kickstarter lever in a stroke.
5. Immediately release the kickstarter lever.EWA
WARNING
Do not open the throttle at the moment
when you kick the kickstarter lever, be
-
cause this may kick back
TIP
If it fails to start, fully open the throttle grip and
give 10 to 20 slow kicks to clear the engine of
the rich air-fuel mixture retained in it.
6. When the engine starts running, warm this
up one or two minutes at a steady speed (of
3,000 to 5,000 r/min), and then return the
starter knob/idle screw to its original posi
-
tion.
EWA
WARNING
Since exhaust gas contains harmful ingre-
dients, do not start or warm it up at an ill-
ventilated place or a closed narrow place.
Recommended fuel
Premium unleaded gasoline
Fuel tank capacity
7.5 L (1.98 US gal, 1.7 lmp gal)
1

STARTING AND BREAK-IN
1-23
7. To stop the engine, push the engine stop
switch “1.”
TIP
Continue pushing the engine stop switch till the
engine comes to a full stop.
EAS1SL1044STARTING A WARM ENGINE
When the engine is warm, give a kick with the
throttle closed without using the starter knob/
idle screw.
TIP
If it fails to start, fully open the throttle grip and
give 10 to 20 slow kicks to clear the engine of
the rich air-fuel mixture retained in it.
EAS1SL1045BREAK-IN PROCEDURES
A break-in is important so that rotating portion,
sliding surfaces, and mounted areas may fit
one another, and that the rider may become ac
-
customed to the machine.ECA
NOTICE
Before running, do maintenance on the air
filter element.
Refer to “CLEANING THE AIR FILTER ELE-
MENT” on page 3-12.
1. After warming up the engine, drive it for
about 20 minutes at a throttle opening of 1/2
or less.
2. Make a pit stop, and check mounted areas
for looseness, oil leaks, or other problems.
3. Then, drive it for about 40 minutes at a throt-
tle opening of 3/4 or less.
4. Make a pit stop again, and thoroughly check
mounted areas for looseness, oil leaks, or
other problems. Thorough checks and ad
-
justments are required in particular for
stretch of cables, free play of the brake,
stretch of the drive chain, looseness of the
spoke, and so on.
ECA
NOTICE
After a break-in or after each race, always
check the points shown in “TORQUE-
CHECK POINTS” for tightening torques and
retighten them. (
“TORQUE-CHECK
POINTS” on page 1-25) 
Also when the following parts are replaced,
a break-in is required.
• Cylinder and Crankshaft: A break-in is re-
quired for about an hour.
• Piston, Piston ring, Valve, Camshaft, and
Gear: A break-in is required for about 30
minutes at a throttle opening of 1/2 or less.
Observe the condition of the engine careful-
ly during a break-in. 
For checkpoints for a break-in, see “MAIN-
TENANCE AFTER BREAK-IN.” If any prob-
lem is found, immediately stop the engine
and make a checkup.
EAS1SL1046

CLEANING AND STORAGE
1-27
EAS1SL1049
CLEANING AND STORAGE
EAS1SL1050CLEANING
Frequent cleaning of your vehicle will enhance
its appearance, maintain performance, and ex
-
tend the life of parts.
1. Before cleaning, block the silencer outlet to
prevent water from entering. A plastic bag
secured with a rubber band may be used for
this purpose.
2. If the engine is contaminated with oil, apply
some degreaser to it with a brush. Do not
apply degreaser to the drive chain, the
sprockets, or the wheel axles.
3. Hose off dirt. Use only enough water pres-
sure to do the job.ECA
NOTICE
Do not use high-pressure washers or steam
cleaners. Otherwise, these may cause a fail
-
ure because of the entry of water.
4. After hosing off the dirt, wash all surfaces
with a mild detergent and warm water. Use
a toothbrush to clean hard-to-reach places.
5. Rinse the detergent with clean water, and
dry the surfaces with a soft towel or a cloth.
6. Immediately after cleaning, remove any wa-
ter from the drive chain with a paper towel,
and lubricate it to prevent rust.
7. Clean the seat with a vinyl upholstery clean-
er to keep the cover pliable and glossy.
8. Automotive wax may be applied to all paint-
ed or chromed surfaces. Avoid using such
wax as contains abrasives, because it may
scratch surfaces.
9. After completing the above, start the engine
and allow it to warm up for several minutes.
EAS1SL1051STORAGE
If your vehicle is to be stored for 60 days or
more, some preventive measures must be tak
-
en to avoid deterioration. After cleaning the ve-
hicle thoroughly, prepare it for storage as
follows:
1. Fill the fuel tank with gasoline.
2. Remove the spark plug, pour a spoonful of
engine oil (SAE 10W-40) into the spark plug
hole, and reinstall the plug. With the engine
stop switch pushed in, by pushing down the
kickstarter lever, crank the engine to coat
the cylinder walls with oil.
3. Remove the drive chain, clean it thoroughly
with solvent, and lubricate it Reinstall the
drive chain or store it in a plastic bag tied to
the frame.
4. Lubricate all cables.
5. Lift up the frame of the vehicle to keep the
wheels off the ground.
6. Tie a plastic bag over the muffler outlet to
prevent moisture from entering.
7. If the vehicle is to be stored in a place that is
humid or exposed to the sea breeze, apply a
light coat of oil to metal surfaces. Do not ap
-
ply oil to the seat or rubber parts.
TIP
Make any necessary repairs before the vehicle
is stored.

CABLE ROUTING DIAGRAM
2-34
1. Clutch cable
2. Throttle cable (pull)3. Throttle cable (return)
4. Cable holder
5. Engine stop switch lead6. Frame
7. Coupler for connecting optional part
8. Bracket9. Engine stop switch coupler
10. Rectifier/regulator coupler
11. Starter knob/idle screw12. Neutral switch lead
13. Crankcase cover
14. AC magneto lead15. Front engine bracket
16. Radiator hose
17. Coupler cover18. Rectifier/regulator lead
19. Tension arm
20. Main harness21. Tank rail
22. Radiator
23. Cylinder head breather hose24. Radiator breather hose
25. Down tube
26. Crankcase
A. Pass the engine stop switch lead between the
frame and the cable holder.
B. Pass the engine stop switch lead between the
coupler for connecting optional part and the
frame, where the main harness should face the
outside of the vehicle.
C. Insert the coupler for connecting optional part into
the connector, and fix it to the bracket.
D. Insert and fix the engine stop switch coupler to
the bracket.
E. Insert and fix the rectifier/regulator coupler to the
bracket.
F. Pass the AC magneto lead to the front of the ve-hicle beyond the starter knob/idle screw and to
the rear of the vehicle beyond the radiator. No
pinch is allowed between the radiator and the
tension arm.
G. 70 mm (2.76 in)
H. Bring the neutral switch lead into line with the
crankcase cover with no sag allowed.
I. Bring the AC magneto lead into line with the
clutch cable with no sag allowed.
J. Pass the neutral switch lead to the inside of the
front engine bracket (the side of the vehicle).
K. Clamp the clutch cable and the AC magneto lead
by the plastic locking tie. Regardless of the orien-tation of the lock on the plastic locking tie, cut the
end.
L. Pass the clutch cable with no downward sag al-lowed.
M. Bring the grommet of the clutch cable into contact
with the radiator hose, and pass it to the outside
of the neutral switch lead and the AC magneto
lead (the outside of the vehicle).
N. 40 mm (1.57 in)
O. Clamp the clutch cable, the AC magneto lead,
and the neutral switch lead by the plastic locking
tie. Make sure that they are clamped at the posi
-tioning tape in the clutch cable. Make the lock on
the plastic locking tie face the front of the vehicle,
and cut the end.
P. After connecting the neutral switch coupler, at-tach the coupler cover.Q. After connecting the AC magneto coupler, attach
the coupler cover.
R. Pass the rectifier/regulator lead to the inside of
the tension arm (the side of the vehicle).
S. Pass the main harness to the front of the radiator
hose (the front of the vehicle), and to the inside of
the clutch cable (the side of the vehicle).
T. Pass the engine stop switch lead between the
coupler for connecting optional part and the tank
rail, with the lead on the main harness side facing
the top of the vehicle.
U. Pass the radiator breather hose between the
down tubes.
V. Clamp the radiator breather hose, above the en-gine bracket (front). Clamp the lock on the plastic
tie with it located outside the vehicle, and face the
end toward the front of the vehicle.
W. Clamp the clutch cable at the front of the lead (the
front of the vehicle).
X. Make the lock on the plastic locking tie face the
front of the vehicle, and insert the projection into
the hole in the frame. Cut the end of the plastic
locking tie.

ENGINE
3-8
EAS1SL1069
ENGINE
EAS1SL1070CHECKING THE COOLANT LEVELEWA1DX1003
WARNING
If coolant seems hot, do not remove the ra-
diator cap.
1. Stand the vehicle upright on a level surface.
2. Remove:
• Radiator cap “1”
3. Check:
• Coolant level
Maximum level “a” or below  Add coolant
up to the maximum level.
ECA1DX1004
NOTICE
• Adding water instead of coolant lowers the
antifreeze content. If, therefore, water is
used instead of coolant, check, and if nec
-
essary, adjust the antifreeze concentra-
tion.
• Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.
4. Start the engine, warm this up for several
minutes, and then stop it.
5. Check:
• Coolant level
TIP
Before checking the coolant level, wait a few
minutes until the coolant has settled.
EAS1SL1071CHECKING THE COOLING SYSTEM
1. Remove:
• Seat
• Side cover (left/right)
• Air scoop (left/right)
Refer to “GENERAL CHASSIS” on page 4-
1.
• Air filter case cover
Refer to “THROTTLE BODY” on page 7-5.
2. Check:
•RADIATOR
• Radiator hoses
Crack/damage  Replace.
Refer to “RADIATOR” on page 6-1.
3. Install:
• Air filter case cover
Refer to “THROTTLE BODY” on page 7-5.
• Air scoop (left/right)
• Seat
• Side cover (left/right)
Refer to “GENERAL CHASSIS” on page 4-
1.
EAS1SL1072CHANGING THE COOLANTEWA1DX1004
WARNING
If coolant seems hot, do not remove the ra-
diator cap.
1. Place a container under the engine.
2. Remove:
• Coolant drain bolt “1”
3. Remove:
• Radiator cap
Slowly loosen the radiator cap to drain cool-
ant.
TIP
When the radiator cap is loosened, coolant will
gush out transversely; therefore, bring the con
-
tainer near to the outlet.
4. Thoroughly flush the cooling system with
clean tap water.
1. Radiator
1

ENGINE
3-9
5. Install:
• Copper washers
• Coolant drain bolt
6. Pour coolant.
EWA13040
WARNING
• If coolant splashes in your eyes, thorough-
ly wash them with water and consult a
doctor.
• If coolant splashes on your clothes, quick-
ly wash it away with water and then with
soap and water.
• If coolant is swallowed, induce vomiting
and get immediate medical attention.
ECA13480
NOTICE
• Adding water instead of coolant lowers the
antifreeze content. If, therefore, water is
used instead of coolant, check, and if nec
-
essary, adjust the antifreeze concentra-
tion.
• Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.
• If coolant comes into contact with painted
surfaces, immediately wash them with wa
-
ter.
• Do not mix different types of coolant.
7. Install:
• Radiator cap
8. Start the engine, warm this up for several
minutes, stop it, and then wait for it to cool
down.
9. Check:
• Coolant level
Refer to “CHECKING THE COOLANT LEV-
EL” on page 3-8.
EAS1SL1073CHECKING THE RADIATOR CAP
1. Check:
• Seal (radiator cap) “1”
• Valve and valve seat “2”
Crack/damage  Replace.
Exist fur deposits  Clean or replace.
EAS1SL1074CHECKING THE RADIATOR CAP OPENING
PRESSURE
1. Check:
• Radiator cap opening pressure
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the radiator cap tester adapter “2” and
the radiator cap tester “3” to the radiator cap
“1,” and activate the tester to check whether
it can stay for 5 to 10 seconds within stan
-
dard pressure values.
TIP
Before attaching the cap to the tester, apply
water to its sealing surface.
No stay  Replace.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS1SL1075
Coolant drain bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Recommended coolant
High quality ethylene glycol
anti-freeze containing anti-cor
-
rosion for aluminum engine
Coolant level
1.04 L (1.10 US qt, 0.92 Imp.qt)
Coolant mixing ratio
1:1 (Coolant:Water)
New
T R..
Radiator cap opening pressure
108–137 kPa (1.08–1.37 kg/cm2,
15.7–19.9 psi)
Radiator cap tester
90890-01325
Mityvac cooling system tester kit
YU-24460-A
Radiator cap tester adapter
90890-01352
Pressure tester adapter
YU-33984

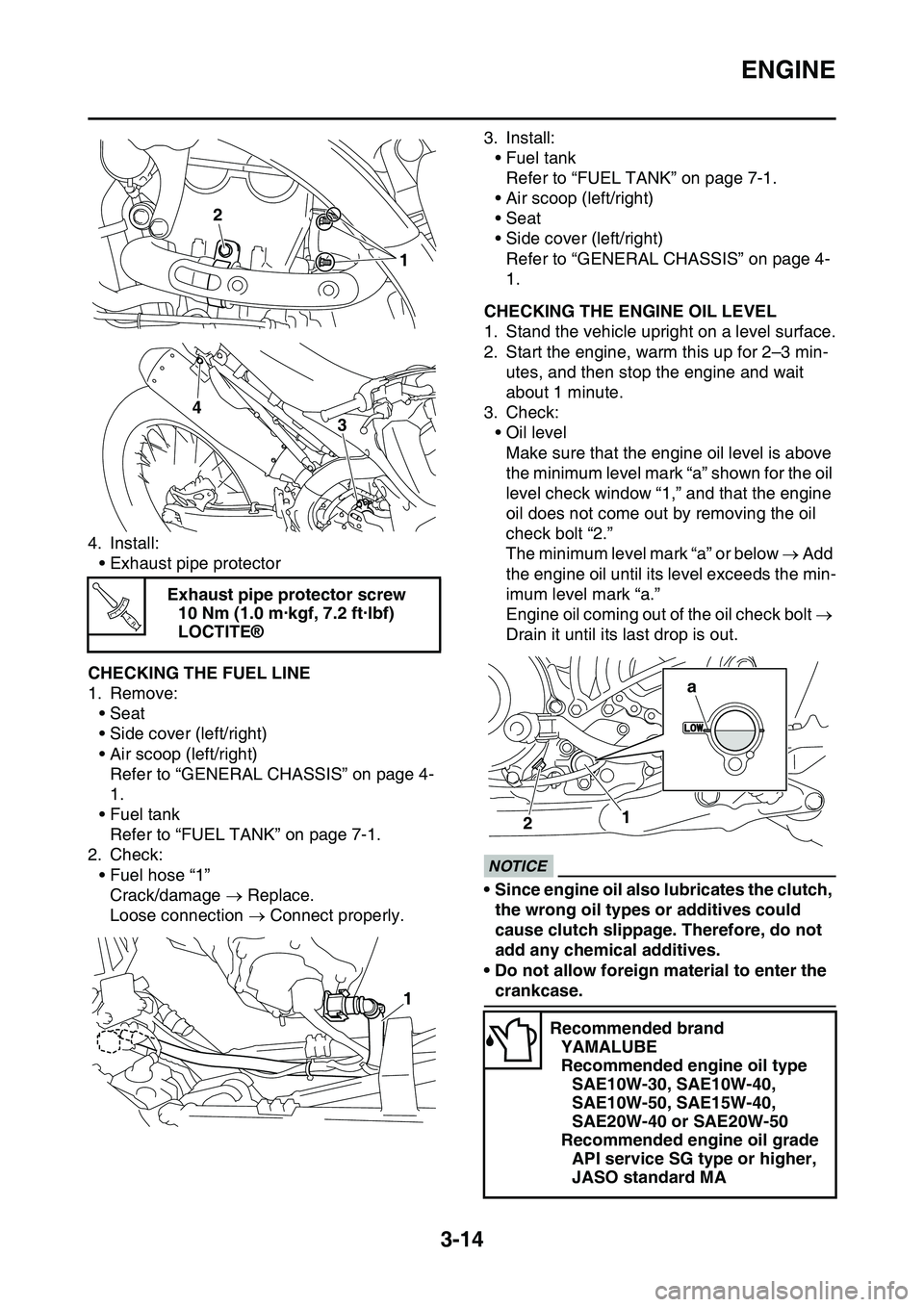

ENGINE
3-14
4. Install:
• Exhaust pipe protector
EAS1SL1084CHECKING THE FUEL LINE
1. Remove:
• Seat
• Side cover (left/right)
• Air scoop (left/right)
Refer to “GENERAL CHASSIS” on page 4-
1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
2. Check:
• Fuel hose “1”
Crack/damage  Replace.
Loose connection  Connect properly.
3. Install:
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• Air scoop (left/right)
• Seat
• Side cover (left/right)
Refer to “GENERAL CHASSIS” on page 4-
1.
EAS1SL1085CHECKING THE ENGINE OIL LEVEL
1. Stand the vehicle upright on a level surface.
2. Start the engine, warm this up for 2–3 min-
utes, and then stop the engine and wait
about 1 minute.
3. Check:
• Oil level
Make sure that the engine oil level is above
the minimum level mark “a” shown for the oil
level check window “1,” and that the engine
oil does not come out by removing the oil
check bolt “2.”
The minimum level mark “a” or below  Add
the engine oil until its level exceeds the min
-
imum level mark “a.”
Engine oil coming out of the oil check bolt 
Drain it until its last drop is out.
ECA33DD018
NOTICE
• Since engine oil also lubricates the clutch,
the wrong oil types or additives could
cause clutch slippage. Therefore, do not
add any chemical additives.
• Do not allow foreign material to enter the
crankcase.
Exhaust pipe protector screw
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
2
1
4
3
T R..
1
Recommended brand
YAMALUBE
Recommended engine oil type
SAE10W-30, SAE10W-40,
SAE10W-50, SAE15W-40,
SAE20W-40 or SAE20W-50
Recommended engine oil grade
API service SG type or higher,
JASO standard MA
12
a
