Page 12 of 504

EC080000
HOW TO USE
THIS MANUAL
EC081000
PARTICULARLY IMPORTANT
INFORMATION
The Safety Alert Symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could
result in severe injury or death to the machine
operator, a bystander, or a person inspecting
or repairing the machine.
A CAUTION indicates special precautions that
must be taken to avoid damage to the
machine.
NOTE:
A NOTE provides key information to make pro-
cedures easier or clearer.
WARNING
CAUTION:
EC082000
FINDING THE REQUIRED PAGE
1. This manual consists of seven chapters;
“General information”, “Specifications”,
“Regular inspection and adjustments”,
“Engine”, “Chassis”, “Electrical” and “Tun-
ing”.
2. The table of contents is at the beginning of
the manual. Look over the general layout of
the book before finding then required chap-
ter and item.
Bend the book at its edge, as shown, to
find the required fore edge symbol mark
and go to a page for required item and
description.
5PA00010

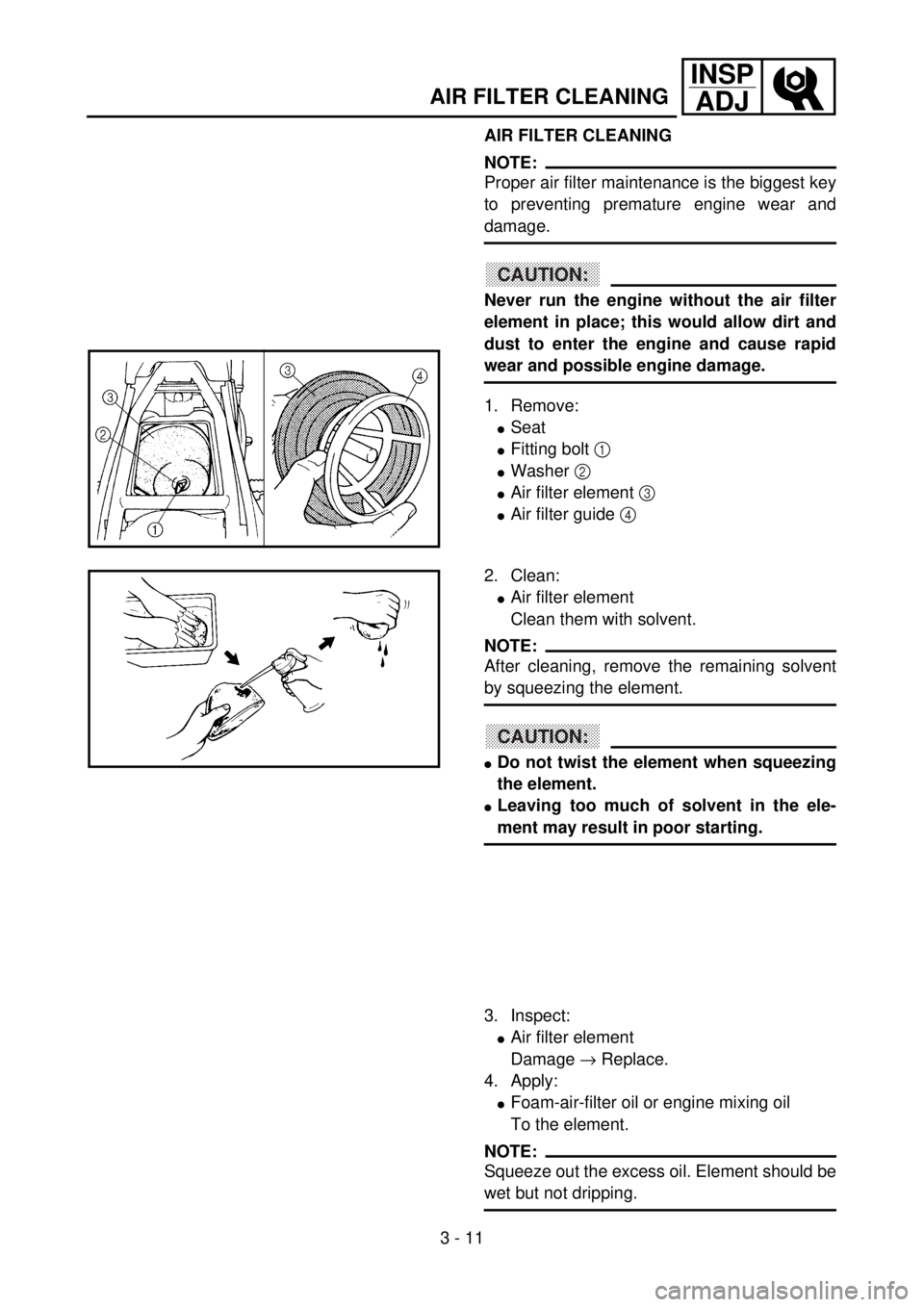

Page 142 of 504

3 - 11
INSP
ADJ
AIR FILTER CLEANING
AIR FILTER CLEANING
NOTE:
Proper air filter maintenance is the biggest key
to preventing premature engine wear and
damage.
CAUTION:
Never run the engine without the air filter
element in place; this would allow dirt and
dust to enter the engine and cause rapid
wear and possible engine damage.
1. Remove:
lSeat
lFitting bolt 1
lWasher 2
lAir filter element 3
lAir filter guide 4
5PA30150
2. Clean:
lAir filter element
Clean them with solvent.
NOTE:
After cleaning, remove the remaining solvent
by squeezing the element.
CAUTION:
lDo not twist the element when squeezing
the element.
lLeaving too much of solvent in the ele-
ment may result in poor starting.
5PA30160
3. Inspect:
lAir filter element
Damage ® Replace.
4. Apply:
lFoam-air-filter oil or engine mixing oil
To the element.
NOTE:
Squeeze out the excess oil. Element should be
wet but not dripping.

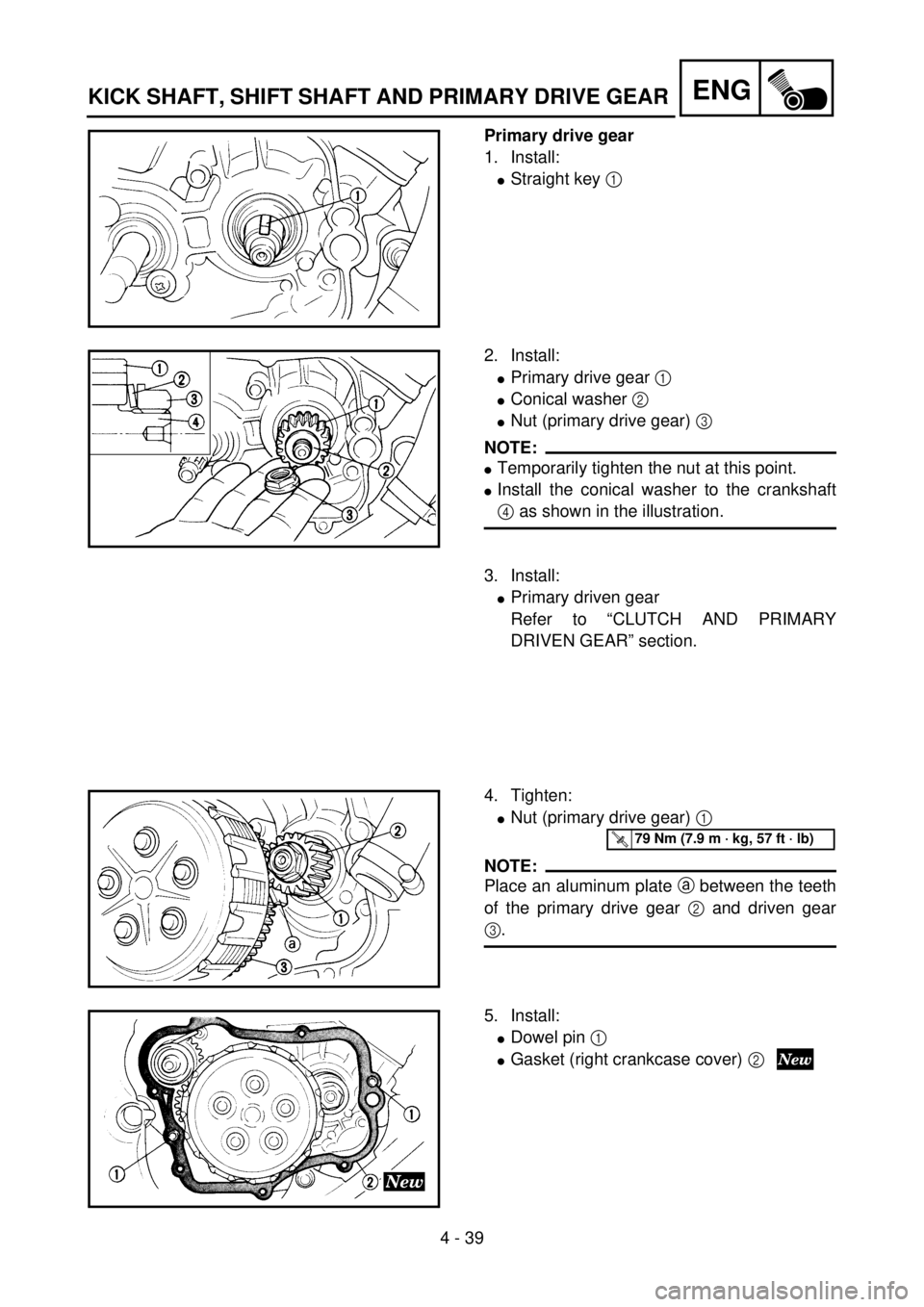

Page 272 of 504

4 - 39
ENG
Primary drive gear
1. Install:
lStraight key 1
5PA41160
2. Install:
lPrimary drive gear 1
lConical washer 2
lNut (primary drive gear) 3
NOTE:
lTemporarily tighten the nut at this point.
lInstall the conical washer to the crankshaft
4 as shown in the illustration.
5PA41170
3. Install:
lPrimary driven gear
Refer to “CLUTCH AND PRIMARY
DRIVEN GEAR” section.
4. Tighten:
lNut (primary drive gear) 1
NOTE:
Place an aluminum plate a between the teeth
of the primary drive gear 2 and driven gear
3.
5PA41180
T R..79 Nm (7.9 m · kg, 57 ft · lb)
5. Install:
lDowel pin 1
lGasket (right crankcase cover) 2
5PA41190
KICK SHAFT, SHIFT SHAFT AND PRIMARY DRIVE GEAR

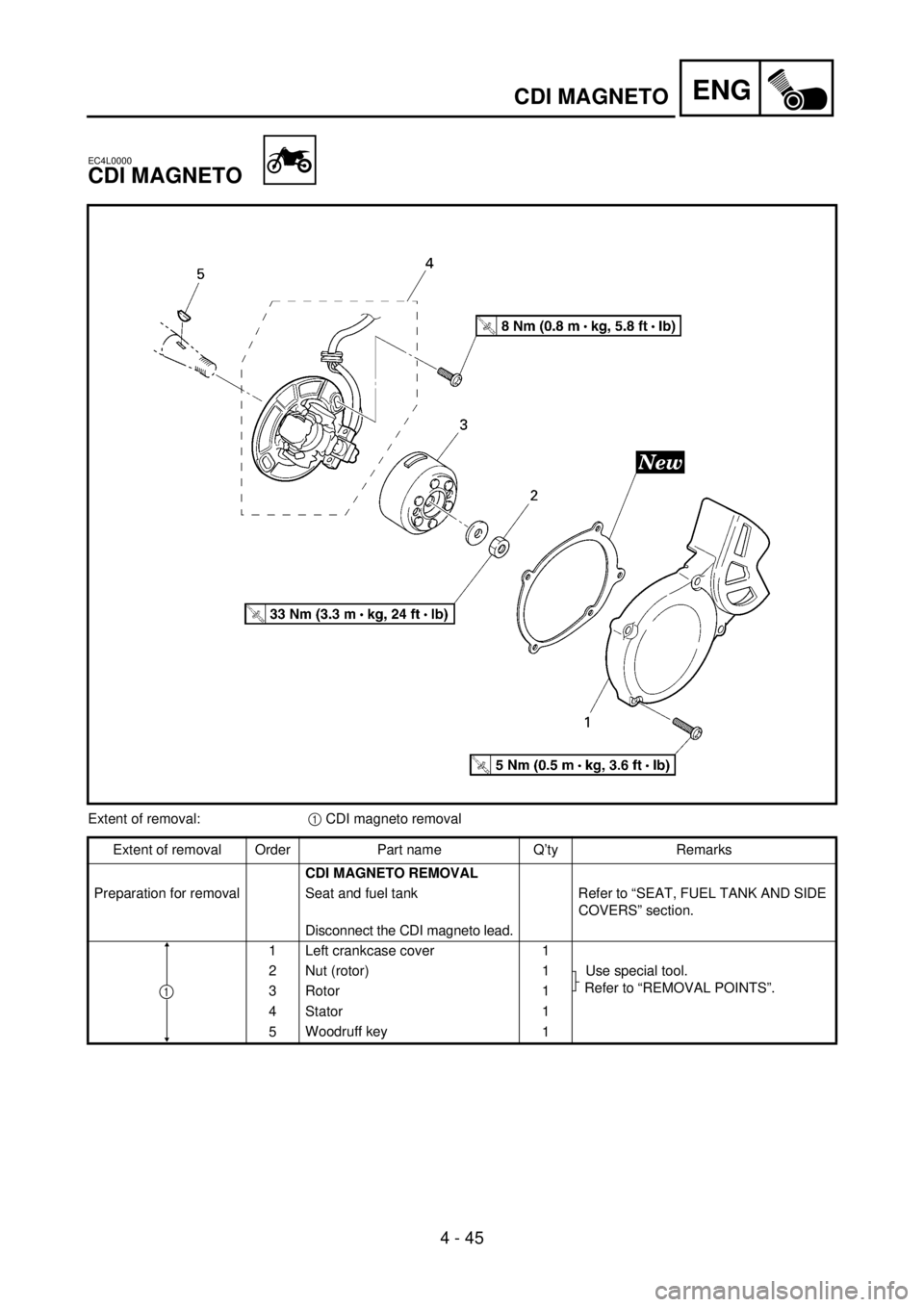

Page 284 of 504

4 - 45
ENG
EC4L0000
CDI MAGNETO
5PA41380
Extent of removal:
1 CDI magneto removal
Extent of removal Order Part name Q’ty Remarks
CDI MAGNETO REMOVAL
Preparation for removal Seat and fuel tank Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section.
Disconnect the CDI magneto lead.
1 Left crankcase cover 1
2 Nut (rotor) 1 Use special tool.
Refer to “REMOVAL POINTS”.
3 Rotor 1
4 Stator 1
5Woodruff key
1
1
CDI MAGNETO
Page 286 of 504

4 - 46
ENG
EC4L3000
REMOVAL POINTS
Rotor
1. Remove:
lNut (rotor) 1
lWasher 2
Use the rotor holding tool 3.
Rotor holding tool:
YU-1235/90890-01235
5PA41390
2. Remove:
lRotor 1
Use the flywheel puller 2.
NOTE:
When installing the flywheel puller, turn it
counterclockwise.
Flywheel puller:
YM-1189/90890-01189
5PA41400
EC4L4000
INSPECTION
EC4L4101
CDI magneto
1. Inspect:
lRotor inner surface a
lStator outer surface b
Damage ® Inspect the crankshaft runout
and crankshaft bearing.
If necessary, replace CDI magneto and/or
stator.
5PA41410
EC4L4200
Woodruff key
1. Inspect:
lWoodruff key 1
Damage ® Replace.
5PA41420
CDI MAGNETO

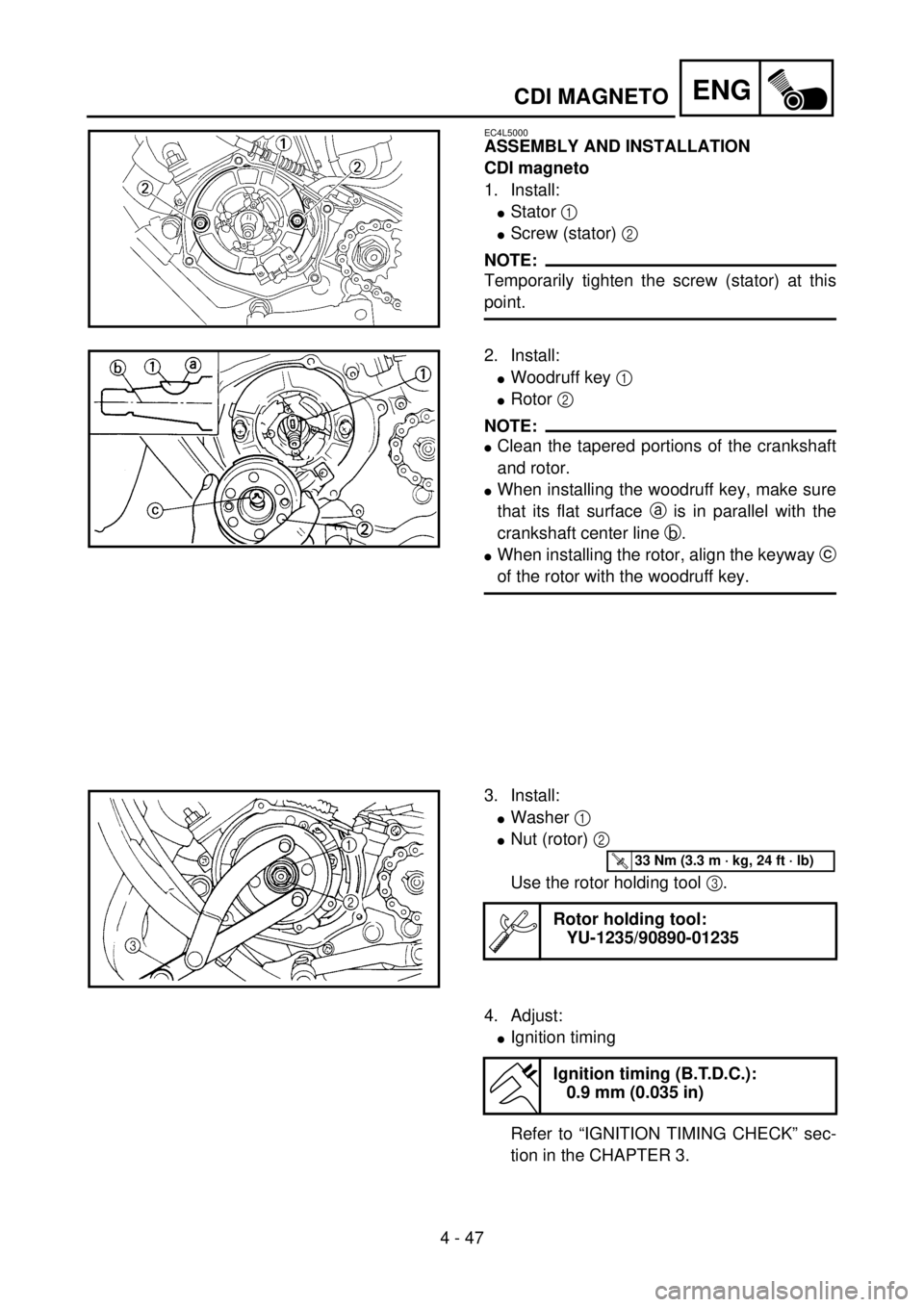

Page 288 of 504

4 - 47
ENG
EC4L5000
ASSEMBLY AND INSTALLATION
CDI magneto
1. Install:
lStator 1
lScrew (stator) 2
NOTE:
Temporarily tighten the screw (stator) at this
point.5PA41430
2. Install:
lWoodruff key 1
lRotor 2
NOTE:
lClean the tapered portions of the crankshaft
and rotor.
lWhen installing the woodruff key, make sure
that its flat surface a is in parallel with the
crankshaft center line b.
lWhen installing the rotor, align the keyway c
of the rotor with the woodruff key.
5PA41440
3. Install:
lWasher 1
lNut (rotor) 2
Use the rotor holding tool 3.
Rotor holding tool:
YU-1235/90890-01235
5PA41450
T R..33 Nm (3.3 m · kg, 24 ft · lb)
4. Adjust:
lIgnition timing
Refer to “IGNITION TIMING CHECK” sec-
tion in the CHAPTER 3.
Ignition timing (B.T.D.C.):
0.9 mm (0.035 in)
CDI MAGNETO
