SPEC
2 - 9
MAINTENANCE SPECIFICATIONS
Wheel:
Front wheel type Spoke wheel ----
Rear wheel type Spoke wheel ----
Front rim size/material 17 × 1.40/Aluminum ----
Rear rim size/material 14 × 1.60/Aluminum ----
Rim runout limit:
Radial ---- 2.0 mm (0.08 in)
Lateral ---- 2.0 mm (0.08 in)
Drive chain:
Type/manufacturer DID428DS/DAIDO ----
Number of links 117 links + joint ----
Chain slack 35 ~ 45 mm (1.4 ~ 1.8 in) ----
Chain length (10 links) ---- 122.1 mm (4.81 in)
Front disc brake:
Disc outside dia. × Thickness 220 × 3.0 mm (8.66 × 0.12 in) 220 × 2.5 mm
(8.66 × 0.10 in)
Deflection limit ---- 0.15 mm (0.006 in)
Pad thickness 4.0 mm (0.16 in) 0.8 mm (0.03 in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 22.22 mm (0.875 in) × 2 ----
Brake fluid type DOT #4 ----
Rear disc brake:
Disc outside dia. × Thickness 190 × 3.0 mm (7.84 × 0.12 in) 190 × 2.5 mm
(7.84 × 0.12 in)
Deflection limit ---- 0.15 mm (0.006 in)
Pad thickness 3.7 mm (0.15 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 12.7 mm (0.500 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) × 1 ----
Brake fluid type DOT #4 ----
Brake lever and brake pedal:
Brake lever position 95 mm (3.74 in) ----
Brake pedal height
(vertical height above footrest top)4 ~ 10 mm (0.16 ~ 0.39 in) ----
Clutch lever free play (lever end) 10 ~ 15 mm (0.39 ~ 0.59 in) ----
Throttle grip free play 3 ~ 5 mm (0.12 ~ 0.20 in) ----Item Standard Limit

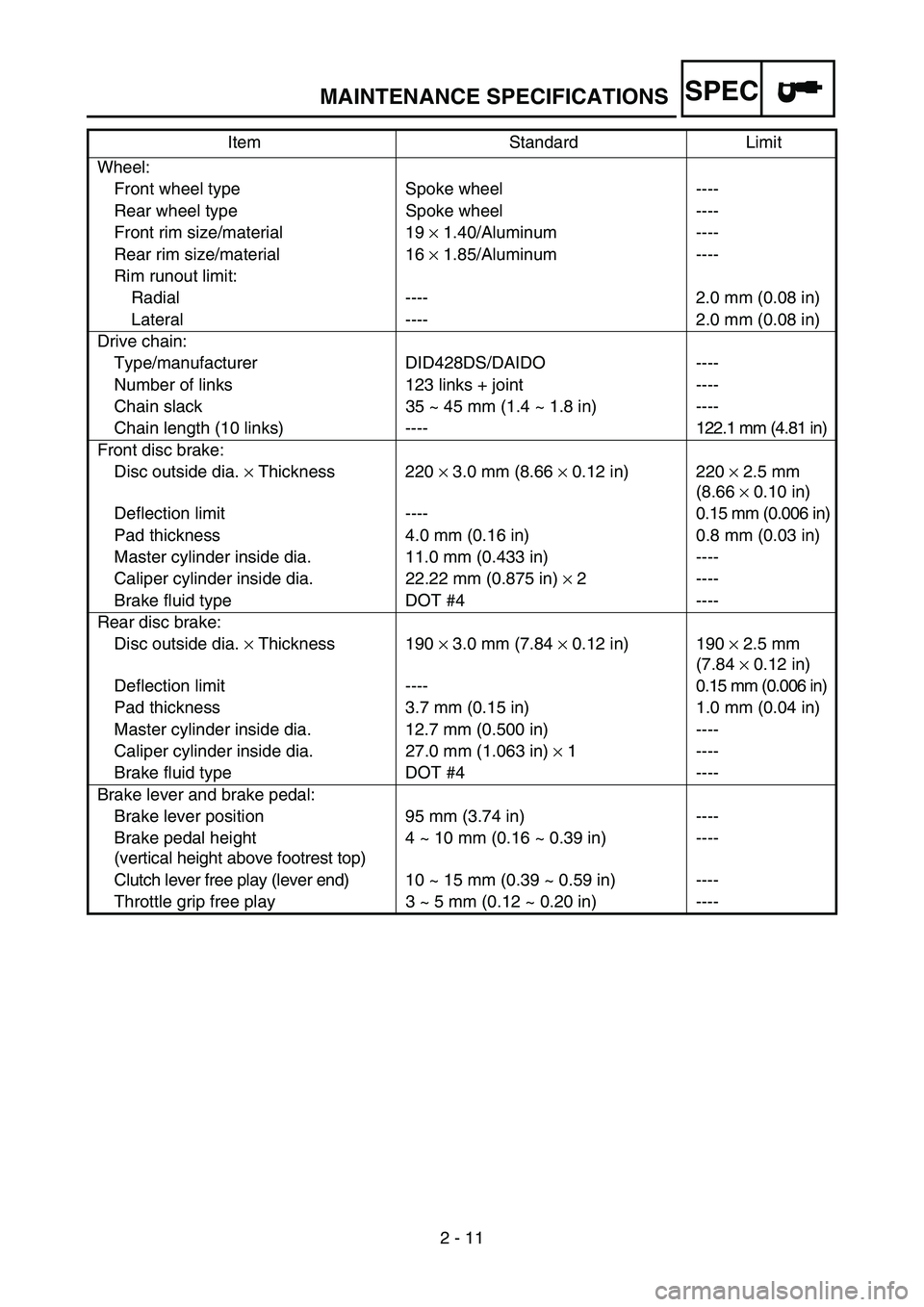

SPEC
2 - 11
MAINTENANCE SPECIFICATIONS
Wheel:
Front wheel type Spoke wheel ----
Rear wheel type Spoke wheel ----
Front rim size/material 19 × 1.40/Aluminum ----
Rear rim size/material 16 × 1.85/Aluminum ----
Rim runout limit:
Radial ---- 2.0 mm (0.08 in)
Lateral ---- 2.0 mm (0.08 in)
Drive chain:
Type/manufacturer DID428DS/DAIDO ----
Number of links 123 links + joint ----
Chain slack 35 ~ 45 mm (1.4 ~ 1.8 in) ----
Chain length (10 links) ---- 122.1 mm (4.81 in)
Front disc brake:
Disc outside dia. × Thickness 220 × 3.0 mm (8.66 × 0.12 in) 220 × 2.5 mm
(8.66 × 0.10 in)
Deflection limit ---- 0.15 mm (0.006 in)
Pad thickness 4.0 mm (0.16 in) 0.8 mm (0.03 in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 22.22 mm (0.875 in) × 2 ----
Brake fluid type DOT #4 ----
Rear disc brake:
Disc outside dia. × Thickness 190 × 3.0 mm (7.84 × 0.12 in) 190 × 2.5 mm
(7.84 × 0.12 in)
Deflection limit ---- 0.15 mm (0.006 in)
Pad thickness 3.7 mm (0.15 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 12.7 mm (0.500 in) ----
Caliper cylinder inside dia. 27.0 mm (1.063 in) × 1 ----
Brake fluid type DOT #4 ----
Brake lever and brake pedal:
Brake lever position 95 mm (3.74 in) ----
Brake pedal height
(vertical height above footrest top)4 ~ 10 mm (0.16 ~ 0.39 in) ----
Clutch lever free play (lever end) 10 ~ 15 mm (0.39 ~ 0.59 in) ----
Throttle grip free play 3 ~ 5 mm (0.12 ~ 0.20 in) ----Item Standard Limit

3 - 2
INSP
ADJ
MAINTENANCE INTERVALS
COOLING SYSTEM
Check coolant level and leakage
Check radiator cap operation
Replace coolant
Inspect hoses








Every two years
OUTSIDE NUTS AND BOLTS
Retighten



AIR FILTER
Clean and lubricate
Replace




Use foam air-filter oil or
equivalent oil
FRAME
Clean and inspect



FUEL TANK, COCK
Clean and inspect



BRAKES
Adjust lever position and pedal height
Lubricate pivot point
Check brake disc surface
Check fluid level and leakage
Retighten brake disc bolts, caliper
bolts, master cylinder bolts and union
bolts
Replace pads
Replace brake fluid























Every one year
FRONT FORKS
Inspect and adjust
Replace oil
Replace oil seal









Suspension oil “01”
FRONT FORK OIL SEAL AND DUST
SEAL
Clean and lube


Lithium base grease
REAR SHOCK ABSORBER
Inspect and adjust
Lube
Retighten







(After
rain ride)


Molybdenum disulfide
grease
DRIVE CHAIN GUIDE, ROLLERS AND
SUPPORT
Inspect


SWINGARM
Inspect and retighten
Lube







Molybdenum disulfide
grease
RELAY ARM, CONNECTING ROD
Inspect and retighten
Lube







Molybdenum disulfide
grease
STEERING HEAD
Inspect free play and retighten
Clean and lube
Replace bearing







Lithium base grease ItemAfter
break-inEvery
raceEvery
third
raceEvery
fifth
raceAs re-
quiredRemarks


3

3 - 16
INSP
ADJ

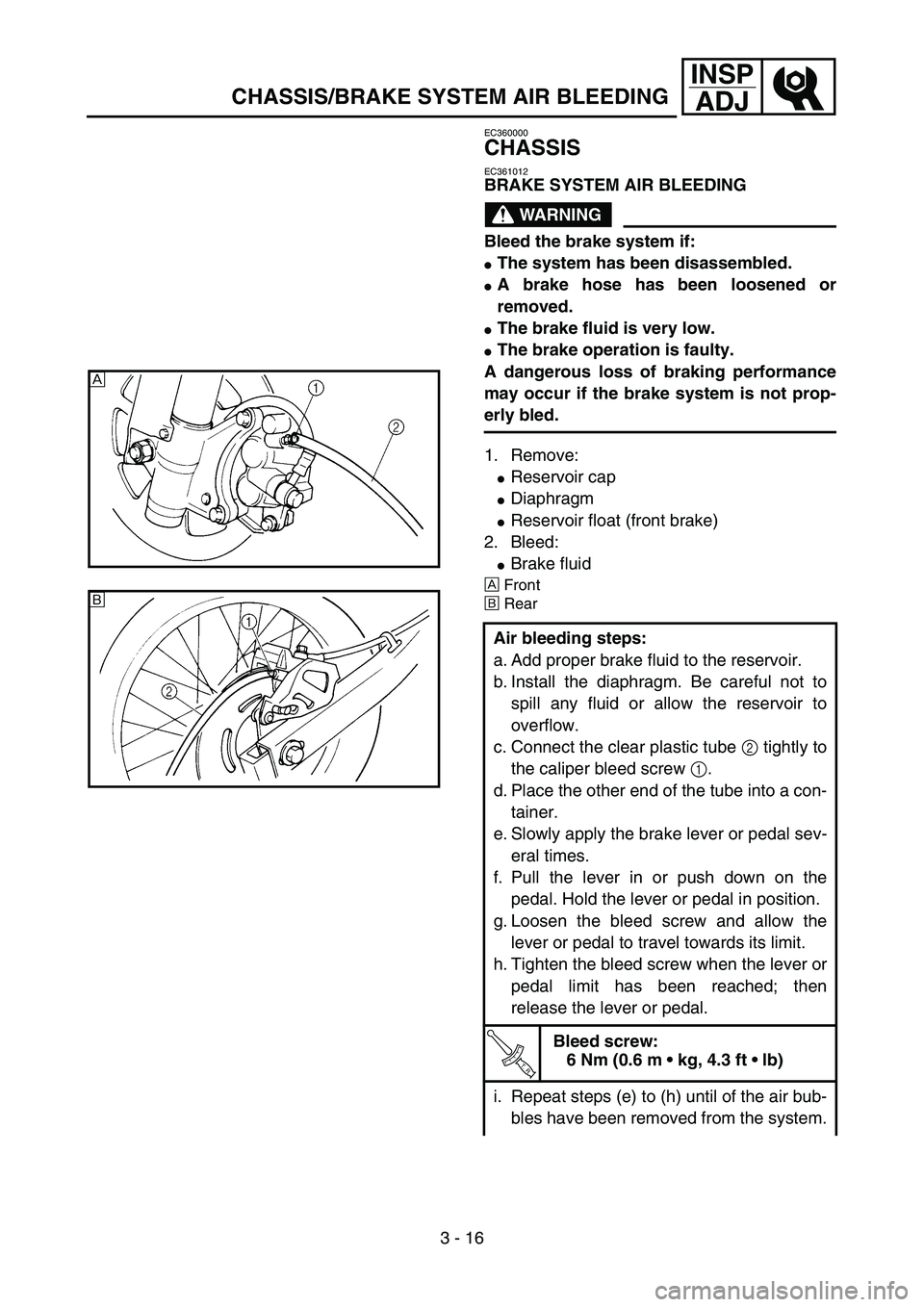

CHASSIS/BRAKE SYSTEM AIR BLEEDING
EC360000
CHASSIS
EC361012
BRAKE SYSTEM AIR BLEEDING
WARNING
Bleed the brake system if:

The system has been disassembled.

A brake hose has been loosened or
removed.

The brake fluid is very low.

The brake operation is faulty.
A dangerous loss of braking performance
may occur if the brake system is not prop-
erly bled.
1. Remove:

Reservoir cap

Diaphragm

Reservoir float (front brake)
2. Bleed:

Brake fluid
ÈFront
ÉRear
Air bleeding steps:
a. Add proper brake fluid to the reservoir.
b. Install the diaphragm. Be careful not to
spill any fluid or allow the reservoir to
overflow.
c. Connect the clear plastic tube 2 tightly to
the caliper bleed screw 1.
d. Place the other end of the tube into a con-
tainer.
e. Slowly apply the brake lever or pedal sev-
eral times.
f. Pull the lever in or push down on the
pedal. Hold the lever or pedal in position.
g. Loosen the bleed screw and allow the
lever or pedal to travel towards its limit.
h. Tighten the bleed screw when the lever or
pedal limit has been reached; then
release the lever or pedal.
T R..
Bleed screw:
6 Nm (0.6 m  kg, 4.3 ft  lb)
i. Repeat steps (e) to (h) until of the air bub-
bles have been removed from the system.
È
5PA30290
É
5PA30300

3 - 17
INSP
ADJ
FRONT BRAKE ADJUSTMENT
3. Install:

Reservoir float (front brake)

Diaphragm

Reservoir cap NOTE:
If bleeding is difficult, it may be necessary to
let the brake fluid system stabilize for a few
hours. Repeat the bleeding procedure when
the tiny bubbles in the system have disap-
peared.
j. Add brake fluid to the level line on the res-
ervoir.
WARNING
Check the operation of the brake after
bleeding the brake system.
EC362040

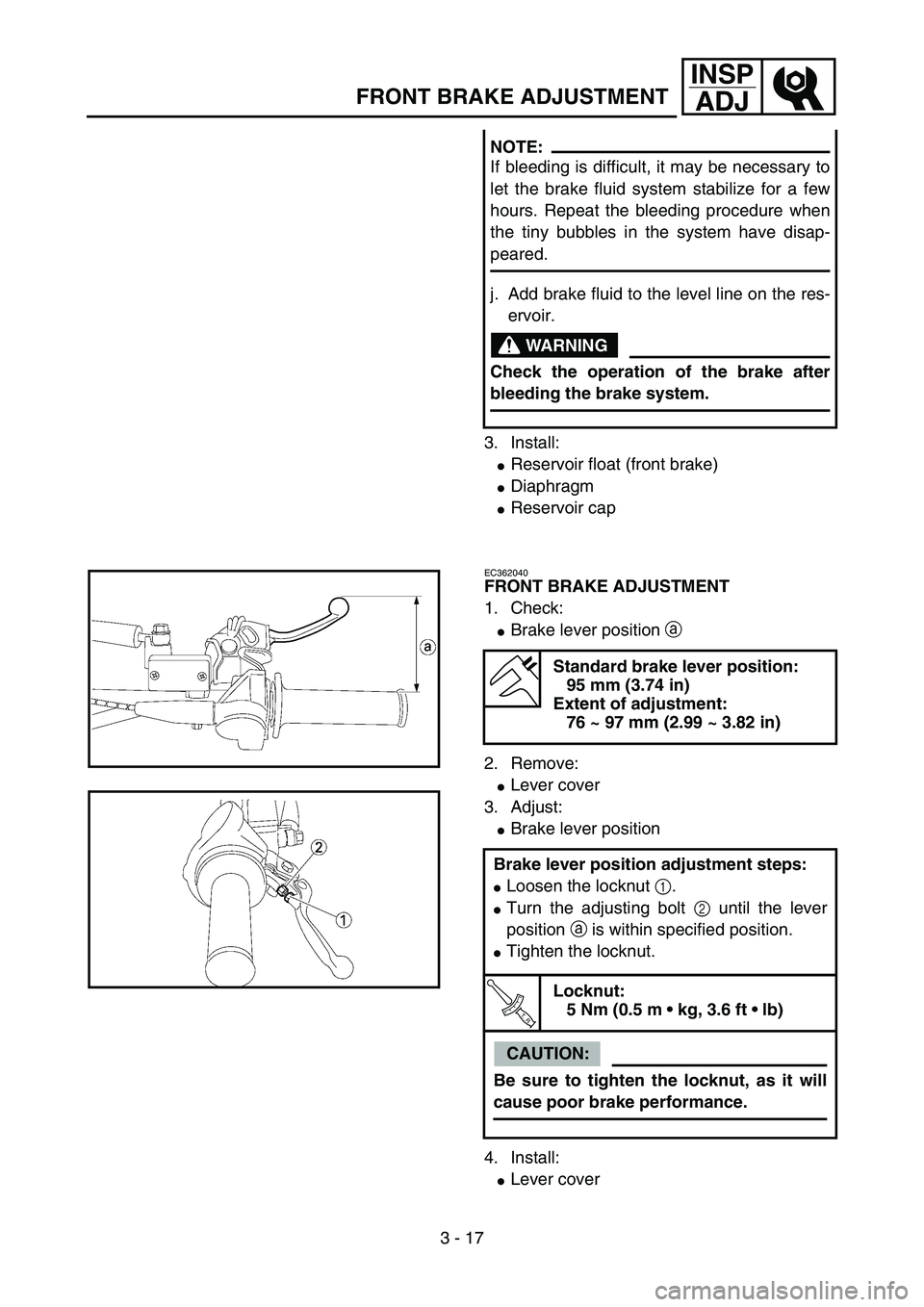

FRONT BRAKE ADJUSTMENT
1. Check:

Brake lever position a
2. Remove:

Lever cover
3. Adjust:

Brake lever position
4. Install:

Lever cover
Standard brake lever position:
95 mm (3.74 in)
Extent of adjustment:
76 ~ 97 mm (2.99 ~ 3.82 in)
Brake lever position adjustment steps:

Loosen the locknut 1.

Turn the adjusting bolt 2 until the lever
position a is within specified position.

Tighten the locknut.
T R..
Locknut:
5 Nm (0.5 m  kg, 3.6 ft  lb)
CAUTION:
Be sure to tighten the locknut, as it will
cause poor brake performance.
5PA30310
5PA30320

3 - 19
INSP
ADJ

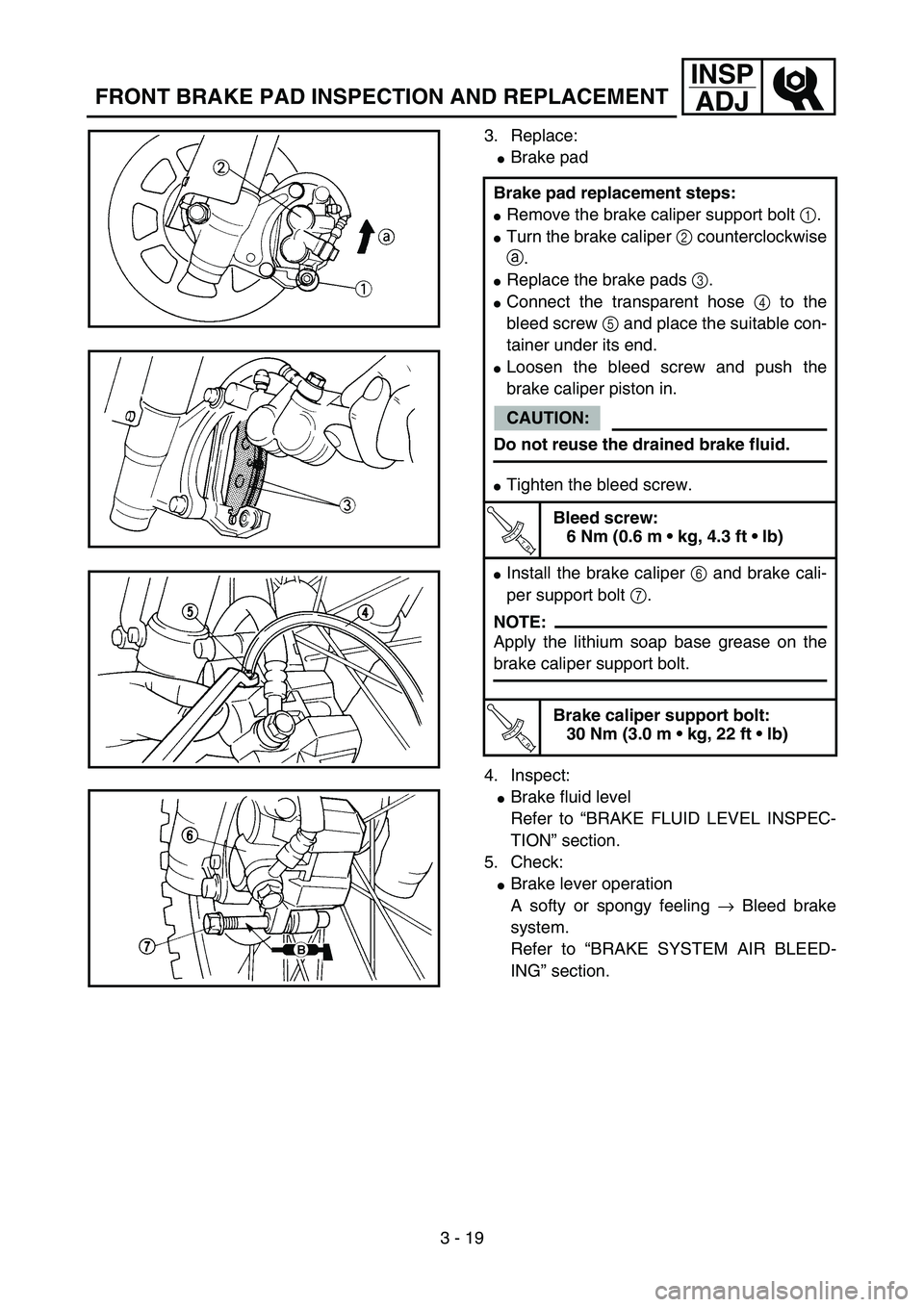

FRONT BRAKE PAD INSPECTION AND REPLACEMENT
3. Replace:

Brake pad
4. Inspect:

Brake fluid level
Refer to “BRAKE FLUID LEVEL INSPEC-
TION” section.
5. Check:

Brake lever operation
A softy or spongy feeling → Bleed brake
system.
Refer to “BRAKE SYSTEM AIR BLEED-
ING” section. Brake pad replacement steps:

Remove the brake caliper support bolt 1.

Turn the brake caliper 2 counterclockwise
a.

Replace the brake pads 3.

Connect the transparent hose 4 to the
bleed screw 5 and place the suitable con-
tainer under its end.

Loosen the bleed screw and push the
brake caliper piston in.
CAUTION:
Do not reuse the drained brake fluid.

Tighten the bleed screw.
T R..
Bleed screw:
6 Nm (0.6 m  kg, 4.3 ft  lb)

Install the brake caliper 6 and brake cali-
per support bolt 7.
NOTE:
Apply the lithium soap base grease on the
brake caliper support bolt.
T R..
Brake caliper support bolt:
30 Nm (3.0 m  kg, 22 ft  lb)
5PA30370
5PA30380
5PA30390
5PA30400

3 - 20
INSP
ADJ

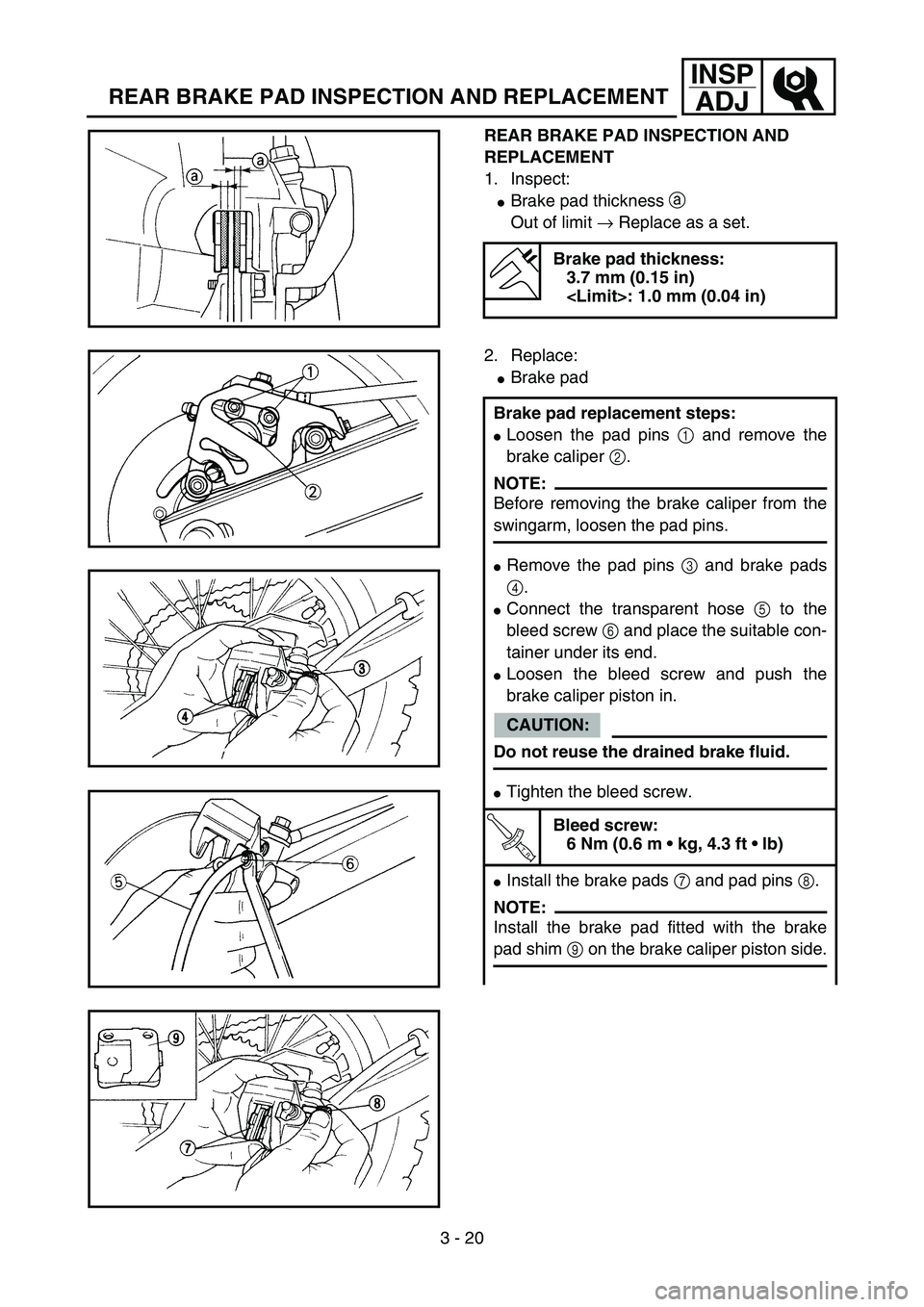

REAR BRAKE PAD INSPECTION AND REPLACEMENT
REAR BRAKE PAD INSPECTION AND
REPLACEMENT
1. Inspect:

Brake pad thickness a
Out of limit → Replace as a set.
Brake pad thickness:
3.7 mm (0.15 in)
: 1.0 mm (0.04 in)
5PA30410
2. Replace:

Brake pad
Brake pad replacement steps:

Loosen the pad pins 1 and remove the
brake caliper 2.
NOTE:
Before removing the brake caliper from the
swingarm, loosen the pad pins.

Remove the pad pins 3 and brake pads
4.

Connect the transparent hose 5 to the
bleed screw 6 and place the suitable con-
tainer under its end.

Loosen the bleed screw and push the
brake caliper piston in.
CAUTION:
Do not reuse the drained brake fluid.

Tighten the bleed screw.
T R..
Bleed screw:
6 Nm (0.6 m  kg, 4.3 ft  lb)

Install the brake pads 7 and pad pins 8.
NOTE:
Install the brake pad fitted with the brake
pad shim 9 on the brake caliper piston side.
5PA30420
5PA30430
5PA30440
5PA30450

3 - 21
INSP
ADJ
BRAKE FLUID LEVEL INSPECTION
3. Inspect:

Brake fluid level
Refer to “BRAKE FLUID LEVEL INSPEC-
TION” section.
4. Check:

Brake pedal operation
A softy or spongy feeling → Bleed brake
system.
Refer to “BRAKE SYSTEM AIR BLEED-
ING” section.

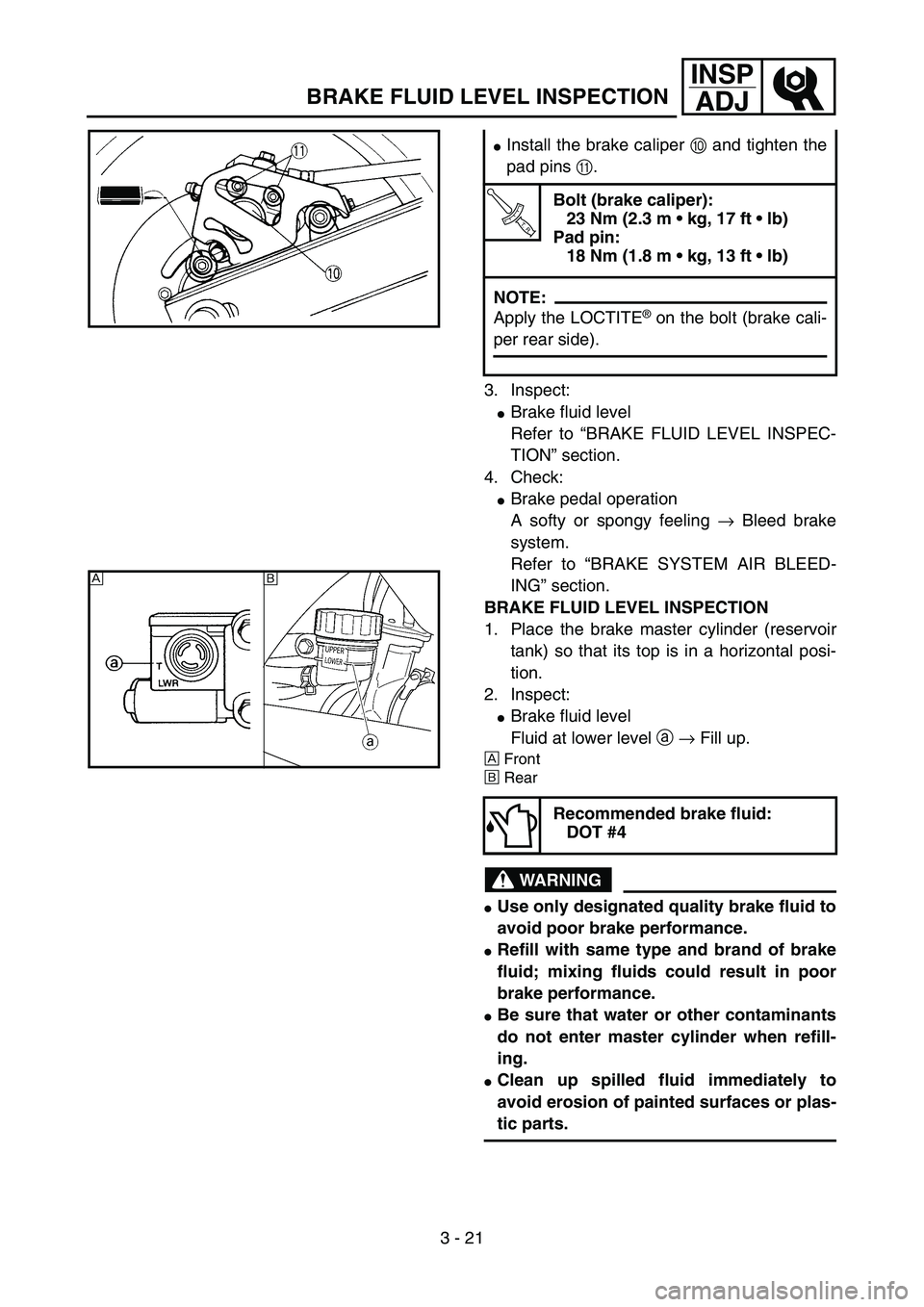

BRAKE FLUID LEVEL INSPECTION
1. Place the brake master cylinder (reservoir
tank) so that its top is in a horizontal posi-
tion.
2. Inspect:

Brake fluid level
Fluid at lower level a → Fill up.
ÈFront
ÉRear
WARNING

Use only designated quality brake fluid to
avoid poor brake performance.

Refill with same type and brand of brake
fluid; mixing fluids could result in poor
brake performance.

Be sure that water or other contaminants
do not enter master cylinder when refill-
ing.

Clean up spilled fluid immediately to
avoid erosion of painted surfaces or plas-
tic parts.

Install the brake caliper 0 and tighten the
pad pins A.
T R..
Bolt (brake caliper):
23 Nm (2.3 m  kg, 17 ft  lb)
Pad pin:
18 Nm (1.8 m  kg, 13 ft  lb)
NOTE:
Apply the LOCTITE® on the bolt (brake cali-
per rear side).
Recommended brake fluid:
DOT #4
5PA30460
È
5PA30470
É

5 - 9
CHASFRONT BRAKE AND REAR BRAKE
EC5A0000

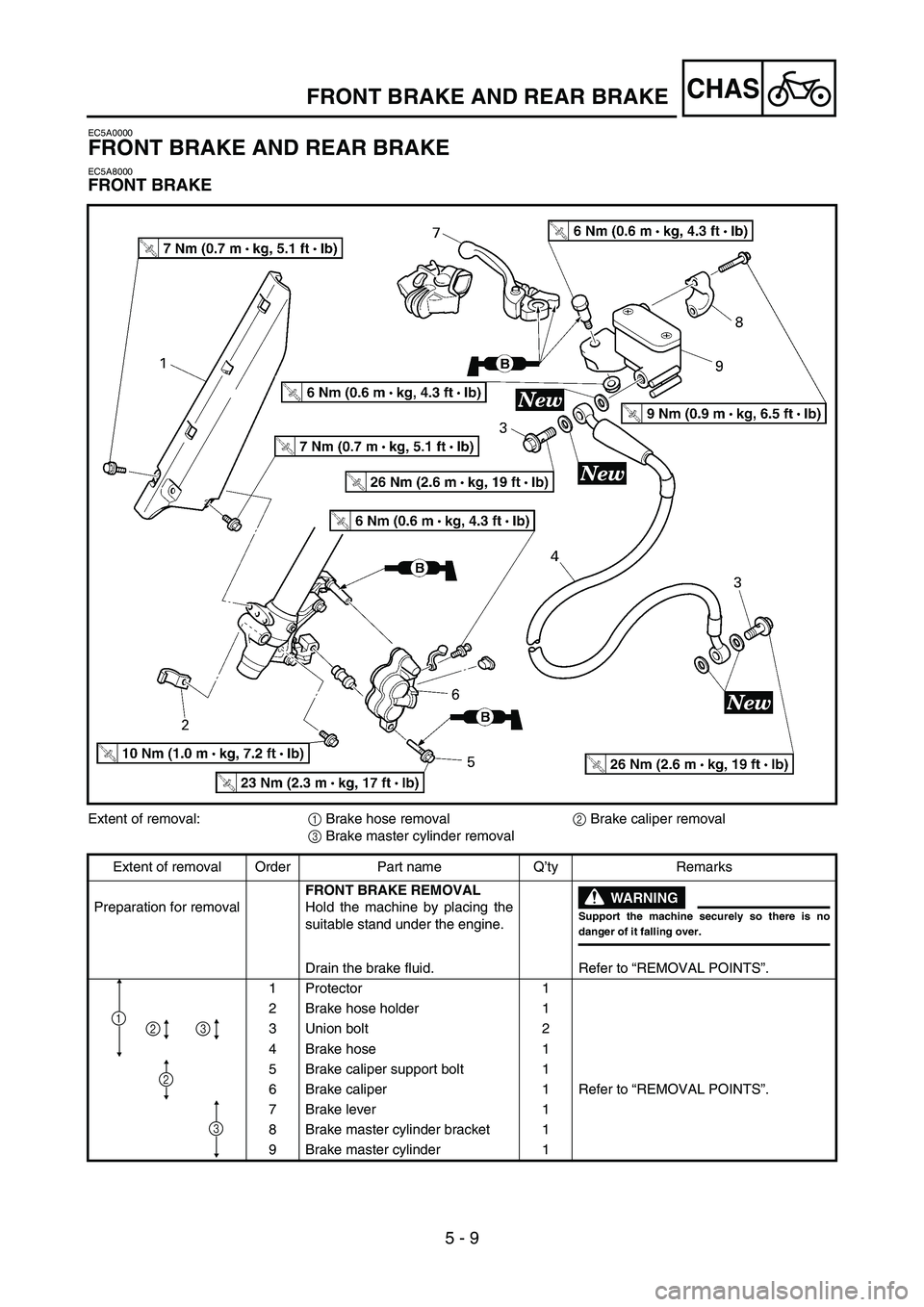

FRONT BRAKE AND REAR BRAKE
EC5A8000
FRONT BRAKE
5PA50250
Extent of removal:
1 Brake hose removal
2 Brake caliper removal
3 Brake master cylinder removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalFRONT BRAKE REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING
Support the machine securely so there is no
danger of it falling over.
Drain the brake fluid. Refer to “REMOVAL POINTS”.
1 Protector 1
2 Brake hose holder 1
3 Union bolt 2
4 Brake hose 1
5 Brake caliper support bolt 1
6 Brake caliper 1 Refer to “REMOVAL POINTS”.
7Brake lever 1
8 Brake master cylinder bracket 1
9 Brake master cylinder 1
2
3
132

5 - 10
CHAS
EC5A8100

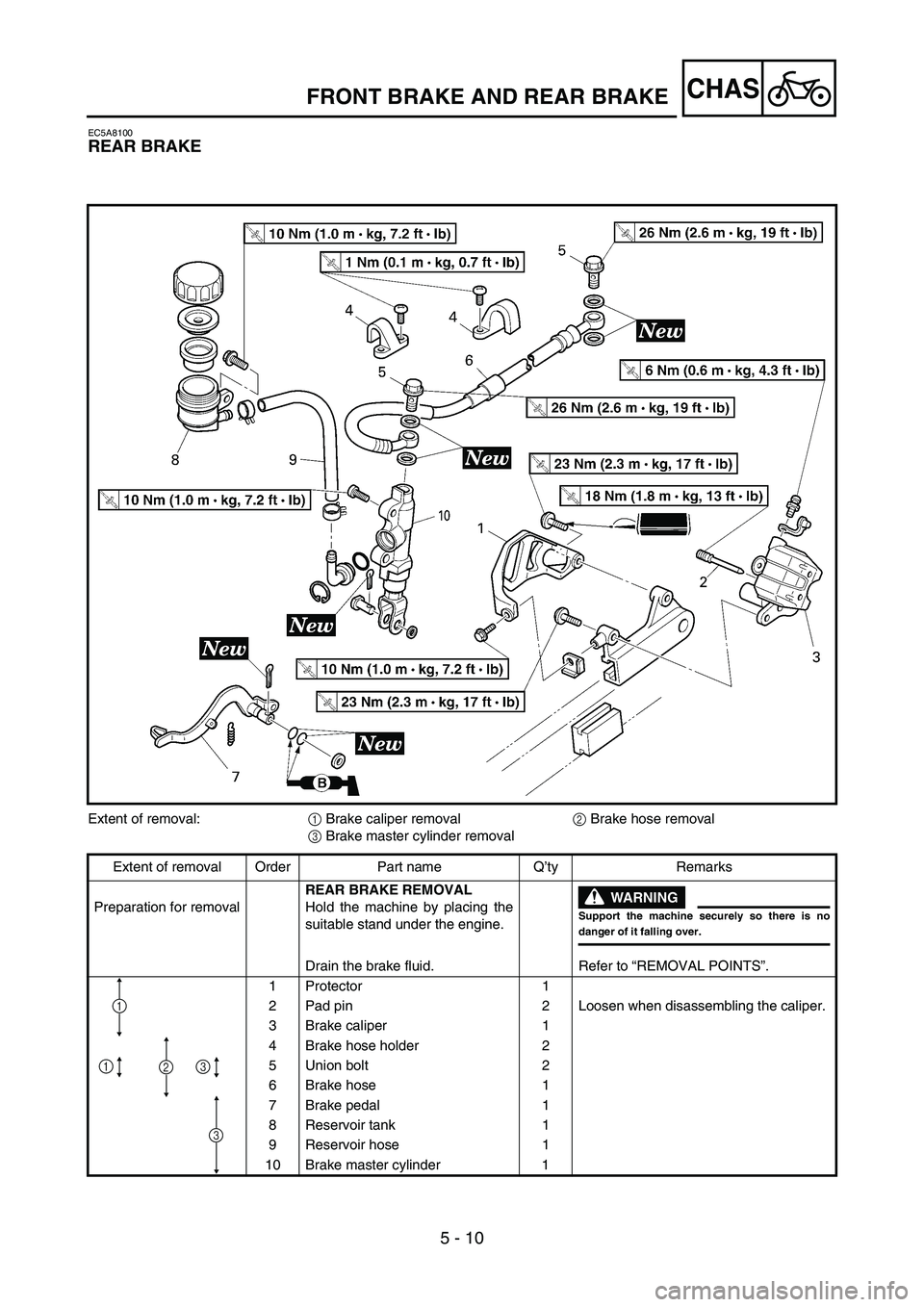

REAR BRAKE
5PAR0016
Extent of removal:
1 Brake caliper removal
2 Brake hose removal
3 Brake master cylinder removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalREAR BRAKE REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING
Support the machine securely so there is nodanger of it falling over.
Drain the brake fluid. Refer to “REMOVAL POINTS”.
1 Protector 1
2 Pad pin 2 Loosen when disassembling the caliper.
3 Brake caliper 1
4 Brake hose holder 2
5 Union bolt 2
6 Brake hose 1
7 Brake pedal 1
8 Reservoir tank 1
9 Reservoir hose 1
10 Brake master cylinder 1
3
1
321
FRONT BRAKE AND REAR BRAKE
