CHAPTER 5
CHASSIS
FRONT WHEEL AND REAR WHEEL....... 5-1
FRONT BRAKE AND REAR BRAKE....... 5-9
FRONT FORK.......................................... 5-27
HANDLEBAR........................................... 5-41
STEERING............................................... 5-46
SWINGARM............................................. 5-51
REAR SHOCK ABSORBER.................... 5-58
CHAPTER 6
ELECTRICAL
ELECTRICAL COMPONENTS
AND WIRING DIAGRAM........................... 6-1
IGNITION SYSTEM.................................... 6-2
CHAPTER 7
TUNING
ENGINE...................................................... 7-1
CHASSIS................................................. 7-10

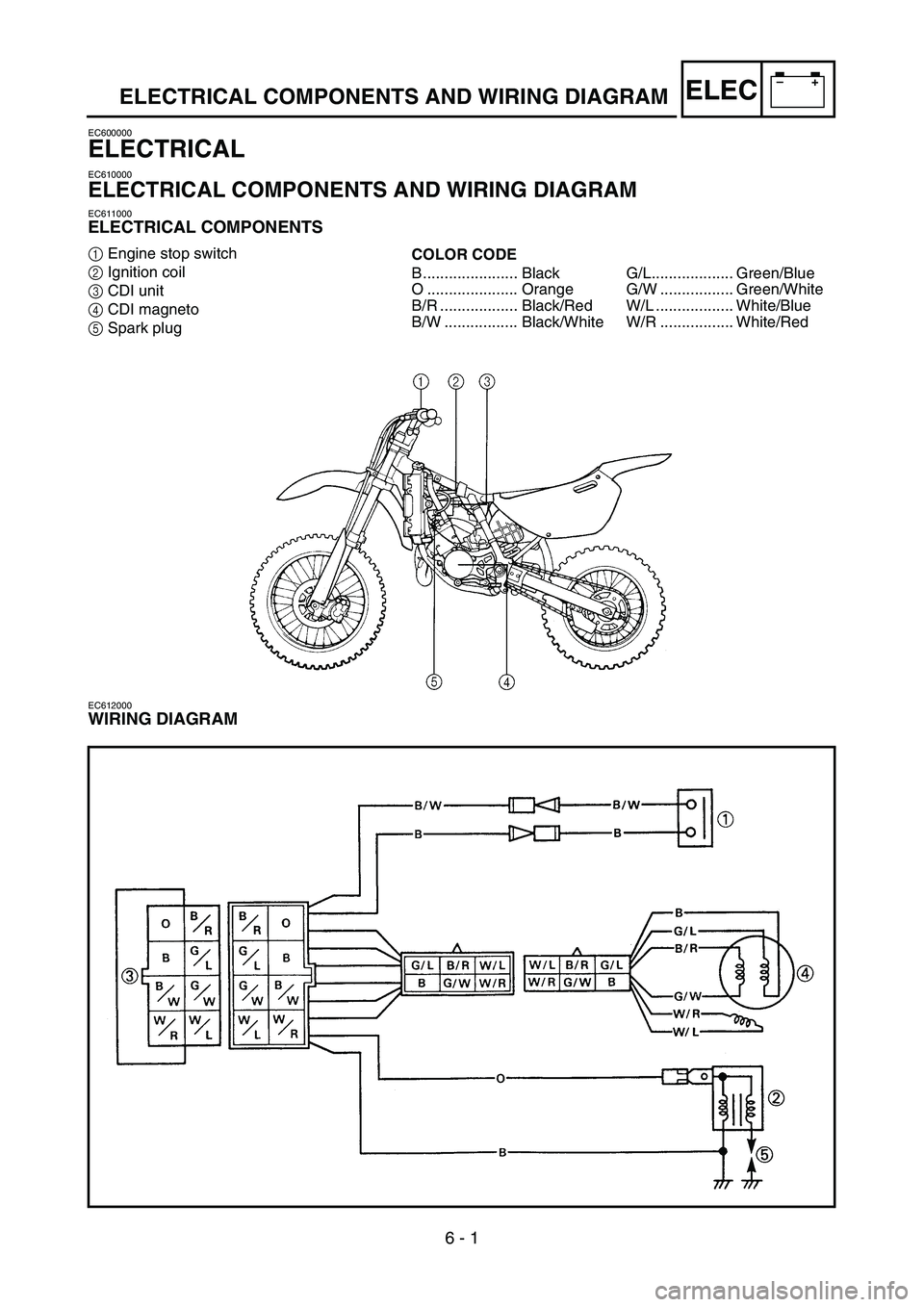

6 - 1
–+ELECELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1Engine stop switch
2Ignition coil
3CDI unit
4CDI magneto
5Spark plugCOLOR CODE
B ...................... Black
O ..................... Orange
B/R .................. Black/Red
B/W ................. Black/WhiteG/L................... Green/Blue
G/W ................. Green/White
W/L .................. White/Blue
W/R ................. White/Red
EC612000
WIRING DIAGRAM
5PA60010
5PA60020
