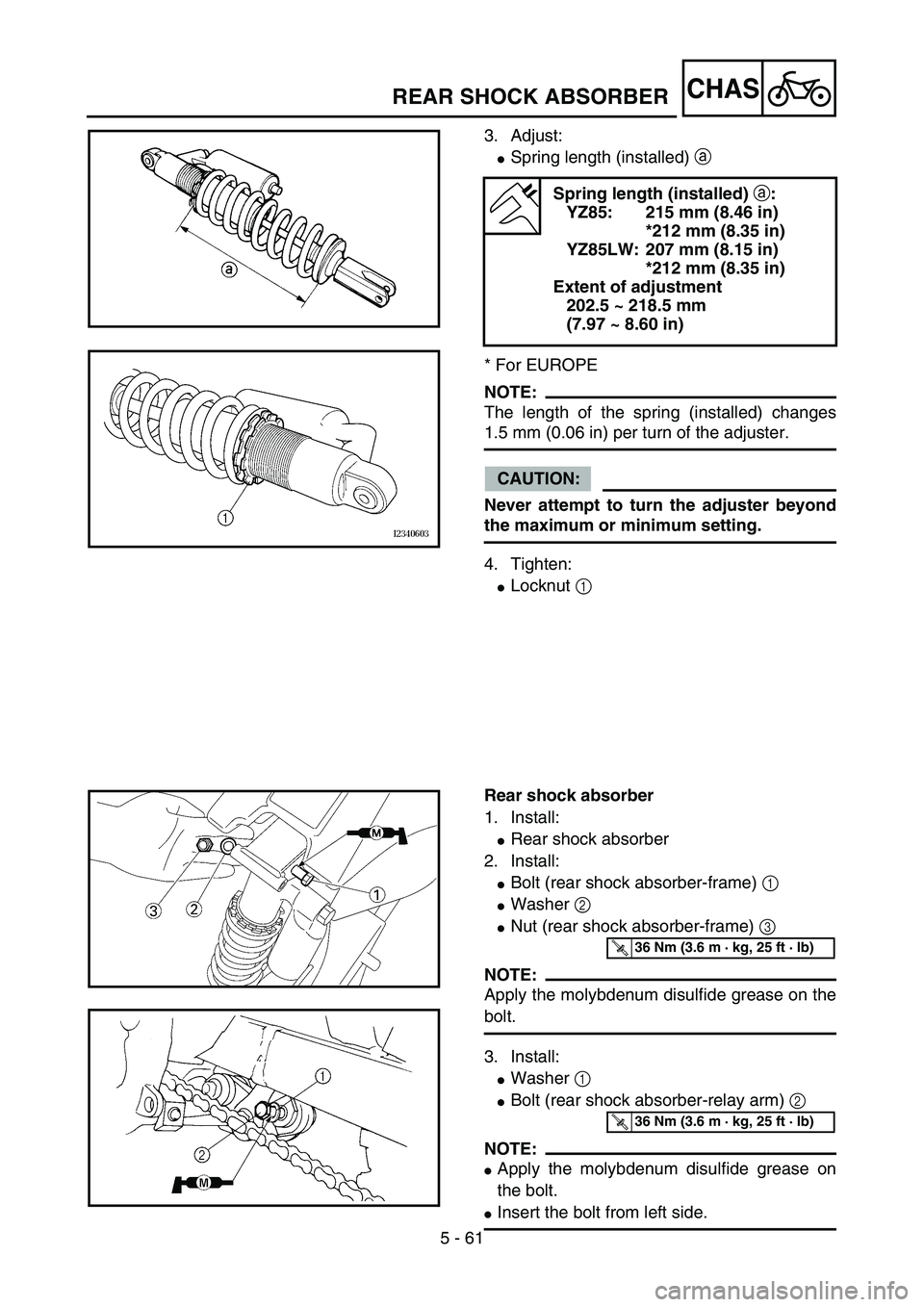

3. Adjust:

Spring length (installed) a
* For EUROPE
NOTE:
The length of the spring (installed) changes
1.5 mm (0.06 in) per turn of the adjuster.
CAUTION:
Never attempt to turn the adjuster beyond
the maximum or minimum setting.
4. Tighten:

Locknut 1
Spring length (installed) a:
YZ85: 215 mm (8.46 in)
*212 mm (8.35 in)
YZ85LW: 207 mm (8.15 in)
*212 mm (8.35 in)
Extent of adjustment
202.5 ~ 218.5 mm
(7.97 ~ 8.60 in)
5PA51920
5PA51930
Rear shock absorber
1. Install:

Rear shock absorber
2. Install:

Bolt (rear shock absorber-frame) 1

Washer 2

Nut (rear shock absorber-frame) 3
NOTE:
Apply the molybdenum disulfide grease on the
bolt.
3. Install:

Washer 1

Bolt (rear shock absorber-relay arm) 2
NOTE:

Apply the molybdenum disulfide grease on
the bolt.

Insert the bolt from left side.
5PA51940
T R..36 Nm (3.6 m · kg, 25 ft · lb)
5PA51950
T R..36 Nm (3.6 m · kg, 25 ft · lb)
