EC0A0000
CONTENTS
CHAPTER 1
GENERAL INFORMATION
DESCRIPTION
........................................... 1-1
MACHINE IDENTIFICATION
..................... 1-2
IMPORTANT INFORMATION
.................... 1-3
CHECKING OF CONNECTION
................. 1-6
SPECIAL TOOLS
...................................... 1-7
CONTROL FUNCTIONS
............................ 1-9
FUEL AND ENGINE MIXING OIL
............ 1-13
STARTING AND BREAK-IN
.................... 1-14
TORQUE-CHECK POINTS
...................... 1-17
CLEANING AND STORAGE
................... 1-18
CHAPTER 2
SPECIFICATIONS
GENERAL SPECIFICATIONS
................... 2-1
MAINTENANCE SPECIFICATIONS
.......... 2-4
ENGINE
................................................... 2-4
CHASSIS
................................................. 2-8
YZ85
..................................................... 2-8
YZ85LW
.............................................. 2-10
ELECTRICAL
........................................ 2-14
GENERAL TORQUE
SPECIFICATIONS
................................... 2-15
DEFINITION OF UNITS
........................... 2-15
CABLE ROUTING DIAGRAM
................. 2-16

GEN
INFO
1 - 8
SPECIAL TOOLS
YU-33975, 90890-01403 Steering nut wrench
This tool is used when tighten the steering ring nut to
specification.YU-33975 90890-01403
YM-01434, 90890-01434 Rod holder
This tool is used to hold the fork spring.YM-01434 90890-01434
YM-01437, 90890-01437
90890-01436Rod puller
Rod puller attachment (M10)
These tools are used to pull up the fork damper rod.YM-01437 90890-01437
90890-01436
YM-01442, 90890-01442 Fork seal driver
This tool is used when install the fork oil seal.YM-01442 90890-01442
YM-01454, 90890-01454 Damper rod holder
Use this tool to remove and install the damper rod.YM-01454 90890-01454
YM-01495, 90890-01495 Drive gear holder
This tool is used when removing or tightening the pri-
mary drive gear securing nut.YM-01495 90890-01495
YU-3112-C, 90890-03112 Pocket tester
Use this tool to inspect the coil resistance, output
voltage and amperage.YU-3112-C 90890-03112
YM-91042, 90890-04086 Clutch holding tool
This tool is used to hold the clutch when removing or
installing the clutch boss securing nut.YM-91042 90890-04086
YM-34487
90890-06754Dynamic spark tester
Ignition checker
This instrument is necessary for checking the ignition
system components.YM-34487 90890-06754
ACC-QUICK-GS-KT
90890-85505Quick gasket

YAMAHA Bond No. 1215
This sealant (Bond) is used for crankcase mating sur-
face, etc.ACC-QUICK-GS-KT 90890-85505
Part number Tool name/How to use Illustration

1 - 15
GEN
INFO

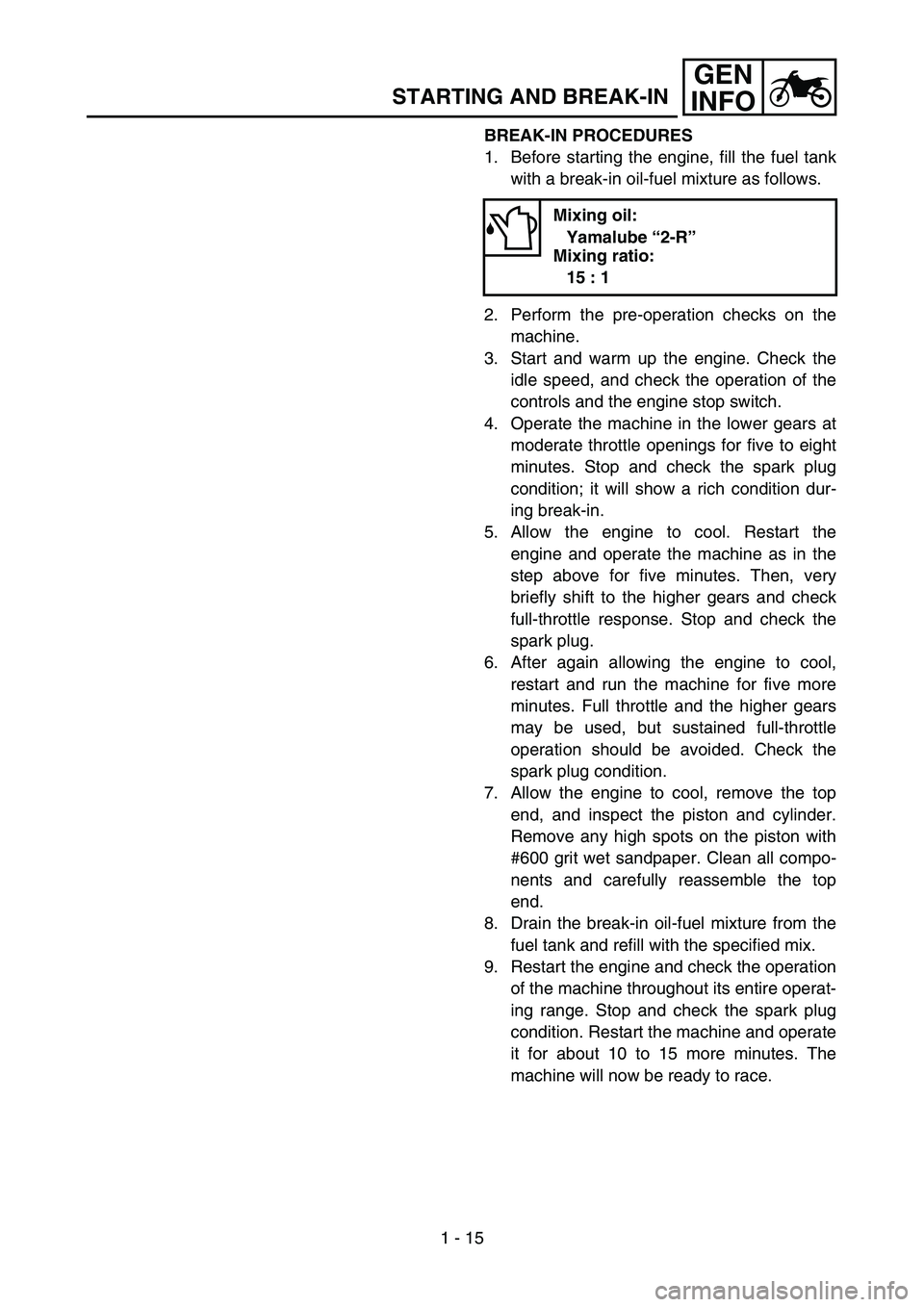

STARTING AND BREAK-IN
BREAK-IN PROCEDURES
1. Before starting the engine, fill the fuel tank
with a break-in oil-fuel mixture as follows.
2. Perform the pre-operation checks on the
machine.
3. Start and warm up the engine. Check the
idle speed, and check the operation of the
controls and the engine stop switch.
4. Operate the machine in the lower gears at
moderate throttle openings for five to eight
minutes. Stop and check the spark plug
condition; it will show a rich condition dur-
ing break-in.
5. Allow the engine to cool. Restart the
engine and operate the machine as in the
step above for five minutes. Then, very
briefly shift to the higher gears and check
full-throttle response. Stop and check the
spark plug.
6. After again allowing the engine to cool,
restart and run the machine for five more
minutes. Full throttle and the higher gears
may be used, but sustained full-throttle
operation should be avoided. Check the
spark plug condition.
7. Allow the engine to cool, remove the top
end, and inspect the piston and cylinder.
Remove any high spots on the piston with
#600 grit wet sandpaper. Clean all compo-
nents and carefully reassemble the top
end.
8. Drain the break-in oil-fuel mixture from the
fuel tank and refill with the specified mix.
9. Restart the engine and check the operation
of the machine throughout its entire operat-
ing range. Stop and check the spark plug
condition. Restart the machine and operate
it for about 10 to 15 more minutes. The
machine will now be ready to race.
Mixing oil:
Yamalube “2-R”
Mixing ratio:
15 : 1

3 - 1
INSP
ADJ

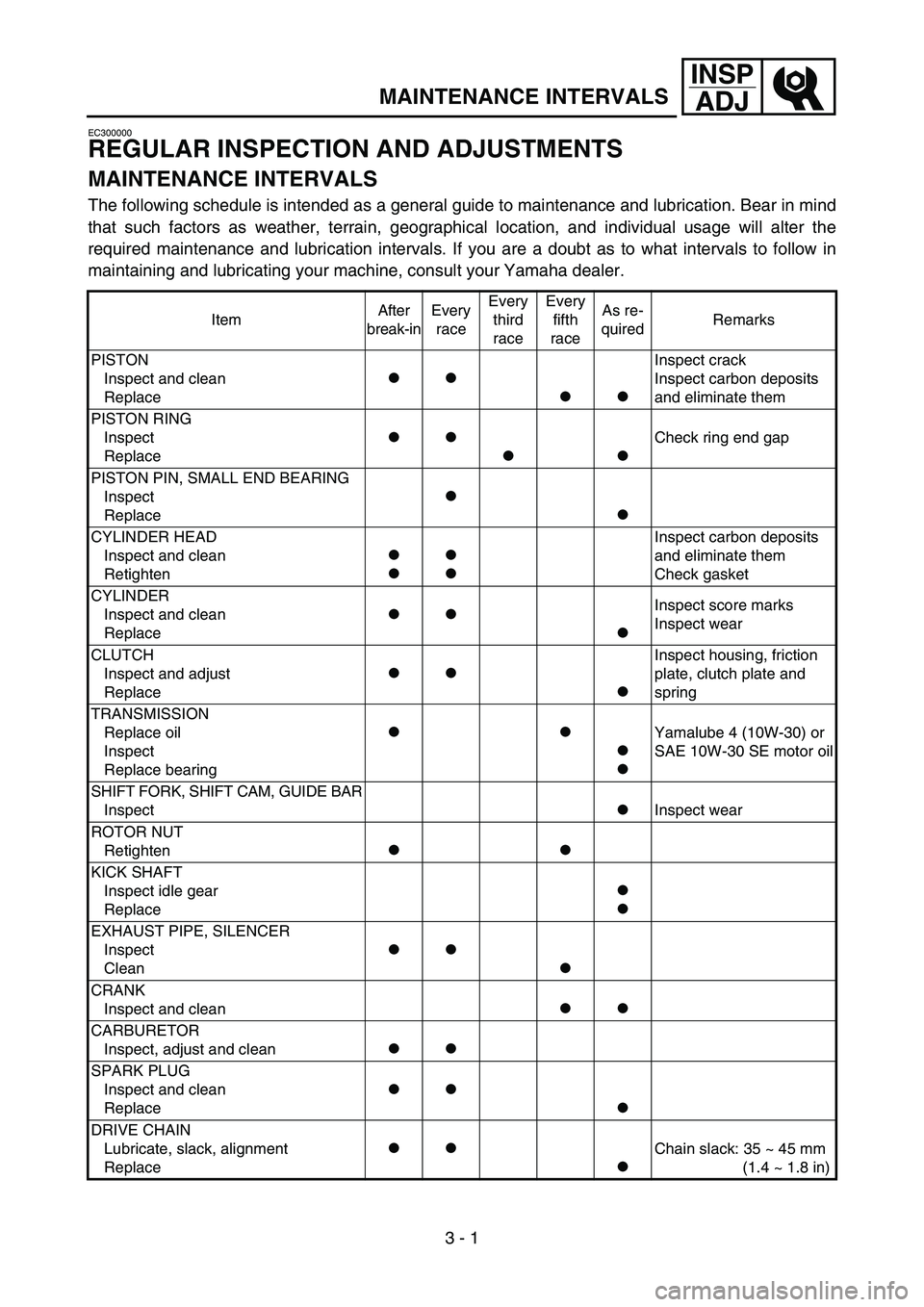

MAINTENANCE INTERVALS
EC300000
REGULAR INSPECTION AND ADJUSTMENTS
MAINTENANCE INTERVALS
The following schedule is intended as a general guide to maintenance and lubrication. Bear in mind
that such factors as weather, terrain, geographical location, and individual usage will alter the
required maintenance and lubrication intervals. If you are a doubt as to what intervals to follow in
maintaining and lubricating your machine, consult your Yamaha dealer.
ItemAfter
break-inEvery
raceEvery
third
raceEvery
fifth
raceAs re-
quiredRemarks
PISTON
Inspect and clean
Replace







Inspect crack
Inspect carbon deposits
and eliminate them
PISTON RING
Inspect
Replace





Check ring end gap
PISTON PIN, SMALL END BEARING
Inspect
Replace




CYLINDER HEAD
Inspect and clean
Retighten







Inspect carbon deposits
and eliminate them
Check gasket
CYLINDER
Inspect and clean
Replace




Inspect score marks
Inspect wear
CLUTCH
Inspect and adjust
Replace





Inspect housing, friction
plate, clutch plate and
spring
TRANSMISSION
Replace oil
Inspect
Replace bearing






Yamalube 4 (10W-30) or
SAE 10W-30 SE motor oil
SHIFT FORK, SHIFT CAM, GUIDE BAR
Inspect

Inspect wear
ROTOR NUT
Retighten




KICK SHAFT
Inspect idle gear
Replace




EXHAUST PIPE, SILENCER
Inspect
Clean





CRANK
Inspect and clean



CARBURETOR
Inspect, adjust and clean



SPARK PLUG
Inspect and clean
Replace





DRIVE CHAIN
Lubricate, slack, alignment
Replace




Chain slack: 35 ~ 45 mm
(1.4 ~ 1.8 in)

3 - 2
INSP
ADJ
MAINTENANCE INTERVALS
COOLING SYSTEM
Check coolant level and leakage
Check radiator cap operation
Replace coolant
Inspect hoses








Every two years
OUTSIDE NUTS AND BOLTS
Retighten



AIR FILTER
Clean and lubricate
Replace




Use foam air-filter oil or
equivalent oil
FRAME
Clean and inspect



FUEL TANK, COCK
Clean and inspect



BRAKES
Adjust lever position and pedal height
Lubricate pivot point
Check brake disc surface
Check fluid level and leakage
Retighten brake disc bolts, caliper
bolts, master cylinder bolts and union
bolts
Replace pads
Replace brake fluid























Every one year
FRONT FORKS
Inspect and adjust
Replace oil
Replace oil seal









Suspension oil “01”
FRONT FORK OIL SEAL AND DUST
SEAL
Clean and lube


Lithium base grease
REAR SHOCK ABSORBER
Inspect and adjust
Lube
Retighten







(After
rain ride)


Molybdenum disulfide
grease
DRIVE CHAIN GUIDE, ROLLERS AND
SUPPORT
Inspect


SWINGARM
Inspect and retighten
Lube







Molybdenum disulfide
grease
RELAY ARM, CONNECTING ROD
Inspect and retighten
Lube







Molybdenum disulfide
grease
STEERING HEAD
Inspect free play and retighten
Clean and lube
Replace bearing







Lithium base grease ItemAfter
break-inEvery
raceEvery
third
raceEvery
fifth
raceAs re-
quiredRemarks
1
2
3
4
5
6
7

3 - 3
INSP
ADJ
MAINTENANCE INTERVALS

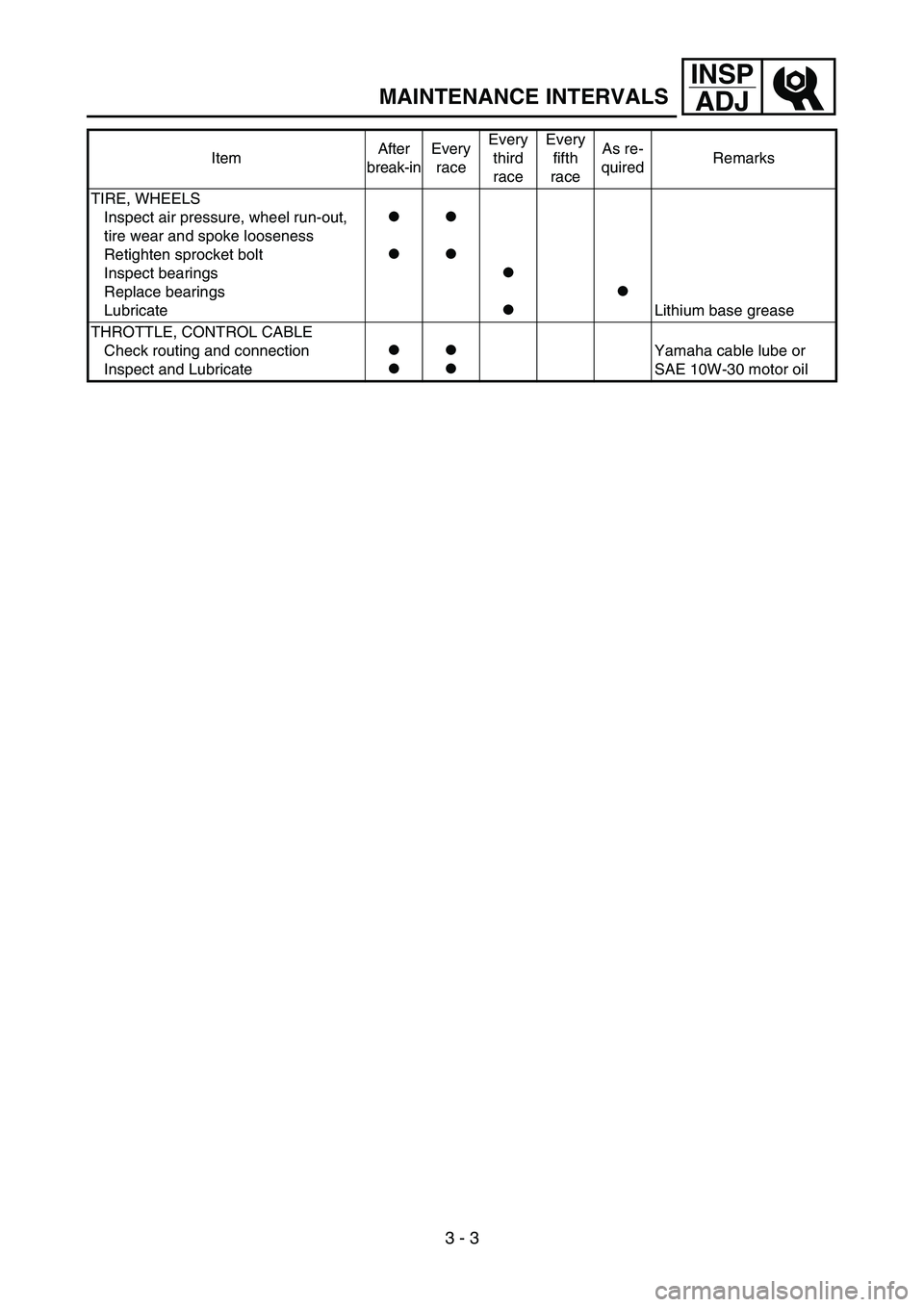

TIRE, WHEELS
Inspect air pressure, wheel run-out,
tire wear and spoke looseness
Retighten sprocket bolt
Inspect bearings
Replace bearings
Lubricate












Lithium base grease
THROTTLE, CONTROL CABLE
Check routing and connection
Inspect and Lubricate






Yamaha cable lube or
SAE 10W-30 motor oil ItemAfter
break-inEvery
raceEvery
third
raceEvery
fifth
raceAs re-
quiredRemarks

3 - 4
INSP
ADJ

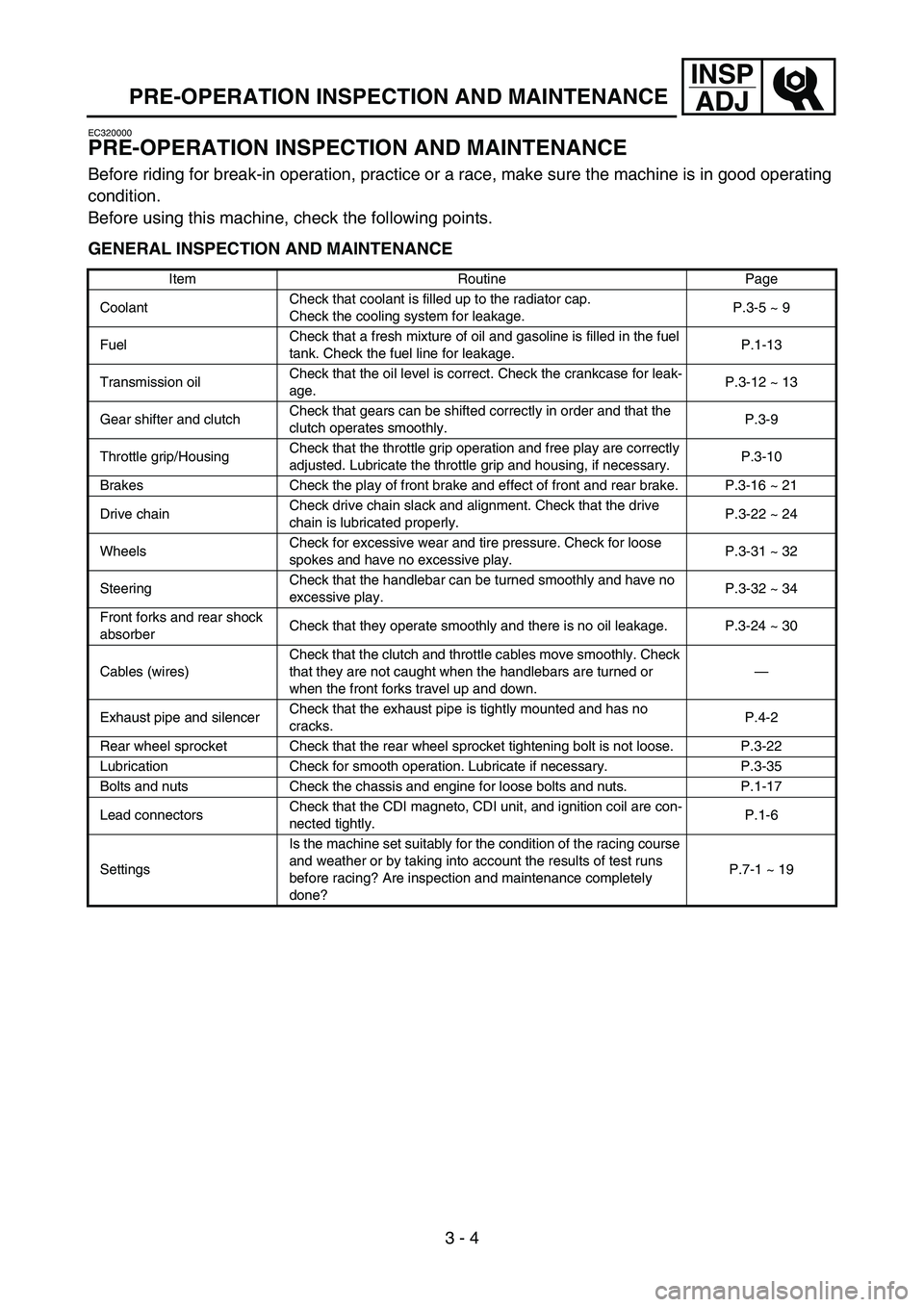

PRE-OPERATION INSPECTION AND MAINTENANCE
EC320000
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation, practice or a race, make sure the machine is in good operating
condition.
Before using this machine, check the following points.
GENERAL INSPECTION AND MAINTENANCE
Item Routine Page
CoolantCheck that coolant is filled up to the radiator cap.
Check the cooling system for leakage.P.3-5 ~ 9
FuelCheck that a fresh mixture of oil and gasoline is filled in the fuel
tank. Check the fuel line for leakage.P.1-13
Transmission oilCheck that the oil level is correct. Check the crankcase for leak-
age.P.3-12 ~ 13
Gear shifter and clutchCheck that gears can be shifted correctly in order and that the
clutch operates smoothly.P.3-9
Throttle grip/HousingCheck that the throttle grip operation and free play are correctly
adjusted. Lubricate the throttle grip and housing, if necessary.P.3-10
Brakes Check the play of front brake and effect of front and rear brake. P.3-16 ~ 21
Drive chainCheck drive chain slack and alignment. Check that the drive
chain is lubricated properly.P.3-22 ~ 24
WheelsCheck for excessive wear and tire pressure. Check for loose
spokes and have no excessive play.P.3-31 ~ 32
SteeringCheck that the handlebar can be turned smoothly and have no
excessive play.P.3-32 ~ 34
Front forks and rear shock
absorberCheck that they operate smoothly and there is no oil leakage. P.3-24 ~ 30
Cables (wires)Check that the clutch and throttle cables move smoothly. Check
that they are not caught when the handlebars are turned or
when the front forks travel up and down.—
Exhaust pipe and silencerCheck that the exhaust pipe is tightly mounted and has no
cracks.P.4-2
Rear wheel sprocket Check that the rear wheel sprocket tightening bolt is not loose. P.3-22
Lubrication Check for smooth operation. Lubricate if necessary. P.3-35
Bolts and nuts Check the chassis and engine for loose bolts and nuts. P.1-17
Lead connectorsCheck that the CDI magneto, CDI unit, and ignition coil are con-
nected tightly.P.1-6
SettingsIs the machine set suitably for the condition of the racing course
and weather or by taking into account the results of test runs
before racing? Are inspection and maintenance completely
done?P.7-1 ~ 19

3 - 7
INSP
ADJ

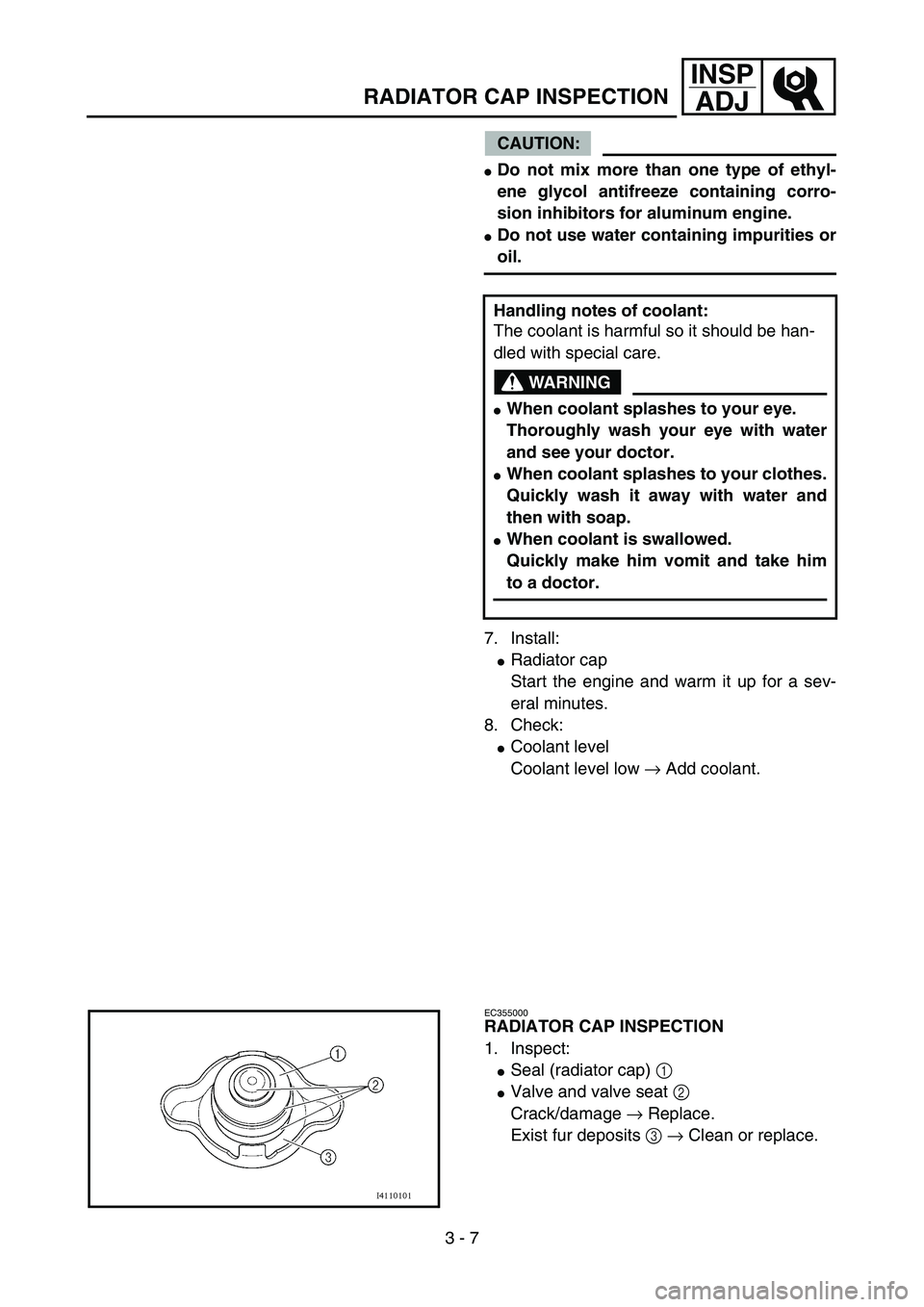

RADIATOR CAP INSPECTION
CAUTION:

Do not mix more than one type of ethyl-
ene glycol antifreeze containing corro-
sion inhibitors for aluminum engine.

Do not use water containing impurities or
oil.
7. Install:

Radiator cap
Start the engine and warm it up for a sev-
eral minutes.
8. Check:

Coolant level
Coolant level low → Add coolant. Handling notes of coolant:
The coolant is harmful so it should be han-
dled with special care.
WARNING

When coolant splashes to your eye.
Thoroughly wash your eye with water
and see your doctor.

When coolant splashes to your clothes.
Quickly wash it away with water and
then with soap.

When coolant is swallowed.
Quickly make him vomit and take him
to a doctor.
EC355000
RADIATOR CAP INSPECTION
1. Inspect:

Seal (radiator cap) 1

Valve and valve seat 2
Crack/damage → Replace.
Exist fur deposits 3 → Clean or replace.
5PA30050

3 - 13
INSP
ADJ

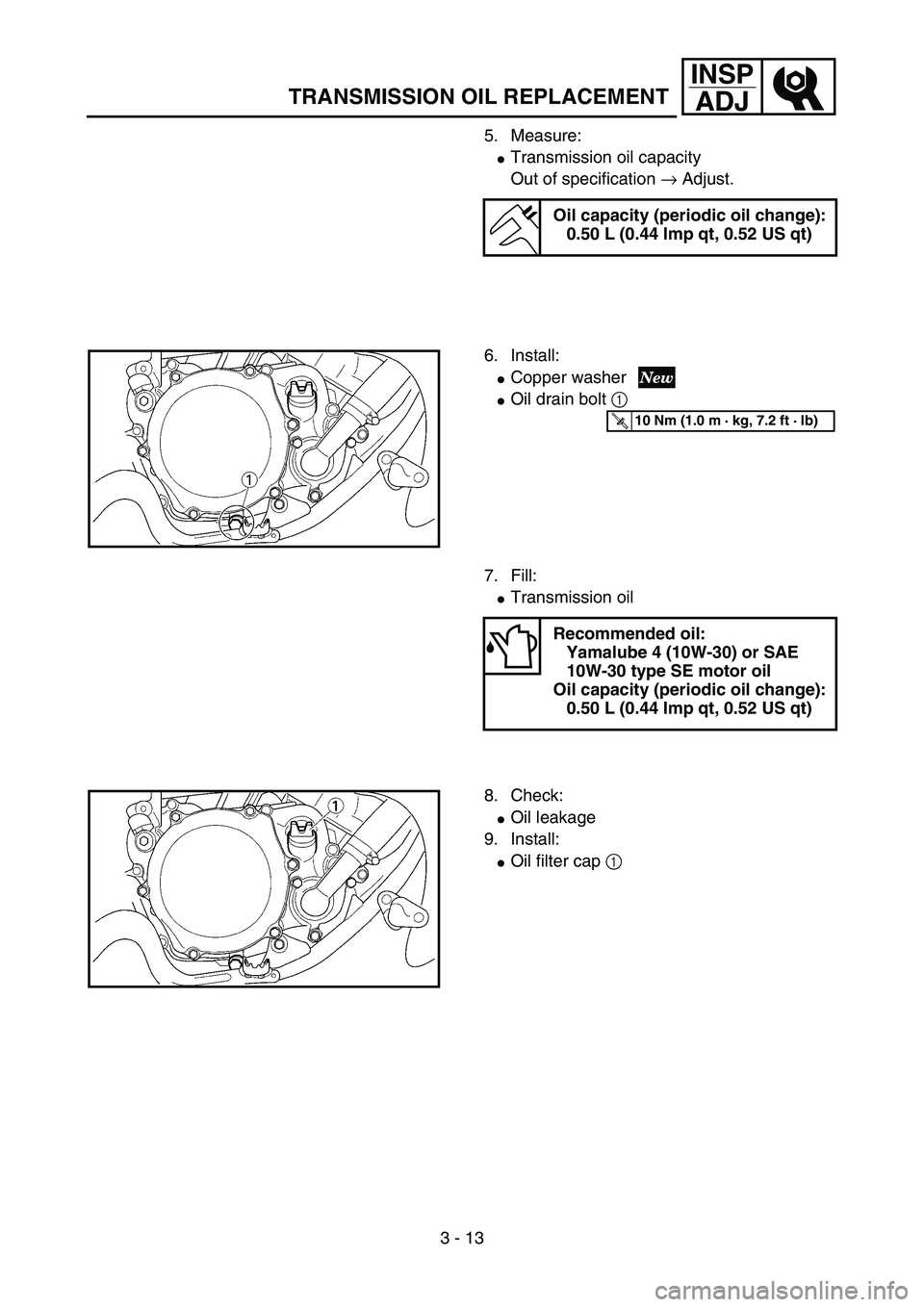

TRANSMISSION OIL REPLACEMENT
5. Measure:

Transmission oil capacity
Out of specification → Adjust.
Oil capacity (periodic oil change):
0.50 L (0.44 Imp qt, 0.52 US qt)
6. Install:

Copper washer

Oil drain bolt 1
5PA30210
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
7. Fill:

Transmission oil
Recommended oil:
Yamalube 4 (10W-30) or SAE
10W-30 type SE motor oil
Oil capacity (periodic oil change):
0.50 L (0.44 Imp qt, 0.52 US qt)
8. Check:

Oil leakage
9. Install:

Oil filter cap 1
5PA30220

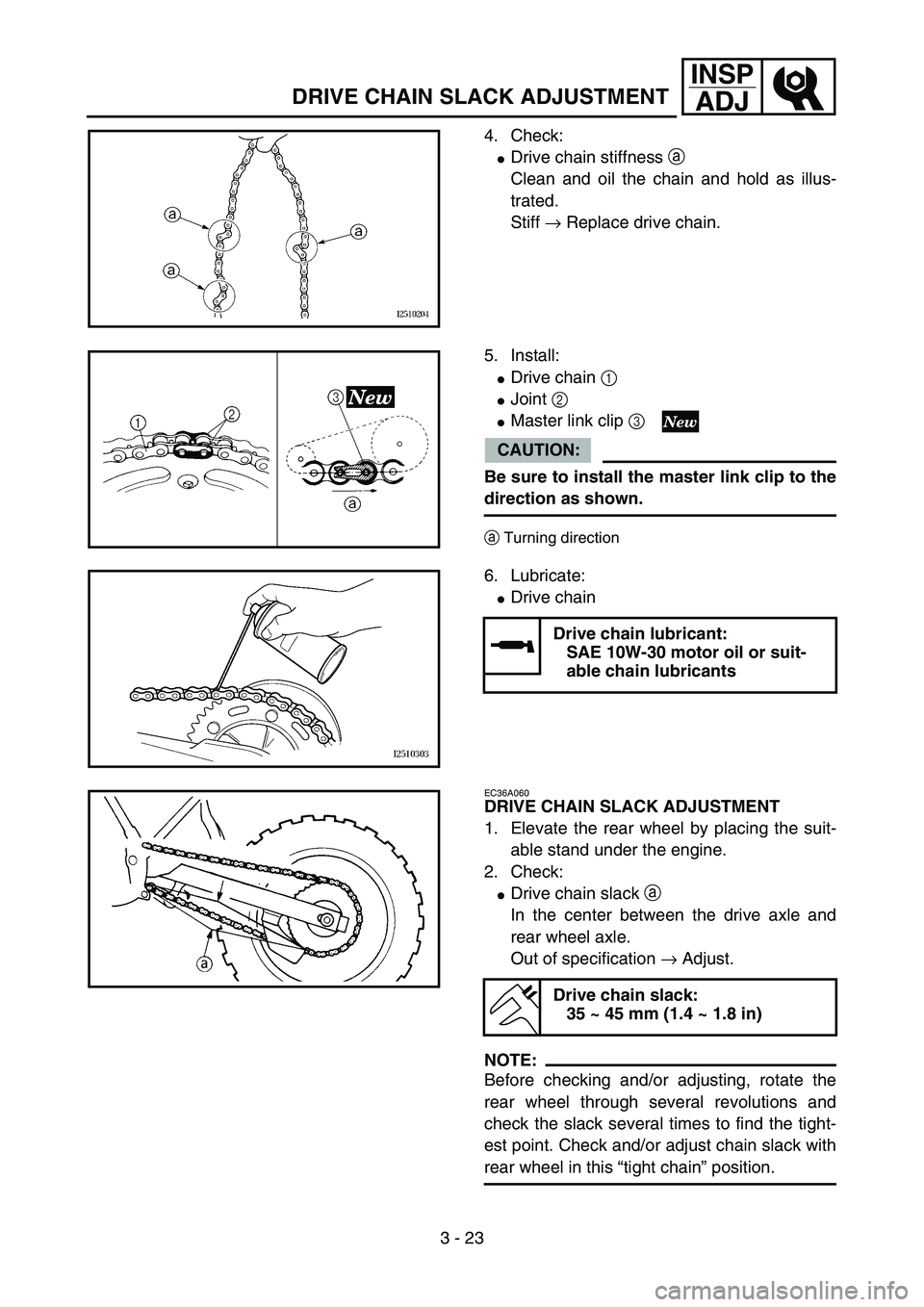

3 - 23
INSP
ADJ
DRIVE CHAIN SLACK ADJUSTMENT
4. Check:

Drive chain stiffness a
Clean and oil the chain and hold as illus-
trated.
Stiff → Replace drive chain.
5PA30520
5. Install:

Drive chain 1

Joint 2

Master link clip 3
CAUTION:
Be sure to install the master link clip to the
direction as shown.
aTurning direction5PA30530
6. Lubricate:

Drive chain
Drive chain lubricant:
SAE 10W-30 motor oil or suit-
able chain lubricants
5PA30540
EC36A060
DRIVE CHAIN SLACK ADJUSTMENT
1. Elevate the rear wheel by placing the suit-
able stand under the engine.
2. Check:

Drive chain slack a
In the center between the drive axle and
rear wheel axle.
Out of specification → Adjust.
NOTE:
Before checking and/or adjusting, rotate the
rear wheel through several revolutions and
check the slack several times to find the tight-
est point. Check and/or adjust chain slack with
rear wheel in this “tight chain” position.
Drive chain slack:
35 ~ 45 mm (1.4 ~ 1.8 in)
5PA30550
