YAMAHA YZ85 2011 Service Manual

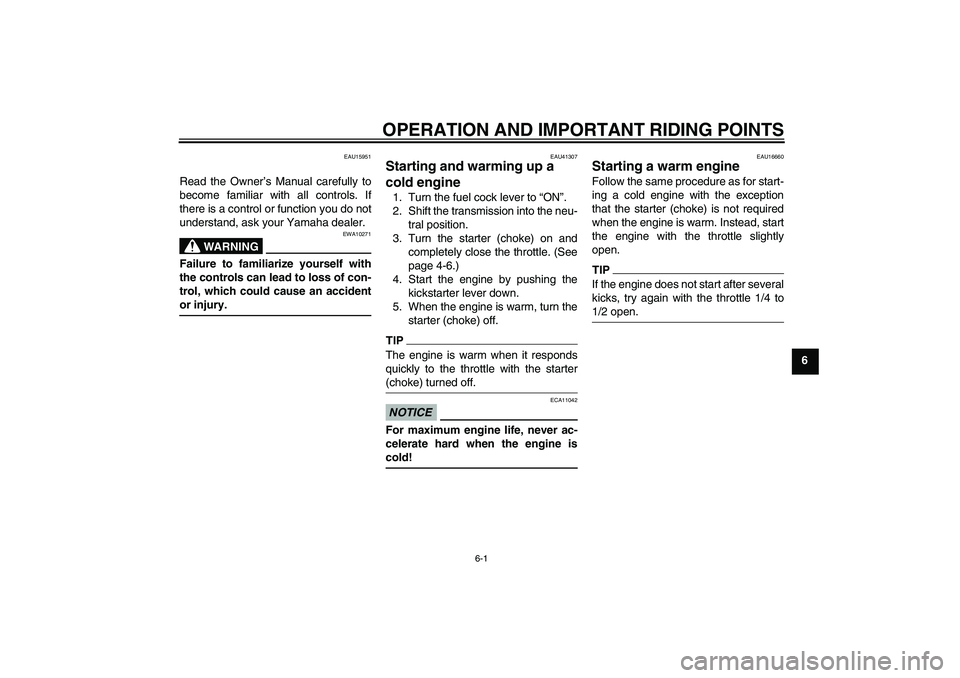

OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU41307
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Shift the transmission into the neu-
tral position.
3. Turn the starter (choke) on and
completely close the throttle. (See
page 4-6.)
4. Start the engine by pushing the
kickstarter lever down.
5. When the engine is warm, turn the
starter (choke) off.TIPThe engine is warm when it responds
quickly to the throttle with the starter
(choke) turned off.NOTICE
ECA11042
For maximum engine life, never ac-
celerate hard when the engine is
cold!
EAU16660
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm. Instead, start
the engine with the throttle slightly
open.TIPIf the engine does not start after several
kicks, try again with the throttle 1/4 to
1/2 open.
U5PA89E0.book Page 1 Tuesday, June 15, 2010 10:34 AM

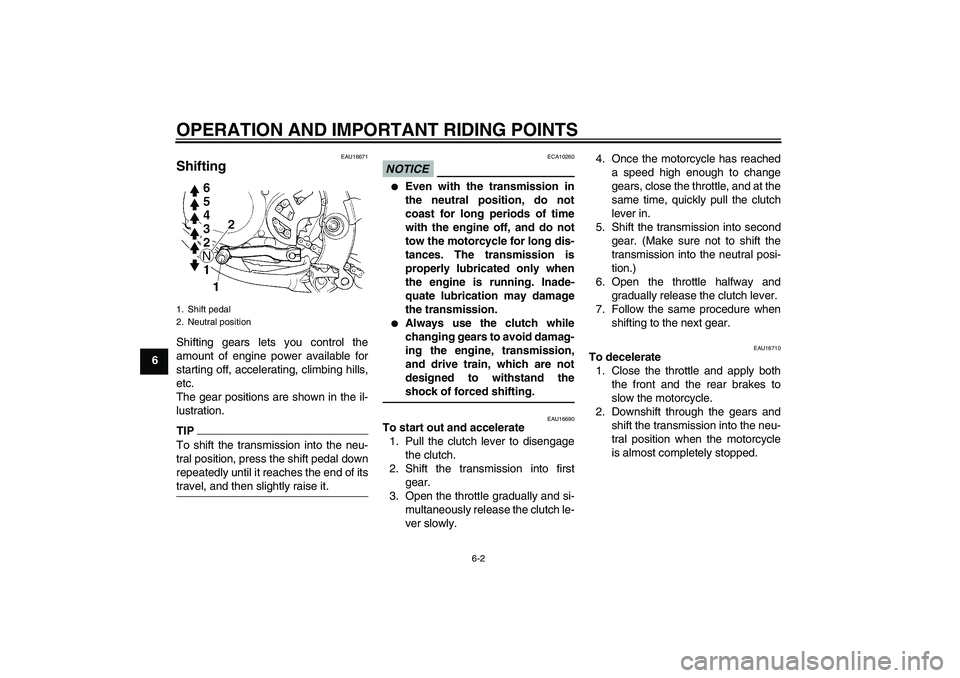

OPERATION AND IMPORTANT RIDING POINTS
6-2
6
EAU16671
Shifting Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
NOTICE
ECA10260


Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.


Always use the clutch while
changing gears to avoid damag-
ing the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
EAU16690
To start out and accelerate
1. Pull the clutch lever to disengage
the clutch.
2. Shift the transmission into first
gear.
3. Open the throttle gradually and si-
multaneously release the clutch le-
ver slowly.4. Once the motorcycle has reached
a speed high enough to change
gears, close the throttle, and at the
same time, quickly pull the clutch
lever in.
5. Shift the transmission into second
gear. (Make sure not to shift the
transmission into the neutral posi-
tion.)
6. Open the throttle halfway and
gradually release the clutch lever.
7. Follow the same procedure when
shifting to the next gear.
EAU16710
To decelerate
1. Close the throttle and apply both
the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and
shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
1. Shift pedal
2. Neutral positionU5PA89E0.book Page 2 Tuesday, June 15, 2010 10:34 AM

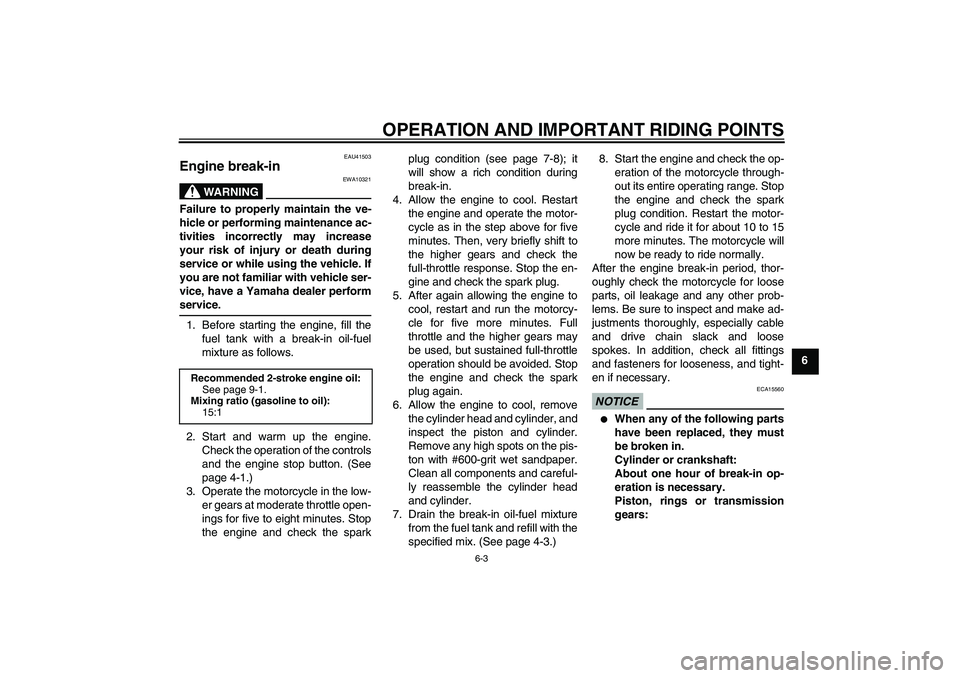

OPERATION AND IMPORTANT RIDING POINTS
6-3
6
EAU41503
Engine break-in
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.1. Before starting the engine, fill the
fuel tank with a break-in oil-fuel
mixture as follows.
2. Start and warm up the engine.
Check the operation of the controls
and the engine stop button. (See
page 4-1.)
3. Operate the motorcycle in the low-
er gears at moderate throttle open-
ings for five to eight minutes. Stop
the engine and check the sparkplug condition (see page 7-8); it
will show a rich condition during
break-in.
4. Allow the engine to cool. Restart
the engine and operate the motor-
cycle as in the step above for five
minutes. Then, very briefly shift to
the higher gears and check the
full-throttle response. Stop the en-
gine and check the spark plug.
5. After again allowing the engine to
cool, restart and run the motorcy-
cle for five more minutes. Full
throttle and the higher gears may
be used, but sustained full-throttle
operation should be avoided. Stop
the engine and check the spark
plug again.
6. Allow the engine to cool, remove
the cylinder head and cylinder, and
inspect the piston and cylinder.
Remove any high spots on the pis-
ton with #600-grit wet sandpaper.
Clean all components and careful-
ly reassemble the cylinder head
and cylinder.
7. Drain the break-in oil-fuel mixture
from the fuel tank and refill with the
specified mix. (See page 4-3.)8. Start the engine and check the op-
eration of the motorcycle through-
out its entire operating range. Stop
the engine and check the spark
plug condition. Restart the motor-
cycle and ride it for about 10 to 15
more minutes. The motorcycle will
now be ready to ride normally.
After the engine break-in period, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-
justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
NOTICE
ECA15560


When any of the following parts
have been replaced, they must
be broken in.
Cylinder or crankshaft:
About one hour of break-in op-
eration is necessary.
Piston, rings or transmission
gears:
Recommended 2-stroke engine oil:
See page 9-1.
Mixing ratio (gasoline to oil):
15:1
U5PA89E0.book Page 3 Tuesday, June 15, 2010 10:34 AM

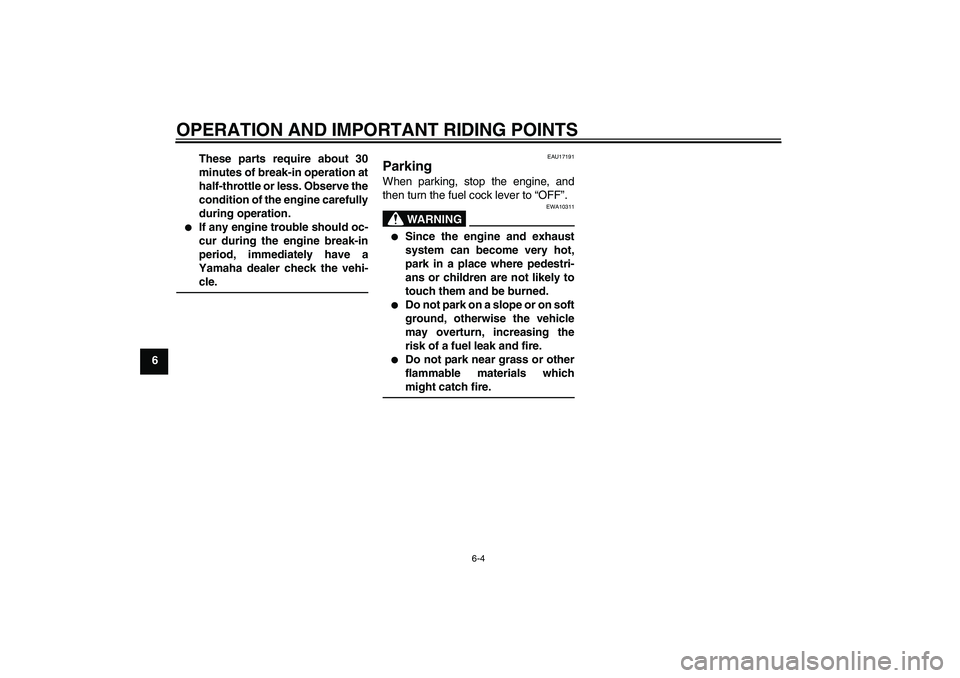

OPERATION AND IMPORTANT RIDING POINTS
6-4
6These parts require about 30
minutes of break-in operation at
half-throttle or less. Observe the
condition of the engine carefully
during operation.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
EAU17191
Parking When parking, stop the engine, and
then turn the fuel cock lever to “OFF”.
WARNING
EWA10311


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.


Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.


Do not park near grass or other
flammable materials which
might catch fire.
U5PA89E0.book Page 4 Tuesday, June 15, 2010 10:34 AM

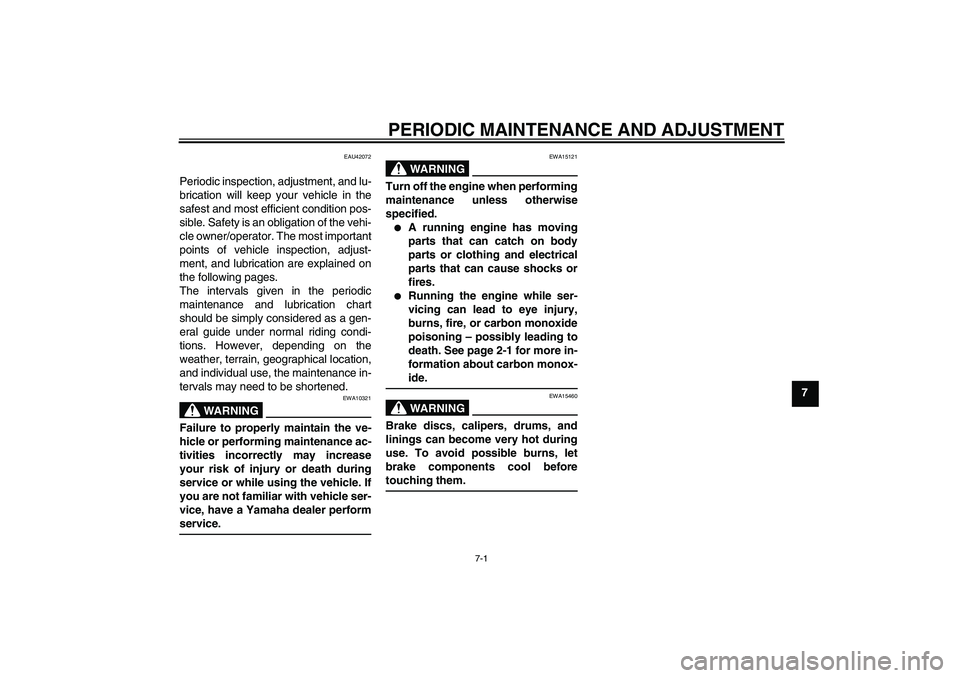

PERIODIC MAINTENANCE AND ADJUSTMENT
7-1
7
EAU42072
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, depending on the
weather, terrain, geographical location,
and individual use, the maintenance in-
tervals may need to be shortened.
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.
WARNING
EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.

A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.


Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 2-1 for more in-
formation about carbon monox-
ide.WARNING
EWA15460
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let
brake components cool before
touching them.
U5PA89E0.book Page 1 Tuesday, June 15, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-2
7
EAU41797

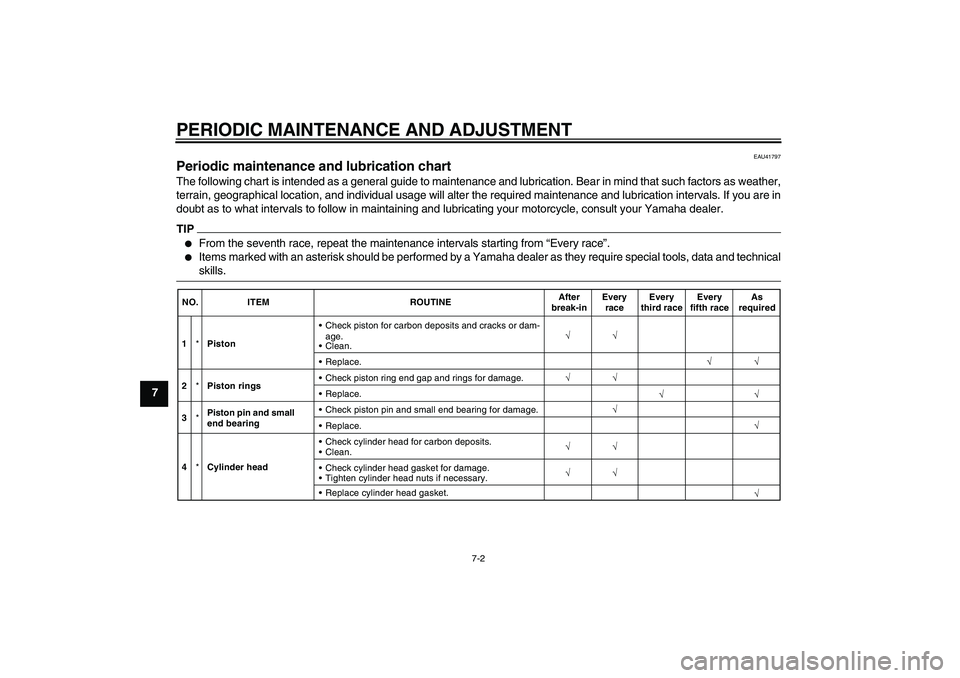

Periodic maintenance and lubrication chart The following chart is intended as a general guide to maintenance and lubrication. Bear in mind that such factors as weather,
terrain, geographical location, and individual usage will alter the required maintenance and lubrication intervals. If you are in
doubt as to what intervals to follow in maintaining and lubricating your motorcycle, consult your Yamaha dealer.TIP

From the seventh race, repeat the maintenance intervals starting from “Every race”.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM ROUTINEAfter
break-inEvery
raceEvery
third raceEvery
fifth raceAs
required
1
*PistonCheck piston for carbon deposits and cracks or dam-
age.
Clean.√
√ √
Replace.
√ √
2*
Piston ringsCheck piston ring end gap and rings for damage.√
Replace.
3*Piston pin and small
end bearingCheck piston pin and small end bearing for damage.√√√
Replace.√
√ 4*Cylinder headCheck cylinder head for carbon deposits.
Clean.√
√ √
Check cylinder head gasket for damage.
Replace cylinder head gasket. Tighten cylinder head nuts if necessary.√
U5PA89E0.book Page 2 Tuesday, June 15, 2010 10:34 AM

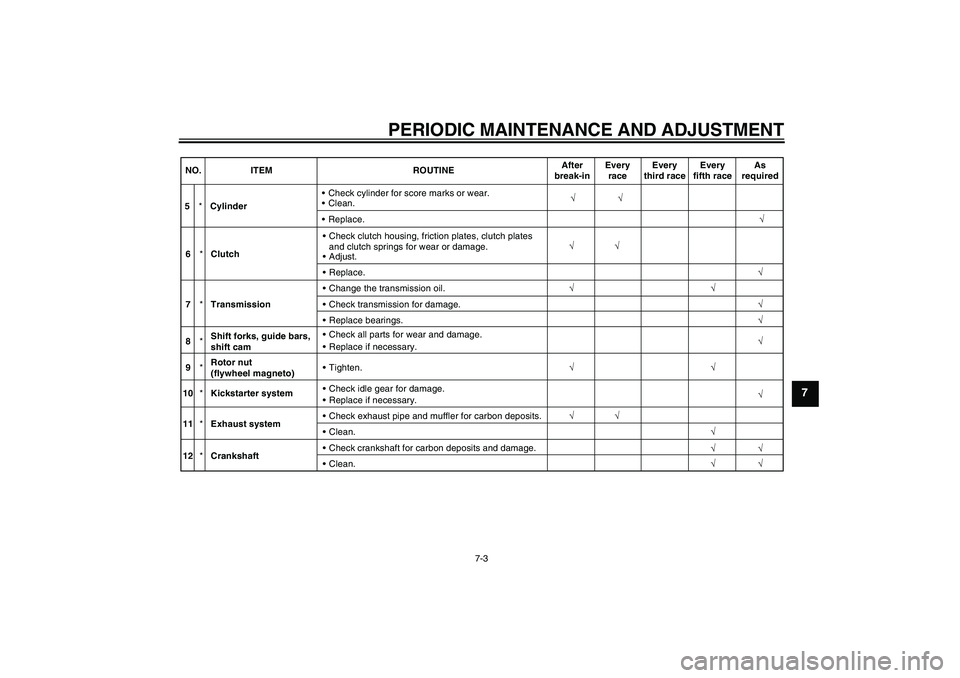

PERIODIC MAINTENANCE AND ADJUSTMENT
7-3
7
√
5
*CylinderCheck cylinder for score marks or wear.
Clean.√
Replace.√ NO. ITEM ROUTINEAfter
break-inEvery
raceEvery
third raceEvery
fifth raceAs
required
6*ClutchCheck clutch housing, friction plates, clutch plates
and clutch springs for wear or damage.
Adjust.√ √
Replace.√
7*TransmissionChange the transmission oil.√
Check transmission for damage.√
Replace bearings.√
8*Shift forks, guide bars,
shift cam Replace if necessary. Check all parts for wear and damage.
√
9*Rotor nut
(flywheel magneto)Tighten.√√√
10*Kickstarter systemCheck idle gear for damage.
√
Replace if necessary.
11*Exhaust system Check exhaust pipe and muffler for carbon deposits.√ √
Clean.√
√
√ √
√ 12*CrankshaftCheck crankshaft for carbon deposits and damage.
Clean.
U5PA89E0.book Page 3 Tuesday, June 15, 2010 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-4
7

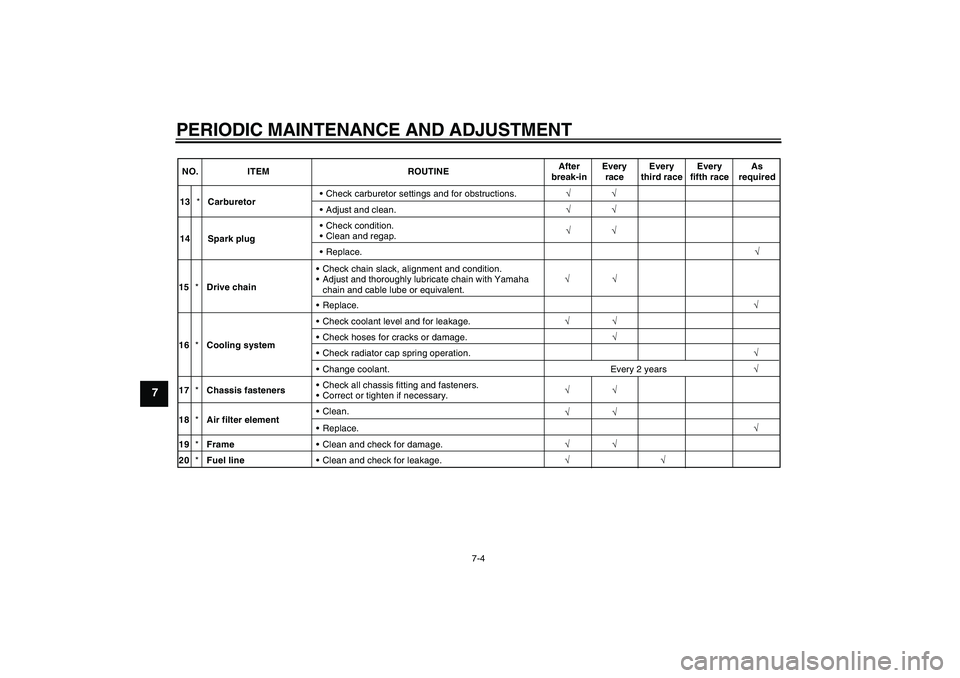

NO. ITEM ROUTINEAfter
break-inEvery
raceEvery
third raceEvery
fifth raceAs
required
√
√
√ 13*CarburetorCheck carburetor settings and for obstructions.√
Adjust and clean.√
14 Spark plugCheck condition.
Clean and regap.√
Replace.√
15 Drive chainCheck chain slack, alignment and condition.
Adjust and thoroughly lubricate chain with Yamaha
chain and cable lube or equivalent.√
√
√
√ √
Replace.√
16* *
Cooling systemCheck coolant level and for leakage.√ √
Check hoses for cracks or damage.√
Check radiator cap spring operation.√
Change coolant. Every 2 years√
17*Chassis fastenersCheck all chassis fitting and fasteners.
Correct or tighten if necessary.√
18*Air filter elementClean.
√
Replace.√
19*FrameClean and check for damage.√
20*Fuel line Clean and check for leakage.√√
U5PA89E0.book Page 4 Tuesday, June 15, 2010 10:34 AM

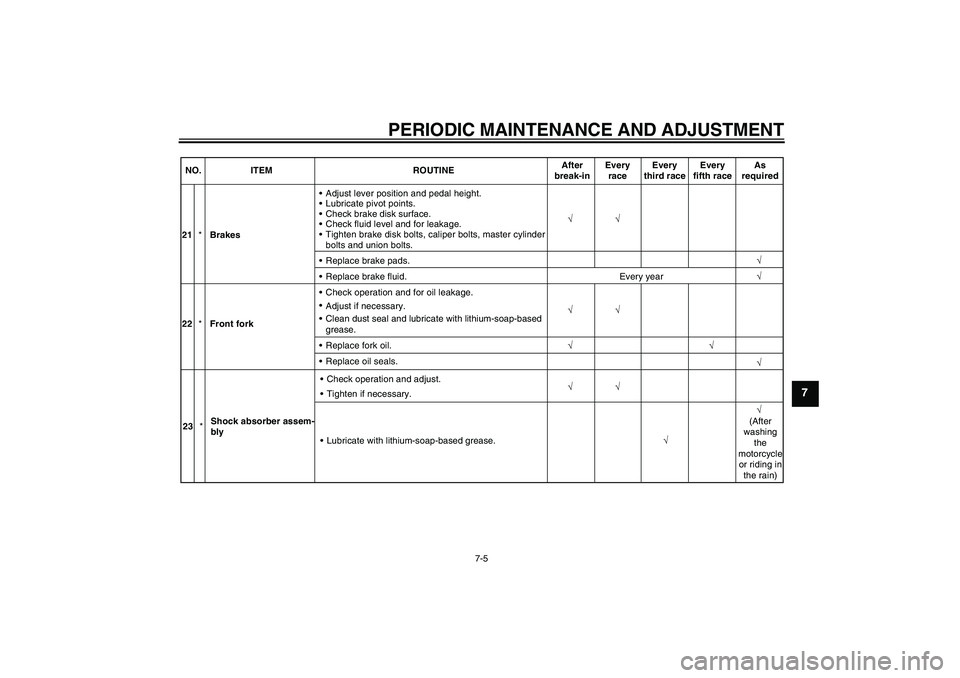

PERIODIC MAINTENANCE AND ADJUSTMENT
7-5
7
√ √
21*BrakesAdjust lever position and pedal height.
Lubricate pivot points.
Check brake disk surface.
Check fluid level and for leakage.
Tighten brake disk bolts, caliper bolts, master cylinder
bolts and union bolts.√
Replace brake pads.√
Replace brake fluid. Every year√
22*Front fork
Replace oil seals. Replace fork oil.
Clean dust seal and lubricate with lithium-soap-based
grease.
Adjust if necessary. Check operation and for oil leakage.
√
√√
√ NO. ITEM ROUTINEAfter
break-inEvery
raceEvery
third raceEvery
fifth raceAs
required
√ √
√
23*Shock absorber assem-
blyCheck operation and adjust.
Tighten if necessary.
Lubricate with
lithium-soap-based grease
.√(After
washing
the
motorcycle
or riding in
the rain)
U5PA89E0.book Page 5 Tuesday, June 15, 2010 10:34 AM

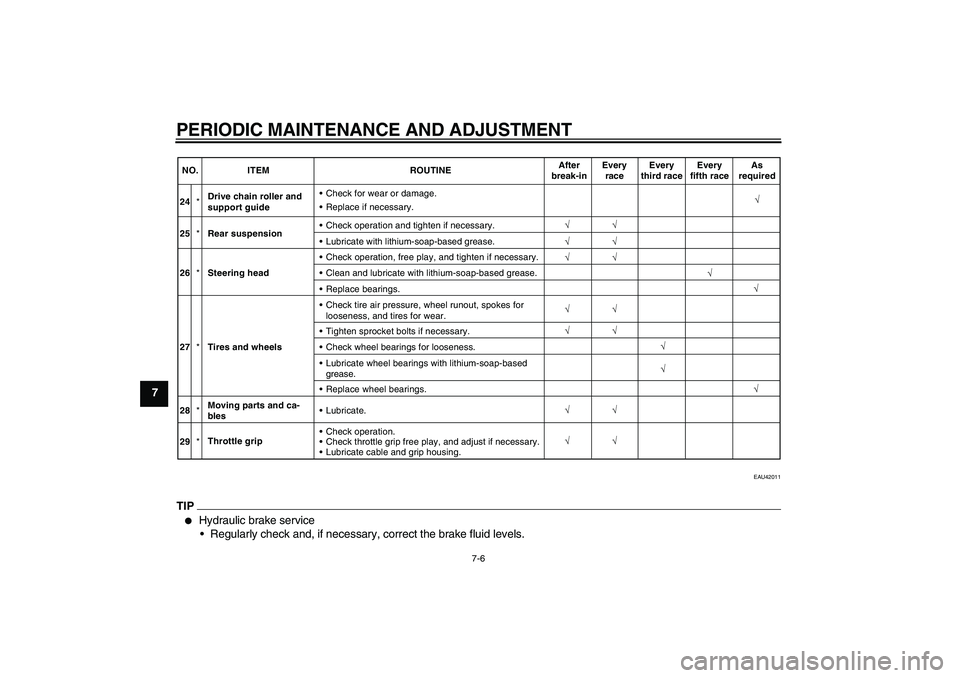

PERIODIC MAINTENANCE AND ADJUSTMENT
7-6
7
EAU42011
TIP

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid levels.
√ √√
√ 24*Drive chain roller and
support guideReplace if necessary. Check for wear or damage.
√
25*Rear suspensionCheck operation and tighten if necessary.
Lubricate with
lithium-soap-based grease
.
NO. ITEM ROUTINEAfter
break-inEvery
raceEvery
third raceEvery
fifth raceAs
required
√
√
√
√ √ √
√ √√ √
√
√
√
√
√ 26*Steering headCheck operation, free play, and tighten if necessary.
Clean and lubricate with lithium-soap-based grease.
Replace bearings.
27*Tires and wheelsCheck tire air pressure, wheel runout, spokes for
looseness, and tires for wear.
Tighten sprocket bolts if necessary.
Check wheel bearings for looseness.
Lubricate wheel bearings with lithium-soap-based
grease.
Replace wheel bearings.
28*Moving parts and ca-
blesLubricate.
29*Throttle gripCheck operation.
Check throttle grip free play, and adjust if necessary.
Lubricate cable and grip housing.
U5PA89E0.book Page 6 Tuesday, June 15, 2010 10:34 AM
