UB4B83E0.book Page 1 Thursday, September 9, 2021 8:47 AM

Safety information
2-4
2products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
 Never install accessories that
would impair the performance of
your motorcycle. Carefully inspect
the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.
• Accessories fitted to the han- dlebar or the front fork area can
create instability due to improp-
er weight distribution. If acces-
sories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum. • Bulky or large accessories may
seriously affect the stability of
the motorcycle. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become
unstable in cross winds.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
 Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires an d Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other tires, rims, sizes, and combinations
may not be appropriate. Refer to page
7-14 for tire specifications and more in-
formation on replacing your tires.
Transportin
g the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.  Remove all loose items from the
motorcycle.
 Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
 Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
 Shift the transmission in gear (for
models with a manual transmis-
sion).
 Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-
torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mounted
handlebars or turn signals, or
parts that could break). Choose
UB4B83E0.book Page 4 Thursday, September 9, 2021 8:47 AM

Description
3-1
3
EAU10411
Left view
10
9
8
3
24
1
5
6
7
1. Radiator cap (page 7-9)
2. Rebound damping force adjuster (page 4-8)
3. Fuel tank cap (page 4-3)
4. Fuel cock (page 4-6)
5. Starter (choke) knob (page 4-7)
6. Air filter element (page 7-11)
7. Seat (page 4-7)
8. Throttle stop screw (page 7-13)9. Shift pedal (page 4-2)
10.Compression damping force adjuster (page 4-8)UB4B83E0.book Page 1 Thursday, September 9, 2021 8:47 AM

Instrument and control functions
4-3
4
EAU12944

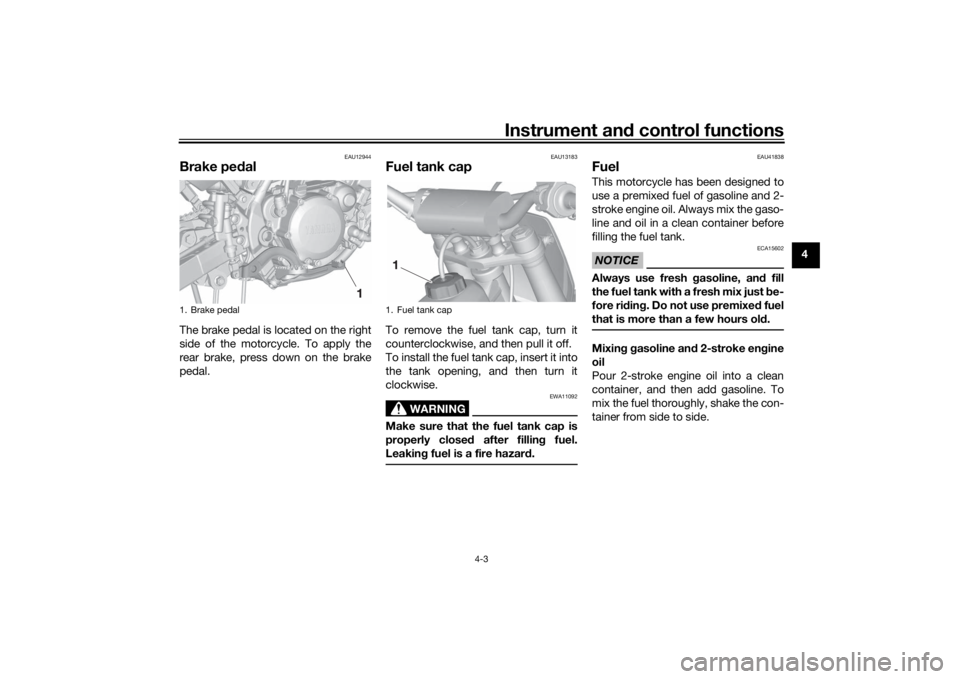

Brake ped alThe brake pedal is located on the right
side of the motorcycle. To apply the
rear brake, press down on the brake
pedal.
EAU13183
Fuel tank capTo remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it
clockwise.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly close d after fillin g fuel.
Leakin g fuel is a fire hazar d.
EAU41838
FuelThis motorcycle has been designed to
use a premixed fuel of gasoline and 2-
stroke engine oil. Always mix the gaso-
line and oil in a clean container before
filling the fuel tank.NOTICE
ECA15602
Always use fresh gasoline, an d fill
the fuel tank with a fresh mix just be-
fore ri din g. Do not use premixe d fuel
that is more than a few hours ol d.Mixing g asoline an d 2-stroke en gine
oil

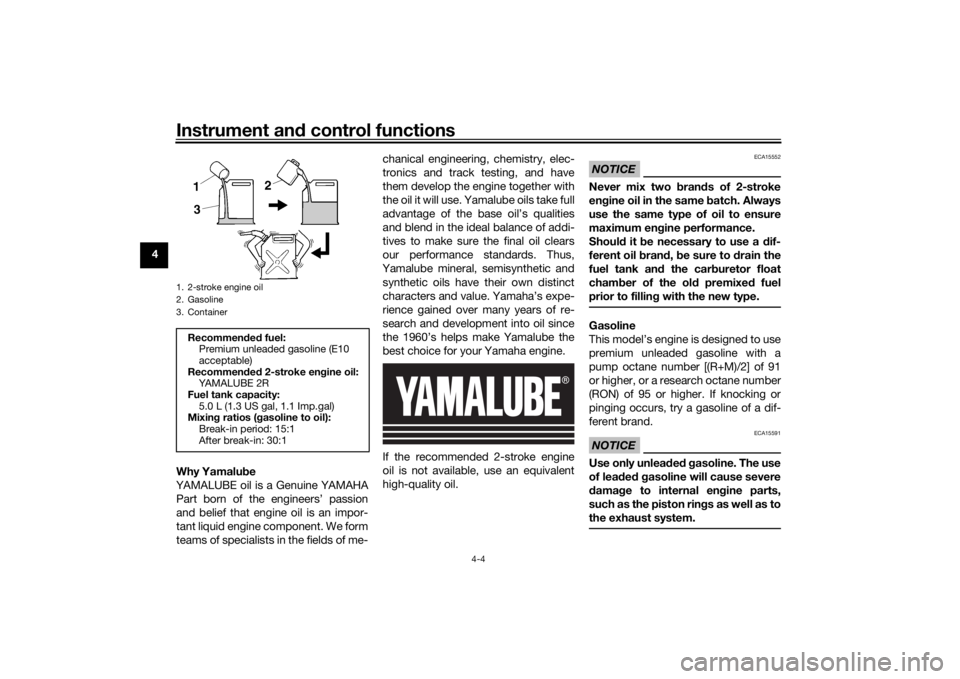

Pour 2-stroke engine oil into a clean
container, and then add gasoline. To
mix the fuel thoroughly, shake the con-
tainer from side to side.
1. Brake pedal
1
1. Fuel tank cap1
UB4B83E0.book Page 3 Thursday, September 9, 2021 8:47 AM

Instrument and control functions
4-4
4
Why Yamalu be
YAMALUBE oil is a Genuine YAMAHA Part born of the engineers’ passion
and belief that engine oil is an impor-
tant liquid engine component. We form
teams of specialists in the fields of me- chanical engineering, chemistry, elec-
tronics and track testing, and have
them develop the engine together with
the oil it will use. Yamalube oils take full
advantage of the base oil’s qualities
and blend in the ideal balance of addi-
tives to make sure the final oil clears
our performance standards. Thus,
Yamalube mineral, semisynthetic and synthetic oils have their own distinct
characters and value. Yamaha’s expe-
rience gained over many years of re-
search and development into oil since
the 1960’s helps make Yamalube the
best choice for your Yamaha engine.
If the recommended 2-stroke engine
oil is not available, use an equivalent
high-quality oil.
NOTICE
ECA15552
Never mix two bran ds of 2-stroke
en gine oil in the same batch. Always
use the same type of oil to ensure
maximum eng ine performance.
Shoul d it b e necessary to use a dif-
ferent oil b rand, b e sure to d rain the
fuel tank an d the car buretor float
cham ber of the ol d premixe d fuel
prior to filling with the new type.Gasoline
This model’s engine is designed to use
premium unleaded gasoline with a
pump octane number [(R+M)/2] of 91
or higher, or a research octane number
(RON) of 95 or higher. If knocking or
pinging occurs, try a gasoline of a dif-
ferent brand.NOTICE
ECA15591
Use only unlea ded g asoline. The use
of lea ded g asoline will cause severe
d amag e to internal en gine parts,
such as the piston rin gs as well as to
the exhaust system.
1. 2-stroke engine oil
2. Gasoline
3. ContainerRecommen ded fuel:
Premium unleaded gasoline (E10
acceptable)
Recommen ded 2-stroke en gine oil:
YA M A L U B E 2 R
Fuel tank capacity: 5.0 L (1.3 US gal, 1.1 Imp.gal)
Mixin g ratios ( gasoline to oil):
Break-in period: 15:1
After break-in: 30:1
UB4B83E0.book Page 4 Thursday, September 9, 2021 8:47 AM

Instrument and control functions
4-5
4
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol should not
be used as it can cause engine or fuel
system problems.

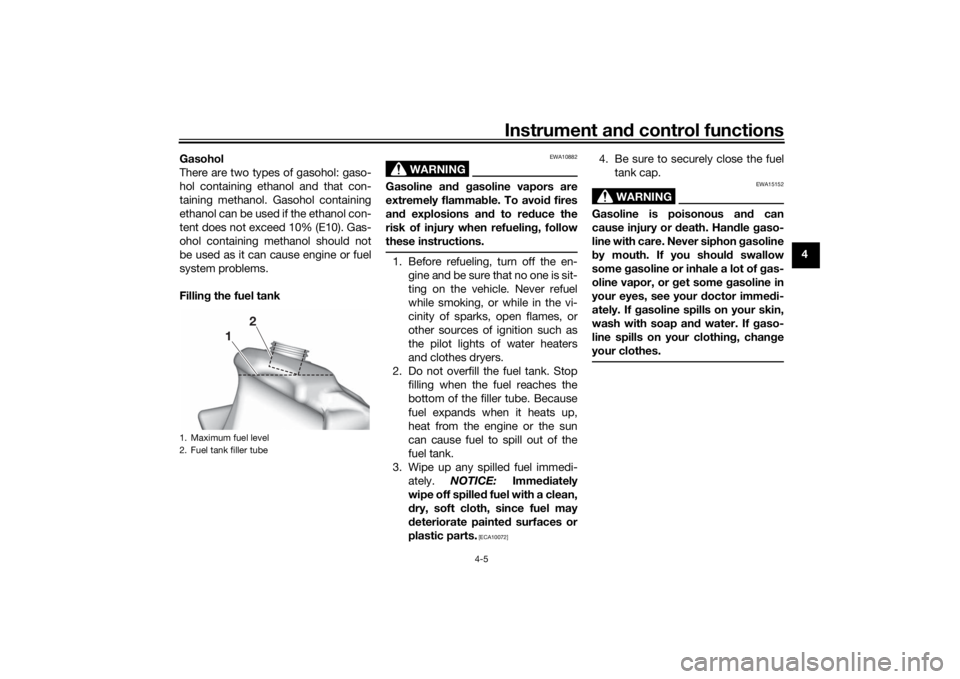

Fillin
g the fuel tank
WARNING
EWA10882
Gasoline an d gasoline vapors are
extremely flammab le. To avoid fires
an d explosions an d to re duce the
risk of injury when refueling , follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. Stop filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.
3. Wipe up any spilled fuel immedi- ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can
cause injury or death. Han dle gaso-
line with care. Never siphon gasoline
b y mouth. If you shoul d swallow
some gasoline or inhale a lot of g as-
oline vapor, or get some gasoline in
your eyes, see your doctor imme di-
ately. If g asoline spills on your skin,
wash with soap an d water. If gaso-
line spills on your clothin g, chan ge
your clothes.
1. Maximum fuel level
2. Fuel tank filler tube
1
2
UB4B83E0.book Page 5 Thursday, September 9, 2021 8:47 AM

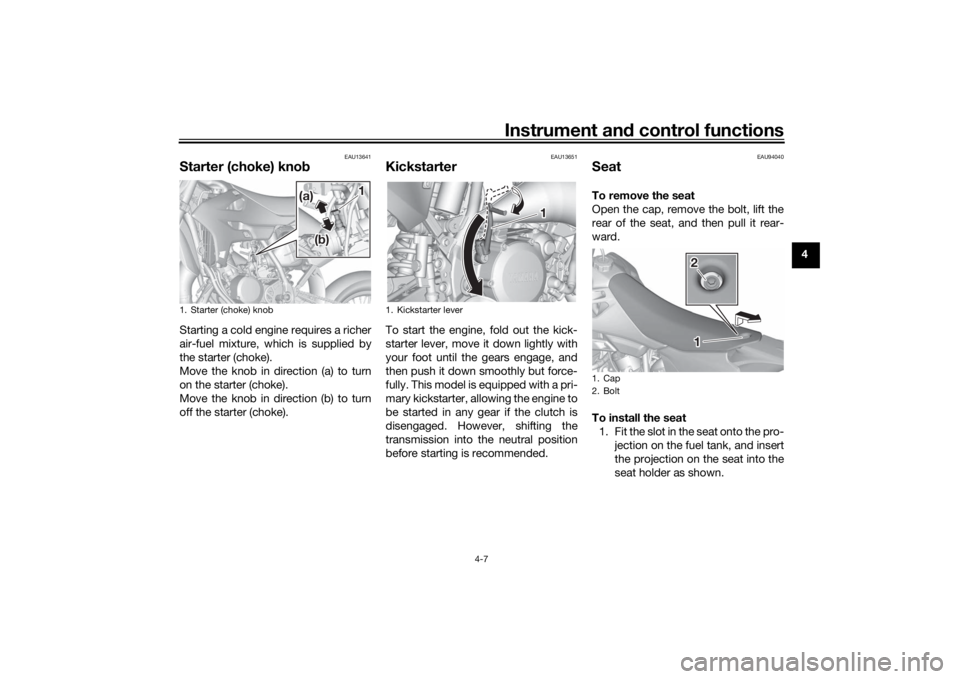

Instrument and control functions
4-7
4
EAU13641
Starter (choke) kno bStarting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn
on the starter (choke).
Move the knob in direction (b) to turn
off the starter (choke).
EAU13651
KickstarterTo start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully. This model is equipped with a pri-
mary kickstarter, allowing the engine to
be started in any gear if the clutch is
disengaged. However, shifting the
transmission into the neutral position
before starting is recommended.
EAU94040
SeatTo remove the seat
Open the cap, remove the bolt, lift the
rear of the seat, and then pull it rear-
ward.
To install the seat
1. Fit the slot in the seat onto the pro- jection on the fuel tank, and insert
the projection on the seat into the
seat holder as shown.
1. Starter (choke) knob
(a) (a)
(b) (b)
(a)
1 1
(b)
1. Kickstarter lever
1 1
1. Cap
2. Bolt
2 21 1
UB4B83E0.book Page 7 Thursday, September 9, 2021 8:47 AM

Periodic maintenance an d a djustment
7-4
7
15 Spark plu g• Check condition.
• Clean and regap.
√√
•Replace. √
16 *Drive chain • Check chain slack, alignment and condi-
tion.
• Adjust and thoroughly lubricate chain with Yamaha chain and cable lube or equiva-
lent. √√
•Replace. √
17 *Coolin g system • Check coolant level and for leakage.
√√
• Check hoses for cracks or damage. √
• Check radiator cap spring operation. √
• Change coolant. Every 2 years √
18 *Chassis fasteners • Check all chassis fitting and fasteners.
• Correct or tighten if necessary. √√
19 Air filter element • Clean.
√√
•Replace. √
20 *Frame • Clean and check for damage. √√
21 *Fuel line • Clean and check for leakage. √√
22 *Brakes • Adjust lever position and pedal height.
• Lubricate pivot points.
• Check brake disk surface.
• Check fluid level and for leakage.
• Tighten brake disk bolts, caliper bolts,
master cylinder bolts and union bolts. √√
• Replace brake pads. √
• Replace brake fluid. Every year √
NO. ITEM ROUTINE
After
break-
in Every race Every thir
d
race Every fifth
race As require
d
UB4B83E0.book Page 4 Thursday, September 9, 2021 8:47 AM

Motorcycle care and stora ge
8-4
8 1. Make all necessary repairs and
perform any outstanding mainte-
nance.
2. Follow all instructions in the Care Section of this chapter.
3. Fill up the fuel tank and add fuel stabilizer according to product in-
structions.
4. Run the engine for 5 minutes to distribute treated fuel through the
fuel system.
5. For vehicles with a fuel cock: Turn the fuel cock lever to the off posi-
tion.
6. For vehicles with a carburetor: To prevent fuel deposits from build-
ing up, drain the fuel in the carbu-
retor float chamber into a clean
container. Retighten the drain bolt
and pour the fuel back into the fuel
tank.
7. Use a quality engine fogging oil according to product instructions.
If engine fogging oil is not avail-
able, perform the following steps
for each cylinder:a. Remove the spark plug cap and spark plug. b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter or kick-
starter. (This will coat the cylin-
der wall with oil.) WARNING!
To prevent d amage or injury
from sparkin g, make sure to
g roun d the spark plu g elec-
tro des while turning the en-
g ine over.
[EWA10952]
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
8. Lubricate all control cables, piv- ots, levers and pedals, as well as
the sidestand and centerstand (if
equipped).
9. Check and correct the tire air pressure, and then lift the vehicle
so that all wheels are off the
ground. If maintenance stands are not available, turn the wheels a lit-
tle once a month in order to pre-
vent the tires from becoming
degraded in one spot.
10. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
11. For vehicles with a battery: Re- move and fully charge it, or attach
a maintenance charger. NOTICE:
Confirm that the battery an d its
char ger are compati ble. Do not
char ge a VRLA b attery with a
conventional char ger.
[ECA26330]
UB4B83E0.book Page 4 Thursday, September 9, 2021 8:47 AM

Specifications
9-1
9
Dimensions:Overall length:1820 mm (71.7 in) (YZ85, YZ85N)
1895 mm (74.6 in) (YZ85LW, YZ85LWN)
Overall width: 760 mm (29.9 in)
Overall height:
1135 mm (44.7 in) (YZ85, YZ85N)
1175 mm (46.3 in) (YZ85LW, YZ85LWN)
Seat height:
840 mm (33.1 in) (YZ85, YZ85N)
885 mm (34.8 in) (YZ85LW, YZ85LWN)
Wheelbase:
1255 mm (49.4 in) (YZ85, YZ85N)
1285 mm (50.6 in) (YZ85LW, YZ85LWN)
Ground clearance:
320 mm (12.60 in) (YZ85, YZ85N)
360 mm (14.17 in) (YZ85LW, YZ85LWN)Wei ght:Curb weight:
73 kg (161 lb) (YZ85, YZ85N)
75 kg (165 lb) (YZ85LW, YZ85LWN)
Maximum rider weight: 62.0 kg (137 lb)Engine:Combustion cycle:
2-stroke
Cooling system: Liquid cooled
Number of cylinders: Single cylinder
Displacement:
85 cm³ Bore
× stroke:
47.5 × 47.8 mm (1.87 × 1.88 in)
Starting system: Kickstarter
Engine oil:Engine oil:
YAMALUBE 2R
Recommended brand:Transmission oil:Type: Motor oil SAE 10W-40 type SG or higher
Quantity:
0.50 L (0.53 US qt, 0.44 Imp.qt)Coolant quantity:Radiator (including all routes):0.50 L (0.53 US qt, 0.44 Imp.qt)Fuel:Recommended fuel:Unleaded gasoline (E10 acceptable)
Octane number (RON): 98
Fuel tank capacity:
5.0 L (1.3 US gal, 1.1 Imp.gal)Car buretor:Type × quantity:
PWK28 × 1
Drivetrain:Gear ratio:
1st:
2.455 (27/11)
2nd: 1.882 (32/17)
3rd:
1.529 (26/17)
4th: 1.294 (22/17)
5th: 1.130 (26/23)
6th:
1.000 (25/25)Front tire:Type:With tube
Size:
70/100-17 40M (YZ85, YZ85N)
70/100-19 42M (YZ85LW, YZ85LWN)
Manufacturer/model:
DUNLOP/MX3SFRear tire:Type: With tube
Size:
90/100-14 49M (YZ85, YZ85N)
90/100-16 52M (YZ85LW, YZ85LWN)
Manufacturer/model:
DUNLOP/MX3SFront brake:Type:
Hydraulic single disc brake
UB4B83E0.book Page 1 Thursday, September 9, 2021 8:47 AM
