Table of contents
Location of important la bels ............1-1
Safety information ............................2-1
Description ........................................3-1
Left view ..........................................3-1
Right view ........................................3-2
Controls and instruments ................3-3
Instrument an d control functions ....4-1
Handlebar switch ............................4-1
Clutch lever .....................................4-1
Shift pedal .......................................4-2
Brake lever ......................................4-2
Brake pedal .....................................4-3
Fuel tank cap ...................................4-3
Fuel ..................................................4-3
Fuel tank breather hose...................4-6
Fuel cock .........................................4-6
Starter (choke) knob ........................4-7
Kickstarter .......................................4-7
Seat .................................................4-7
Adjusting the front fork ....................4-8
Front fork bleeding ........................4-10
Adjusting the shock absorber assembly ....................................4-11
Removable sidestand ....................4-14
YPVS system .................................4-14 For your safety – pre-operation
checks
............................................... 5-1
Operation an d important ri din g
points ................................................. 6-1
Engine break-in............................... 6-1
Starting and warming up a cold engine .......................................... 6-2
Starting a warm engine................... 6-3
Shifting............................................ 6-3
Parking ............................................ 6-4
Perio dic maintenance an d
a d justment ........................................ 7-1
Periodic maintenance and lubrication chart .......................... 7-2
Checking the spark plug................. 7-7
Transmission oil .............................. 7-8
Coolant ........................................... 7-9
Cleaning the air filter element ....... 7-11
Adjusting the carburetor ............... 7-13
Adjusting the engine idling speed......................................... 7-13
Adjusting the throttle grip free play ............................................ 7-13
Tires .............................................. 7-14
Spoke wheels ............................... 7-16
Adjusting the clutch lever free play ............................................ 7-16
Checking the brake lever free play ............................................ 7-17 Checking the shift pedal ............... 7-18
Checking the front and rear brake
pads ........................................... 7-18
Checking the brake fluid level ....... 7-19
Changing the brake fluid ............... 7-20
Drive chain slack ........................... 7-20
Cleaning and lubricating the drive chain .......................................... 7-22
Checking and lubricating the cables ........................................ 7-22
Checking and lubricating the
throttle grip and cable ............... 7-23
Checking and lubricating the brake and clutch levers ............. 7-23
Checking and lubricating the brake pedal ................................ 7-24
Lubricating the rear suspension.... 7-24
Lubricating the swingarm pivots ... 7-24
Checking the front fork ................. 7-25
Checking the steering ................... 7-25
Checking the wheel bearings ........ 7-26
Supporting the motorcycle ........... 7-26
Front wheel ................................... 7-26
Rear wheel .................................... 7-27
Troubleshooting ............................ 7-29
Troubleshooting chart ................... 7-30
Motorcycle care an d stora ge .......... 8-1
Matte color caution ......................... 8-1
Care................................................. 8-1
Storage............................................ 8-3
UB4B83E0.book Page 1 Thursday, September 9, 2021 8:47 AM

Operation and important rid ing points
6-1
6
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU41508
En gine break-in
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.TIPBefore starting the engine for the first
time, the air filter must be lubricated.
(See page 7-11.)En gine break-in proced ure
1. Fill the fuel tank with a break-in oil- fuel mixture as follows. 2. Start and warm up the engine.
Check the operation of the con-
trols and the engine stop switch.
(See page 4-1.)
3. Operate the motorcycle in the lower gears at moderate throttle
openings for 5 to 8 minutes. Stop
the engine and check the spark
plug condition (see page 7-7); it
will show a rich condition during
break-in.
4. Allow the engine to cool. Restart the engine and operate the motor-
cycle as in the step above for 5
minutes. Then, very briefly shift to
the higher gears and check the
full-throttle response. Stop the en-
gine and check the spark plug.
5. After again allowing the engine to cool, restart and run the motorcy-
cle for 5 more minutes. Full throttle
and the higher gears may be used,
but sustained full-throttle opera-
tion should be avoided. Stop the
engine and check the spark plug
again.
6. Allow the engine to cool, remove the cylinder head and cylinder,
and inspect the piston and cylin-Recommen ded 2-stroke en gine oil:
YA M A L U B E 2 R
Mixin g ratio ( gasoline to oil):
15:1
UB4B83E0.book Page 1 Thursday, September 9, 2021 8:47 AM

Periodic maintenance an d a djustment
7-12
7

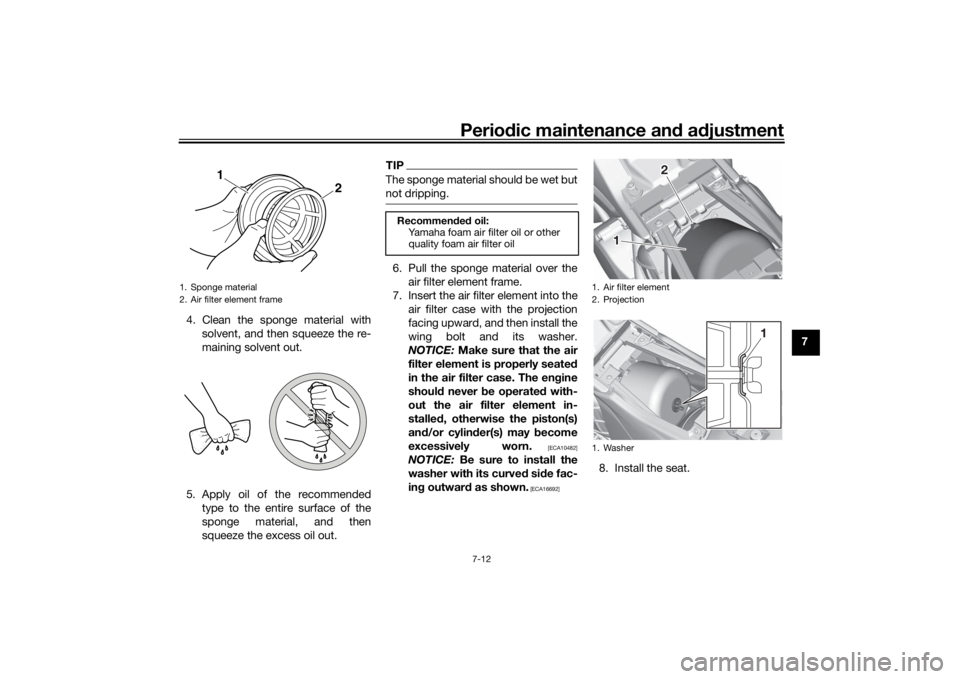

4. Clean the sponge material with
solvent, and then squeeze the re-
maining solvent out.
5. Apply oil of the recommended type to the entire surface of the
sponge material, and then
squeeze the excess oil out.
TIPThe sponge material should be wet but
not dripping.6. Pull the sponge material over theair filter element frame.
7. Insert the air filter element into the air filter case with the projection
facing upward, and then install the
wing bolt and its washer.
NOTICE: Make sure that the air
filter element is properly seated
in the air filter case. The en gine
shoul d never b e operated with-
out the air filter element in-
stalle d, otherwise the piston(s)
an d/or cylin der(s) may become
excessively worn.
[ECA10482]
NOTICE: Be sure to install the
washer with its curved side fac-
in g outwar d as shown.
[ECA16692]
8. Install the seat.
1. Sponge material
2. Air filter element frame
1
2
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1. Air filter element
2. Projection
1. Washer
1 1
2 2
1
UB4B83E0.book Page 12 Thursday, September 9, 2021 8:47 AM

11-1
11
Index
AAir filter element, cleaning .................... 7-11BBrake and clutch levers, checking
and lubricating ................................... 7-23
Brake fluid, changing............................ 7-20
Brake fluid level, checking.................... 7-19
Brake lever.............................................. 4-2
Brake lever free play, checking ............ 7-17
Brake pedal ............................................ 4-3
Brake pedal, checking and lubricating........................................... 7-24CCables, checking and lubricating ......... 7-22
Carburetor, adjusting............................ 7-13
Care ........................................................ 8-1
Clutch lever............................................. 4-1
Clutch lever free play, adjusting ........... 7-16
Coolant ................................................... 7-9DDrive chain, cleaning and lubricating ... 7-22
Drive chain slack .................................. 7-20EEngine break-in ...................................... 6-1
Engine idling speed .............................. 7-13
Engine overheating ............................... 7-31
Engine serial number ............................ 10-1
Engine, starting a warm.......................... 6-3
Engine stop switch ................................. 4-1FFront and rear brake pads, checking ... 7-18
Front fork, adjusting ............................... 4-8
Front fork, bleeding .............................. 4-10
Front fork, checking ............................. 7-25 Fuel ........................................................ 4-3
Fuel cock................................................ 4-6
Fuel tank breather hose ......................... 4-6
Fuel tank cap.......................................... 4-3
HHandlebar switch ................................... 4-1IIdentification numbers ......................... 10-1KKickstarter .............................................. 4-7LLabels, location ...................................... 1-1MMatte color, caution ............................... 8-1PParking ................................................... 6-4
Part locations ......................................... 3-1
Periodic maintenance and lubrication
chart ..................................................... 7-2RRear suspension, lubricating................ 7-24SSafety defects, reporting (For CANADA customers) ......................... 10-2
Safety information .................................. 2-1
Seat ........................................................ 4-7
Shifting ................................................... 6-3
Shift pedal .............................................. 4-2
Shift pedal, checking ........................... 7-18
Shock absorber assembly, adjusting ... 4-11
Sidestand ............................................. 4-14
Spark plug, checking ............................. 7-7
Specifications......................................... 9-1
Starter (choke) knob............................... 4-7 Starting and warming up a cold
engine ................................................... 6-2
Steering, checking ................................ 7-25
Storage ................................................... 8-3
Supporting the motorcycle ................... 7-26
Swingarm pivots, lubricating ................ 7-24
TThrottle grip and cable, checking and lubricating ........................................... 7-23
Throttle grip free play, adjusting ........... 7-13
Tires ...................................................... 7-14
Transmission oil ...................................... 7-8
Troubleshooting .................................... 7-29
Troubleshooting chart........................... 7-30VVehicle identification number ............... 10-1WWheel bearings, checking .................... 7-26
Wheel (front).......................................... 7-26
Wheel (rear)........................................... 7-27
Wheels .................................................. 7-16YYPVS system ........................................ 4-14
