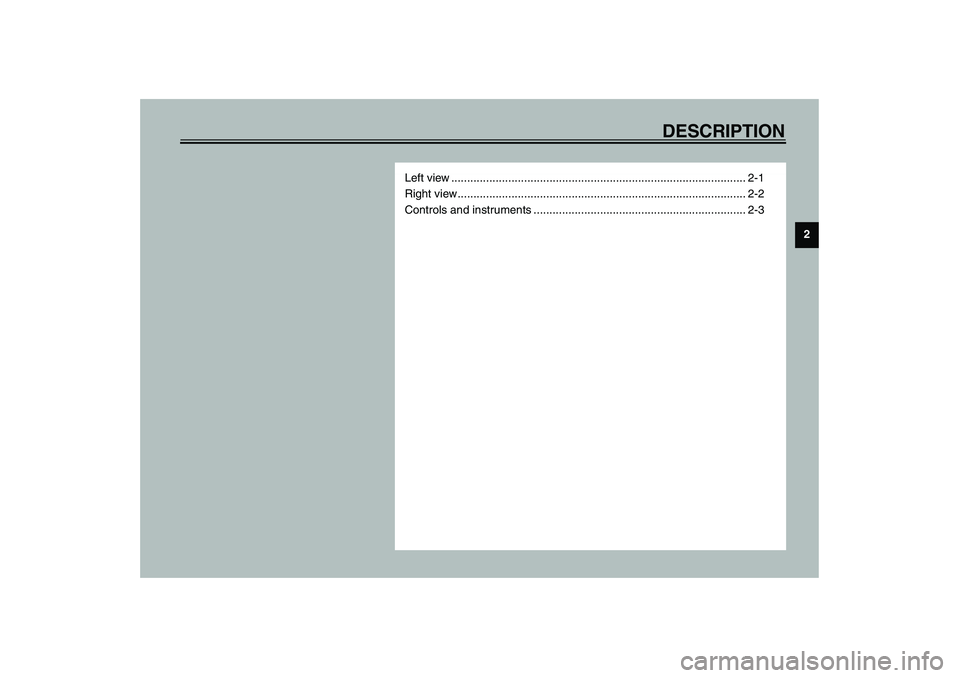

DESCRIPTION
2
Left view ............................................................................................. 2-1
Right view ........................................................................................... 2-2
Controls and instruments ................................................................... 2-3
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

2-1
2
EAU00026
2-DESCRIPTION Left view1. Fuse box (page 6-36)
2. Front fork compression damping force adjusting screw (page 3-20)
3. Front fork rebound damping force adjusting screw (page 3-20)
4. Front fork spring preload adjusting bolt (page 3-19)
5. Front brake fluid reservoir (page 6-27)
6. Throttle stop screw (page 6-20)
7. Shock absorber assembly spring preload adjusting ring (page 3-21)
8. Shock absorber assembly compression damping force adjusting screw (page 3-22)
9. Owner’s tool kit (page 6-1)
10. Shock absorber assembly rebound damping force adjusting screw (page 3-22)
11. Engine oil drain bolt (page 6-10)
12. Engine oil filter cartridge (page 6-10)
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

DESCRIPTION
2-2
2
Right view13. Luggage strap holders (page 3-23)
14. Helmet holders (page 3-18)
15. Main fuse (page 6-36)
16. Electronic fuel injection fuse (page 6-36)
17. Battery (page 6-34)
18. Rear brake fluid reservoir (page 6-28)19. Air filter element (page 6-18)
20. Radiator cap (page 6-15)
21. Coolant reservoir (page 6-13)
22. Engine oil level check window (page 6-9)
23. Engine oil filler cap (page 6-9)
U5PWE1.book Page 2 Monday, July 8, 2002 10:28 AM

DESCRIPTION
2-3
2
Controls and instruments1. Clutch lever (page 3-13)
2. Left handlebar switches (page 3-11)
3. Multi-function display (page 3-6)
4. Main switch/steering lock (page 3-1)5. Tachometer (page 3-11)
6. Right handlebar switches (page 3-12)
7. Throttle grip (page 6-20)
8. Brake lever (page 3-13)
U5PWE1.book Page 3 Monday, July 8, 2002 10:28 AM

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ..................................... 3-1
Indicator and warning lights ................................ 3-2
Multi-function display ........................................... 3-6
Tachometer ........................................................ 3-11
Anti-theft alarm (optional) .................................. 3-11
Handlebar switches ........................................... 3-11
Clutch lever ........................................................ 3-13
Shift pedal .......................................................... 3-13
Brake lever ......................................................... 3-13
Brake pedal ........................................................ 3-14
Fuel tank cap ..................................................... 3-14
Fuel .................................................................... 3-15Fuel tank breather hose .................................... 3-16
Catalytic converter ............................................ 3-16
Seats ................................................................. 3-17
Helmet holders .................................................. 3-18
Storage compartment ....................................... 3-19
Adjusting the front fork ...................................... 3-19
Adjusting the shock absorber assembly ............ 3-21
Luggage strap holders ...................................... 3-23
EXUP system .................................................... 3-24
Sidestand .......................................................... 3-24
Ignition circuit cut-off system ............................. 3-25
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU04562
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
NOTE:_ The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF”, even if
the engine stalls. _
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EW000016
WARNING
_ Never turn the key to “OFF” or
“LOCK” while the motorcycle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the motor-
cycle is stopped before turning the
key to “OFF” or “LOCK”. _
EAU04920
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard light and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
ECA00043
CAUTION:_ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge. _
EAU03034
Indicator and warning lights
EAU04121
Turn signal indicator lights “”
and “”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
1. Push.
2. Turn.
1. Right turn signal indicator light “”
2. Fuel level warning light “”
3. Oil level warning light “”
4. Neutral indicator light “”
5. Engine trouble warning light “”
6. High beam indicator light “”
7. Left turn signal indicator light “”
U5PWE1.book Page 2 Monday, July 8, 2002 10:28 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU04894
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.3 L. When this occurs, refuel as soon
as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:_ This model is also equipped with a self-
diagnosis device for the fuel level de-
tection circuit. If the fuel level detection
circuit is defective, the following cycle
will be repeated until the malfunction is
corrected: The fuel level warning light
will flash eight times, then go off for
2.5 seconds. If this occurs, have a
Yamaha dealer check the motorcycle. _
EAU04895
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:_

Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.


This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If the oil lev-
el detection circuit is defective, the
following cycle will be repeated
until the malfunction is corrected:
The oil level warning light will flash
ten times, then go off for 2.5 sec-
onds. If this occurs, have a
Yamaha dealer check the motor-
cycle.
_
1. Right turn signal indicator light “”
2. Fuel level warning light “”
3. Oil level warning light “”
4. Neutral indicator light “”
5. Engine trouble warning light “”
6. High beam indicator light “”
7. Left turn signal indicator light “”U5PWE1.book Page 3 Monday, July 8, 2002 10:28 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU04896
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-7
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not
come on for a few seconds, then go off,
have a Yamaha dealer check the elec-
trical circuit.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU04924
Engine speed indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit. (See pages 3-8–3-10 for a de-
tailed explanation of the function of this
indicator light and on how to set it.)
EAU04923
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
EC000002
CAUTION:_ Do not operate the engine if it is
overheated. _
1. Engine speed indicator light
2. Coolant temperature warning light “”
3. Coolant temperature display
U5PWE1.book Page 4 Monday, July 8, 2002 10:28 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
CB-25E
Coolant
temperatureDisplay Conditions What to do0–39 °CMessage “LO” is
displayed.OK. Go ahead with riding.
40–116 °CTemperature is
displayed.OK. Go ahead with riding.
117–139 °CTemperature flashes.
Warning light comes on.Stop the motorcycle and allow it to
idle until the coolant temperature
goes down.
If the temperature does not go
down, stop the engine. (See the
“Engine overheating” section on
page 6-47 for further instructions.)
Above 140 °CMessage “HI” flashes.
Warning light comes on.Stop the engine and allow it to cool.
(See the “Engine overheating” sec-
tion on page 6-47 for further in-
structions.)
