key YAMAHA YZF-R1 2003 User Guide

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU00162
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU02935
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into posi-
tion with the key inserted in the
lock. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
NOTE:_ The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked. _
EWA00025
WARNING
_ Make sure that the fuel tank cap is
properly closed before riding. _
1. Brake pedal
1. Fuel tank cap lock cover
2. Unlock.
U5PWE1.book Page 14 Monday, July 8, 2002 10:28 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU04493
Seats Rider seat
To remove the rider seatPull up the rear corners of the rider seat
as shown, remove the bolts, and then
pull the seat off.To install the rider seat
Insert the projection on the front of the
rider seat into the seat holder as
shown, place the seat in the original
position, and then install the bolts.Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. While holding the key in that posi-
tion, lift the front of the passenger
seat and pull it forward.
1. Bolt (× 2)
1. Projection
2. Seat holder
1. Passenger seat lock
2. Unlock.
U5PWE1.book Page 17 Monday, July 8, 2002 10:28 AM

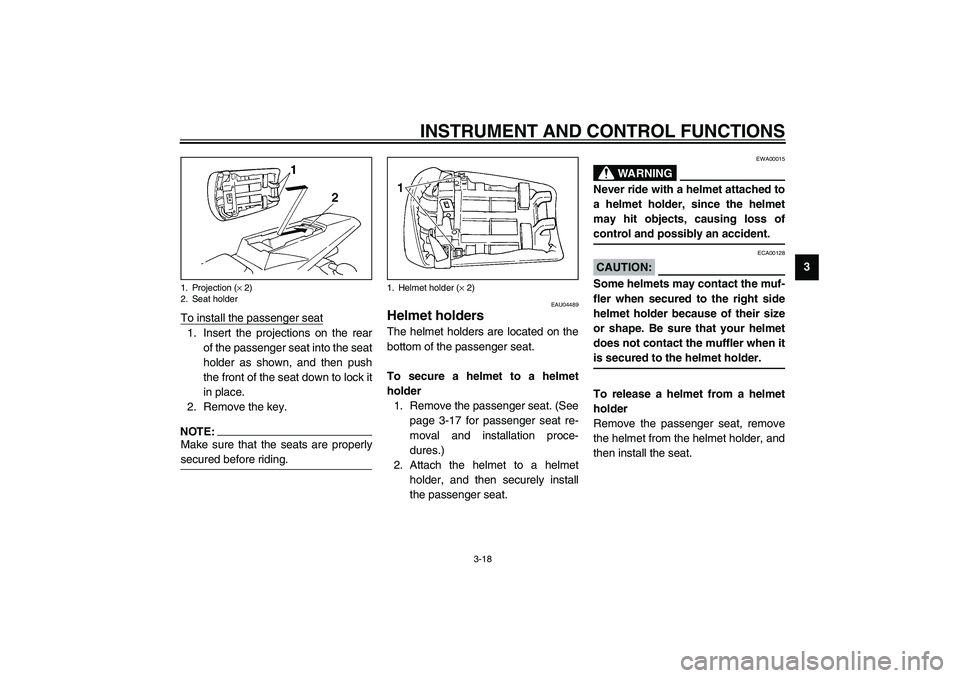

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
To install the passenger seat
1. Insert the projections on the rear
of the passenger seat into the seat
holder as shown, and then push
the front of the seat down to lock it
in place.
2. Remove the key.NOTE:_ Make sure that the seats are properly
secured before riding. _
EAU04489
Helmet holders The helmet holders are located on the
bottom of the passenger seat.
To secure a helmet to a helmet
holder
1. Remove the passenger seat. (See
page 3-17 for passenger seat re-
moval and installation proce-
dures.)
2. Attach the helmet to a helmet
holder, and then securely install
the passenger seat.
EWA00015
WARNING
_ Never ride with a helmet attached to
a helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an accident. _
ECA00128
CAUTION:_ Some helmets may contact the muf-
fler when secured to the right side
helmet holder because of their size
or shape. Be sure that your helmet
does not contact the muffler when it
is secured to the helmet holder. _To release a helmet from a helmet
holder
Remove the passenger seat, remove
the helmet from the helmet holder, and
then install the seat.
1. Projection (× 2)
2. Seat holder
1. Helmet holder (× 2)
U5PWE1.book Page 18 Monday, July 8, 2002 10:28 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-26
3
CD-01E
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “”.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYES NO
The system is OK.
The motorcycle can be ridden.
YES NO
U5PWE1.book Page 26 Monday, July 8, 2002 10:28 AM

5-1
5
EAU00372
5-OPERATION AND IMPORTANT RIDING POINTS
EAU00373
WARNING
_

Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
_
EAU04912
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EW000054
WARNING
_

Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-26.


Never ride with the sidestand
down.
_1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
ECA00132
CAUTION:_ The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light


Fuel level warning light


Coolant temperature warning
light


Engine speed indicator light


Engine trouble warning light
If a warning or indicator light does
not go off, see pages 3-3–3-5 for the
corresponding warning and indica-
tor light circuit check.
_2. Shift the transmission into the neu-
tral position.NOTE:_ When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-
cuit. _3. Start the engine by pushing the
start switch.
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU03172*
0–1,000 km
Avoid prolonged operation above
6,000 r/min.
1,000–1,600 km
Avoid prolonged operation above
7,000 r/min.
EC000052*
CAUTION:_ After 1,000 km of operation, the en-
gine oil must be changed and the oil
filter cartridge replaced. _1,600 km and beyond
The vehicle can now be operated nor-
mally.
EC000053
CAUTION:_

Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
_
NOTE:_ During and after the engine break-in
period, the exhaust heat may cause
discoloration of the exhaust pipe, but
this is normal. _
EAU00461
Parking When parking, stop the engine, and
then remove the key from the main
switch.
EW000058
WARNING
_

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on
soft ground, otherwise the
motorcycle may overturn.
_
EC000062
CAUTION:_ Never park in an area where there
are fire hazards such as grass or
other flammable materials. _
U5PWE1.book Page 4 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU04876*
Replacing the fuses The main fuse and the electronic fuel
injection fuse are located under the rid-
er seat. (See page 3-17 for rider seat
removal and installation procedures.)
The fuse box, which contains the fuses
for the individual circuits, is located un-
der panel B. (See page 6-7 for panel
removal and installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan fuse
5. Odometer and clock fuse (backup fuse)
6. Turn signal lights and hazard fuse
7. Spare fuse (× 3)
1. Main fuse
2. Electronic fuel injection fuse
3. Electronic fuel injection spare fuse
Specified fuses:
Main fuse: 50 A
Headlight fuse: 20 A
Signaling system fuse: 10 A
Radiator fan fuse: 15 A
Ignition fuse: 15 A
Electronic fuel injection
fuse: 15 A
Turn signal lights and
hazard fuse: 10 A
Odometer and clock fuse
(backup fuse): 10 A
U5PWE1.book Page 36 Monday, July 8, 2002 10:28 AM

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:_ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. _
1. Key identification number
1. Vehicle identification number
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

INDEXAAir filter element, replacing ..................... 6-17
Anti-theft alarm ...................................... 3-11BBattery ................................................... 6-34
Brake and clutch levers, checking and
lubricating ............................................ 6-31
Brake fluid, changing ............................. 6-28
Brake fluid level, checking...................... 6-27
Brake lever............................................. 3-13
Brake light switch (rear), adjusting ......... 6-26
Brake pads, checking............................. 6-26
Brake pedal............................................ 3-14
Brake pedal, lubricating.......................... 6-32
Brake pedal position, adjusting .............. 6-25CCables, checking and lubricating............ 6-31
Care.........................................................7-1
Catalytic converter ................................. 3-16
Clutch lever ............................................ 3-13
Clutch lever free play, adjusting ............. 6-24
Conversion table ......................................8-5
Coolant .................................................. 6-13
Changing .......................................... 6-14
Checking .......................................... 6-13
Coolant temperature warning light............3-4
Cowlings and panels, removing and
installing ................................................6-5
DDimmer switch ....................................... 3-11
Drive chain, lubricating .......................... 6-30
Drive chain slack ................................... 6-29
Adjusting .......................................... 6-29
Checking .......................................... 6-29EEngine break-in ....................................... 5-3
Engine idling speed ............................... 6-19
Engine oil and oil filter cartridge ............... 6-9
Engine speed indicator light..................... 3-4
Engine stop switch................................. 3-12
Engine trouble warning light .................... 3-4
EXUP system ........................................ 3-24FFront fork, adjusting ............................... 3-19
Front fork, checking ............................... 6-33
Fuel ....................................................... 3-15
Fuel consumption, tips for reducing ......... 5-3
Fuel level warning light ............................ 3-3
Fuel tank breather hose ......................... 3-16
Fuel tank cap ......................................... 3-14
Fuses, replacing .................................... 6-36HHandlebar switches ............................... 3-11
Hazard switch ........................................ 3-12
Headlight bulb, replacing ....................... 6-37
Helmet holders ...................................... 3-18
High beam indicator light ......................... 3-4
Horn switch ........................................... 3-12
IIdentification numbers ..............................9-1
Ignition circuit cut-off system ..................3-25
Indicator and warning lights......................3-2KKey identification number .........................9-1LLicense plate light bulb, replacing...........6-39
Luggage strap holders ...........................3-23MMain switch/steering lock .........................3-1
Model label ..............................................9-2
Multi-function display................................3-6NNeutral indicator light ...............................3-4OOil level warning light ...............................3-3PParking.....................................................5-4
Part locations ...........................................2-1
Pass switch ............................................3-11
Periodic maintenance and
lubrication chart .....................................6-2
Pre-operation check list ............................4-1
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM
