PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
23 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
24Engine oil filter car-
tridgeReplace.√√√
25*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
26*Front and rear brake
switchesCheck operation.√√√√√ √
27Moving parts and ca-
blesLubricate.√√√√ √
28*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
29*Air induction systemCheck the air cut-off valve, reed valve, and hose for dam-
age.
Replace any damaged parts if necessary.√√√√ √
30*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
31*EXUP systemCheck operation, cable free play and pulley position.√√√
32*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040U4B1E0E0.book Page 4 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU33990
Panels B and D
To remove one of the panels1. Remove the rider seat. (See page
3-19.)
2. Remove the screw, and then re-
move the panel as shown.
To install the panel1. Place the panel in its original posi-
tion, and then install the screw.2. Install the rider seat.
EAU19651
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be defective. Do
not attempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Screw
2. Panel B
Specified spark plug:
NGK/CR9EK
U4B1E0E0.book Page 7 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.CAUTION:
ECA10840
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twistit back and forth while pushing it in.
EAU34003
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in an in-correct reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
in the bottom-right side of the
crankcase.
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
U4B1E0E0.book Page 8 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
NOTE:The engine oil should be between theminimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level as fol-
lows.
a. Fit the rubber protector on the
special wrench.NOTE:The special wrench and rubber protec-tor are included in the owner’s tool kit.b. Remove the engine oil filler cap
with the special wrench as
shown.
c. Add sufficient oil of the recom-
mended type to raise it to the
correct level.
d. Install the engine oil filler cap
with the special wrench.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Unfasten the cowling by removing
the bolt, and by loosening and re-
moving the quick fastener screws.2. Slide the projection toward the rear
of the vehicle to unhook the cowl-
ing, then set the left side of the
cowling down on the ground.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler cap
1. Engine oil filler cap
2. Special wrench
3. Rubber protector
1. Cowling
1. Quick fastener screw
2. Bolt
3. Cowling
U4B1E0E0.book Page 9 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
63. Start the engine, warm it up for
several minutes, and then turn it
off.
4. Place an oil pan under the engine
to collect the used oil.
5. Remove the engine oil filler cap
with the special wrench.
6. Remove the engine oil drain bolt to
drain the oil from the crankcase.
NOTE:
Skip steps 7–9 if the oil filter cartridge isnot being replaced.
7. Remove the oil filter cartridge with
an oil filter wrench.
NOTE:An oil filter wrench is available at aYamaha dealer.
8. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.NOTE:Make sure that the O-ring is properlyseated.
9. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
1. Cowling
2. Projection
1. Engine oil drain bolt
1. Oil filter wrench
2. Engine oil filter cartridge
1. O-ring
U4B1E0E0.book Page 10 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6 10. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.11. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap
with the special wrench.
CAUTION:
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the crankcase.12. Start the engine, and then let it idle
for several minutes while checking
for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
13. Turn the engine off, and then
check the oil level and correct it if
necessary.
14. Insert the projection into the slot,
and slide the cowling into its origi-
nal position.
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
2.90 L (3.07 US qt) (2.55 Imp.qt)
With oil filter cartridge replacement:
3.10 L (3.28 US qt) (2.73 Imp.qt)
U4B1E0E0.book Page 11 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
615. Install and tighten the quick fasten-
er screws, and then install the bolt.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU34011
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in an incorrectreading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove the
brake fluid reservoir bracket bolt,
remove the coolant reservoir cap,
and then add coolant to the maxi-
mum level mark.
1. Slot
2. Projection
1. Maximum level mark
2. Minimum level mark
1. Brake fluid reservoir bracket bolt
U4B1E0E0.book Page 12 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
CAUTION:
ECA10470


If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the engine may not be
sufficiently cooled and the cool-
ing system will not be protected
against frost and corrosion.


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
4. Install the coolant reservoir cap,
and then install the brake fluid res-
ervoir bracket bolt.NOTE:

The radiator fans are automatically
switched on or off according to the
coolant temperature in the radia-
tor.


If the engine overheats, see page6-42 for further instructions.
EAU33030
Changing the coolant
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U4B1E0E0.book Page 13 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15

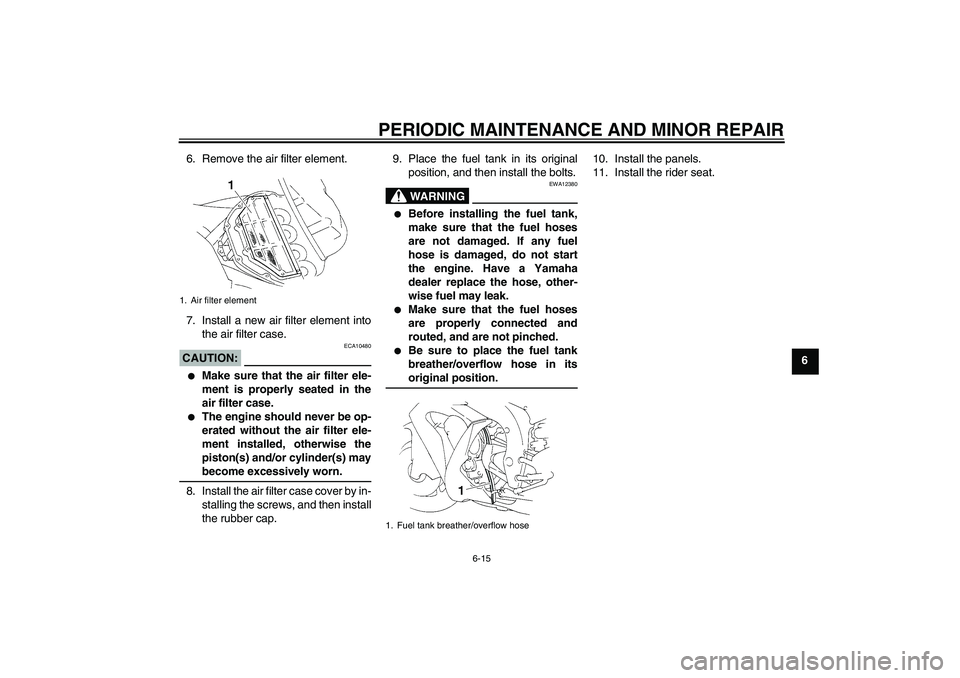

6 6. Remove the air filter element.
7. Install a new air filter element into
the air filter case.
CAUTION:
ECA10480


Make sure that the air filter ele-
ment is properly seated in the
air filter case.


The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
8. Install the air filter case cover by in-
stalling the screws, and then install
the rubber cap.9. Place the fuel tank in its original
position, and then install the bolts.
WARNING
EWA12380


Before installing the fuel tank,
make sure that the fuel hoses
are not damaged. If any fuel
hose is damaged, do not start
the engine. Have a Yamaha
dealer replace the hose, other-
wise fuel may leak.


Make sure that the fuel hoses
are properly connected and
routed, and are not pinched.


Be sure to place the fuel tank
breather/overflow hose in itsoriginal position.10. Install the panels.
11. Install the rider seat.
1. Air filter element
1. Fuel tank breather/overflow hose
U4B1E0E0.book Page 15 Wednesday, October 12, 2005 2:32 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU34300
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.NOTE:
The engine is warm when it quickly re-sponds to the throttle.
Check the engine idling speed and, if
necessary, adjust it to specification by
turning the idle adjusting screw. To in-
crease the engine idling speed, turn the
screw in direction (a). To decrease the
engine idling speed, turn the screw in
direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
1. Idle adjusting screwEngine idling speed:
1150–1250 r/min
1. Throttle cable free play
U4B1E0E0.book Page 16 Wednesday, October 12, 2005 2:32 PM
