engine YAMAHA YZF-R1 2007 Owner's Guide

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
NOTE:If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.CAUTION:
ECA10840
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twistit back and forth while pushing it in.
EAU19911
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
NOTE:The engine oil should be between theminimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Remove cowling C. (See page
6-6.)1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler cap
U4C8E0E0.book Page 10 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6 2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.
4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:Skip steps 5–7 if the oil filter cartridge isnot being replaced.
5. Remove the oil filter cartridge with
an oil filter wrench.
NOTE:An oil filter wrench is available at aYamaha dealer.
6. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
NOTE:
Make sure that the O-ring is properlyseated.
7. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
1. Engine oil drain bolt
1. Oil filter wrench
2. Engine oil filter cartridge
1. O-ring
U4C8E0E0.book Page 11 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
68. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.
9. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the crankcase.
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
11. Turn the engine off, and then
check the oil level and correct it if
necessary.
12. Install the cowling.
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
2.90 L (3.07 US qt) (2.55 Imp.qt)
With oil filter cartridge replacement:
3.10 L (3.28 US qt) (2.73 Imp.qt)
U4C8E0E0.book Page 12 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU42990
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.3. If the coolant is at or below the
minimum level mark, remove cowl-
ing B. (See page 6-6.)
4. Remove the reservoir cap, add
coolant to the maximum level
mark, and then install the reservoir
cap.
CAUTION:
ECA10471


If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U4C8E0E0.book Page 13 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
5. Install the cowling.NOTE:

The radiator fans are automatically
switched on or off according to the
coolant temperature in the radia-
tor.


If the engine overheats, see page6-44 for further instructions.
EAU42980
To change the coolant
1. Place the vehicle on a level sur-
face and let the engine cool if nec-
essary.
2. Remove cowlings B and C. (See
page 6-6.)3. Place a container under the engine
to collect the used coolant.
4. Remove the radiator cap.
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
5. Remove the coolant drain bolt to
drain the cooling system.6. Remove the coolant reservoir cap.
7. Remove the coolant reservoir by
removing the bolts, and then turn
the reservoir upside down to emp-
ty it.1. Radiator cap
1. Coolant drain bolt
1. Coolant reservoir cap
2. Coolant reservoir
3. Bolt
U4C8E0E0.book Page 14 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6 8. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
9. Install the coolant reservoir by in-
stalling the bolts.
10. Install the coolant drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.
11. Pour the recommended coolant
into the reservoir to the maximum
level mark, and then install the
coolant reservoir cap.
12. Pour the recommended coolant
into the radiator until it is full.
CAUTION:
ECA10471


If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content ofthe coolant as soon as possible,
otherwise the effectiveness of
the coolant will be reduced.
13. Install the radiator cap, start the
engine, let it idle for several min-
utes, and then turn it off.
14. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
15. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
16. Install the cowlings.
Tightening torque:
Coolant drain bolt:
7.0 Nm (0.7 m·kgf, 5.1 ft·lbf)
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator capacity (including all
routes):
2.76 L (2.92 US qt) (2.43 Imp.qt)
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U4C8E0E0.book Page 15 Friday, September 15, 2006 3:21 PM

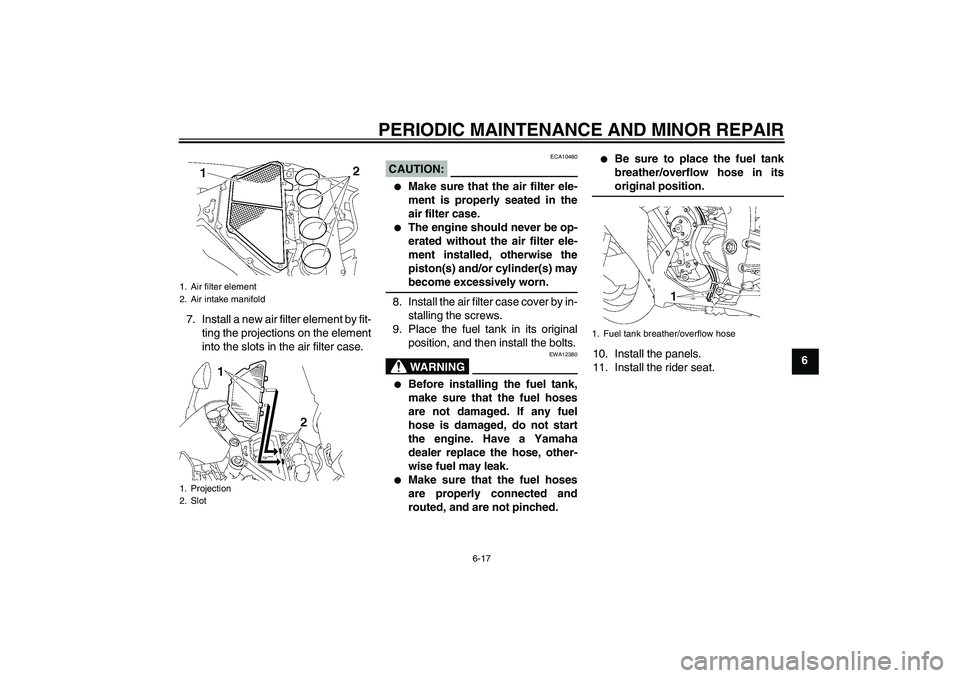

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6 7. Install a new air filter element by fit-
ting the projections on the element
into the slots in the air filter case.
CAUTION:
ECA10480


Make sure that the air filter ele-
ment is properly seated in the
air filter case.


The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
8. Install the air filter case cover by in-
stalling the screws.
9. Place the fuel tank in its original
position, and then install the bolts.WARNING
EWA12380


Before installing the fuel tank,
make sure that the fuel hoses
are not damaged. If any fuel
hose is damaged, do not start
the engine. Have a Yamaha
dealer replace the hose, other-
wise fuel may leak.


Make sure that the fuel hoses
are properly connected and
routed, and are not pinched.


Be sure to place the fuel tank
breather/overflow hose in itsoriginal position.
10. Install the panels.
11. Install the rider seat.
1. Air filter element
2. Air intake manifold
1. Projection
2. Slot
1. Fuel tank breather/overflow hose
U4C8E0E0.book Page 17 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500


The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
1. Throttle cable free playU4C8E0E0.book Page 18 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6 4. If the drive chain slack is incorrect,
adjust it as follows.
EAU34311
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing bolt on each side of the
swingarm in direction (b), and then
push the rear wheel forward.
NOTE:Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-tion for proper wheel alignment.CAUTION:
ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within thespecified limits.3. Tighten the locknuts, then the axle
nut to their specified torques.
1. Drive chain slack
1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
4. Alignment marks
Tightening torques:
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)
Axle nut:
150 Nm (15.0 m·kgf, 110 ft·lbf)
U4C8E0E0.book Page 25 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU23022
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.CAUTION:
ECA11120
To prevent damaging the O-rings, do
not clean the drive chain with steam
cleaners, high-pressure washers orinappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
CAUTION:
ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that coulddamage the O-rings.
EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.Recommended lubricant:
Engine oil
U4C8E0E0.book Page 26 Friday, September 15, 2006 3:21 PM
