DESCRIPTION
2-1
2
EAU10410
Left view1. Fuse box (page 6-32)
2. Front fork rebound damping force adjusting screw (page 3-21)
3. Front fork spring preload adjusting bolt (page 3-21)
4. Fuel injection system fuse (page 6-32)
5. Main fuse (page 6-32)
6. Shock absorber assembly compression damping force adjusting bolt
(for fast compression damping) (page 3-22)
7. Shock absorber assembly compression damping force adjusting bolt
(for slow compression damping) (page 3-22)8. Shock absorber assembly rebound damping force adjusting screw
(page 3-22)
9. Shock absorber assembly spring preload adjusting ring (page 3-22)
10.Engine oil drain bolt (page 6-10)
11.Coolant drain bolt (page 6-14)
12.Engine oil filter cartridge (page 6-10)
13.Front fork compression damping force adjusting screw (page 3-21)U4C8E0E0.book Page 1 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAU42920

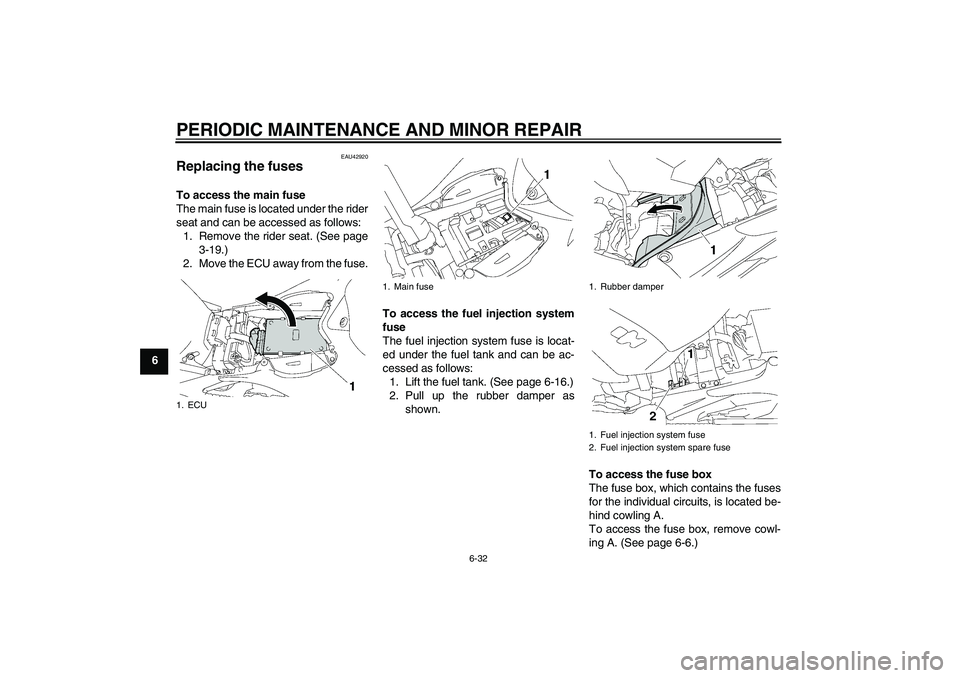

Replacing the fuses To access the main fuse
The main fuse is located under the rider
seat and can be accessed as follows:
1. Remove the rider seat. (See page
3-19.)
2. Move the ECU away from the fuse.
To access the fuel injection system
fuse
The fuel injection system fuse is locat-
ed under the fuel tank and can be ac-
cessed as follows:
1. Lift the fuel tank. (See page 6-16.)
2. Pull up the rubber damper as
shown.
To access the fuse box
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind cowling A.
To access the fuse box, remove cowl-
ing A. (See page 6-6.)1. ECU
1. Main fuse
1. Rubber damper
1. Fuel injection system fuse
2. Fuel injection system spare fuse
U4C8E0E0.book Page 32 Friday, September 15, 2006 3:21 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
To replace a fuse
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
1. Fuse box
1. Turn signal light fuse
2. Headlight fuse
3. Ignition fuse
4. Signaling system fuse
5. ETV (electric throttle valve) fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Right radiator fan fuse
8. Left radiator fan fuse
9. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Turn signal light fuse:
7.5 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
Electric throttle valve fuse:
7.5 A
