key YAMAHA YZF-R1 2008 Owner's Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
To access the fuse box
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind cowling A.
To access the fuse box, remove cowl-
ing A. (See page 6-6.)To replace a fuse
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
1. Rubber damper
1. Fuel injection system fuse
2. Fuel injection system spare fuse
1. Fuse box
1. Turn signal light fuse
2. Headlight fuse
3. Ignition fuse
4. Signaling system fuse
5. ETV (electric throttle valve) fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Right radiator fan fuse
8. Left radiator fan fuse
9. Spare fuse
U4C8E1E0.book Page 33 Wednesday, June 13, 2007 9:24 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU42930
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
To replace a high beam headlight
bulb
1. Remove panel C (if replacing the
left headlight bulb) or panel D (if re-
placing the right headlight bulb).
(See page 6-6.)
2. Disconnect the headlight coupler,
and then remove the bulb cover.
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Turn signal light fuse:
7.5 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
1. High beam headlight bulb
2. Low beam headlight bulb
U4C8E1E0.book Page 34 Wednesday, June 13, 2007 9:24 AM

CONSUMER INFORMATION
9-1
9
EAU26351

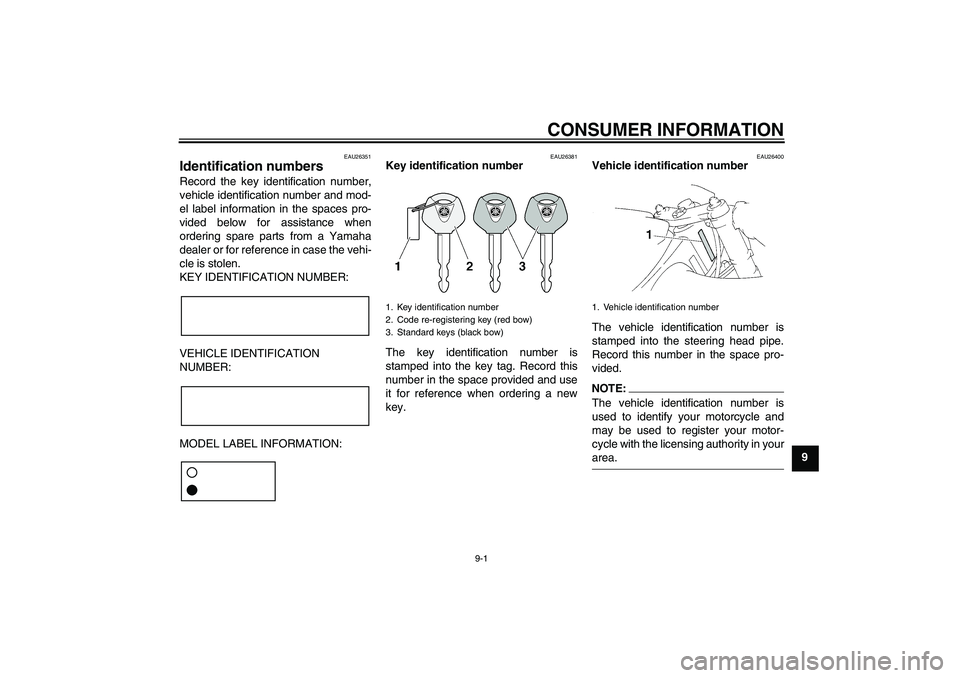

Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U4C8E1E0.book Page 1 Wednesday, June 13, 2007 9:24 AM

INDEX
AAir filter element, replacing ................... 6-16
Anti-theft alarm (optional) ..................... 3-13
Auxiliary light bulb, replacing ................ 6-38BBattery .................................................. 6-31
Brake and clutch levers,
checking and lubricating ..................... 6-27
Brake fluid, changing ............................ 6-24
Brake fluid level, checking .................... 6-23
Brake lever ........................................... 3-16
Brake pedal .......................................... 3-16CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-19
Clutch lever........................................... 3-15
Clutch lever free play, adjusting ........... 6-22
Coolant ................................................. 6-13
Coolant temperature warning light.......... 3-5
Cowlings and panels,
removing and installing......................... 6-6DDimmer switch ...................................... 3-14
Drive chain, cleaning and lubricating .... 6-26
Drive chain slack .................................. 6-25EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-18
Engine oil and oil filter cartridge ........... 6-10
Engine stop switch................................ 3-14
Engine trouble warning light ................... 3-7
EXUP system ....................................... 3-25
FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-21
Front fork, checking...............................6-29
Fuel ....................................................... 3-17
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather/overflow hose .......... 3-18
Fuel tank cap......................................... 3-17
Fuses, replacing .................................... 6-32HHandlebar switches ............................... 3-14
Hazard switch........................................ 3-15
Headlight bulb, replacing....................... 6-34
Helmet holders ...................................... 3-20
High beam indicator light......................... 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-26
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-7
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-38
Luggage strap holders .......................... 3-25MMain switch/steering lock ........................ 3-2
Matte color, caution .................................7-1
Model label .............................................. 9-2
Multi-function meter unit .......................... 3-7
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-22SSafety information ................................... 1-1
Seats..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-15
Shift pedal, checking and lubricating .... 6-28
Shift timing indicator light ........................ 3-7
Shock absorber assembly, adjusting .... 3-22
Sidestand .............................................. 3-25
Sidestand, checking and lubricating ..... 6-28
Spark plugs, checking............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-14
Steering, checking ................................ 6-30
Storage ................................................... 7-4
Supporting the motorcycle .................... 6-39
Swingarm pivots, lubricating ................. 6-29TTail/brake light ...................................... 6-37
Throttle cable free play, checking ......... 6-18
