INSTRUMENT AND CONTROL FUNCTIONS
3-12
3 For the UK only:
Push the “SELECT” button to switch
the display between the odometer
mode “ODO”, the tripmeter modes
“TRIP 1” and “TRIP 2”, the instanta-
neous fuel consumption mode “km/L”,
“L/100 km” or “MPG”, and the average
fuel consumption mode “AVE_ _._
km/L”, “AVE_ _._ L/100 km” or “AVE_
_._ MPG” in the following order:
ODO → TRIP 1 → TRIP 2 → km/L,
L/100 km or MPG → AVE_ _._ km/L,
AVE_ _._ L/100 km or AVE_ _._ MPG
→ ODO
If the fuel level warning light comes on
(see page 3-4), the display automatical-
ly changes to the fuel reserve tripmeter
mode “TRIP F” and starts counting the
distance traveled from that point. In that
case, push the “SELECT” button to
switch the display between the various
tripmeter, odometer, instantaneous fuel
consumption and average fuel con-
sumption modes in the following order:TRIP F → km/L or L/100 km → AVE_
_._ km/L or AVE_ _._ L/100 km →
ODO → TRIP 1 → TRIP 2 → TRIP F
For the UK only:
TRIP F → km/L, L/100 km or MPG →
AVE_ _._ km/L, AVE_ _._ L/100 km or
AVE_ _._ MPG → ODO → TRIP 1 →
TRIP 2 → TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second.
If you do not reset the fuel reserve trip-
meter manually, it resets itself automat-
ically and the display returns to the prior
mode after refueling and traveling 5 km
(3 mi).Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L”,
“L/100 km” or “MPG” (for the UK only).

When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.


When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.


For the UK only: When the display
is set to “MPG”, the distance that
can be traveled on 1.0 Imp.gal of
fuel under the current riding condi-
tions is shown.
1. Instantaneous fuel consumption
1
U14BE2E0.book Page 12 Friday, June 18, 2010 8:47 AM

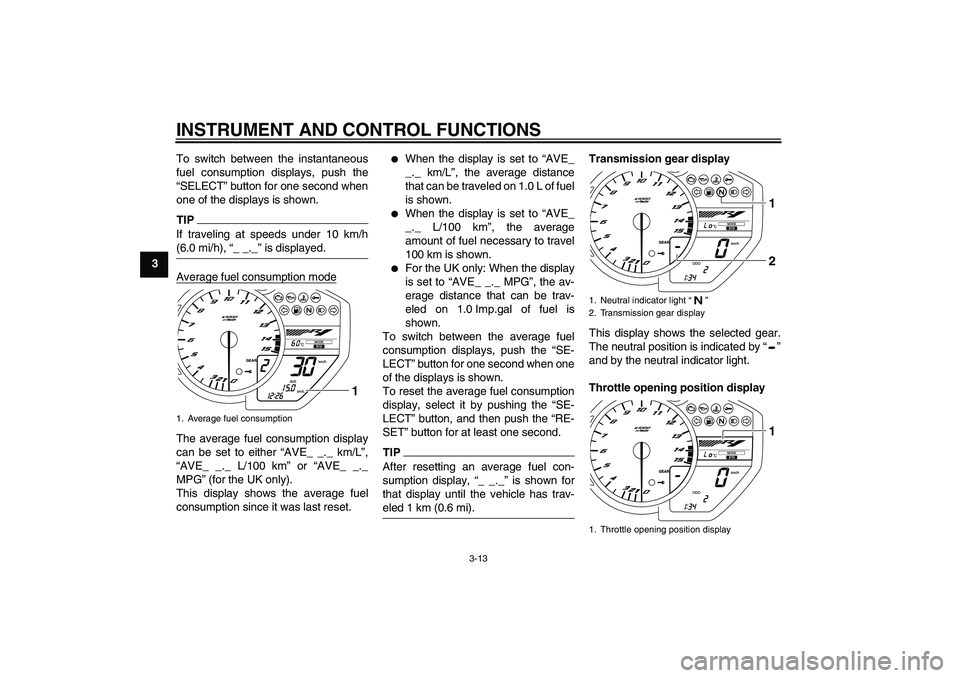

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3To switch between the instantaneous
fuel consumption displays, push the
“SELECT” button for one second when
one of the displays is shown.
TIPIf traveling at speeds under 10 km/h
(6.0 mi/h), “_ _._” is displayed.Average fuel consumption modeThe average fuel consumption display
can be set to either “AVE_ _._ km/L”,
“AVE_ _._ L/100 km” or “AVE_ _._
MPG” (for the UK only).
This display shows the average fuel
consumption since it was last reset.


When the display is set to “AVE_
_._ km/L”, the average distance
that can be traveled on 1.0 L of fuel
is shown.


When the display is set to “AVE_
_._ L/100 km”, the average
amount of fuel necessary to travel
100 km is shown.


For the UK only: When the display
is set to “AVE_ _._ MPG”, the av-
erage distance that can be trav-
eled on 1.0 Imp.gal of fuel is
shown.
To switch between the average fuel
consumption displays, push the “SE-
LECT” button for one second when one
of the displays is shown.
To reset the average fuel consumption
display, select it by pushing the “SE-
LECT” button, and then push the “RE-
SET” button for at least one second.
TIPAfter resetting an average fuel con-
sumption display, “_ _._” is shown for
that display until the vehicle has trav-
eled 1 km (0.6 mi).
Transmission gear display
This display shows the selected gear.
The neutral position is indicated by“”
and by the neutral indicator light.
Throttle opening position display
1. Average fuel consumption
1
1. Neutral indicator light“”
2. Transmission gear display
1. Throttle opening position display
211
