clutch YAMAHA YZF-R1 2013 User Guide

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
TIPMake sure that the O-ring is properly
seated.7. Install the new oil filter cartridgewith an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench. 8. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
9. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620
●
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
●
Make sure that no foreign mate-
rial enters the crankcase.
1. O-ring
1. Torque wrench
Tightening torque:Oil filter cartridge:17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque: Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
1
Recommended engine oil:See page 8-1.
Oil quantity: Without oil filter cartridge replace-
ment: 3.73 L (3.94 US qt, 3.28 Imp.qt)
With oil filter cartridge replacement:
3.93 L (4.15 US qt, 3.46 Imp.qt)
U1KBE1E0.book Page 13 Monday, July 9, 2012 1:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6
“broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
(60 mi) after installing a new tire.
●
The tires must be warmed up
before a high-speed run.
●
Always adjust the tire air pres-
sure according to the operating
conditions.
EAU21962
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.●
The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
●
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU33891
Adjusting the clutch lever free
play The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
To increase the clutch lever free play,
turn the clutch lever free play adjusting
bolt at the clutch lever in direction (a).
To decrease the clutch lever free play,
turn the adjusting bolt in direction (b).1. Clutch lever free play adjusting bolt
2. Clutch lever free play
U1KBE1E0.book Page 21 Monday, July 9, 2012 1:05 PM

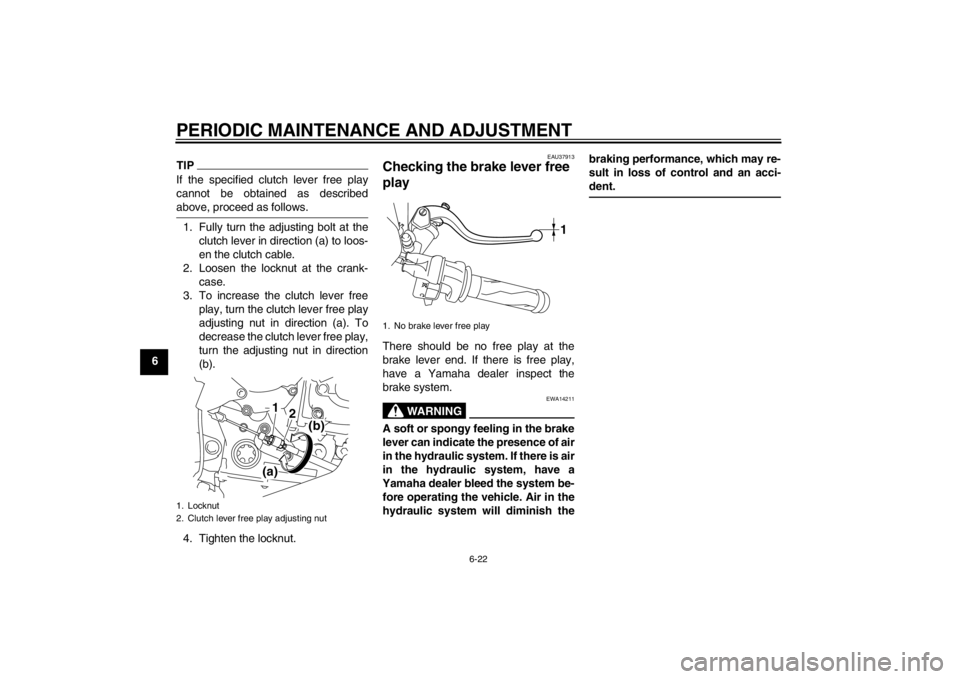

PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
TIPIf the specified clutch lever free play
cannot be obtained as described
above, proceed as follows.1. Fully turn the adjusting bolt at theclutch lever in direction (a) to loos-
en the clutch cable.
2. Loosen the locknut at the crank- case.
3. To increase the clutch lever free play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b).
4. Tighten the locknut.
EAU37913
Checking the brake lever free
play There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14211
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be- fore operating the vehicle. Air in the
hydraulic system will diminish the braking performance, which may re-
sult in loss of control and an acci-
dent.
1. Locknut
2. Clutch lever free play adjusting nut
1
2
(a) (b)
1. No brake lever free play
1
U1KBE1E0.book Page 22 Monday, July 9, 2012 1:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU23143
Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Brake lever
Clutch lever
EAU23202
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING
EWA10731
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. Otherwise,
the sidestand could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
Recommended lubricants:Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
Recommended lubricant:Lithium-soap-based grease
U1KBE1E0.book Page 29 Monday, July 9, 2012 1:05 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:2070 mm (81.5 in)
Overall width:
715 mm (28.1 in)
Overall height: 1130 mm (44.5 in)
Seat height: 835 mm (32.9 in)
Wheelbase:
1415 mm (55.7 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius: 3500 mm (137.8 in)Weight:Curb weight:206 kg (454 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 4-cylinder
Displacement: 998 cm³
Bore × stroke:
78.0 × 52.2 mm (3.07 × 2.06 in)
Compression ratio: 12.70 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:3.73 L (3.94 US qt, 3.28 Imp.qt)
With oil filter cartridge replacement:
3.93 L (4.15 US qt, 3.46 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes): 2.73 L (2.89 US qt, 2.40 Imp.qt)Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Premium unleaded gasoline only
Fuel tank capacity:
18.0 L (4.76 US gal, 3.96 Imp.gal)
Fuel reserve amount: 3.1 L (0.82 US gal, 0.68 Imp.gal)Fuel injection:Throttle body:
ID mark:1KB8 00Spark plug(s):Manufacturer/model: NGK/LMAR9E-J
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:
1.512 (65/43)
Final drive: Chain
Secondary reduction ratio: 2.765 (47/17)
Transmission type:
Constant mesh 6-speed
Operation: Left foot operation
Gear ratio: 1st:2.533 (38/15)
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U1KBE1E0.book Page 1 Monday, July 9, 2012 1:05 PM

INDEX
AAir filter element.................................... 6-17
Auxiliary light ........................................ 6-37BBattery .................................................. 6-31
Brake and clutch levers, checking and lubricating ..................... 6-29
Brake and shift pedals, checking and lubricating ..................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-24
Brake lever ........................................... 3-20
Brake lever free play, checking ............ 6-22
Brake light switches .............................. 6-23
Brake pedal .......................................... 3-21CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-26
Clutch lever........................................... 3-20
Clutch lever free play, adjusting ........... 6-21
Coolant ................................................. 6-14
Coolant temperature warning light.......... 3-5
Cowlings, removing and installing .......... 6-8DDimmer switch ...................................... 3-19
D-mode (drive mode).............................. 3-1
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack .................................. 6-25EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-17
Engine oil and oil filter cartridge ........... 6-11
Engine stop switch................................ 3-19 Engine trouble warning light .................... 3-8
FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-30
Front fork, checking...............................6-30
Fuel ....................................................... 3-24
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-5
Fuel tank breather hose and
overflow hose ...................................... 3-26
Fuel tank cap......................................... 3-24
Fuses, replacing .................................... 6-33HHandlebar switches ............................... 3-18
Hazard switch........................................ 3-19
Headlight bulb, replacing....................... 6-34
Helmet holder ........................................ 3-28
High beam indicator light......................... 3-5
Horn switch ........................................... 3-19IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-35
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-9
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-37
Luggage strap holders .......................... 3-34MMain switch/steering lock ........................ 3-3
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution .................................7-1
Model label .............................................. 9-1 Multi-function meter unit ......................... 3-9
NNeutral indicator light .............................. 3-5OOil level warning light .............................. 3-5PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-18RRear view mirrors.................................. 3-30
Rider footrest position, adjusting .......... 3-29SSafety information ................................... 1-1
Seats..................................................... 3-27
Shifting .................................................... 5-2
Shift pedal ............................................. 3-20
Shift timing indicator light ........................ 3-8
Shock absorber assembly, adjusting .... 3-32
Sidestand .............................................. 3-35
Sidestand, checking and lubricating ..... 6-29
Spark plugs, checking........................... 6-10
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-19
Steering, checking ................................ 6-31
Storage ................................................... 7-4
Storage compartment ........................... 3-29
Supporting the motorcycle .................... 6-38
Swingarm pivots, lubricating ................. 6-30TTail/brake light ...................................... 6-36
Throttle grip and cable,
checking and lubricating ..................... 6-28
U1KBE1E0.book Page 1 Monday, July 9, 2012 1:05 PM
