spark plug YAMAHA YZF-R1 2013 Owners Manual
[x] Cancel search | Manufacturer: YAMAHA, Model Year: 2013, Model line: YZF-R1, Model: YAMAHA YZF-R1 2013Pages: 112, PDF Size: 2.79 MB
Page 6 of 112
TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS .......................................3-1
D-mode (drive mode) ......................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-3
Indicator lights and warning lights ..............................3-4
Multi-function meter unit .................3-9
Handlebar switches ......................3-18
Clutch lever ...................................3-20
Shift pedal .....................................3-20
Brake lever ...................................3-20
Brake pedal ..................................3-21
Traction control system ................3-21
Fuel tank cap ................................3-24
Fuel ...............................................3-24
Fuel tank breather hose and overflow hose ............................3-26
Catalytic converter ........................3-26
Seats ............................................3-27
Helmet holder ...............................3-28
Storage compartment ...................3-29
Rider footrest position ...................3-29
Rear view mirrors .........................3-30 Adjusting the front fork ................. 3-30
Adjusting the shock absorber
assembly ................................... 3-32
Luggage strap holders ................. 3-34
Sidestand ..................................... 3-35
Ignition circuit cut-off system ........ 3-35
FOR YOUR SAFETY –
PRE-OPERATION CHECKS ............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS ................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 6-1
Owner’s tool kit ............................... 6-2
Periodic maintenance chart for the emission control system ............. 6-3
General maintenance and lubrication chart .......................... 6-4
Removing and installing cowlings ...................................... 6-8
Checking the spark plugs ............. 6-10
Engine oil and oil filter cartridge ... 6-11
Coolant ......................................... 6-14 Air filter element ........................... 6-17
Checking the engine idling
speed ........................................ 6-17
Checking the throttle grip free play ........................................... 6-18
Valve clearance ........................... 6-18
Tires ............................................. 6-18
Cast wheels ................................. 6-21
Adjusting the clutch lever free play ........................................... 6-21
Checking the brake lever free
play ........................................... 6-22
Brake light switches ..................... 6-23
Checking the front and rear brake pads ........................ 6-23
Checking the brake fluid level ...... 6-24
Changing the brake fluid .............. 6-25
Drive chain slack .......................... 6-25
Cleaning and lubricating the drive chain .......................... 6-27
Checking and lubricating the cables ................................. 6-27
Checking and lubricating
the throttle grip and cable ......... 6-28
Checking and lubricating the brake and shift pedals ........ 6-28
Checking and lubricating the brake and clutch levers ...... 6-29
Checking and lubricating
the sidestand ............................ 6-29U1KBE1E0.book Page 1 Monday, July 9, 2012 1:05 PM
Page 40 of 112
INSTRUMENT AND CONTROL FUNCTIONS
3-25
33. Wipe up any spilled fuel immedi-ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi- ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU13391
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
1. Fuel tank filler tube
2. Maximum fuel level
2
1
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity: 18.0 L (4.76 US gal, 3.96 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on): 3.1 L (0.82 US gal, 0.68 Imp.gal)
U1KBE1E0.book Page 25 Monday, July 9, 2012 1:05 PM
Page 61 of 112
PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU46861
TIP●
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
●
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
●
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
EAU46910
Periodic maintenance chart for the emission control system NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Fuel line Check fuel hoses for cracks or
damage. √√√√√
2 *Spark plugs Check condition.
Clean and regap.
√√
Replace. √√
3 *Valves Check valve clearance.
Adjust.
Every 40000 km (24000 mi)
4 *Fuel injection sys-
tem Adjust synchronization.
√√√√√
5 *Mufflers and ex-
haust pipes Check the screw clamps for
looseness. √√√√√
6 *Air induction sys-
tem Check the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if necessary. √√√√√
U1KBE1E0.book Page 3 Monday, July 9, 2012 1:05 PM
Page 68 of 112
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6To install a cowling
1. Insert the projection into the slot,
and then slide the cowling back-
ward. 2. Place the cowling in its original po-
sition, and then install the quick
fastener screws.
3. Install cowling A or B.
EAU19652
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Cowling C
2. Slot
3. Projection
1. Cowling D
2. Slot
3. Projection
2
3
1
3
1
2
Specified spark plug: NGK/LMAR9E-J
U1KBE1E0.book Page 10 Monday, July 9, 2012 1:05 PM
Page 69 of 112
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.NOTICE
ECA10840
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twist
it back and forth while pushing it in.
EAU47281
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.

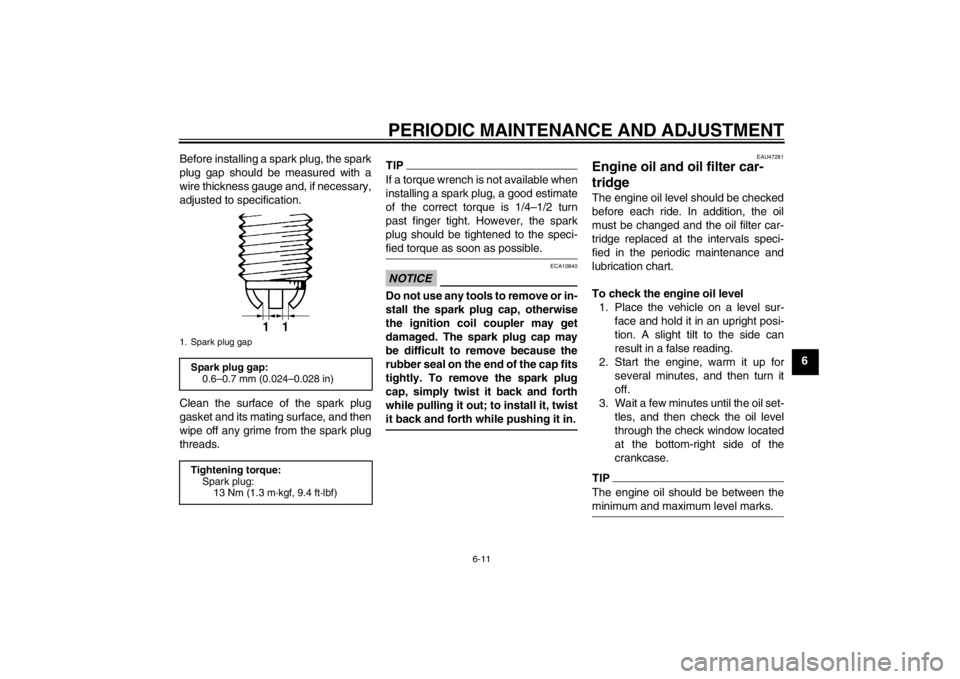

1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
Tightening torque: Spark plug:13 Nm (1.3 m·kgf, 9.4 ft·lbf)
1
1
U1KBE1E0.book Page 11 Monday, July 9, 2012 1:05 PM
Page 98 of 112
PERIODIC MAINTENANCE AND ADJUSTMENT
6-40
6
EAU42503
Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition. Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the electric starter.
U1KBE1E0.book Page 40 Monday, July 9, 2012 1:05 PM
Page 100 of 112
MOTORCYCLE CARE AND STORAGE
7-1
7
EAU37833
Matte color caution NOTICE
ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-
ished parts.
EAU36904
Care While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning1. Cover the muffler outlets with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers as well as all electrical couplers
and connectors, including the
spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA15092
●
Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.
●
Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
U1KBE1E0.book Page 1 Monday, July 9, 2012 1:05 PM
Page 103 of 112
MOTORCYCLE CARE AND STORAGE
7-4
7
EAU26203
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the motor-
cycle.NOTICE
ECA10810
●
Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.
●
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:1. Follow all the instructions in the “Care” section of this chapter. 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinders, piston rings, etc.
from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam- age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine over.
[EWA10951]
e. Remove the spark plug caps from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas- tic bags to prevent moisture from
entering them.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-31.
U1KBE1E0.book Page 4 Monday, July 9, 2012 1:05 PM
Page 105 of 112
SPECIFICATIONS
8-1
8
Dimensions:Overall length:2070 mm (81.5 in)
Overall width:
715 mm (28.1 in)
Overall height: 1130 mm (44.5 in)
Seat height: 835 mm (32.9 in)
Wheelbase:
1415 mm (55.7 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius: 3500 mm (137.8 in)Weight:Curb weight:206 kg (454 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 4-cylinder
Displacement: 998 cm³
Bore × stroke:
78.0 × 52.2 mm (3.07 × 2.06 in)
Compression ratio: 12.70 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:3.73 L (3.94 US qt, 3.28 Imp.qt)
With oil filter cartridge replacement:
3.93 L (4.15 US qt, 3.46 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes): 2.73 L (2.89 US qt, 2.40 Imp.qt)Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Premium unleaded gasoline only
Fuel tank capacity:
18.0 L (4.76 US gal, 3.96 Imp.gal)
Fuel reserve amount: 3.1 L (0.82 US gal, 0.68 Imp.gal)Fuel injection:Throttle body:
ID mark:1KB8 00Spark plug(s):Manufacturer/model: NGK/LMAR9E-J
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:
1.512 (65/43)
Final drive: Chain
Secondary reduction ratio: 2.765 (47/17)
Transmission type:
Constant mesh 6-speed
Operation: Left foot operation
Gear ratio: 1st:2.533 (38/15)
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U1KBE1E0.book Page 1 Monday, July 9, 2012 1:05 PM
Page 109 of 112
INDEX
AAir filter element.................................... 6-17
Auxiliary light ........................................ 6-37BBattery .................................................. 6-31
Brake and clutch levers, checking and lubricating ..................... 6-29
Brake and shift pedals, checking and lubricating ..................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-24
Brake lever ........................................... 3-20
Brake lever free play, checking ............ 6-22
Brake light switches .............................. 6-23
Brake pedal .......................................... 3-21CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-26
Clutch lever........................................... 3-20
Clutch lever free play, adjusting ........... 6-21
Coolant ................................................. 6-14
Coolant temperature warning light.......... 3-5
Cowlings, removing and installing .......... 6-8DDimmer switch ...................................... 3-19
D-mode (drive mode).............................. 3-1
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack .................................. 6-25EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-17
Engine oil and oil filter cartridge ........... 6-11
Engine stop switch................................ 3-19 Engine trouble warning light .................... 3-8
FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-30
Front fork, checking...............................6-30
Fuel ....................................................... 3-24
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-5
Fuel tank breather hose and
overflow hose ...................................... 3-26
Fuel tank cap......................................... 3-24
Fuses, replacing .................................... 6-33HHandlebar switches ............................... 3-18
Hazard switch........................................ 3-19
Headlight bulb, replacing....................... 6-34
Helmet holder ........................................ 3-28
High beam indicator light......................... 3-5
Horn switch ........................................... 3-19IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-35
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-9
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-37
Luggage strap holders .......................... 3-34MMain switch/steering lock ........................ 3-3
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution .................................7-1
Model label .............................................. 9-1 Multi-function meter unit ......................... 3-9
NNeutral indicator light .............................. 3-5OOil level warning light .............................. 3-5PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-18RRear view mirrors.................................. 3-30
Rider footrest position, adjusting .......... 3-29SSafety information ................................... 1-1
Seats..................................................... 3-27
Shifting .................................................... 5-2
Shift pedal ............................................. 3-20
Shift timing indicator light ........................ 3-8
Shock absorber assembly, adjusting .... 3-32
Sidestand .............................................. 3-35
Sidestand, checking and lubricating ..... 6-29
Spark plugs, checking........................... 6-10
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-19
Steering, checking ................................ 6-31
Storage ................................................... 7-4
Storage compartment ........................... 3-29
Supporting the motorcycle .................... 6-38
Swingarm pivots, lubricating ................. 6-30TTail/brake light ...................................... 6-36
Throttle grip and cable,
checking and lubricating ..................... 6-28
U1KBE1E0.book Page 1 Monday, July 9, 2012 1:05 PM
