display YAMAHA YZF-R1 2016 Owners Manual

Table of contentsSafety information............................ 1-1
Description ........................................ 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instrument s................. 2-3
Special features ................................ 3-1
YRC (Yamaha Ride Control) ........... 3-1
Glossary .......................................... 3-3
YRC functions visual guide.............. 3-4
Instrument and co ntrol functions.... 4-1
Immobilizer system ....... ................... 4-1
Main switch/steering lock................. 4-2
Handlebar switches ......................... 4-4
Indicator lights and warning lights ... 4-6
Display ............................................. 4-8
MENU screen ................................ 4-15
Clutch lever.................................... 4-30
Shift pedal....... ............................. .. 4-30
Brake lever .................................... 4-31
Brake pedal ................................... 4-31
Brake system ..... ............................ 4-32
Fuel tank cap ................................. 4-33
Fuel................................................ 4-34
Fuel tank breather hose and overflow hose ............................. 4-35
Catalytic converter ......................... 4-36
Seats ............................................. 4-36
CCU (for equipped models) ........... 4-38 Document storage ......................... 4-39
Rear view mirrors .......................... 4-39
Adjusting the front fork .................. 4-40
Adjusting the shock absorber
assembly.................................... 4-42
EXUP system ................................ 4-45
Auxiliary DC connector.................. 4-46
Sidestand ...................................... 4-46
Ignition circuit cut- off system ......... 4-47
For your safety – pre-operation
checks ............................................... 5-1
Operation and important riding
points ................................................. 6-1
Starting the engine .......................... 6-1
Shifting ............................................ 6-2
Tips for reducing fuel consumption ................................ 6-4
Engine break-in ............................... 6-4
Parking ............................................ 6-5
Periodic maintenance and
adjustment ........................................ 7-1
Owner’s tool kit................................ 7-2
Periodic maintenance chart for the emission control system .............. 7-3
General maintenance and
lubrication chart ........................... 7-4
Removing and installing cowlings and panels ............... .................... 7-8 Checking the spark plugs .............. 7-11
Engine oil and oil filt
er cartridge..... 7-12
Coolant .......................................... 7-14
Air filter element ............................. 7-17
Checking the engine idling speed............ ............................ .. 7-17
Checking the throttle grip free play ............................................. 7-18
Valve clearance ............................. 7-18
Tires ............................................... 7-18
Cast magnesium wheels ................ 7-21
Adjusting the clutch lever free play ............................................. 7-22
Checking the brake lever free
play ............................................. 7-22
Brake light switches ....................... 7-23
Checking the front and rear brake
pads............................................ 7-23
Checking the brake fluid level ........ 7-24
Changing the brake fluid ................ 7-25
Drive chain slack............................ 7-25
Cleaning and lubricating the drive chain .................................. 7-27
Checking and lubricating the cables ......................................... 7-27
Checking and lubricating the throttle grip and cable ................. 7-28
Checking and lubricating the
brake and shift pedals ................ 7-28
Checking and lubricating the brake and clutch levers .............. 7-292CR-9-E1.book 1 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-5
1
2
34
5
6
7
8
9
10
11
12 6-1 for starting instructions prior to
starting the engine.
Set this switch to “ ” to stop the engine
in case of an emergency, such as when
the vehicle overturns or when the throt-
tle cable is stuck.
EAU67360
The engine trouble and system warning
light and ABS warning light may come
on when the key is turned to “ON” and
the start switch is pushed, but this does
not indicate a malfunction.
EAU66010
Hazard switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10062
Do not use the hazard lights for an
extended length of time with the en- gine not running, otherwise the bat-
tery may discharge.
EAU66111
Mode switch “MODE”
Use the mode switch to change YRC
modes or edit the PWR, TCS, and SCS
settings from the main screen. This
switch has three buttons.
Up button
- push this button to change
the selected YRC setting upward.
Center button - push this button to
scroll left to right among the MODE,
PWR, TCS, and SCS items.
Down button - push this button to
change the selected YRC setting
downward.TIP
The center button is also used to
activate the launch control system.
When the LCS icon is grey, push
and hold the center button. The
LCS icon will flash and turn white
when the system has been activat-
ed.

The traction control system can
only be turned off from the main
screen. Select TCS with the center button, then push and hold the up
button until TCS OFF is displayed.
To turn the traction control system
back on, use the down button.

When TCS has been turned off,
the SCS, LCS, and LIF systems
are also turned off for all YRC
modes.

See “YRC Setting” on page 4-16
for more information on how to
customize YRC modes and adjustYRC item setting levels.
EAU66100
Wheel switch “ ”
When the main screen is set to
STREET MODE, use the wheel switch
to scroll and reset the information dis-
play items.
When the main screen is set to TRACK
MODE, use the wheel switch to scroll
and reset the information display items
and to activate the lap timer.
When the display has been changed to
the MENU screen, use the wheel
switch to navigate the setting modules
and make setting changes.
Operate the wheel switch as follows.
Rotate up
- rotate the wheel upward to
2CR-9-E1.book 5 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-6
1
2
345
6
7
8
9
10
11
12
scroll up/left or increase a setting value.
Rotate down
- rotate the wheel down-
ward to scroll down/right or decrease a
setting value.
Short push - briefly press the switch in-
ward to make and confirm selections.
Long push - press the switch inward
for one second to reset an information
display item or to access and exit the
MENU screen.
TIP
See page 4-8 for more information
on the main screen and its func-
tions.

See page 4-15 for more informa-
tion on the MENU screen and howto make setting changes.
EAU49398
Indicator lights and warning
lights
EAU11022
Turn signal indicator light “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU66890
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
3.0 L (0.79 US gal, 0.66 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds and then go off.TIPIf the warning light does not come on at
all, remains on after refueling, or if the
warning light flashes repeatedly, havea Yamaha dealer check the vehicle.
1. Neutral indicator light “ ”
2. Immobilizer system indicator light “ ”
3. High beam indicator light “ ”
4. Stability control indicator light “SC”
5. Turn signal indicator light “ ”
6. Shift timing indicator light
7. Fuel level warning light “ ”
8. ABS warning light “ ”
9. Engine trouble and system warning light
10.Oil pressure and coolant temperature warning light
11 09
2 3 4 56
7
8
ABS
2CR-9-E1.book 6 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-7
1
2
34
5
6
7
8
9
10
11
12
EAU66501
ABS warning light “ ”
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at a
speed of 10 km/h (6 mi/h) or higher.
If the warning light does not work as de-
scribed above, or if the warning light
comes on while riding, the ABS and
UBS may not work correctly. Have a
Yamaha dealer check the vehicle as
soon as possible. (See “Brake system”
on page 4-32 for an explanation of ABS
and UBS.)
WARNING
EWA16041
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes
while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
check the brake system and electri-cal circuits as soon as possible.
EAU67431
Shift timing indicator light
This indicator light can be set to come
on and go off at the desired engine
speeds and is used to inform the rider
when it is time to shift to the next higher
gear. (See page 4-24.)
The electrical circuit of the indicator
light can be checked by turning the key
to ON. The indicator light should come
on for a few seconds, and then go off.
If the indicator light does not come on
initially when the key is turned to ON, or
if the indicator light remains on, have a
Yamaha dealer check the electrical cir-
cuit.
EAU66901
Immobilizer system indicator light
“”
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The electrical circuit of the indicator
light can be checked by turning the key to ON. The indicator light should come
on for a few seconds, and then go off. If
the indicator light does not operate as
described above, have a Yamaha deal-
er check the vehicle.
If a problem is detected in the immobi-
lizer system, the immobilizer system in-
dicator light will flash and the display
will indicate an error code. (See “Error
mode” on page 4-14.)
EAU65980
Stability control indicator light “SC”
This indicator light comes on when the
TCS, SCS, or LIF systems have en-
gaged. It will also come on if the TCS is
set to “OFF” or if the TCS system be-
comes disabled while riding.
The electrical circuit of the light can be
checked by turning the key to “ON”.
The light should come on for a few sec-
onds and then go off. If the light does
not come on initially when the key is
turned to “ON”, or if the light remains
on, have a Yamaha dealer check the
vehicle.
ABS
2CR-9-E1.book 7 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-8
1
2
345
6
7
8
9
10
11
12
EAU65991
Oil pressure and coolant tempera-
ture warning light
This warning light comes on if the en-
gine oil pressure is low or if the coolant
temperature is high. If this occurs, stop
the engine immediately.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on again after going off briefly, and then
remain on until the engine is started. If
the warning light does not come on ini-
tially when the key is turned to “ON”,
have a Yamaha dealer check the elec-
trical circuit.NOTICE
ECA22441
If the oil pressure and coolant warn-
ing light does not go off after start-
ing the engine or if it comes on while
the engine is running, stop the vehi-
cle and engine immediately.
If the engine is overheating, the
coolant temperature warning
icon will come on. Let the en-
gine cool. Check the coolant
level (see page 7-38).

If the engine oil pressure is low, the oil pressure warning icon
will come on. Check the oil level
(see page 7-12).

If the warning light remains on
after letting the engine cool and
confirming the proper oil level,
have a Yamaha dealer check the
vehicle. Do not continue to op-erate the vehicle!
EAU66002
Engine trouble and system warning
light
If a problem is detected in any of the cir-
cuits monitoring the engine or YRC sys-
tems, this warning light will come on
and the display will switch to error
mode. (See page 4-14.)
The electrical circuit of the warning light
can be checked by turning the key to
ON. The light should come on briefly
and then go off. If the indicator does not
come on or remains on, have a
Yamaha dealer check the vehicle.
EAU66326
DisplayThe display has two different main
screen display modes, STREET
MODE and TRACK MODE. Most of the
functions are viewable in either mode,
but the layout differs slightly. The fol-
lowing items can be found on the dis-
play.
Speedometer

Tachometer

Information display

Transmission gear display

Front brake pressure indicator

Acceleration indicator

YRC setting display MODE/PWR/
TCS/SCS

YRC setting display LCS/QS/LIF

ERS indicator (ERS-equipped
models)

GPS indicator (CCU-equipped
models)

Clock

Revolution peak hold indicator

Lap timer

Oil pressure warning icon

Coolant temperature warning icon

Error mode display
2CR-9-E1.book 8 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-9
1
2
34
5
6
7
8
9
10
11
12
TIPThis model uses a thin-film-transistor
liquid-crystal display (TFT LCD) for
good contrast and readability in various
lighting conditions. However, due to the
nature of this technology, it is normal
for a small number of pixels to be inac-tive. STREET MODE TRACK MODE
WARNING
EWA18210
Stop the vehicle before making any
setting changes. Changing settings
while riding can distract the opera-
tor and increase the risk of an acci-
1. YRC items LCS/QS/LIF
2. ERS indicator (YZF-R1M)
3. Speedometer
4. GPS indicator (CCU-equipped models)
5. Logging indicator (CCU-equipped models)
6. Clock
7. Revolution peak hold indicator
8. Front brake pressure indicator
9. Acceleration indicator
10.Transmission gear display
11.YRC items MODE/PWR/TCS/SCS
12.Information display
13.Tachometer
ODO
12345
km
TRIP-2
1234.5
km
1
Ny
2 km/h
·1000 r/minMODE -
A
PWR
1
TCS
1
SCS
1
A
-
1
LCS
QS
LIF
GPS
12 :
00
7
11 1 089
4
1
2
36
5
1312
1. YRC items LCS/QS/LIF
2. ERS indicator (YZF-R1M)
3. Lap timer
4. Coolant temperature warning “ ”
5. Oil pressure warning “ ”
6. Clock
7. Transmission gear display
8. Information display
9. YRC items MODE/PWR/TCS/SCS
10.Speedometer
11.Tachometer
MODE -
A
PWR
1
TCS
1
SCS
1
km/h
123
ODO
km
7890
GEARN
LAP 09
LATEST12
12 34
·1000 r/min
A
-
1
LC LCS
QS
LIF
12 :
00
11109
8
5
4
1
2
36
7
2CR-9-E1.book 9 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-10
1
2
345
6
7
8
9
10
11
12
dent.

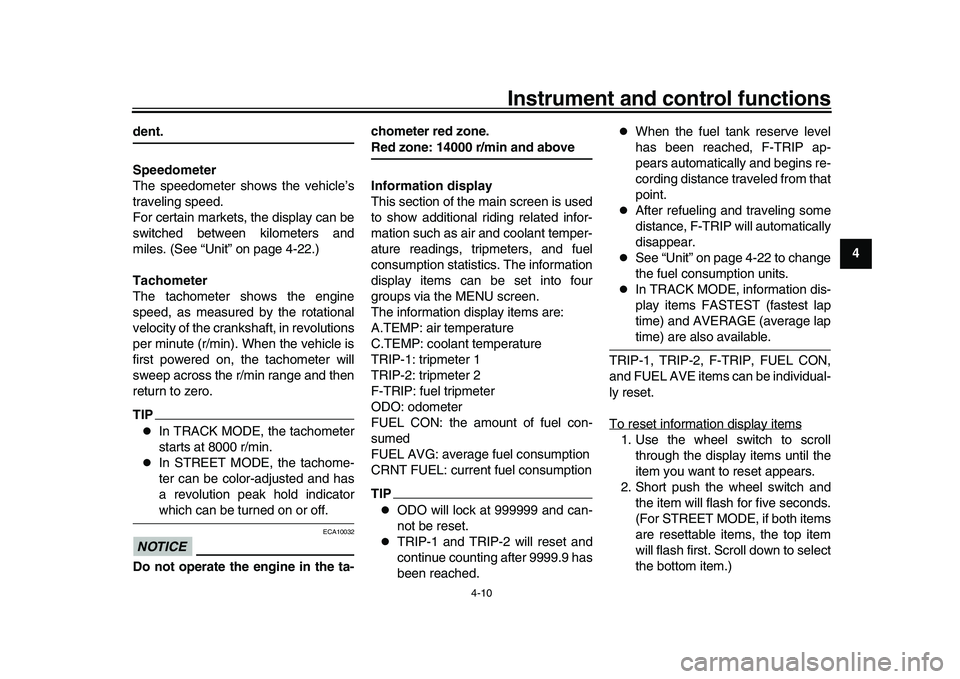

Speedometer
The speedometer shows the vehicle’s
traveling speed.
For certain markets, the display can be
switched between kilometers and
miles. (See “Unit” on page 4-22.)
Tachometer
The tachometer shows the engine
speed, as measured by the rotational
velocity of the crankshaft, in revolutions
per minute (r/min). When the vehicle is
first powered on, the tachometer will
sweep across the r/min range and then
return to zero.TIP
In TRACK MODE, the tachometer
starts at 8000 r/min.

In STREET MODE, the tachome-
ter can be color-adjusted and has
a revolution peak hold indicatorwhich can be turned on or off.
NOTICE
ECA10032
Do not operate the engine in the ta- chometer red zone.
Red zone: 14000 r/min and above
Information display
This section of the main screen is used
to show additional riding related infor-
mation such as air and coolant temper-
ature readings, tripmeters, and fuel
consumption statistics. The information
display items can be set into four
groups via the MENU screen.
The information display items are:
A.TEMP: air temperature
C.TEMP: coolant temperature
TRIP-1: tripmeter 1
TRIP-2: tripmeter 2
F-TRIP: fuel tripmeter
ODO: odometer
FUEL CON: the amount of fuel con-
sumed
FUEL AVG: average fuel consumption
CRNT FUEL: current fuel consumptionTIP
ODO will lock at 999999 and can-
not be reset.

TRIP-1 and TRIP-2 will reset and
continue counting after 9999.9 has
been reached.

When the fuel tank reserve level
has been reached, F-TRIP ap-
pears automatically and begins re-
cording distance traveled from that
point.

After refueling and traveling some
distance, F-TRIP will automatically
disappear.

See “Unit” on page 4-22 to change
the fuel consumption units.

In TRACK MODE, information dis-
play items FASTEST (fastest lap
time) and AVERAGE (average laptime) are also available.
TRIP-1, TRIP-2, F-TRIP, FUEL CON,
and FUEL AVE items can be individual-
ly reset.
To reset information display items
1. Use the wheel switch to scroll through the display items until the
item you want to reset appears.
2. Short push the wheel switch and the item will flash for five seconds.
(For STREET MODE, if both items
are resettable items, the top item
will flash first. Scroll down to select
the bottom item.)
2CR-9-E1.book 10 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-11
1
2
34
5
6
7
8
9
10
11
12 3. While the item is flashing, press
and hold the wheel switch for one
second.
Transmission gear display
This shows which gear the transmis-
sion is in. This model has 6 gears and a
neutral position. The neutral position is
indicated by the neutral indicator light
“ ” and by the transmission gear dis-
play “ ”.
Front brake pressure indicator
This shows how much braking power is
being applied to the front brakes.
Acceleration indicator
This shows the vehicle’s forward accel-
eration and deceleration forces.
Revolution peak hold indicator
This small bar momentarily appears
within the tachometer to mark the most
recent peak r/min speed of the engine.
YRC items MODE/PWR/TCS/SCS
The current MODE (YRC mode) and its
related PWR, TCS and SCS settings
are shown here. The individual settings for YRC items
PWR, TCS, SCS, LCS, QSS and LIF
can be organized into four groups and
set independently for each group.
These groups of settings are the YRC
modes MODE-A, MODE-B, MODE-C,
and MODE-D. Use the mode switch to
change YRC modes or make YRC item
setting changes from the main screen.
TIPThe YRC modes come preset from the
factory for different riding conditions.
When using the factory presets, the
suggested YRC modes are as follows.
MODE-A is suitable for track rid-
ing.

MODE-B is a softer track-riding
setting.

MODE-C is suitable for street rid-
ing.

MODE-D is suitable for touring orrainy weather.
To change YRC modes or make setting
changes1. Push the mode switch center but- ton to scroll left to right and high-
light the item you want to adjust. 2. Use the mode switch up button or
down button to change the select-
ed item value (vertical scrolling is
not possible).
TIP
Under certain conditions, such as
when the vehicle is in motion, the
throttle grip is turned, excessive
wheel slip is detected, etc., certain
YRC items cannot be adjusted.

When a YRC item is highlighted
but cannot be adjusted, the YRCitem box will return to black.
1. Mode switch “MODE”
2. Up button
3. Center button
4. Down button1
2
4 3
2CR-9-E1.book 11 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-12
1
2
345
6
7
8
9
10
11
12
To turn off the traction control system
select TCS with the center button, then
push and hold the up button until TCS
OFF is displayed. To turn TCS back on,
select TCS OFF and then press the
down button (TCS will return to its pre-
vious setting).
TIPTurning off the traction control system
will turn off the SCS, LCS, and LIF sys-tems for all YRC modes.
YRC items LCS/QS/LIF
The on/off status of YRC items LCS,
QSS, and LIF is shown here. When any
of these systems are registered (not set
to OFF) for the currently selected YRC
mode, its respective icon will appear. When LCS is registered for the current-
ly selected YRC mode, its icon will be
grey. To activate the launch control
system, press and hold the center but-
ton until the LCS icon stops flashing
and turns white.
TIPLCS, QSS, and LIF system setting lev-
els can only be adjusted from theMENU screen.
ERS indicator “ ” (YZF-R1M)
This icon shows the current ERS mode.
(See “YRC Setting” on page 4-16 and
“ERS” on page 4-19 to change the reg-
istered ERS mode or adjust ERS set-
ting levels.)TIPThe ERS indicator will flash should the
SCU need to be reset, but this does not
indicate a malfunction.
The suspension will remain fixed
at its most recent settings until the
SCU is reset.

To reset the SCU, stop the vehicle
and turn the key to “OFF” then“ON”.
GPS indicator “ ”
(CCU-equipped
models)
This icon comes on when a GPS unit is
synched with your vehicle.
Logging indicator “ ”
(CCU-equipped models)
This icon comes on when vehicle data
is being recorded via the logging func-
tion.
Lap timer
This stopwatch function measures and
records up to forty laps. On the main
screen, the lap timer shows the current
lap time and lap number (indicated by
the LAP mark). Use the Pass/LAP
switch to mark lap times. When a lap is
completed, the lap timer will show the
latest lap time (marked by the LATEST
indicator) for five seconds.
MODE -
A
PWR
1
TCS
3
SCS
2
km/h
123
ODO
km
7890

GEARN
LAP 03
LATEST40
03 06
·1000 r/min
A-
2
QS
LIF
GPS
12 :
00
AVERAGE
MODE -
A
MODE-
A
GPS
2CR-9-E1.book 12 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-13
1
2
34
5
6
7
8
9
10
11
12 To use the lap timer
1. Short push the wheel switch. The
information display item will flash
for five seconds.
2. While the information display item is flashing, rotate the wheel switch
upward. The lap timer will flash for
five seconds.
3. While the lap timer is flashing, long push the wheel switch to activate
the lap timer or stop the lap timer.
4. When the lap timer has been acti- vated, press the Pass/LAP switch
to start the lap timer.
TIP
The engine must be running to use
the lap timer.

Set the information display to
FASTEST or AVERAGE for addi-
tional lap time information.

Accessing the MENU screen will
automatically stop the lap timer.

Whenever the lap timer is stopped,
the current lap will not be record-
ed.

The lap time record can be viewedand reset from the MENU screen.
Oil pressure warning “ ”
This icon, along with the oil pressure
and coolant warning light, comes on
when the engine oil pressure is low.
When the key is first turned to ON, en-
gine oil pressure has yet to build, so this
icon will come on and stay on until the
engine has been started.
NOTICE
ECA21210
If the warning light comes on when
the engine is running, stop the en-
gine immediately and check oil level.
If the oil level is below the minimum level, add sufficient oil of the recom-
mended type to raise it up to the cor-
rect level. If the oil pressure warning
light remains on even if the oil level
is correct, immediately turn the en-
gine off and have a Yamaha dealer
check the vehicle.
Coolant temperature warning “ ”
This icon comes on if the coolant tem-
perature reaches 117
C (242 F) or
higher. Stop the vehicle and turn off the
engine. Allow the engine to cool.NOTICE
ECA10022
Do not continue to operate the en-gine if it is overheating.
1. Lap time
2. Latest lap time indicator “LATEST”
3. Information display item
4. Lap number
MODE -
A
PWR
1
TCS
3
SCS
2
km/h
123
ODO
km
7890

GEARN
LAP 03
LATEST40
03 06
·1000 r/min
A-
2
QS
LIF
GPS
12 :
00
AVERAGE
4 1
2
3
2CR-9-E1.book 13 ページ ２０１５年８月２０日　木曜日　午後４時４６分
