coolant temperature YAMAHA YZF-R125 2008 Owners Manual

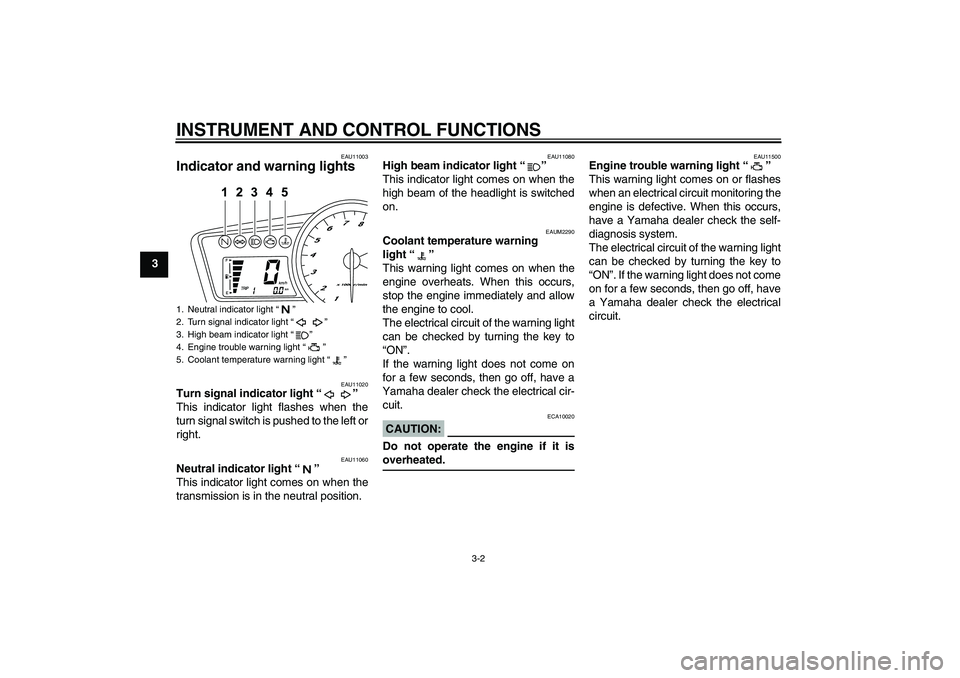

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAUM2290
Coolant temperature warning
light“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
EAU11500
Engine trouble warning light“”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
1. Neutral indicator light“”
2. Turn signal indicator light“”
3. High beam indicator light“”
4. Engine trouble warning light“”
5. Coolant temperature warning light“”U5D7E0E0.book Page 2 Tuesday, December 18, 2007 10:13 AM

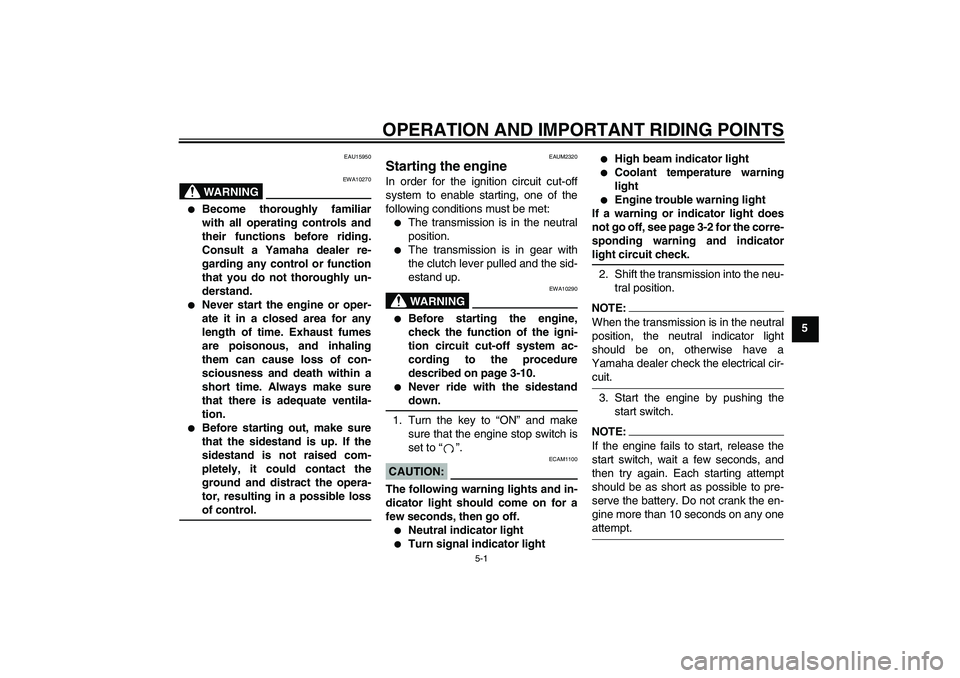

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAUM2320
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-10.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
CAUTION:
ECAM1100
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Neutral indicator light


Turn signal indicator light


High beam indicator light


Coolant temperature warning
light


Engine trouble warning light
If a warning or indicator light does
not go off, see page 3-2 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any oneattempt.
U5D7E0E0.book Page 1 Tuesday, December 18, 2007 10:13 AM

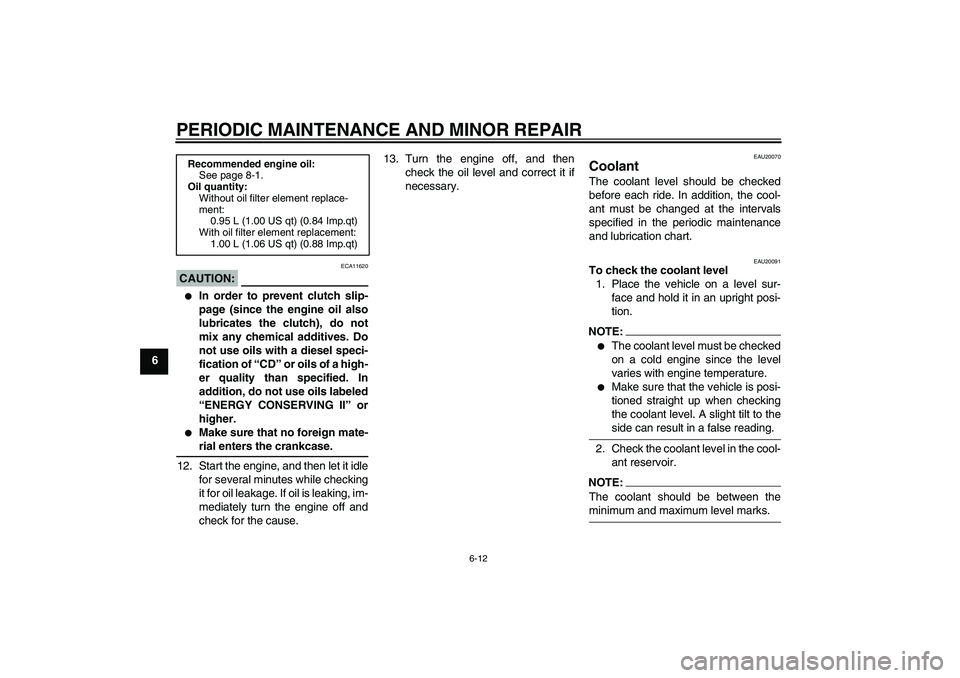

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
CAUTION:
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the crankcase.
12. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.13. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20091
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element replace-
ment:
0.95 L (1.00 US qt) (0.84 Imp.qt)
With oil filter element replacement:
1.00 L (1.06 US qt) (0.88 Imp.qt)
U5D7E0E0.book Page 12 Tuesday, December 18, 2007 10:13 AM

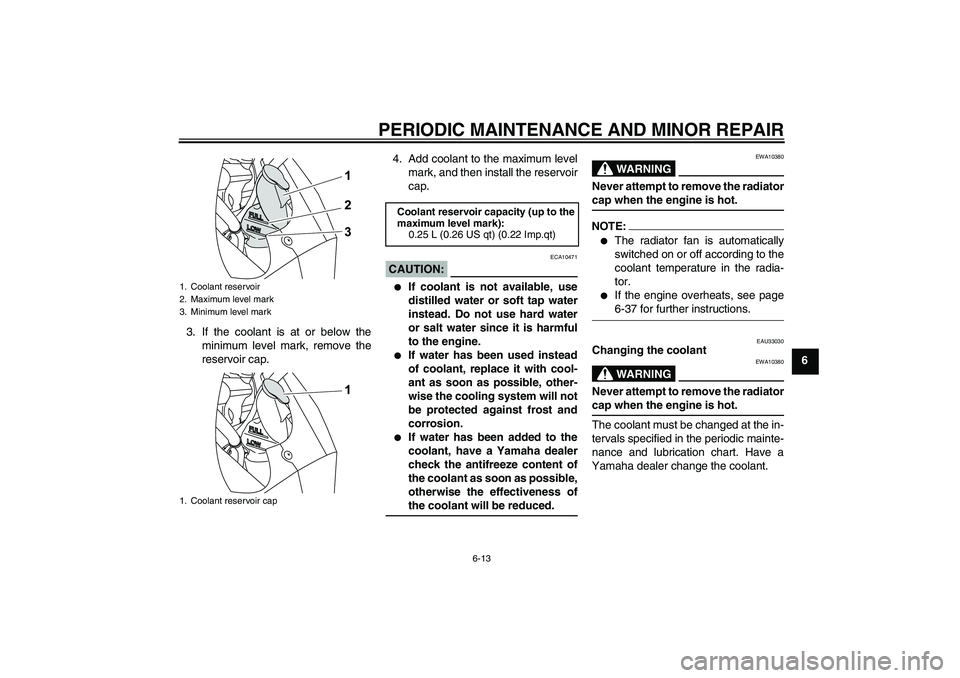

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6 3. If the coolant is at or below the
minimum level mark, remove the
reservoir cap.4. Add coolant to the maximum level
mark, and then install the reservoir
cap.
CAUTION:
ECA10471


If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.NOTE:

The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.


If the engine overheats, see page6-37 for further instructions.
EAU33030
Changing the coolant
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U5D7E0E0.book Page 13 Tuesday, December 18, 2007 10:13 AM

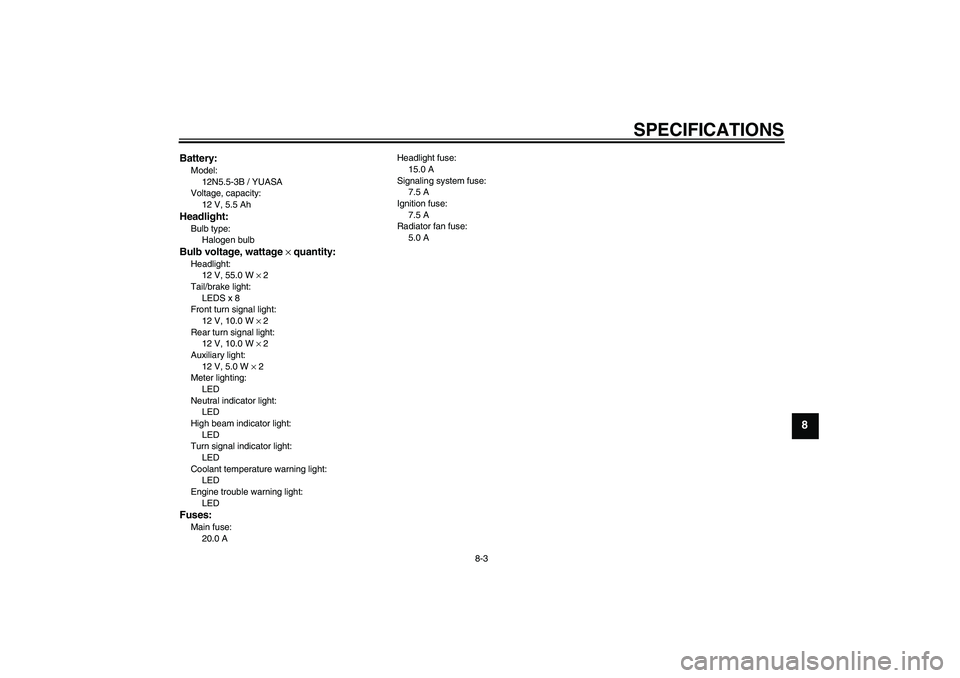

SPECIFICATIONS
8-3
8
Battery:Model:
12N5.5-3B / YUASA
Voltage, capacity:
12 V, 5.5 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 55.0 W × 2
Tail/brake light:
LEDS x 8
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LEDFuses:Main fuse:
20.0 AHeadlight fuse:
15.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
7.5 A
Radiator fan fuse:
5.0 A
U5D7E0E0.book Page 3 Tuesday, December 18, 2007 10:13 AM

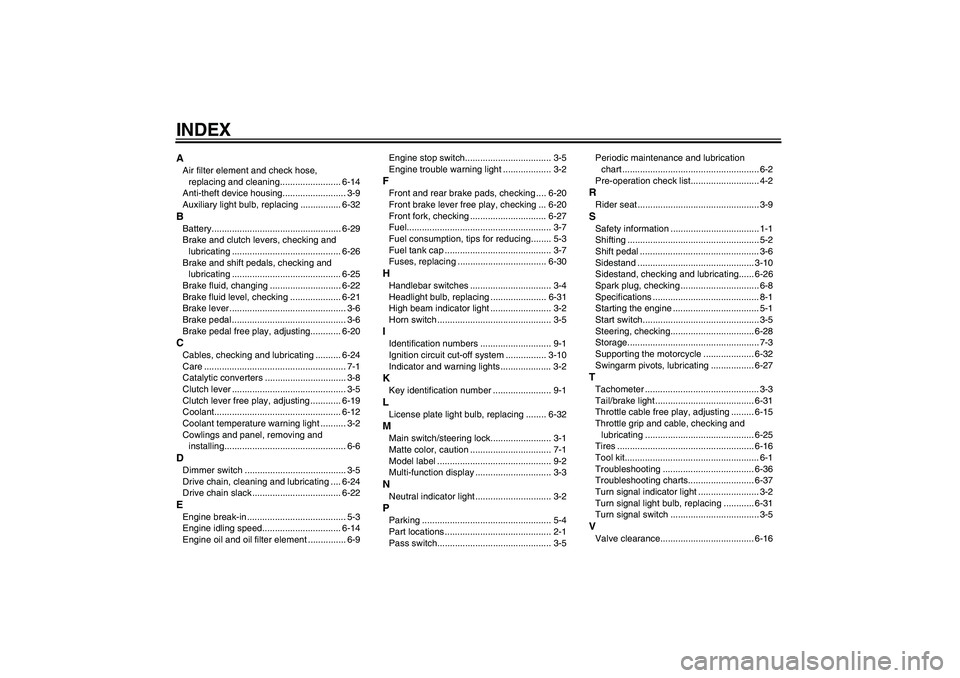

INDEXAAir filter element and check hose,
replacing and cleaning........................ 6-14
Anti-theft device housing......................... 3-9
Auxiliary light bulb, replacing ................ 6-32BBattery................................................... 6-29
Brake and clutch levers, checking and
lubricating ........................................... 6-26
Brake and shift pedals, checking and
lubricating ........................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever .............................................. 3-6
Brake pedal ............................................. 3-6
Brake pedal free play, adjusting............ 6-20CCables, checking and lubricating .......... 6-24
Care ........................................................ 7-1
Catalytic converters ................................ 3-8
Clutch lever ............................................. 3-5
Clutch lever free play, adjusting ............ 6-19
Coolant.................................................. 6-12
Coolant temperature warning light .......... 3-2
Cowlings and panel, removing and
installing................................................ 6-6DDimmer switch ........................................ 3-5
Drive chain, cleaning and lubricating .... 6-24
Drive chain slack ................................... 6-22EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-14
Engine oil and oil filter element ............... 6-9Engine stop switch.................................. 3-5
Engine trouble warning light ................... 3-2
FFront and rear brake pads, checking .... 6-20
Front brake lever free play, checking ... 6-20
Front fork, checking .............................. 6-27
Fuel......................................................... 3-7
Fuel consumption, tips for reducing........ 5-3
Fuel tank cap .......................................... 3-7
Fuses, replacing ................................... 6-30HHandlebar switches ................................ 3-4
Headlight bulb, replacing ...................... 6-31
High beam indicator light ........................ 3-2
Horn switch ............................................. 3-5IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-10
Indicator and warning lights .................... 3-2KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-32MMain switch/steering lock........................ 3-1
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-3NNeutral indicator light .............................. 3-2PParking ................................................... 5-4
Part locations .......................................... 2-1
Pass switch............................................. 3-5Periodic maintenance and lubrication
chart ...................................................... 6-2
Pre-operation check list........................... 4-2
RRider seat ................................................ 3-9SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................... 3-6
Sidestand .............................................. 3-10
Sidestand, checking and lubricating...... 6-26
Spark plug, checking ............................... 6-8
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch.............................................. 3-5
Steering, checking................................. 6-28
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-32
Swingarm pivots, lubricating ................. 6-27TTachometer ............................................. 3-3
Tail/brake light ....................................... 6-31
Throttle cable free play, adjusting ......... 6-15
Throttle grip and cable, checking and
lubricating ........................................... 6-25
Tires ...................................................... 6-16
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-36
Troubleshooting charts.......................... 6-37
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-5VValve clearance..................................... 6-16
U5D7E0E0.book Page 1 Tuesday, December 18, 2007 10:13 AM
