Page 12 of 84
DESCRIPTION
2-1
2
EAU10410
Left view1. Battery (page 6-29)
2. Fuse box (page 6-30)
3. Owner’s tool kit (page 6-1)
4. Shift pedal (page 3-6)
5. Coolant reservoir (page 6-12)U5D7E0E0.book Page 1 Tuesday, December 18, 2007 10:13 AM
Page 62 of 84

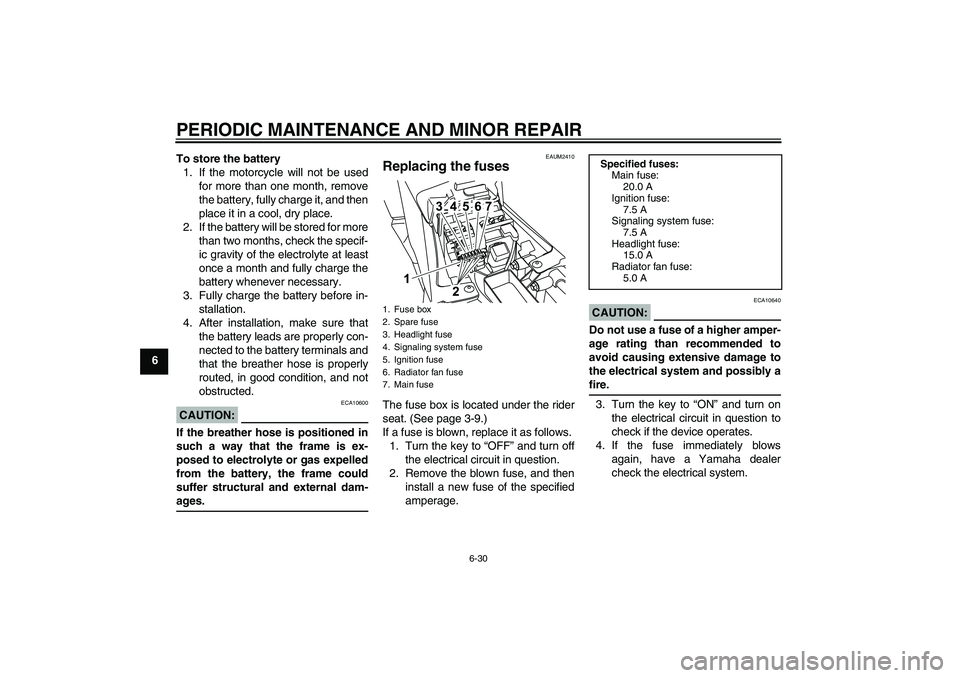

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6To store the battery
1. If the motorcycle will not be used
for more than one month, remove
the battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check the specif-
ic gravity of the electrolyte at least
once a month and fully charge the
battery whenever necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals and
that the breather hose is properly
routed, in good condition, and not
obstructed.
CAUTION:
ECA10600
If the breather hose is positioned in
such a way that the frame is ex-
posed to electrolyte or gas expelled
from the battery, the frame could
suffer structural and external dam-ages.
EAUM2410
Replacing the fuses The fuse box is located under the rider
seat. (See page 3-9.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Spare fuse
3. Headlight fuse
4. Signaling system fuse
5. Ignition fuse
6. Radiator fan fuse
7. Main fuse
Specified fuses:
Main fuse:
20.0 A
Ignition fuse:
7.5 A
Signaling system fuse:
7.5 A
Headlight fuse:
15.0 A
Radiator fan fuse:
5.0 A
U5D7E0E0.book Page 30 Tuesday, December 18, 2007 10:13 AM
