SAFETY INFORMATION
1-4

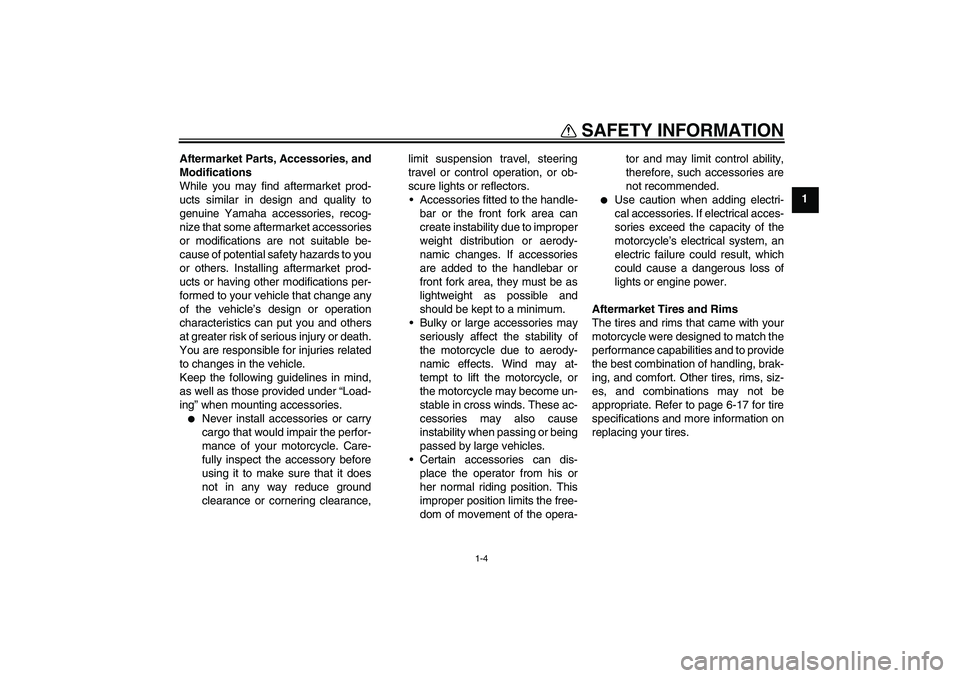

1 Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-17 for tire
specifications and more information on
replacing your tires.
U5D7E1E0.book Page 4 Monday, July 13, 2009 11:55 AM

DESCRIPTION
2-1
2
EAU10410
Left view1. Battery (page 6-29)
2. Fuse box (page 6-31)
3. Owner’s tool kit (page 6-1)
4. Shift pedal (page 3-6)
5. Coolant reservoir (page 6-13)U5D7E1E0.book Page 1 Monday, July 13, 2009 11:55 AM

DESCRIPTION
2-2
2
EAU10420

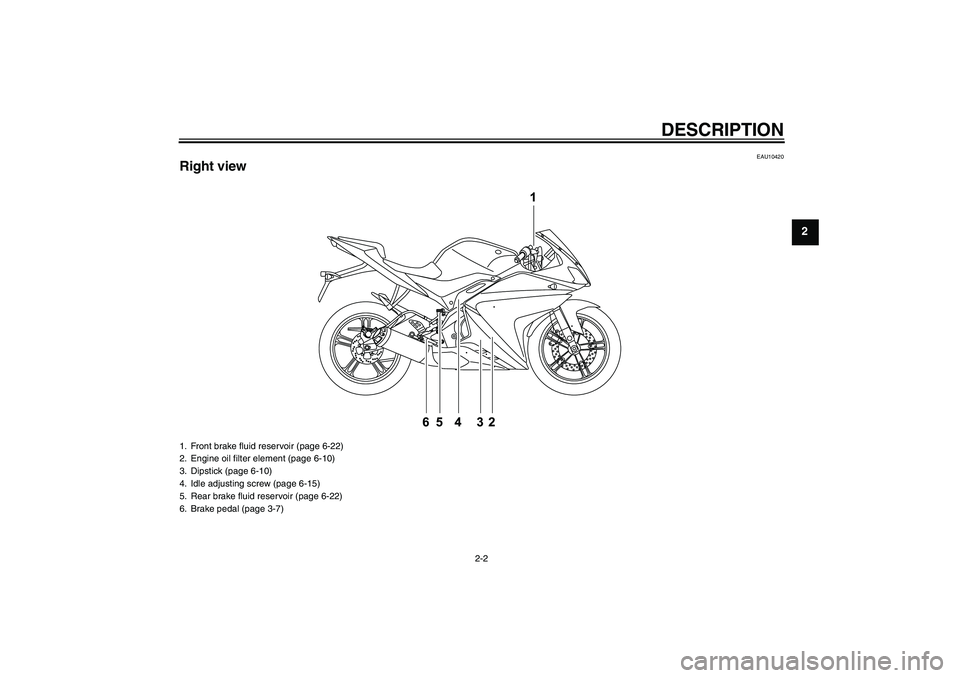

Right view1. Front brake fluid reservoir (page 6-22)
2. Engine oil filter element (page 6-10)
3. Dipstick (page 6-10)
4. Idle adjusting screw (page 6-15)
5. Rear brake fluid reservoir (page 6-22)
6. Brake pedal (page 3-7)
U5D7E1E0.book Page 2 Monday, July 13, 2009 11:55 AM

DESCRIPTION
2-3
2
EAU10430
Controls and instruments1. Clutch lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Multi-function display (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Tachometer (page 3-3)
6. Right handlebar switches (page 3-5)
7. Throttle grip (page 6-16)
8. Brake lever (page 3-6)U5D7E1E0.book Page 3 Monday, July 13, 2009 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460

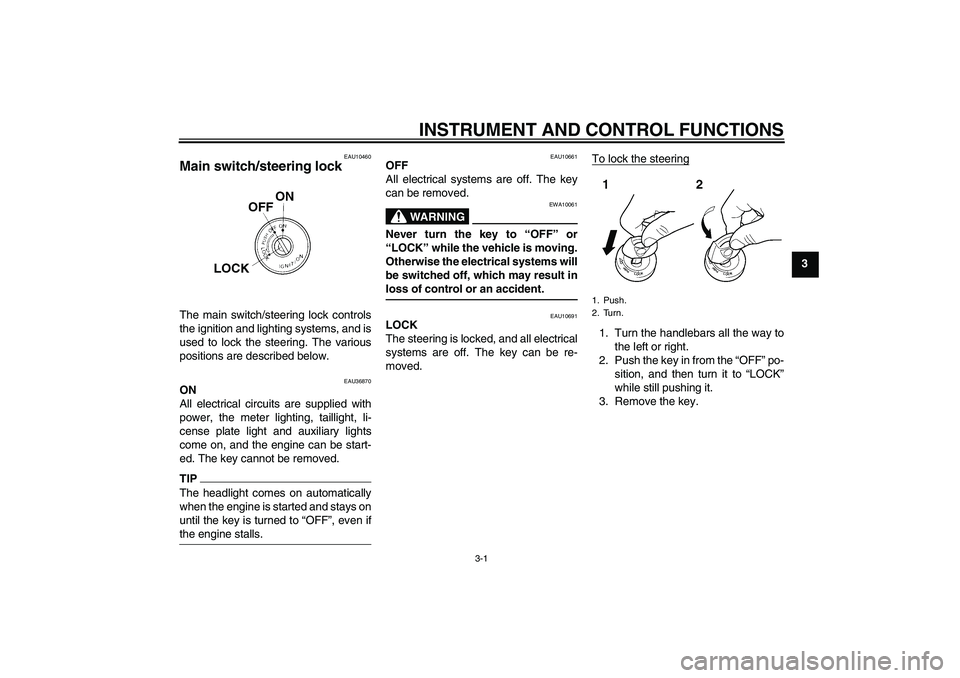

Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU36870
ON
All electrical circuits are supplied with
power, the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10691
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.
U5D7E1E0.book Page 1 Monday, July 13, 2009 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
EAU11004
Indicator and warning lights
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
t u r n s i g n a l s w i t c h i s p u s h e d t o t h e l e f t o r
right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAUM2294
Coolant temperature warning
light“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.
1. Push.
2. Turn.
1. Neutral indicator light“”
2. Turn signal indicator light“”
3. High beam indicator light“”
4. Engine trouble warning light“”
5. Coolant temperature warning light“”
U5D7E1E0.book Page 2 Monday, July 13, 2009 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
TIP

For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.


If the engine overheats, see page
6-38 for further instructions.
EAUT1934
Engine trouble warning light“”
This warning light flashes or stays on if
an electrical circuit monitoring the en-
gine is not working correctly. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 10000 r/min and above
EAUM2303
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of an
accident.The multi-function display is equipped
with the following:

a speedometer (which shows the
riding speed)


an odometer (which shows the to-
tal distance traveled)
1. Tachometer
2. Tachometer red zone
1. Multi-function display
2.“RESET/SELECT” button
U5D7E1E0.book Page 3 Monday, July 13, 2009 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a fuel meter
TIP

Be sure to turn the key to “ON” be-
fore using the “RESET/ SELECT”
button.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “RESET/SE-
LECT” button for at least eight sec-
onds.
Odometer and tripmeter modes
A brief push (less than one second) on
the “RESET/SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODOWhen approximately 1.6 L (0.42 US
gal, 0.35 Imp.gal) of fuel remains in the
fuel tank, the odometer display will au-
tomatically change to the fuel reserve
tripmeter mode “F-TRIP” and start
counting the distance traveled from that
point, and the last segment of the fuel
meter will start flashing. In that case,
pushing the “RESET/SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
F-TRIP → TRIP 1 → TRIP 2 → ODO →
F-TRIP
To reset a tripmeter, select it by push-
ing the “RESET/SELECT” button briefly
(less than one second), and then push
the button again for at least three sec-
onds while the selected tripmeter is
flashing. If you do not reset the fuel re-
serve tripmeter manually, it will reset it-
self automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last fuel meter
segment starts flashing, refuel as soon
as possible.
1. Fuel meter
U5D7E1E0.book Page 4 Monday, July 13, 2009 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12348
Handlebar switches Left
Right
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
1. Pass switch “PA S S”
2. Dimmer switch“/”
3. Turn signal switch“/”
4. Horn switch“”
1. Engine stop switch“/”
2. Start switch“”
U5D7E1E0.book Page 5 Monday, July 13, 2009 11:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU12820
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-11.)
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever
1. Shift pedal
1. Brake lever
U5D7E1E0.book Page 6 Monday, July 13, 2009 11:55 AM
