YAMAHA YZF-R125 2017 Owners Manual

Consumer information
9-1
9
EAU40793
Identification numbers
Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26401Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26471Model label
The model label is affixed to the frame
under the rider seat. (See page 3-19.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
ZAUM1195
INFOINFO
1. Model label
ZAUM1225
UBR6E0E0.book Page 1 Wednesday, August 17, 2016 1:26 PM

Consumer information
9-2
9
EAUM3880
Diagnostic connectors
The ABS and Fuel Injection diagnostic
connectors are located as shown.
EAU74701
Vehicle data recording
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research and de-
velopment purposes. This data will be
uploaded only when a special Yamaha
diagnostic tool is attached to the vehi-
cle, such as when maintenance checks
or service procedures are performed.
Although the sensors and recorded
data will vary by model, the main data
points are:
Vehicle status and engine perfor-
mance data
Fuel-injection and emission-relat-
ed data
Yamaha will not disclose this data to a
third party except:
With the consent of the vehicle
owner
Where obligated by law
For use by Yamaha in litigation
For general Yamaha-conducted
research purposes when the data
is not related to an individual vehi-
cle nor owner

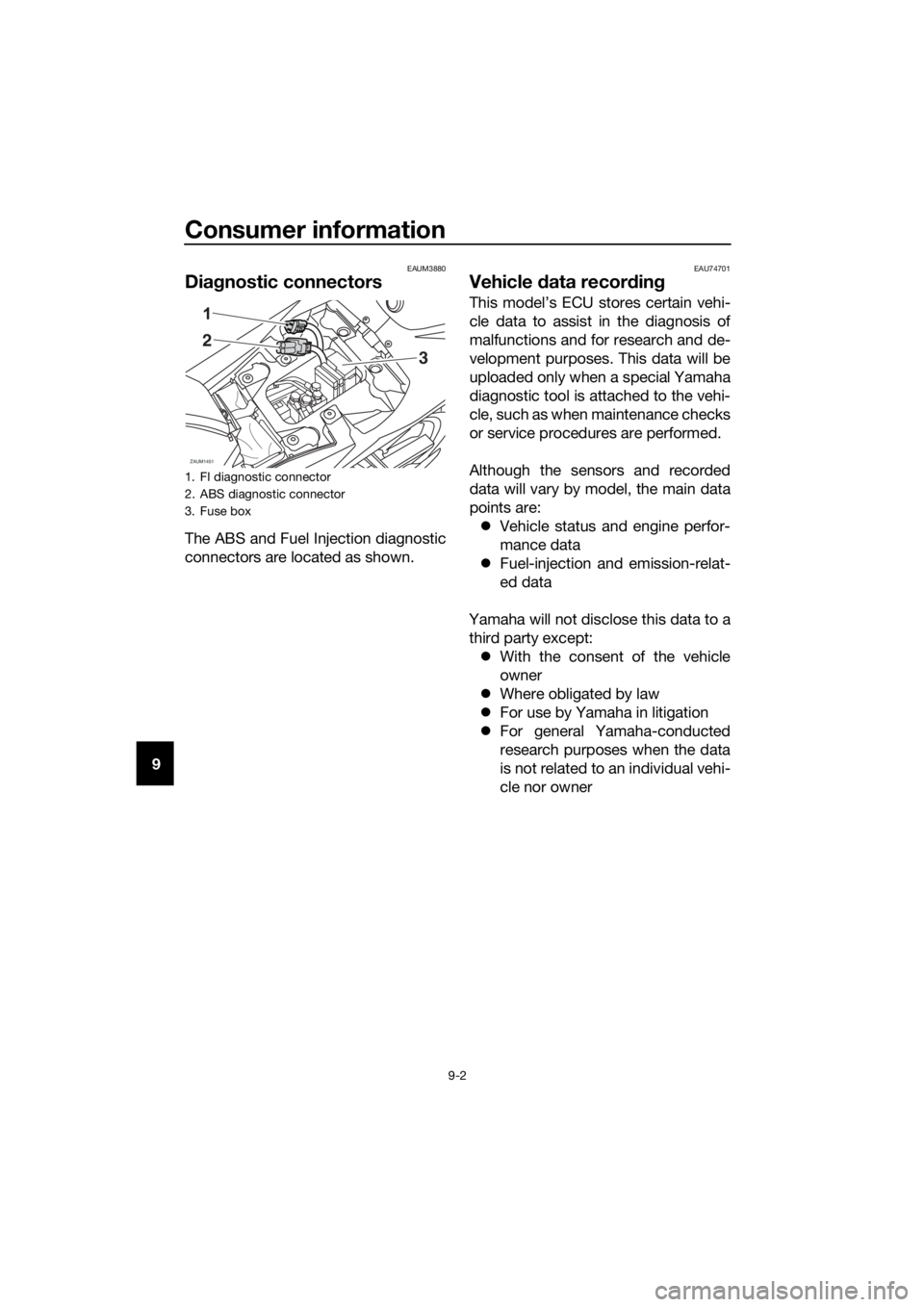

1. FI diagnostic connector
2. ABS diagnostic connector
3. Fuse box
ZAUM1451
2
3
UBR6E0E0.book Page 2 Wednesday, August 17, 2016 1:26 PM

10-1
10
