YAMAHA YZF-R1M 2016 Owners Manual

Periodic maintenance and adjustment7-14
1
2
3
4
5
678
9
10
11
12
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.NOTICE
ECA11621

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-rial enters the crankcase.
10. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
TIPAfter the engine is started, the oil pres-
sure and coolant temperature warning
light should go off if the oil level is suffi-cient.NOTICE
ECA22490
If the oil pressure and coolant tem-
perature warning light flickers or re-
mains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer checkthe vehicle.
11. Turn the engine off, wait a few min- utes until the oil settles, and then
check the oil level and correct it if
necessary.
12. Install the cowling and panel.
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU66510
To check the coolant level 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool- ant reservoir.
TIPThe coolant should be between theminimum and maximum level marks.
Recommended engine oil:Full synthetic
10W-40, 15W-50
Oil quantity:
Oil change: 3.90 L (4.12 US qt, 3.43 Imp.qt)
With oil filter removal:
4.10 L (4.33 US qt, 3.61 Imp.qt)
2CR-9-E1.book 14 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-15
1
2
3
4
5
67
8
9
10
11
12 3. If the coolant is at or below the
minimum level mark, remove cowl-
ing B. (See page 7-8.)
4. Remove the coolant reservoir cap, add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is
hot.
[EWA15162]
NOTICE: If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
5. Install the cowling.
EAU66520
To change the coolant
1. Place the vehicle on a level sur- face and let the engine cool if nec-
essary.
2. Remove cowling B and panel D. (See page 7-8.)
3. Place a container under the engine to collect the used coolant.
4. Remove the radiator cap.
WARNING! Never attempt to re-
move the radiator cap when the
engine is hot.
[EWA10382]
5. Remove the coolant drain bolt andits gasket to drain the cooling sys-
tem.
1. Maximum level mark
2. Minimum level mark1
2
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
1
1. Radiator cap
1
2CR-9-E1.book 15 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-16
1
2
3
4
5
678
9
10
11
12
6. Remove the coolant reservoir cap.
7. Remove the coolant reservoir by
removing the bolts, and then turn
the reservoir upside down to emp-
ty it. 8. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
9. Install the coolant reservoir by in- stalling the bolts.
10. Install the coolant drain bolt and its new gasket, and then tighten the
bolt to the specified torque.
11. Pour the specified amount of the recommended coolant into the ra-
diator and reservoir. 12. Install the coolant reservoir cap.
13. Loosen the air bleed bolt to allow
any trapped air to escape from the
water pump.
14. When coolant begins to flow out, tighten the air bleed bolt to the
1. Coolant drain bolt
2. Gasket
1. Coolant reservoir cap
121
1. Coolant reservoir
2. BoltTightening torque:Coolant drain bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2
Antifreeze/water mixture ratio: 1:1
Recommended antifreeze: High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator (including all routes):2.25 L (2.38 US qt, 1.98 Imp.qt)
Coolant reservoir (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)1. Air bleed bolt
1
2CR-9-E1.book 16 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-17
1
2
3
4
5
67
8
9
10
11
12 specified torque.
15. Pour the specified coolant into the radiator until it is full.
16. Install the radiator cap.
17. Start the engine, let it idle for sev-
eral minutes, and then turn it off.
18. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
19. Start the engine, and then check the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
20. Install the cowling and panel.
EAU36765
Air filter elementThe air filter element must be replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the air
filter element.
EAU44735
Checking the engine idling
speedCheck the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
Tightening torque: Air bleed bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Engine idling speed:
1200–1400 r/min
2CR-9-E1.book 17 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-18
1
2
3
4
5
678
9
10
11
12
EAU21386
Checking the throttle grip free
playMeasure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
EAU21402
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU70961
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA18370

Operation of this vehicle with
improper tire air pressure may
cause severe injury or death
from loss of control.

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambienttemperature).
1. Throttle grip free playThrottle grip free play: 3.0–5.0 mm (0.12–0.20 in)
1
2CR-9-E1.book 18 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-19
1
2
3
4
5
67
8
9
10
11
12
WARNING
EWA10512
Never overload your vehicle. Opera-
tion of an overloaded vehicle couldcause an accident. Tire inspection
The tires should be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yamaha
dealer replace the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always complywith the local regulations.
WARNING
EWA10472

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.

The replacement of all wheel
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience to do so.

Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in” for it to develop its optimalcharacteristics.
Cold tire air pressure:
Front:250 kPa (2.50 kgf/cm
2, 36 psi)
Rear:
290 kPa (2.90 kgf/cm2, 42 psi)
Maximum load*: 188 kg (414 lb)
* Total weight of rider, passenger, car- go and accessories
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear): 1.6 mm (0.06 in)
2CR-9-E1.book 19 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-20
1
2
3
4
5
678
9
10
11
12
Tire information
This model is equipped with tubeless
tires and tire air valves.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires should be
checked by tire spec
ialists to ascertain
their suitability for further use.
WARNING
EWA10482

The front and rear tires should
be of the same make and de- sign, otherwise the handling
characteristics of the motorcy-
cle may be different, which
could lead to an accident.

Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.

Use only the tire valves and
valve cores listed below to
avoid tire deflation during ahigh-speed ride.
After extensive tests, only the tires list-
ed below are approved for this model
by Yamaha.
WARNING
EWA10601
This motorcycle is fitted with su-
per-high-speed tires. Note the fol-
lowing points in order to make the
most efficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
Front tire: Size:120/70 ZR17MC (58W)
Manufacturer/model:
BRIDGESTONE/BATTLAX RAC-
ING STREET RS10F
PIRELLI/DIABLO SUPERCORSA
SP (YZF-R1)
Rear tire: Size:
190/55 ZR17M/C (75W) (YZF-R1)
200/55 ZR17M/C (78W)
(YZF-R1M)
Manufacturer/model: BRIDGESTONE/BATTLAX RAC-
ING STREET RS10R
PIRELLI/DIABLO SUPERCORSA
SP (YZF-R1)
FRONT and REAR:
Tire air valve:TR412
Valve core:
#9100 (original)
2CR-9-E1.book 20 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment
7-21
1
2
3
4
5
67
8
9
10
11
12 the danger of bursting at super
high speeds.

Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any
high-speed riding to ride con-
servatively for approximately
100 km (60 mi) after installing a
new tire.

The tires must be warmed up
before a high-speed run.

Always adjust the tire air pres-
sure according to the operatingconditions.
EAU66460
Cast magnesium wheelsTo maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
these wheels.
The wheel rims should be checked
for cracks, bends, warpage or
damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.

The wheel should be balanced
whenever the tire or wheel has
been changed or replaced. An un-
balanced wheel can result in poor
performance, adverse handling
characteristics, and shortened tire
life.
These wheels are made of magnesium
and require special care.

When balancing the wheel, use
press-on type weights to avoid
scratching the wheel.

Regularly inspect the wheel for
nicks and scratches. Use touch-up
paint or other sealant to prevent corrosion.

Follow the instructions for cleaning
provided on page 8-1.
2CR-9-E1.book 21 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-22
1
2
3
4
5
678
9
10
11
12
EAU67341
Adjusting the clutch lever free
playThe clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
To increase the clutch lever free play,
turn the clutch lever free play adjusting
bolt at the clutch lever in direction (a).
To decrease the clutch lever free play,
turn the adjusting bolt in direction (b).TIPIf the specified clutch lever free play
cannot be obtained as described
above, proceed as follows. 1. Fully turn the adjusting bolt at the clutch lever in direction (a) to loos-
en the clutch cable.
2. Remove cowling B. (See page 7-8.)
3. Loosen the locknut further down the clutch cable.
4. To increase the clutch lever free play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b).
5. Tighten the locknut.
6. Install the cowling.
EAU37914
Checking the brake lever free
playThere should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
1. Clutch lever free play adjusting bolt
2. Clutch lever free play
1
2 (a)
(b)
1. Locknut
2. Clutch lever free play adjusting nut
1
2
(a)(b)
1. No brake lever free play
1
2CR-9-E1.book 22 ページ ２０１５年８月２０日　木曜日　午後４時４６分

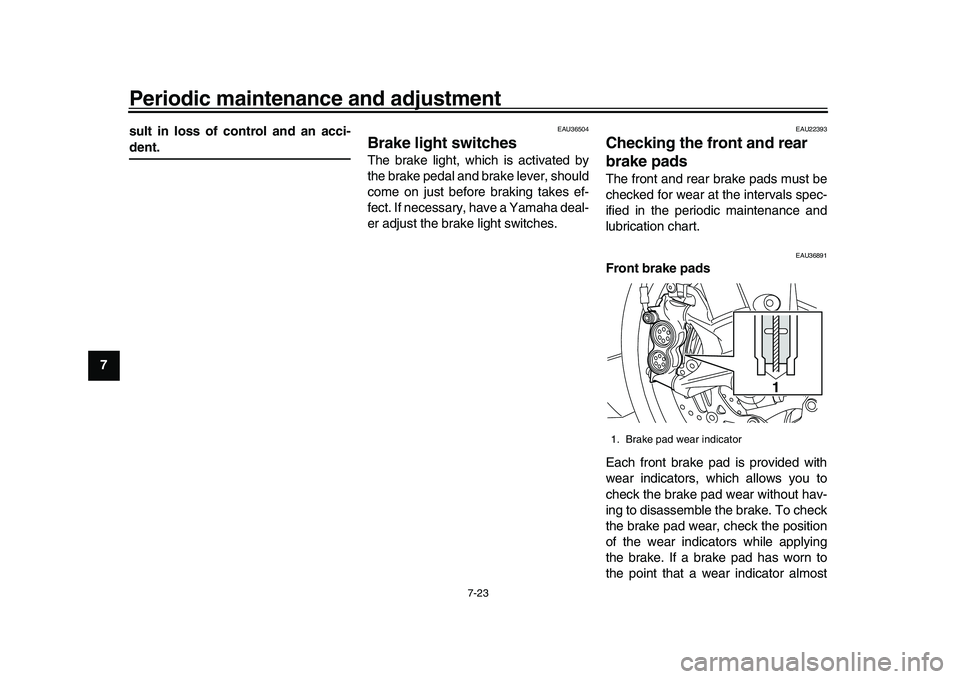

Periodic maintenance and adjustment
7-23
1
2
3
4
5
67
8
9
10
11
12 sult in loss of control and an acci-
dent.
EAU36504
Brake light switchesThe brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, have a Yamaha deal-
er adjust the brake light switches.
EAU22393
Checking the front and rear
brake padsThe front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU36891
Front brake pads
Each front brake pad is provided with
wear indicators, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check the position
of the wear indicators while applying
the brake. If a brake pad has worn to
the point that a wear indicator almost1. Brake pad wear indicator
1
2CR-9-E1.book 23 ページ ２０１５年８月２０日　木曜日　午後４時４６分
