gas type YAMAHA YZF-R1M 2016 Owners Manual

Instrument and control functions
4-35
1
2
34
5
6
7
8
9
10
11
12 your eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU54602
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAU58081
Fuel tank breather hose and
overflow hoseBefore operating the motorcycle:
Check each hose connection.

Check each hose for cracks or
damage, and replace if necessary.

Make sure that the end of each
hose is not blocked, and clean if
necessary.

Make sure that the end of each
hose is positioned outside of the
cowling.

Make sure that each hose is rout-
ed through the clamp or guide.
Recommended fuel:
Premium unleaded gasoline (Gaso-
hol [E10] acceptable)
Fuel tank capacity: 17 L (4.5 US gal, 3.7 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
3.0 L (0.79 US gal, 0.66 Imp.gal)
1. Clamp
2. Fuel tank overflow hose
3. Fuel tank breather hose
1
2
3
2CR-9-E1.book 35 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Periodic maintenance and adjustment7-12
1
2
3
4
5
678
9
10
11
12
EAU66533
Engine oil and oil filter
cartridgeThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.TIPThe engine oil should be between theminimum and maximum level marks. 4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
To change the engine oil (with or
without oil filter cartridge replace-
ment) 1. Remove cowling A and panel B. (See page 7-8.)
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Place an oil pan under the engine to collect the used oil. 4. Remove the engine oil filler cap,
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
2
3
1
1. Engine oil filler cap
1. Engine oil drain bolt
2. Gasket
1
12
2CR-9-E1.book 12 ページ ２０１５年８月２０日　木曜日　午後４時４６分

9-1
1
2
3
4
5
6
7
89
10
11
12
Specifications
EAU70620
Dimensions:Overall length: 2055 mm (80.9 in)
Overall width: 690 mm (27.2 in)
Overall height: 1150 mm (45.3 in)
Seat height:
855 mm (33.7 in) (YZF-R1)
860 mm (33.9 in) (YZF-R1M)
Wheelbase:
1405 mm (55.3 in)
Ground clearance: 130 mm (5.12 in)
Minimum turning radius: 3.3 m (10.83 ft)Weight:Curb weight:199 kg (439 lb) (YZF-R1)
200 kg (441 lb) (YZF-R1M)Engine:Combustion cycle:
4-stroke
Cooling system:
Liquid cooled
Valve train: DOHC
Cylinder arrangement: Inline
Number of cylinders:
4-cylinder
Displacement: 998 cm
3
Bore  stroke:
79.0  50.9 mm (3.11  2.00 in)
Compression ratio:
13.0 : 1
Starting system: Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:YAMALUBE
Type: Full synthetic
SAE viscosity grades:
10W-40, 15W-50
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Oil change:
3.90 L (4.12 US qt, 3.43 Imp.qt)
With oil filter removal: 4.10 L (4.33 US qt, 3.61 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
2.25 L (2.38 US qt, 1.98 Imp.qt)Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Premium unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity:
17 L (4.5 US gal, 3.7 Imp.gal)
Fuel reserve amount: 3.0 L (0.79 US gal, 0.66 Imp.gal)Fuel injection:Throttle body:
ID mark: 2CR1Spark plug(s):Manufacturer/model:NGK/LMAR9E-J
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, multiple-discDrivetrain:Primary reduction ratio:
1.634 (67/41)
Final drive: Chain
Secondary reduction ratio: 2.563 (41/16)
Transmission type:
Constant mesh 6-speed
Gear ratio: 1st:
2.600 (39/15)
2nd: 2.176 (37/17)
2CR-9-E1.book 1 ページ ２０１５年８月２０日　木曜日　午後４時４６分

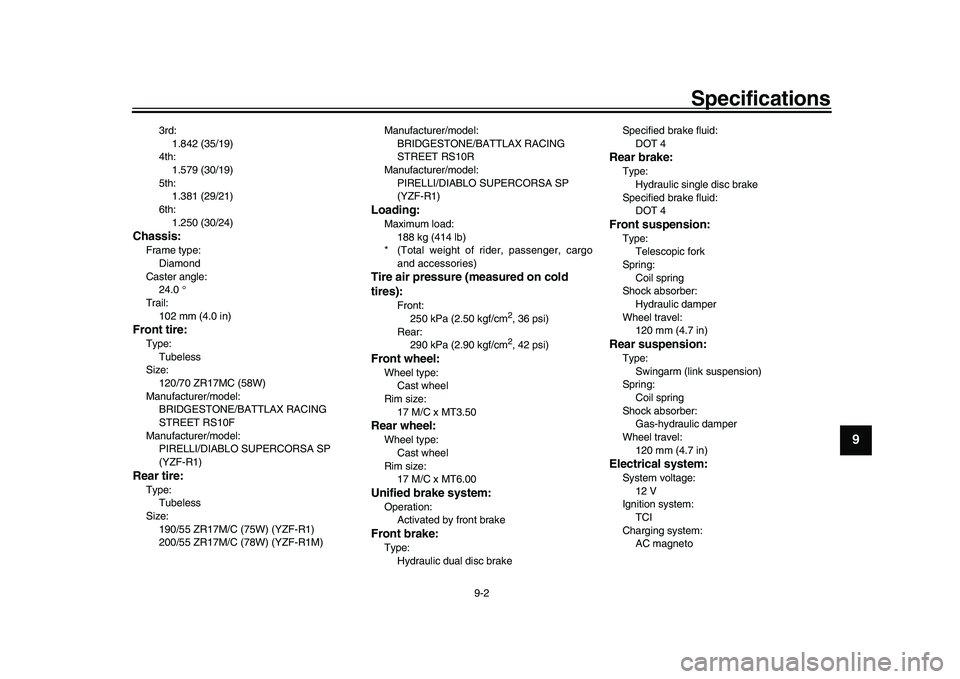

Specifications
9-2
1
2
3
4
5
6
7
8910
11
12
3rd:1.842 (35/19)
4th:
1.579 (30/19)
5th: 1.381 (29/21)
6th: 1.250 (30/24)
Chassis:Frame type: Diamond
Caster angle: 24.0 
Trail:
102 mm (4.0 in)Front tire:Type:Tubeless
Size:
120/70 ZR17MC (58W)
Manufacturer/model: BRIDGESTONE/BATTLAX RACING
STREET RS10F
Manufacturer/model: PIRELLI/DIABLO SUPERCORSA SP
(YZF-R1)Rear tire:Type:
Tubeless
Size:
190/55 ZR17M/C (75W) (YZF-R1)
200/55 ZR17M/C (78W) (YZF-R1M) Manufacturer/model:
BRIDGESTONE/BATTLAX RACING
STREET RS10R
Manufacturer/model: PIRELLI/DIABLO SUPERCORSA SP
(YZF-R1)
Loading:Maximum load:188 kg (414 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):
Front:250 kPa (2.50 kgf/cm
2, 36 psi)
Rear: 290 kPa (2.90 kgf/cm2, 42 psi)
Front wheel:Wheel type: Cast wheel
Rim size: 17 M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size: 17 M/C x MT6.00Unified brake system:Operation:Activated by front brakeFront brake:Type:
Hydraulic dual disc brake Specified brake fluid:
DOT 4
Rear brake:Type:Hydraulic single disc brake
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring: Coil spring
Shock absorber:
Hydraulic damper
Wheel travel: 120 mm (4.7 in)Rear suspension:Type:
Swingarm (link suspension)
Spring: Coil spring
Shock absorber: Gas-hydraulic damper
Wheel travel:
120 mm (4.7 in)Electrical system:System voltage:12 V
Ignition system:
TCI
Charging system: AC magneto
2CR-9-E1.book 2 ページ ２０１５年８月２０日　木曜日　午後４時４６分
