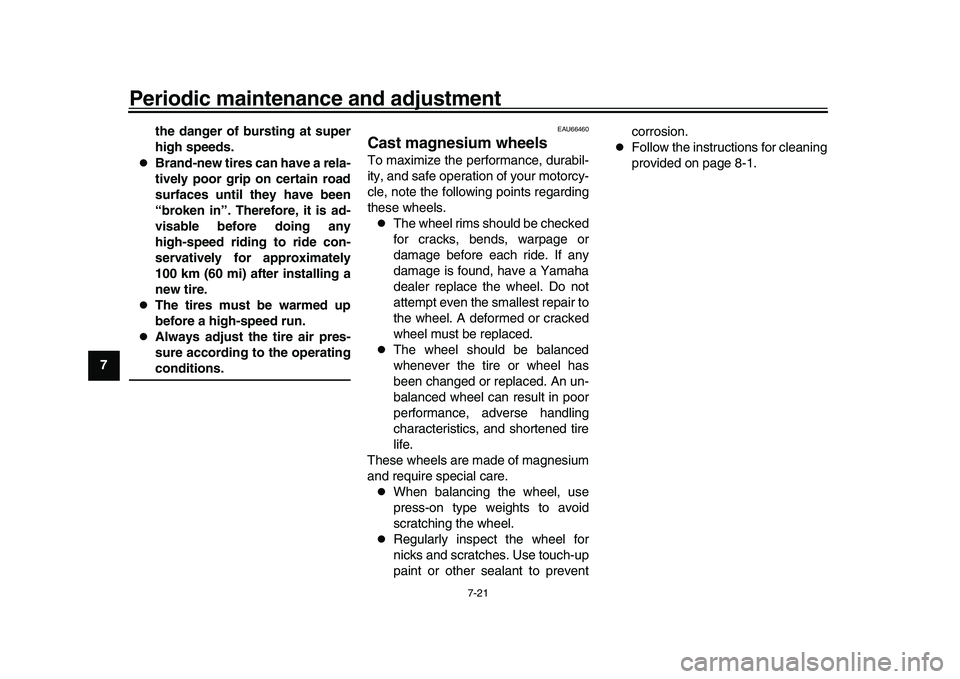

12 the danger of bursting at super
high speeds.

Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any
high-speed riding to ride con-
servatively for approximately
100 km (60 mi) after installing a
new tire.

The tires must be warmed up
before a high-speed run.

Always adjust the tire air pres-
sure according to the operatingconditions.
EAU66460
Cast magnesium wheelsTo maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
these wheels.
The wheel rims should be checked
for cracks, bends, warpage or
damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.

The wheel should be balanced
whenever the tire or wheel has
been changed or replaced. An un-
balanced wheel can result in poor
performance, adverse handling
characteristics, and shortened tire
life.
These wheels are made of magnesium
and require special care.

When balancing the wheel, use
press-on type weights to avoid
scratching the wheel.

Regularly inspect the wheel for
nicks and scratches. Use touch-up
paint or other sealant to prevent corrosion.

Follow the instructions for cleaning
provided on page 8-1.
2CR-9-E1.book 21 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Specifications
9-2
1
2
3
4
5
6
7
8910
11
12
3rd:1.842 (35/19)
4th:
1.579 (30/19)
5th: 1.381 (29/21)
6th: 1.250 (30/24)
Chassis:Frame type: Diamond
Caster angle: 24.0 
Trail:
102 mm (4.0 in)Front tire:Type:Tubeless
Size:
120/70 ZR17MC (58W)
Manufacturer/model: BRIDGESTONE/BATTLAX RACING
STREET RS10F
Manufacturer/model: PIRELLI/DIABLO SUPERCORSA SP
(YZF-R1)Rear tire:Type:
Tubeless
Size:
190/55 ZR17M/C (75W) (YZF-R1)
200/55 ZR17M/C (78W) (YZF-R1M) Manufacturer/model:
BRIDGESTONE/BATTLAX RACING
STREET RS10R
Manufacturer/model: PIRELLI/DIABLO SUPERCORSA SP
(YZF-R1)
Loading:Maximum load:188 kg (414 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):
Front:250 kPa (2.50 kgf/cm
2, 36 psi)
Rear: 290 kPa (2.90 kgf/cm2, 42 psi)
Front wheel:Wheel type: Cast wheel
Rim size: 17 M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size: 17 M/C x MT6.00Unified brake system:Operation:Activated by front brakeFront brake:Type:
Hydraulic dual disc brake Specified brake fluid:
DOT 4
Rear brake:Type:Hydraulic single disc brake
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring: Coil spring
Shock absorber:
Hydraulic damper
Wheel travel: 120 mm (4.7 in)Rear suspension:Type:
Swingarm (link suspension)
Spring: Coil spring
Shock absorber: Gas-hydraulic damper
Wheel travel:
120 mm (4.7 in)Electrical system:System voltage:12 V
Ignition system:
TCI
Charging system: AC magneto
2CR-9-E1.book 2 ページ ２０１５年８月２０日　木曜日　午後４時４６分
