4. Starting circuit cut-off relay

Disconnect the starting circuit cut-off relay
coupler from the wire harness.

Connect the pocket tester (Ω
1) and bat-
tery (12 V) to the starting circuit cut-off relay
coupler as shown.
YESNO
Replace the starting
circuit cut-off relay.
Positive tester probe
blue / white
Negative tester probe
blue / white

Does the starting circuit cut-off relay have
continuity between blue / white and
blue / white ?
1
2
3
4
EAS00759
Positive battery terminal
red / black
Negative battery terminal

black / yellow
EAS00761
5. Starter relay

Disconnect the starter relay coupler from the
coupler.

Connect the pocket tester (Ω
1) and battery
(12 V) to the starter relay coupler as shown.
YESNO
Replace the starter
relay.
Positive battery terminal
blue / white
Negative battery terminal
red / white
Positive tester probe
red
Negative tester probe
black
1
2
3
4

Does the starter relay have continuity be-
tween red and black?
EAS00749
6. Main switch

Check the main switch for continuity.
Refer to “CHECKING THE SWITCHES”.

Is the main switch OK?
YESNO
Replace the main
switch.
EAS00750
7. Engine stop switch

Check the engine stop switch for continuity.
Refer to “CHECKING THE SWITCHES”.

Is the engine stop switch OK?
YESNO
Replace the right
handlebar switch.
EAS00751
8. Neutral switch

Check the neutral switch for continuity.
Refer to “CHECKING THE SWITCHES”.

Is the neutral switch OK?
YESNO
Replace the neutral
switch.
3
4
ELECTRIC STARTING SYSTEMELEC
ProCarManuals.com

8-48
1Main switch
4Fuse (main)
6Battery
7Fuse (fuel injection)
10Starting circuit cut-off relay
13Fuel pump
14E.C.U.
53Engine stop switch
FUEL PUMP SYSTEMELEC
EAS00814
FUEL PUMP SYSTEM
CIRCUIT DIAGRAM
ProCarManuals.com

8-49
FUEL PUMP SYSTEMELEC
1Battery
2Fuse (main)
3Main switch
4Fuse (ignition)
5Engine stop switch
6ECU
7Fuse (fuel injection)
8Starting circuit cut-off relay (fuel injection
system relay)
9Fuel pump
EAS00815
FUEL PUMP SYSTEM
The ECU includes the control unit for the
fuel pump.
ProCarManuals.com

8-50
FUEL PUMP SYSTEMELEC
YESNO 2. Battery

Check the condition of the battery.
Refer to “CHECKING AND CHARGING
THE BATTERY” in chapter 3.
Minimum open-circuit voltage
12.8 V or more at 20C (68F)

Is the battery OK?

Clean the battery
terminals.

Recharge or re-
place the battery.
EAS00739
EAS00749
3. Main switch

Check the main switch for continuity.
Refer to “CHECKING THE SWITCHES”.
YESNO
Replace the main
switch.
Is the main switch OK?
EAS00750
4. Engine stop switch

Check the engine stop switch for continuity.
Refer to “CHECKING THE SWITCHES”.
YESNO
Replace the right
handlebar switch.
Is the engine stop switch OK?
NOTE:
YESNO
1. Main, ignition and fuel injection system
fuses

Check the main, ignition and fuel system
fuses for continuity.
Refer to “CHECKING THE FUSES” in chap-
ter 3.
Replace the fuse(s).

Are the main, ignition and fuel injection sys-
tem fuses OK?
EAS00816

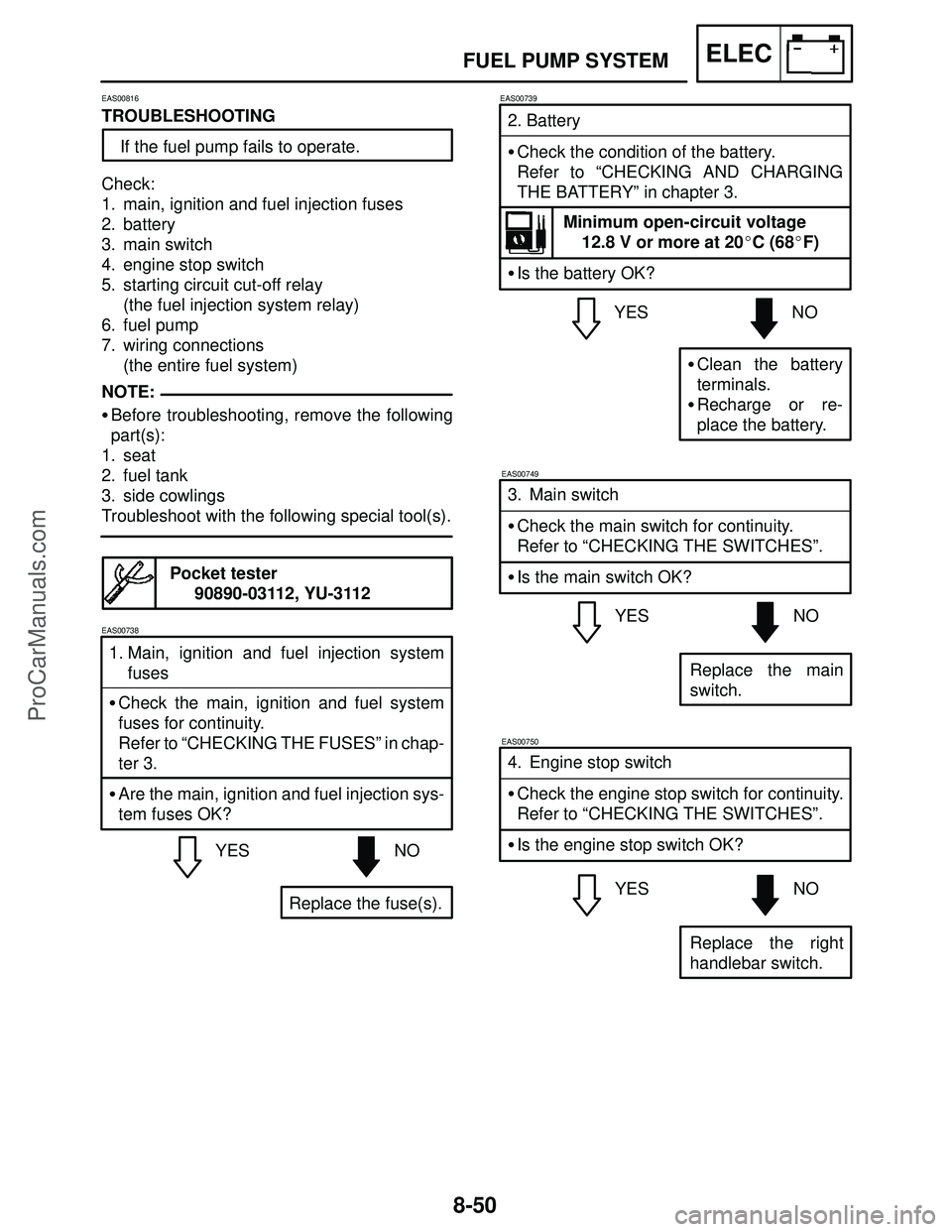

TROUBLESHOOTING
If the fuel pump fails to operate.
Check:
1. main, ignition and fuel injection fuses
2. battery
3. main switch
4. engine stop switch
5. starting circuit cut-off relay
(the fuel injection system relay)
6. fuel pump
7. wiring connections
(the entire fuel system)

Before troubleshooting, remove the following
part(s):
1. seat
2. fuel tank
3. side cowlings
Troubleshoot with the following special tool(s).
Pocket tester
90890-03112, YU-3112
EAS00738
ProCarManuals.com

9-2
9
Starting system
Faulty starter motor

Faulty starter relay

Faulty starting circuit cut-off relay

Faulty starter clutch
STARTING FAILURES / INCORRECT ENGINE IDLING SPEED /
POOR MEDIUM-AND-HIGH-SPEED PERFORMANCETRBL
SHTG
ELECTRICAL SYSTEMS
Battery

Discharged battery

Faulty battery
Spark plug(s)
Incorrect spark plug gap

Incorrect spark plug heat range

Fouled spark plug

Worn or damaged electrode

Worn or damaged insulator
Ignition coil(s)

Broken or shorted primary or secondary
coils

Cracked or broken ignition coil
Ignition system
Faulty ECU

Faulty crankshaft position sensor
Switches and wiring

Faulty main switch

Faulty engine stop switch

Broken or shorted wiring

Faulty neutral switch

Faulty start switch

Faulty sidestand switch

Faulty clutch switch

Improperly grounded circuit

Loose connections
EAS00846
INCORRECT ENGINE IDLING SPEED
ENGINE
Cylinder(s) and cylinder head(s)

Incorrect valve clearance

Damaged valve train components
Air filter
Clogged air filter element
FUEL SYSTEM
Throttle body (-ies)
Damaged or loose throttle body joint

Improperly synchronized throttle bodies

Improperly adjusted engine idling speed (idle
adjusting screw)

Improper throttle cable free play

Flooded throttle body

Faulty air induction system
EAS00848
POOR MEDIUM-AND-HIGH-SPEED PERFORMANCE
Refer to “STARTING FAILURES”.
ENGINE
Air filter

Clogged air filter element
FUEL SYSTEM
Fuel pump
Faulty fuel pump
ProCarManuals.com

59Clutch switch
60Turn signal switch
61Horn
62Front turn signal / position light (left)
63Front turn signal / position light (right)
64Rear turn signal light (left)
65Rear turn signal light (right)
66Headlight
67Auxiliary light
68License plate light
69Rear brake light switch
70Tail / brake light
71Headlight relay (on / off)
72Headlight relay (dimmer)
73Fuse (ignition)
74Fuse (signal)
75Fuse (headlight)
76Radiator fan motor relay
77Fuse (radiator fan motor left)
78Fuse (radiator fan motor light)
79Radiator fan motor 2
80Radiator fan motor 1
81Ground
COLOR CODE
B Black. . . . .
Br Brown. . . .
Ch Chocolate. . .
Dg Dark green. . .
G Green. . . .
Gy Gray. . .
L Blue. . . . .
Lg Light green. . . .
O Orange. . . .
P Pink. . . . .
R Red. . . . .
Sb Sky blue. . . .
W White. . . .
Y Yellow. . . . .
B / G Black / Green. .
B / L Black / Blue. . .
B / R Black / Red. .
B / W Black / White. .
B / Y Black / Yellow. .
Br / G Brown / Green.
Br / L Brown / Blue. .
Br / R Brown / Red. .
Br / W Brown / White.
G / B Green / Black. .
G / R Green / Red. .
G / W Green / White. . G / Y Green / Yellow. .
Gy / B Gray / Black.
Gy / G Gray / Green.
Gy / R Gray / Red.
L / B Blue / Black. . .
L / R Blue / Red. .
L / W Blue / White. .
L / Y Blue / Yellow. . .
O / B Orange / Black. .
O / G Orange / Green. .
P / W Pink / White. .
R / B Red / Black. .
R / G Red / Green. .
R / L Red / Blue. .
R / W Red / White. .
R / Y Red / Yellow. .
Sb / W Sky blue / White.
W / B White / Black. .
W / R White / Red. .
W / Y White / Yellow. .
Y / B Yellow / Black. .
Y / G Yellow / Green. .
Y / L Yellow / Blue. . .
Y / R Yellow / Red. .
Y / W Yellow / White. .
YZF-R1S / YZF-R1SC WIRING DIAGRAM
1Main switch
2A.C. magneto
3Rectifier / regulator
4Fuse (main)
5Fuse (backup)
6Battery
7Fuse (fuel injection)
8Starter relay
9Starter motor
10Starting circuit cut-off relay
11Neutral switch
12Sidestand switch
13Fuel pump
14E.C.U
15Ignition coil #1
16Ignition coil #2
17Ignition coil #3
18Ignition coil #4
19Spark plug
20Injector #1
21Injector #2
22Injector #3
23Injector #4
24Air induction system solenoid
25Sub-throttle position sensor
26EXUP servo motor
27Speed sensor
28Coolant temperature sensor
29Intake air temperature sensor
30Option switch
31Crankshaft position sensor
32Throttle position sensor
33Intake air pressure sensor
34Atmospheric pressure sensor
35Cylinder identification sensor
36Lean angle cut-off switch
37Meter assembly
38Fuel level warning light
39Oil level warning light
40Neutral indicator light
41Tacho meter
42Shift timing indicator light
43Multi function meter
44Engine trouble warning light
45Coolant temperature indicator light
46Hi beam indicator light
47Turn signal indicator light (left)
48Turn signal indicator light (light)
49Meter light
50Oil level switch
51Right handlebar switch
52Front brake light switch
53Engine stop switch
54Start switch
55Turn signal relay
56Left handlebar switch
57Dimmer switch
58Horn switch
