check engine light YAMAHA YZF-R1SC 2004 Service Manual

CHECKING THE CONDITION OF THE BULB SOCKETS 8-6. . . . . . .
CHECKING THE LEDs 8-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IGNITION SYSTEM8-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM 8-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 8-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ELECTRIC STARTING SYSTEM8-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM 8-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STARTING CIRCUIT CUT-OFF SYSTEM OPERATION 8-15. . . . . . . . .
TROUBLESHOOTING 8-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STARTER MOTOR8-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE STARTER MOTOR 8-21. . . . . . . . . . . . . . . . . . . . . . . . .
ASSEMBLING THE STARTER MOTOR 8-22. . . . . . . . . . . . . . . . . . . . . .
CHARGING SYSTEM8-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM 8-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 8-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LIGHTING SYSTEM8-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM 8-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 8-29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE LIGHTING SYSTEM 8-31. . . . . . . . . . . . . . . . . . . . . . . .
SIGNALING SYSTEM8-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM 8-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 8-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE SIGNALING SYSTEM 8-36. . . . . . . . . . . . . . . . . . . . . .
COOLING SYSTEM8-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM 8-43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 8-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FUEL PUMP SYSTEM8-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM 8-48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FUEL PUMP SYSTEM 8-49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 8-50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE FUEL PUMP 8-52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SELF-DIAGNOSIS8-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 8-54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 9
TROUBLESHOOTING
STARTING FAILURES9-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ENGINE 9-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FUEL SYSTEM 9-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ProCarManuals.com

3-2
NOTE:
GENERAL MAINTENANCE AND LUBRICATION CHART
CHK
ADJ
NOTE:
INITIALODOMETER READINGS
No.ITEMROUTINE600 mi
(1000 km)
or
1 month4000 mi
(7000 km)
or
6 months8000 mi
(13000 km)
or
12 months12000 mi
(19000 km)
or
18 months16000 mi
(25000 km)
or
24 months20000 mi
(31000 km)
or
30 months
9*Swingarm pivot
bearings
(See page 4-71)
Check bearing assemblies for looseness.
Moderately repack with lithium-soap-based
grease.
Repack.
10Drive chain
(See page 3-49, 50)
Check chain slack/alignment and condition.
Adjust and lubricate chain with a special O-
ring chain lubricant thoroughly.Every 600 mi (800 km) and after washing the motorcycle or riding in the rain
11*Steering bearings
(See page 3-51)
Check bearing assembly for looseness.
Moderately repack with lithium-soap-based
grease every 16000 mi (25000 km) or 24
months.



Repack.

12*Steering damper
(See page 4-60)
Check operation and for oil leakage.





13*Chassis fasteners
(See page 2-23)
Check all chassis fitting and fasteners.
Correct if necessary.





14Brake and clutch
lever pivot shafts
(See page 3-61)
Apply lithium-soap-based grease (all-purpose
grease) lightly.





15Sidestand pivot(See page 3-61)

Check operation.

Apply lithium-soap-based grease (all-pur-
pose grease) lightly.





16*Sidestand switch
(See page 3-61, 8-4)
Check operation and replace if necessary.






17*Front fork
(See page 3-53)
Check operation and for oil leakage.
Replace if necessary.





18*Shock absorber
assembly
(See page 3-56, 4-67)
Check operation and for oil leakage.
Replace if necessary.





19*Rear suspension
link pivots
(See page 4-71)
Check operation.
Correct if necessary.


20Engine oil
(See page 3-26, 28)
Change (warm engine before draining.)






21*Engine oil filter cartridge
(See page 3-28)
Replace.



22*Cooling system

Check hoses for cracks or damage.
Replace if necessary.





22*Cooling system(See page 3-37, 38, 39)
Change with ethylene glycol antifreeze cool-
ant every 24 months.Change.
23*EXUP system
(See page 3-36)
Check operation, cable free play and pulley
position.
Every 12000 mi (19000 km)
24*Control cables
(See page 3-61)
Apply Yamaha chain and cable lube or en-
gine oil SAE 10W-30 thoroughly.






25*Throttle grip housing
and cable
(See page 3-22)
Check operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.





* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.
From 24000 mi (37000 km) or 36 months, repeat the maintenance intervals starting from 8000 mi
(13000 km) or 12 months.
Air filter

This model’s air filter is equipped with a disposable oil-coated paper element, which must not be
cleaned with compressed air to avoid damaging it.

The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
Hydraulic brake service

After disassembling the brake master cylinders and calipers, always change the fluid. Regularly
check the brake fluid levels and fill the reservoirs as required.

Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.

Replace the brake hoses every four years and if cracked or damaged.
ProCarManuals.com

7-4
30: Lean angle cut-off switch
(latch up detected)
41: Lean angle cut-off switch
(open or short circuit)
50: ECU internal malfunction
(memory check error)
FUEL INJECTION SYSTEMFI
EAS00899
ECU’S SELF-DIAGNOSTIC FUNCTION
The ECU is equipped with a self-diagnostic function in order to ensure that the engine control system is
operating normally. If this function detects a malfunction in the system, it immediately operates the en-
gine under substitute characteristics and illuminates the engine trouble warning light to alert the rider
that a malfunction has occurred in the system. Once a malfunction has been detected, a fault code is
stored in the memory of the ECU.

To inform the rider that the fuel injection system is not functioning, the engine trouble warning light
flashes when the start switch is being pushed to start the engine.

If a malfunction is detected in the system by the self-diagnostic function, this mode provides an ap-
propriate substitute characteristic operation, and alerts the rider of the detected malfunction by illumi-
nating an engine trouble warning light.

After the engine has been stopped, the fault code number appears from the lowest value in order of
precedence on the LCD meter. Once a fault code has been displayed, it remains stored in the memory
of the ECU until it is deleted.
EAS00900
Engine trouble warning light indication and FI system operating condition
Warning light
indication
ECU’s operationFI operationVehicle operation
Flashing*Warning provided
when unable to start
engineOperation stoppedUnable
Remains ONMalfunction detectedOperated with
substitute
characteristics
in accordance with the
description of the
malfunctionAble / Unable depend-
ing on the self-diag-
nostic fault code
* The warning light flashes when any one of the conditions listed below is present and the start switch is
pushed.
11: Cylinder identification sensor
12: Crankshaft position sensor
19: Sidestand switch
(open circuit in wire to ECU)
EAS00901
Checking for a defective engine trouble warning light bulb
The engine trouble warning light comes on for 1.4 seconds after the main switch has been turned “ON”
and when the start switch is being pushed. If the warning light does not come on under these condi-
tions, the warning light bulb may be defective.
ProCarManuals.com

7-6
FUEL INJECTION SYSTEMFI
Fault
Code No.ItemSymptomFail-safe actionAble / unable
to startAble / unable
to drive
46Vehicle system power
supply (Monitor voltage)Power supply to the FI system is not
normal.--AbleAble
47Sub-throttle servo motor
potention (open or short
circuit)sub-throttle servo motor potention-
open or short circuit detected.
Turn the sub-throttle servo motor
toward the close side for 4 seconds
and then stop it.AbleAble
48
Sub-throttle servo motor
(lock)A lock of the sub-throttle servo motor is
detected.
Perform the preventative control
against motor locking.
(Perform the lock release operation
twice every 100 seconds.)
AbleAble
50ECU internal
malfunction (memory
check error)Faulty ECU memory. When this
malfunction is detected, the code
number might not appear on the meter.--UnableUnable
—
Start unable warningRelay is not turned ON even if the crank
signal is input while the start switch is
turned ON.
When the start switch is turned ON
while an error is detected with the fault
code of No.11, 12, 19, 30, 41 or 50.Engine trouble warning light flashes
when the start switch is turned ON.
UnableUnable
Communication error with the meter
Fault
Code No.ItemSymptomFail-safe actionAble / unable
to startAble / unable
to drive
Er-1ECU internal malfunction
(output signal error)No signals are received from the ECU.–UnableUnable
Er-2ECU internal malfunction
(output signal error)No signals are received from the ECU
within the specified duration.–UnableUnable
Er-3ECU internal malfunction
(output signal error)Data from the ECU cannot be received
correctly.–UnableUnable
Er-4ECU internal malfunction
(input signal error)Non-registered data has been received
from the meter.–UnableUnable
ProCarManuals.com

7-7
Engine operation is not normal or the engine trouble warning light is on.
* Engine trouble warning light may not come on even if the engine operation is not normal.
The engine trouble warning light comes on.
Check the fault code number displayed on the me-
ter.
Identify the probable cause of malfunction. (Refer
to the “Diagnostic fault code table”.)
Check and repair the probable case of malfunc-
tion.
Fault code No.
appearFault code No.
disappear
Check and repair.
(Refer to “TROU-
BLESHOOTING DE-
TAILS”.)
Monitor the operation
of the sensors and
actuators in the diag-
nostic mode. (Refer
to “Diagnostic mode
table” in chapter 7)Check and repair.
(Refer to “FAIL-SAFE
ACTIONS TABLE”.)
Perform ECU reinstatement action. (Refer to “Re-
instatement method” in “TROUBLESHOOTING
DETAILS”.)
Turn the main switch to “OFF”, turn the main switch
back to “ON”, and then check if the fault code num-
ber is still displayed.
Erasing the malfunction history:*
The malfunction history is stored even if the main
switch is turned OFF.
The malfunction history must be erased in the
diagnostic mode. (Refer to the “Diagnostic mode
table (Diagnostic code No.62)”)Repairs completed
The engine trouble warning light does not come
on.
Check the operation of following sensors and ac-
tuators in the diagnostic mode (Refer to “Diagnos-
tic mode table” in chapter 7.)
Malfunction of en-
gineDefective sensor
or actuator
Check and repair
the inner parts of
engine. (Refer to
Chapter 5)Check and repair
the corresponding
sensor or actua-
tor.
* Operated when the engine trouble warning light is on.
Fault code
number displayed
Fault code number not displayed
OKNG
OK
OK
Check the engine condition.
OK NG
01: Throttle position
sensor (throttle
angle)
03: Intake air pressure
07: Vehicle speed pulse
09: Fuel system volt-
age (battery bolt)
21: Neutral switch
30: Ignition coil #1
31: Ignition coil #232: Ignition coil #3
33: Ignition coil #4
36: Injector #1
37: Injector #2
38: Injector #3
39: Injector #4
48: Al system solenoid
53: EXUP servo motor
56: Sub-throttle servo
motor
FUEL INJECTION SYSTEMFI
EAS00904
TROUBLESHOOTING CHART
ProCarManuals.com

7-12
FUEL INJECTION SYSTEMFI
NOTE: Diagnostic mode table
Switch the meter display from the regular mode to the diagnosis mode. To switch the display, refer to
“DIAGNOSTIC MODE”.

Check the intake air temperature and coolant temperature as close as possible to the intake air tem-
perature sensor and the coolant temperature sensor respectively.

If it is not possible to check it with an atmospheric pressure gauge, judge it by using 101.3 kPa as the
standard.

If it is not possible to check the intake air temperature, use the ambient temperature as reference.
Diagnostic
codeItemDescription of actionData displayed on meter
(reference value)
01
Throttle angleDisplays the throttle angle.

Check with throttle fully closed.

Check with throttle fully open.0
125 degrees

Fully closed position (15
18)

Fully open position (95
100)
02
Atmospheric
pressureDisplays the atmospheric pressure.
* Use an atmospheric pressure gauge to check the
atmospheric pressure.Compare it to the value
displayed on the meter.
03
Intake air pressureDisplays the intake air pressure.
Engine stop switch is on.
* Generate the pressure difference by cranking the engine
with the starter, without actually starting the engine.
Not cranking-atmospheric
pressure

Cranking-intake air pressure It
changes at the value whitch is
smaller than in the atomo-
spheric pressure.
05Intake temperatureDisplays the intake air temperature.
* Check the temperature in the air cleaner case.Compare it to the value
displayed on the meter.
06Coolant temperatureDisplays the coolant temperature.
* Check the temperature of the coolant.Compare it to the value
displayed on the meter.
07
Vehicle speed pulseDisplays the accumulation of the vehicle pulses that are
generated when the tire is spun.(0
999; resets to 0 after 999)
OK if the numbers appear on
the meter.
08Lean angle cut-off
switchDisplays the lean angle cut-off switch values.Upright: 0.4
1.4 V
Overturned: 3.7
4.4 V
09Fuel system voltage
(battery voltage)Displays the fuel system voltage (battery voltage).
Engine stop switch is on.0
18.7 V
Normally, approximately 12.0 V
20Sidestand switchDisplays that the switch is ON or OFF. (When the gear is in a
position other than neutral.)Stand retracted: ON
Stand extended: OFF
21Neutral switchDisplays that the switch is ON or OFF.Neutral: ON
In gear: OFF
30
Ignition coil #1After the engine stop switch has been turned from OFF to
ON, it actuates ignition coil #1 for five times every second
and illuminates the engine trouble warning light.
* Connect an ignition checker.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check that spark is generated,
5 times with the engine stop
switch ON.
31
Ignition coils #2After the engine stop switch has been turned from OFF to
ON, it actuates ignition coil #2 for five times every second
and illuminates the engine trouble warning light.
* Connect an ignition checker.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check that spark is generated,
5 times with the engine stop
switch ON.
ProCarManuals.com

7-13
FUEL INJECTION SYSTEMFI
Diagnostic
codeItemDescription of actionData displayed on meter
(reference value)
32
Ignition coil #3After the engine stop switch has been turned from OFF to
ON, it actuates ignition coil #3 for five times every second
and illuminates the engine trouble warning light.
* Connect an ignition checker.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check that spark is generated,
5 times with the engine stop
switch ON.
33
Ignition coil #4After the engine stop switch has been turned from OFF to
ON, it actuates ignition coil #4 for five times every second
and illuminates the engine trouble warning light.
* Connect an ignition checker.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check that spark is generated,
5 times with the engine stop
switch ON.
36
Injector #1After the engine stop switch has been turned from OFF to
ON, it actuates the injector #1 five times every second and
illuminates the engine trouble warning light.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the operating sound of
the injector five times with
engine stop switch ON.
37
Injector #2After the engine stop switch has been turned from OFF to
ON, it actuates the injector #2 five times every second and
illuminates the engine trouble warning light.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the operating sound of
the injector five times with
engine stop switch ON.
38
Injector #3After the engine stop switch has been turned from OFF to
ON, it actuates the injector #3 five times every second and
illuminates the engine trouble warning light.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the operating sound of
the injector five times with
engine stop switch ON.
39
Injector #4After the engine stop switch has been turned from OFF to
ON, it actuates the injector #4 five times every second and
illuminates the engine trouble warning light.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the operating sound of
the injector five times with
engine stop switch ON.
48
AI system solenoidAfter the engine stop switch has been turned from OFF to
ON, it actuates the AI system solenoid five times every
second and illuminates the engine trouble warning light.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the operating sound of
the AI system solenoid 5 times
with the engine stop
switch ON.
50
Fuel injection system
relayAfter the engine stop switch has been turned from OFF to
ON, it actuates the fuel injection system relay five times
every second and illuminates the engine trouble warning
light (the light is OFF when the relay is ON, and the light is
ON when the relay is OFF).
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the fuel injection system
relay operating sound 5 times
with the engine stop
switch ON.
51
Radiator fan motor
relayAfter the engine stop switch has been turned from OFF to
ON, it actuates the radiator fan motor relay five times every
5 seconds and illuminates the engine trouble warning light.
(ON 2 seconds, OFF 3 seconds)
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the radiator fan motor
relay operating sound 5 times
with the engine stop
switch ON.
(At that time, the fan motor
rotates.)
ProCarManuals.com

7-14
FUEL INJECTION SYSTEMFI
Diagnostic
codeItemDescription of actionData displayed on meter
(reference value)
52
Headlight relay 1After the engine stop switch has been turned from OFF to
ON, it actuates the headlight relay five times every
5 seconds and illuminates the engine trouble warning light.
(ON 2 seconds, OFF 3 seconds)
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Check the headlight relay
operating sound 5 times with the
engine stop switch ON.
(At that time, the headlight turns
ON.)
53
EXUP servo motorAfter the engine stop switch has been turned from OFF to
ON, it actuates the servo motor turns to open side and to
close side.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back ON.Turn on the engine trouble
warning light while servo motor
is operated. (Operating angle is
displayed on the LCD meter)
56
Sub-throttle servo
motorAfter the engine stop switch has been turned from OFF to
ON, it actuates the servo motor turns to open side and to
close side.
* If the engine stop switch is ON, turn it OFF once, and then
turn it back on.Turn on the engine trouble warn-
ing light while servo motor is op-
erated (Operating angle is dis-
played on the LCD meter).
60
EEPROM fault code
display
Transmits the abnormal portion of the data in the E2PROM
that has been detected as a self-diagnostic fault code 44.

If multiple malfunctions have been detected, different
codes are displayed at 2-second intervals, and this
process is repeated.(01
04) Displays the cylinder
number.
(00) Displays when there is no
malfunction.
61
Malfunction history
code display
Displays the codes of the history of the self-diagnosis
malfunctions (i.e., a code of a malfunction that occurred
once and which has been corrected).

If multiple malfunctions have been detected, different
codes are displayed at 2-second intervals, and this
process is repeated.11
50
(00) Displays when there is no
malfunction.
62
Malfunction history
code erasure
Displays the total number of codes that are being detected
through self diagnosis and the fault codes in the past
history.

Erases only the history codes when the engine stop switch
is turned from OFF to ON. If the engine stop switch is ON,
turn it OFF once, and then turn it back ON.00
25
(00) Displays when there is no
malfunction.
70Control number
Displays the program control number.00
255
ProCarManuals.com

8-4
11Neutral switch
12Rear brake light switch
13Fuse box
1Main switch
2Horn switch
3Dimmer switch
4Turn signal switch
5Clutch switch
6Sidestand switch
7Engine stop switch
8Front brake light switch
9Start switch
10Oil level switch
CHECKING THE SWITCHESELEC
EAS00731
CHECKING THE SWITCHES
Check each switch for damage or wear, proper connections, and also for continuity between the termi-
nals. Refer to “CHECKING SWITCH CONTINUITY”.
Damage / wear
Repair or replace.
Improperly connected
Properly connect.
Incorrect continuity reading
Replace the switch.
ProCarManuals.com

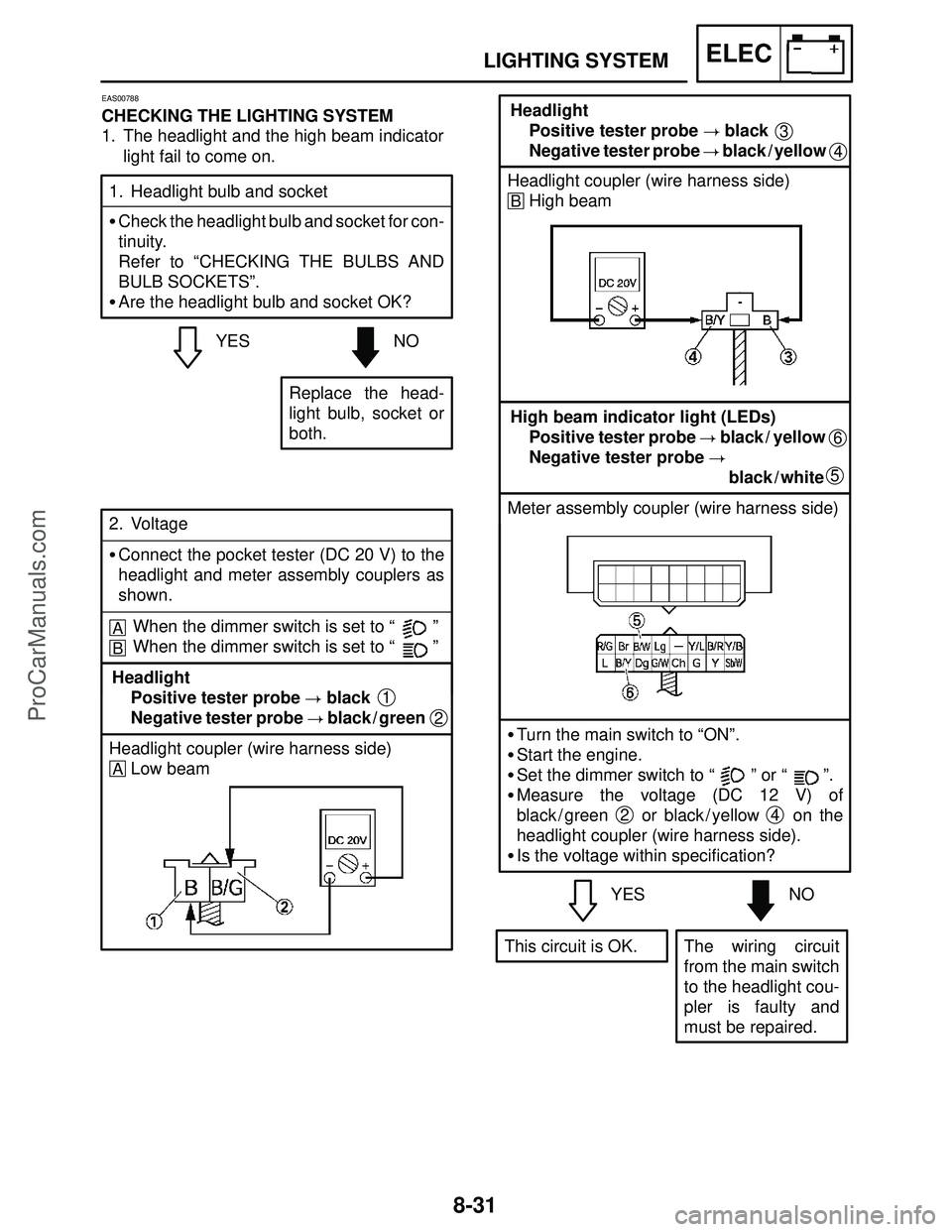

8-31
High beam indicator light (LEDs)
Positive tester probe
black / yellow
Negative tester probe

black / white
YESNO 1. Headlight bulb and socket

Check the headlight bulb and socket for con-
tinuity.
Refer to “CHECKING THE BULBS AND
BULB SOCKETS”.

Are the headlight bulb and socket OK?
Replace the head-
light bulb, socket or
both.
YESNO 2. Voltage

Connect the pocket tester (DC 20 V) to the
headlight and meter assembly couplers as
shown.
The wiring circuit
from the main switch
to the headlight cou-
pler is faulty and
must be repaired.
When the dimmer switch is set to “ ”
When the dimmer switch is set to “ ”
Headlight coupler (wire harness side)
Low beam
Headlight
Positive tester probe
black
Negative tester probe
black / green
1
2
Meter assembly coupler (wire harness side)

Turn the main switch to “ON”.

Start the engine.

Set the dimmer switch to “ ” or “ ”.

Measure the voltage (DC 12 V) of
black / green or black / yellow on the
headlight coupler (wire harness side).

Is the voltage within specification?
2
This circuit is OK.
A
B
Headlight
Positive tester probe
black
Negative tester probe
black / yellow
A
Headlight coupler (wire harness side)
High beam
B
6
5
3
4
4
LIGHTING SYSTEMELEC
EAS00788
CHECKING THE LIGHTING SYSTEM
1. The headlight and the high beam indicator
light fail to come on.
ProCarManuals.com
