wheel YAMAHA YZF-R1SC 2004 Service Manual

22
1
3
5
7
9
2
4
8
6
2425
2321
192018
161715
1413
1112
10
GEN
INFOSPEC
ENG
FI ELECCOOL CHK
ADJ
TRBL
SHTG
CHAS
EAS00008
SYMBOLS
The following symbols are not relevant to every
vehicle.
Symbols
1 to 9 indicate the subject of each
chapter.
1General information
2Specifications
3Periodic checks and adjustments
4Chassis
5Engine
6Cooling system
7Fuel injection system
8Electrical system
9Troubleshooting
Symbols 10 to 17 indicate the following.
10Serviceable with engine mounted
11Filling fluid
12Lubricant
13Special tool
14Tightening torque
15Wear limit, clearance
16Engine speed
17Electrical data
Symbols 18 to 23 in the exploded diagrams indi-
cate the types of lubricants and lubrication
points.
18Engine oil
19Gear oil
20Molybdenum-disulfide oil
21Wheel-bearing grease
22Lithium-soap- based grease
23Molybdenum-disulfide grease
Symbols 24 to 25 in the exploded diagrams indi-
cate the following.
24Apply locking agent (LOCTITE)
25Replace the part
ProCarManuals.com

CHASSIS3-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE FRONT BRAKE 3-42. . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE REAR BRAKE 3-43. . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE BRAKE FLUID LEVEL 3-44. . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE REAR BRAKE LIGHT SWITCH 3-45. . . . . . . . . . . . .
CHECKING THE FRONT AND REAR BRAKE PADS 3-45. . . . . . . . . . .
CHECKING THE FRONT AND REAR BRAKE HOSES 3-46. . . . . . . . .
BLEEDING THE HYDRAULIC BRAKE SYSTEM 3-47. . . . . . . . . . . . . . .
ADJUSTING THE SHIFT PEDAL 3-48. . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE DRIVE CHAIN SLACK 3-49. . . . . . . . . . . . . . . . . . . . .
LUBRICATING THE DRIVE CHAIN 3-50. . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING AND ADJUSTING THE STEERING HEAD 3-51. . . . . . . . .
CHECKING THE FRONT FORK 3-53. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE FRONT FORK LEGS 3-54. . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE REAR SHOCK ABSORBER ASSEMBLY 3-56. . . . .
CHECKING THE TIRES 3-58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE WHEELS 3-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING AND LUBRICATING THE CABLES 3-61. . . . . . . . . . . . . . .
LUBRICATING THE LEVERS AND PEDALS 3-61. . . . . . . . . . . . . . . . . .
LUBRICATING THE SIDESTAND 3-61. . . . . . . . . . . . . . . . . . . . . . . . . . . .
LUBRICATING THE REAR SUSPENSION 3-61. . . . . . . . . . . . . . . . . . . .
ELECTRICAL SYSTEM3-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING AND CHARGING THE BATTERY 3-62. . . . . . . . . . . . . . . . .
CHECKING THE FUSES 3-67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPLACING THE HEADLIGHT BULBS 3-69. . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE HEADLIGHT BEAMS 3-70. . . . . . . . . . . . . . . . . . . . . .
CHAPTER 4
CHASSIS
FRONT WHEEL AND BRAKE DISCS4-1 . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOVING THE FRONT WHEEL 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE FRONT WHEEL 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE BRAKE DISCS 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLING THE FRONT WHEEL 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE FRONT WHEEL STATIC BALANCE 4-7. . . . . . . . .
REAR WHEEL AND BRAKE DISC4-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR WHEEL 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR BRAKE DISC AND REAR WHEEL SPROCKET 4-10. . . . . . . . .
REMOVING THE REAR WHEEL 4-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE REAR WHEEL 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECKING THE REAR WHEEL DRIVE HUB 4-13. . . . . . . . . . . . . . . . .
CHECKING AND REPLACING THE REAR WHEEL
SPROCKET 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLING THE REAR WHEEL 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTING THE REAR WHEEL STATIC BALANCE 4-14. . . . . . . . . . .
ProCarManuals.com

2-1
GENERAL SPECIFICATIONSSPEC
SPECIFICATIONS
GENERAL SPECIFICATIONS
ItemStandardLimit
Model code5VY4 (USA), 5VY5 (CAL)



Dimensions
Overall length
Overall width
Overall height
Seat height
Wheelbase
Minimum ground clearance
Minimum turning radius
2,065 mm (8.13 in)
720 mm (28.3 in)
1,105 mm (43.5 in)
835 mm (32.9 in)
1,395 mm (54.9 in)
135 mm (5.31 in)
3,400 mm (133.9 in)



























Weight
Wet (with oil and a full fuel tank)
Maximum load (except motorcycle)
193 kg (425 lb) (USA)
194 kg (428 lb) (CAL)
202 kg (445 lb) (USA)
201 kg (443 lb) (CAL)







ProCarManuals.com

2-11
CHASSIS SPECIFICATIONSSPEC
CHASSIS SPECIFICATIONS
ItemStandardLimit
Frame
Frame type
Caster angle
Trail
Diamond
24
97 mm (3.82 in)











Front wheel
Wheel type
Rim
Size
Material
Wheel travel
Wheel runout
Max. radial wheel runout
Max. lateral wheel runout
Cast wheel
17 M / C
MT3.50
Aluminum
120 mm (4.72 in)























1 mm (0.04 in)
0.5 mm (0.02 in)
Rear wheel
Wheel type
Rim
Size
Material
Wheel travel
Wheel runout
Max. radial wheel runout
Max. lateral wheel runout
Cast wheel
17 M / C
MT6.00
Aluminum
130 mm (5.12 in)























1 mm (0.04 in)
0.5 mm (0.02 in)
Front tire
Tire type
Size
Model (manufacturer)
Tire pressure (cold)
0  90 kg (0  198 lb)
90  202 kg (198  445 lb)
High-speed riding
Min. tire tread depth
Tubeless
120 / 70 ZR17 M / C (58W)
Pilot POWER C (MICHELIN)
D218FL (DUNLOP)
250 kPa (2.5 kgf / cm
2, 2.5 bar, 35.6 psi)
250 kPa (2.5 kgf / cm2, 2.5 bar, 35.6 psi)
250 kPa (2.5 kgf / cm2, 2.5 bar, 35.6 psi)




























1.6 mm (0.06 in)
Rear tire
Tire type
Size
Model (manufacturer)
Tire pressure (cold)
0  90 kg (0  198 lb)
90  202 kg (198  445 lb)
High-speed riding
Min. tire tread depth
Tubeless
190 / 50 ZR17 M / C (73W)
Pilot POWER G (MICHELIN)
D218L (DUNLOP)
290 kPa (2.9 kgf / cm
2, 2.9 bar, 41.3 psi)
290 kPa (2.9 kgf / cm2, 2.9 bar, 41.3 psi)
290 kPa (2.9 kgf / cm2, 2.9 bar, 41.3 psi)




























1.6 mm (0.06 in)
ProCarManuals.com

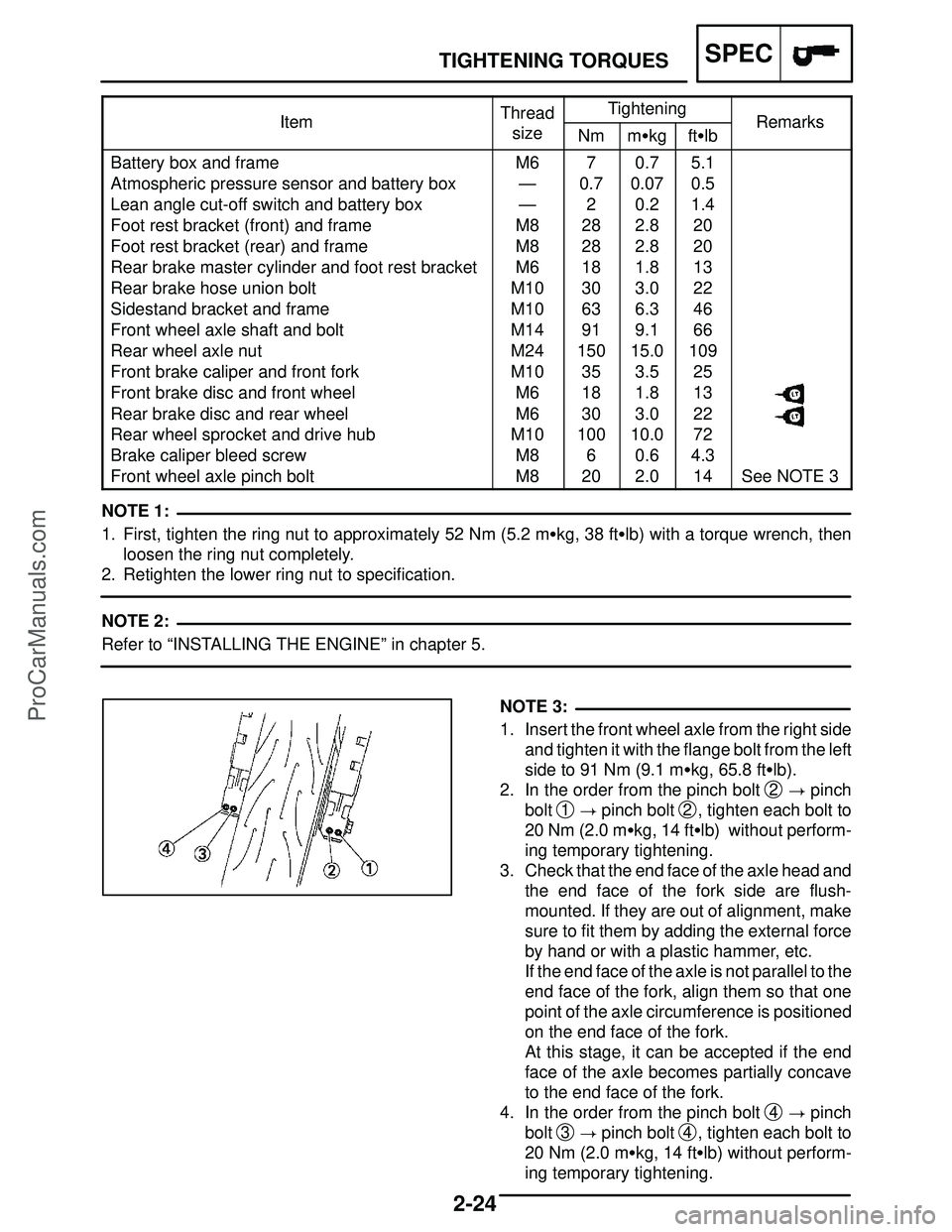

2-24
TIGHTENING TORQUESSPEC
NOTE 1:
NOTE 2:
NOTE 3:
ItemThreadTighteningRemarksItemsizeNmm
kgft
lbRemarks
Battery box and frameM670.75.1
Atmospheric pressure sensor and battery box—0.70.070.5
Lean angle cut-off switch and battery box—20.21.4
Foot rest bracket (front) and frameM8282.820
Foot rest bracket (rear) and frameM8282.820
Rear brake master cylinder and foot rest bracketM6181.813
Rear brake hose union boltM10303.022
Sidestand bracket and frameM10636.346
Front wheel axle shaft and boltM14919.166
Rear wheel axle nutM2415015.0109
Front brake caliper and front forkM10353.525
Front brake disc and front wheelM6181.813
Rear brake disc and rear wheelM6303.022
Rear wheel sprocket and drive hubM1010010.072
Brake caliper bleed screwM860.64.3
Front wheel axle pinch boltM8202.014See NOTE 3
1. First, tighten the ring nut to approximately 52 Nm (5.2 m
kg, 38 ft
lb) with a torque wrench, then
loosen the ring nut completely.
2. Retighten the lower ring nut to specification.
Refer to “INSTALLING THE ENGINE” in chapter 5.
1. Insert the front wheel axle from the right side
and tighten it with the flange bolt from the left
side to 91 Nm (9.1 m
kg, 65.8 ft
lb).
2. In the order from the pinch bolt
2
pinch
bolt
1
pinch bolt 2, tighten each bolt to
20 Nm (2.0 m
kg, 14 ft
lb) without perform-
ing temporary tightening.
3. Check that the end face of the axle head and
the end face of the fork side are flush-
mounted. If they are out of alignment, make
sure to fit them by adding the external force
by hand or with a plastic hammer, etc.
If the end face of the axle is not parallel to the
end face of the fork, align them so that one
point of the axle circumference is positioned
on the end face of the fork.
At this stage, it can be accepted if the end
face of the axle becomes partially concave
to the end face of the fork.
4. In the order from the pinch bolt
4
pinch
bolt
3
pinch bolt 4, tighten each bolt to
20 Nm (2.0 m
kg, 14 ft
lb) without perform-
ing temporary tightening.
ProCarManuals.com

2-25
LUBRICATION POINTS AND LUBRICANT TYPESSPEC
EAS00031
LUBRICATION POINTS AND LUBRICANT TYPES
ENGINE
Lubrication point
Lubricant
Oil seal lips
O-rings
Bearings
Crankshaft pins
Piston surfaces
Piston pins
Crankshaft journals
Camshaft lobes
Camshaft journals
Valve stems (intake and exhaust)
Valve stem ends (intake and exhaust)
Water pump impeller shaft
Oil pump rotors (inner and outer)
Oil pump housing
Oil strainer
Clutch (pull rod)
Oil / water pump drive sprocket and washer
Clutch (thrust plate)
Starter clutch idle gear inner surface
Starter clutch assembly
Primary driven gear
Transmission gears (wheel and pinion)
Main axle and drive axle
Shift drum
Shift forks and shift fork guide bars
Shift shaft
Shift shaft boss
Cylinder head cover mating surfaceYamaha bond
No.1215
Crankcase mating surfaceYamaha bond
No.1215
Clutch cover (crankcase mating surface)Yamaha bond
No.1215
Generator rotor cover (crankcase mating surface)Yamaha bond
No.1215
Pickup rotor coverYamaha bond
No.1215
ProCarManuals.com

2-26
LUBRICATION POINTS AND LUBRICANT TYPESSPEC
EAS00032
CHASSIS
Lubrication point
Lubricant
Steering bearings and bearing races (upper and lower)
Throttle grip inner surface
Brake lever pivoting point and metal-to-metal moving parts
Clutch lever pivoting point and metal-to-metal moving parts
Engine mount bolts (rear upper and lower)
Relay arm, connecting rod and rear shock absorber collar
Pivot shaft
Swingarm pivot bearing
Swingarm head pipe end, oil seal and bush
Oil seal (relay arm, connecting arm and rear shock absorber)
Seat lock assembly moving parts
Sidestand pivoting pint and metal-to-metal moving parts
Link and sidestand switch contact point
Sidestand hook and spring
Shift shaft joint
Front wheel oil seal (right and left)
Front axle shaft
Rear wheel oil seal
Rear wheel drive hub oil seal
Rear wheel drive hub mating surface
ProCarManuals.com

3-1
3
INTRODUCTION / PERIODIC MAINTENANCE CHART FOR THE EMISSION
CONTROL SYSTEM / GENERAL MAINTENANCE AND LUBRICATION CHARTCHK
ADJ
EAS00036
PERIODIC CHECKS AND ADJUSTMENTS
INTRODUCTION
This chapter includes all information necessary to perform recommended checks and adjustments. If
followed, these preventive maintenance procedures will ensure more reliable vehicle operation, a
longer service life and reduce the need for costly overhaul work. This information applies to vehicles
already in service as well as to new vehicles that are being prepared for sale, All service technicians
should be familiar with this entire chapter.
PERIODIC MAINTENANCE CHART FOR THE EMISSION CONTROL SYSTEM
INITIALODOMETER READINGS
No.ITEMROUTINE600 mi
(1000 km)
or
1 month4000 mi
(7000 km)
or
6 months8000 mi
(13000 km)
or
12 months12000 mi
(19000 km)
or
18 months16000 mi
(25000 km)
or
24 months20000 mi
(31000 km)
or
30 months
1*Fuel line
(See page 3-33)
Check fuel hoses for cracks or damage.

Replace if necessary.





2*Spark plugs
(See page 3-23)
Check Condition.

Adjust gap and clean.

Replace every 8000 mi (13000 km) or 12
months.
Replace.
Replace.

3*Valve clearance
(See page 3-11)
Check and adjust valve clearance when en-
gine is cold.Every 26600 mi (42000 km)
4*Crankcase breather
system
(See page 3-34)
Check breather hose for cracks or damage.

Replace if necessary.





5*Electronic fuel injection
(See page 3-17, 21)
Check and adjust engine idle speed and syn-
chronization.






6*Exhaust system
(See page 3-35)
Check for leakage.

Tighten if necessary.

Replace gasket(s) if necessary.





7*Evaporative emission
control system
(For California only)
Check control system for damage.

Replace if necessary.


8*Air induction system
(See page 7-46)
Check the air cut-off valve, reed valve, and
hose for damage.

Replace any damaged parts if necessary.


GENERAL MAINTENANCE AND LUBRICATION CHART
INITIALODOMETER READINGS
No.ITEMROUTINE600 mi
(1000 km)
or
1 month4000 mi
(7000 km)
or
6 months8000 mi
(13000 km)
or
12 months12000 mi
(19000 km)
or
18 months16000 mi
(25000 km)
or
24 months20000 mi
(31000 km)
or
30 months
1*Air filter element
(See page 3-32)
Check condition and damage.
Replace if necessary.





2*Clutch
(See page 3-31)
Check operation.
Adjust or replace cable.






3*Front brake
(See page 3-42, 44, 45)
Check operation, fluid level, and for fluid leak-
age.

Replace brake pads if necessary.






4*Rear brake
(See page 3-43, 44, 45)
Check operation, fluid level, and for fluid leak-
age.

Replace brake pads if necessary.






5*Brake hoses
Check for cracks or damage.




5*Brake hoses(See page 3-46)
Replace.Every 4 years
6*Wheels
(See page 4-3)
Check runout and for damage.
Replace if necessary.





7*Tires
(See page 3-58)
Check tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.






8*Wheel bearings
(See page 4-3)
Check bearings for smooth operation.
Replace if necessary.





ProCarManuals.com

3-49
ADJUSTING THE DRIVE CHAIN SLACK
CHK
ADJ
NOTE:
CAUTION:
WARNING
NOTE:
EAS00140
ADJUSTING THE DRIVE CHAIN SLACK
The drive chain slack must be checked at the
tightest point on the chain.
A drive chain that is too tight will overload
the engine and other vital parts, and one that
is too loose can skip and damage the swin-
garm or cause an accident. Therefore, keep
the drive chain slack within the specified
limits.
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the rear wheel is elevated.
2. Spin the rear wheel several times and find
the tightest position of drive chain.
3. Check:

drive chain slack
a
Out of specification
Adjust.
Drive chain slack
25
35 mm (0.98
1.38 in)
4. Adjust:

drive chain slack
a. Loosen the wheel axle nut
1.
b. Loosen both locknuts
2.
c. Turn both adjusting bolts
3 in direction a or
b until the specified drive chain slack is ob-
tained.
ProCarManuals.com

3-50
a
b
ADJUSTING THE DRIVE CHAIN SLACK /
LUBRICATING THE DRIVE CHAINCHK
ADJ
NOTE:
DirectionDrive chain is tightened.
DirectionDrive chain is loosened.
To maintain the proper wheel alignment, adjust
both sides evenly.
d. Tighten both locknuts to specification.
Locknut
16 Nm (1.6 m
kg, 12 ft
lb)
e. Tighten the wheel axle nut to specification.
Wheel axle nut
150 Nm (15 m
kg, 108 ft
lb)
EAS00142
LUBRICATING THE DRIVE CHAIN
The drive chain consists of many interacting
parts. If the drive chain is not maintained proper-
ly, it will wear out quickly. Therefore, the drive
chain should be serviced, especially when the
motorcycle is used in dusty areas.
This motorcycle has a drive chain with small
rubber O-rings between each side plate. Steam
cleaning, high-pressure washing, certain sol-
vents, and the use of a coarse brush can dam-
age these O-rings. Therefore, use only kero-
sene to clean the drive chain. Wipe the drive
chain dry and thoroughly lubricate it with engine
oil or chain lubricant that is suitable for O-ring
chains. Do not use any other lubricants on the
drive chain since they may contain solvents that
could damage the O-rings.
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
ProCarManuals.com
