YAMAHA YZF-R3 2018 Owners Manual

Specifications
8-1
8
Dimensions:
Overall length:2090 mm (82.3 in)
Overall width:
720 mm (28.3 in)
Overall height: 1135 mm (44.7 in)
Seat height: 780 mm (30.7 in)
Wheelbase:
1380 mm (54.3 in)
Ground clearance: 160 mm (6.30 in)
Minimum turning radius: 2.7 m (8.86 ft)
Wei ght:
Curb weight:
170 kg (375 lb)
Engine:
Combustion cycle:
4-stroke
Cooling system:
Liquid cooled
Valve train: DOHC
Cylinder arrangement: Inline
Number of cylinders:
2-cylinder
Displacement: 321 cm3
Bore × stroke:
68.0 × 44.1 mm (2.68 × 1.74 in)
Compression ratio:
11.2 : 1
Starting system: Electric starter
Lubrication system: Wet sump
Engine oil:
Recommended brand:
YAMALUBE
SAE viscosity grades: 10W-40
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Oil change: 1.80 L (1.90 US qt, 1.58 Imp.qt) With oil filter removal:
2.10 L (2.22 US qt, 1.85 Imp.qt)
Coolant quantity:
Coolant reservoir (up to the maximum level
mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
0.81 L (0.86 US qt, 0.72 Imp.qt)
Air filter:
Air filter element:Oil-coated paper element
Fuel:
Recommended fuel:Regular unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity:
14 L (3.7 US gal, 3.1 Imp.gal)
Fuel reserve amount: 3.0 L (0.79 US gal, 0.66 Imp.gal)
Fuel injection:
Throttle body:
ID mark:BR51 00
Spark plu g(s):
Manufacturer/model:
NGK/LMAR8A-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Clutch:
Clutch type:Wet, multiple-disc
Drivetrain:
Primary reduction ratio:
3.043 (70/23)
Final drive: Chain
Secondary reduction ratio: 3.071 (43/14)
Transmission type:
Constant mesh 6-speed
Gear ratio: 1st:
2.500 (35/14)
2nd: 1.824 (31/17)
3rd: 1.348 (31/23)
4th:
1.087 (25/23)
UBR5E0E0.book Page 1 Wednesday, July 5, 2017 11:10 AM

Specifications
8-2
8
5th:0.920 (23/25)
6th: 0.800 (24/30)
Chassis:
Frame type:Diamond
Caster angle: 25.0 °
Trail:
95 mm (3.7 in)
Front tire:
Type:Tubeless
Size: 110/70-17M/C (54H)
Manufacturer/model:
MICHELIN/PILOT STREET
Rear tire:
Type:Tubeless
Size:
140/70-17M/C (66H)
Manufacturer/model: MICHELIN/PILOT STREET
Loa din g:
Maximum load:
160 kg (353 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measure d on col d
tires):
1 person:
Front:
200 kPa (2.00 kgf/cm2, 29 psi)
Rear: 250 kPa (2.50 kgf/cm2, 36 psi)
2 persons: Front:200 kPa (2.00 kgf/cm2, 29 psi)
Rear: 250 kPa (2.50 kgf/cm2, 36 psi)
Front wheel:
Wheel type:Cast wheel
Rim size: 17M/C x MT2.75
Rear wheel:
Wheel type:Cast wheel Rim size:
17M/C x MT4.00
Front brake:
Type:
Hydraulic single disc brake
Specified brake fluid: DOT 4
Rear brake:
Type:
Hydraulic single disc brake
Specified brake fluid: DOT 4
Front suspension:
Type:
Telescopic fork
Spring:
Coil spring
Shock absorber: Hydraulic damper
Wheel travel: 130 mm (5.1 in)
Rear suspension:
Type:Swingarm
Spring: Coil spring
Shock absorber:
Hydraulic damper
Wheel travel: 125 mm (4.9 in)
Electrical system:
System voltage:
12 V
Ignition system: TCI
Charging system: AC magneto
Battery:
Model:GTZ8V
Voltage, capacity: 12 V, 7.0 Ah (10 HR)
Hea dlig ht:
Bulb type:
Halogen bulb
Bul b watta ge:
Headlight:
H7, 55.0 W (Hi)
Headlight: H7, 55.0 W (Lo)
UBR5E0E0.book Page 2 Wednesday, July 5, 2017 11:10 AM

Specifications
8-3
8
Brake/tail light:LED
Front turn signal light: 10.0 W
Rear turn signal light:
10.0 W
Auxiliary light: 5.0 W
Meter lighting: LED
Neutral indicator light:
LED
High beam indicator light: LED
Oil pressure warning light: LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Fuse(s):
Main fuse:
30.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 7.5 A
Ignition fuse:
15.0 A
Radiator fan motor fuse: 7.5 A
ABS control unit fuse: 7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse: 15.0 A
Backup fuse: 7.5 A
UBR5E0E0.book Page 3 Wednesday, July 5, 2017 11:10 AM

Consumer information
9-1
9
EAU53562

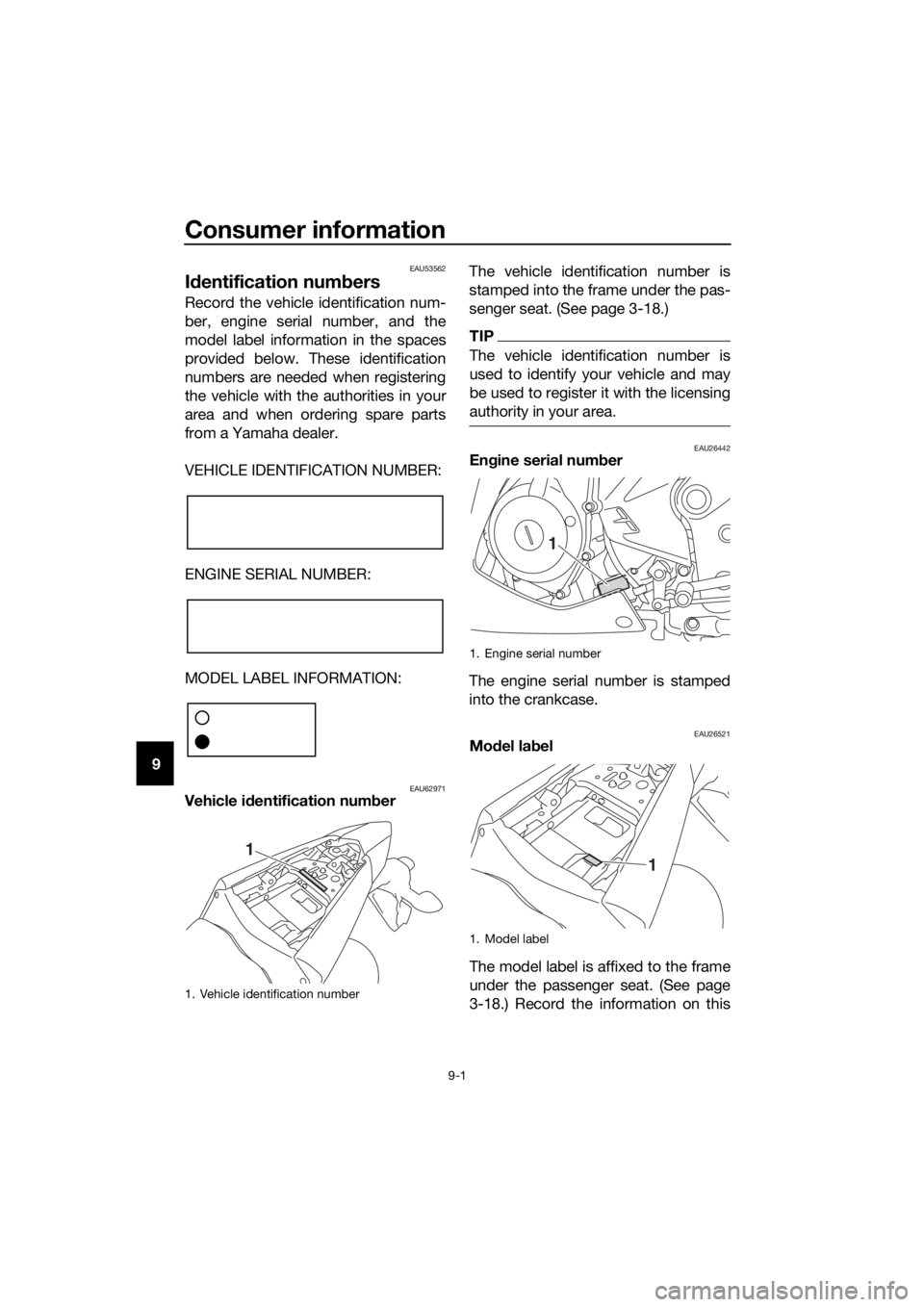

Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU62971Vehicle i dentification num ber The vehicle identification number is
stamped into the frame under the pas-
senger seat. (See page 3-18.)
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAU26442En
gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26521Mo del lab el
The model label is affixed to the frame
under the passenger seat. (See page
3-18.) Record the information on this
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
UBR5E0E0.book Page 1 Wednesday, July 5, 2017 11:10 AM

Consumer information
9-2
9
label in the space provided. This infor-
mation will be needed when ordering
spare parts from a Yamaha dealer.
EAU69910
Dia
gnostic connector
The diagnostic connector is located as
shown.
1. FI diagnostic connector
1
UBR5E0E0.book Page 2 Wednesday, July 5, 2017 11:10 AM

Consumer information
9-3
9
EAU74702
Vehicle data recor din g
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research and de-
velopment purposes. This data will be
uploaded only when a special Yamaha
diagnostic tool is attached to the vehi-
cle, such as when maintenance checks
or service procedures are performed.
Although the sensors and recorded
data will vary by model, the main data
points are:
 Vehicle status and engine perfor-
mance data
 Fuel-injection and emission-relat-
ed data
Yamaha will not disclose this data to a third party except:  With the consent of the vehicle
owner
 Where obligated by law
 For use by Yamaha in litigation
 For general Yamaha-conducted
research purposes when the data
is not related to an individual vehi-
cle nor owner
UBR5E0E0.book Page 3 Wednesday, July 5, 2017 11:10 AM

10-1
10
Index
A
ABS ...................................................... 3-14
ABS warning light ................................... 3-3
Air filter element and check hose,
replacing and cleaning ....................... 6-13
Auxiliary light bulb ................................ 6-35
B
Battery .................................................. 6-30
Brake and clutch levers,
checking and lubricating .................... 6-27
Brake and shift pedals, checking and lubricating .................... 6-26
Brake fluid, changing ........................... 6-23
Brake fluid level, checking ................... 6-22
Brake lever ........................................... 3-13
Brake lever free play, checking ............ 6-20
Brake light switches ............................. 6-20
Brake pedal .......................................... 3-14
C
Cables, checking and lubricating ......... 6-25
Canister .................................................. 6-8
Care ........................................................ 7-1
Catalytic converter ............................... 3-18
Clutch lever .......................................... 3-12
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-11
D
Data recording, vehicle .......................... 9-3
Diagnostic connector ............................. 9-2
Dimmer switch ..................................... 3-11
Drive chain, cleaning and lubricating ... 6-25
Drive chain slack .................................. 6-23
E
Engine break-in ...................................... 5-4
Engine oil and oil filter cartridge ............. 6-8
Engine serial number.............................. 9-1
Engine stop switch ............................... 3-12
Engine trouble warning light................... 3-3
F
Front and rear brake pads, checking ... 6-21
Front fork, checking ............................. 6-28
Fuel....................................................... 3-16
Fuel tank cap........................................ 3-15
Fuel tank overflow hose ....................... 3-17
Fuses, replacing ................................... 6-31
H
Handlebar switches.............................. 3-11
Headlight bulb, replacing ..................... 6-33
Helmet holders ..................................... 3-20
High beam indicator light ....................... 3-2 Horn switch........................................... 3-12
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-24
Indicator lights and warning lights .......... 3-2
L
License plate light bulb, replacing ........ 6-36
Luggage strap holders .......................... 3-23
M
Main switch/steering lock ....................... 3-1
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system .................................................. 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-4
N
Neutral indicator light.............................. 3-2
O
Oil pressure warning light ....................... 3-2
P
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch........................................... 3-11
R
Rear view mirrors .................................. 3-21
S
Safety information................................... 1-1
Seats ..................................................... 3-18
Shifting .................................................... 5-3
Shift pedal............................................. 3-13
Shift timing indicator light ....................... 3-4
Shock absorber assembly, adjusting ... 3-22
Sidestand .............................................. 3-23
Sidestand, checking and lubricating .... 6-27
Spark plugs, checking ............................ 6-7
Specifications ......................................... 8-1
Starting the engine.................................. 5-2
Start switch ........................................... 3-12
Steering, checking ................................ 6-29
Storage ................................................... 7-4
Storage compartment ........................... 3-21
Supporting the motorcycle ................... 6-37
Swingarm pivots, lubricating ................ 6-28
T
Tail/brake light ...................................... 6-35
Throttle grip and cable, checking and lubricating .................... 6-26
Throttle grip free play, checking ........... 6-15
Tires ...................................................... 6-16
UBR5E0E0.book Page 1 Wednesday, July 5, 2017 11:10 AM

Index
10-2
10
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-38
Troubleshooting charts ......................... 6-39
Turn signal indicator light ....................... 3-2
Turn signal light bulb, replacing............ 6-36
Turn signal switch ................................. 3-12
V
Valve clearance..................................... 6-15
Vehicle identification number ................. 9-1
W
Wheel bearings, checking..................... 6-29
Wheels .................................................. 6-18
UBR5E0E0.book Page 2 Wednesday, July 5, 2017 11:10 AM

UBR5E0E0.book Page 3 Wednesday, July 5, 2017 11:10 AM

DIC183
PRINTED IN INDONESIA2017.06
